Caterpillar

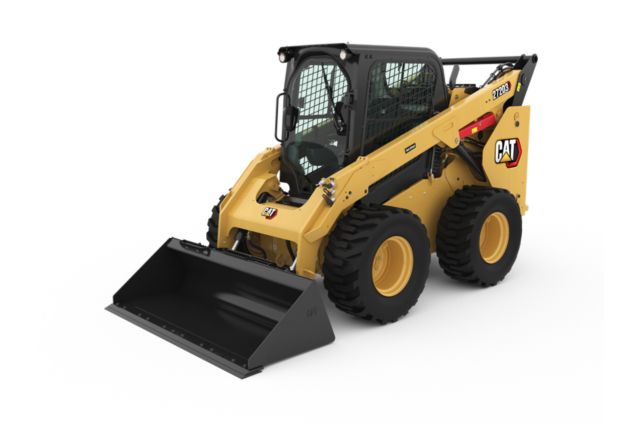

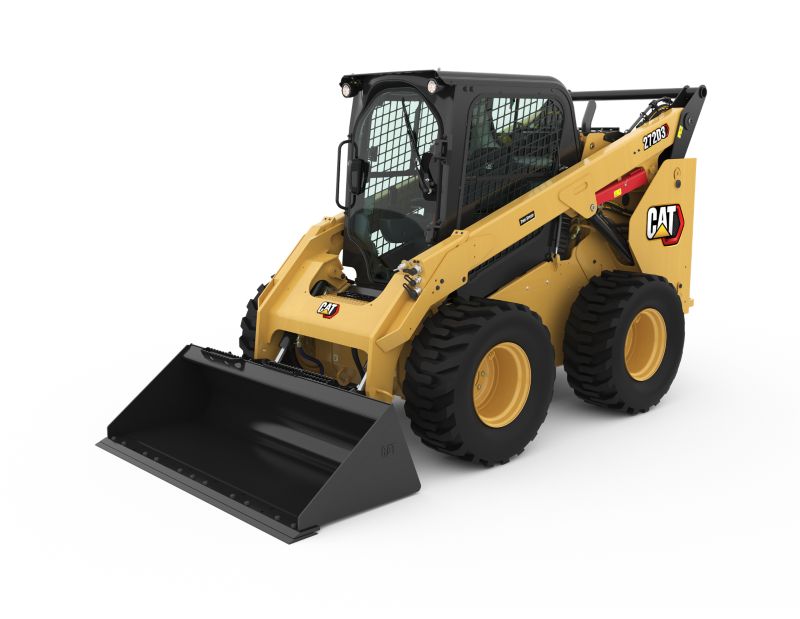

272D3 Skid Steer Loader

Gross Power - SAE J1995

98 hp

Rated Operating Capacity

3450 lb

Operating Weight

9133 lb

Overview

The Cat® 272D3 Skid Steer Loader, with its long wheel base and vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Photos

Videos

  • Overview
  • Features and Benefits
  • At Work
  • SSL and CTL At Work
  • Daily Maintenenace
  • Experience What You Inspired

360° View

Exterior

Interior

Showroom

Virtual Product Tour

Features

Specifications

  • Engine
    Spec Value
    Gross Power - SAE J1995 98 hp
    Net Power - SAE 1349 95 hp
    Displacement 232 in³
    Stroke 4.7 in
    Bore 3.9 in
    Peak Torque - 1,500 rpm - SAE J1995 246 ft·lbf
    Engine Model Cat C3.8 DIT (turbo)
    Net Power - ISO 9249 96 hp
    Net Flywheel Power 95 hp
  • Operating Specifications
    Spec Value
    Rated Operating Capacity 3450 lb
    Tipping Load 6900 lb
    Breakout Force - Tilt Cylinder 7443 lb
    Breakout Force - Lift Cylinder 6074 lb
    Rated Operating Capacity with Optional Counterweight 3690 lb
    Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 850 CCA battery, 1883 mm (74 in) low profile bucket, no optional counterweights, Cat PC 12 × 16.5 tires and manual quick coupler (unless otherwise noted).
  • Weights
    Spec Value
    Operating Weight 9133 lb
    Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 850 CCA battery, 1883 mm (74 in) low profile bucket, no optional counterweights, Cat PC 12 × 16.5 tires and manual quick coupler (unless otherwise noted).
  • Dimensions
    Spec Value
    Wheel Base 54.6 in
    Height - Top of Cab 82.4 in
    Vehicle Width over Tires 72 in
    Ground Clearance 8.9 in
    Departure Angle 27°
    Maximum Dump Angle 51°
    Bucket Pin Reach - Maximum Lift 14.7 in
    Bucket Pin Height - Maximum Lift 127.1 in
    Turning Radius from Center - Machine Rear 74.7 in
    Reach - Maximum Lift/Dump 30.3 in
    Bumper Overhang - Behind Rear Axle 46.2 in
    Length - Without Bucket 127.6 in
    Maximum Overall Height 160.1 in
    Turning Radius from Center - Coupler 58.3 in
    Maximum Reach - With Arms Parallel to Ground 50.5 in
    Clearance at Maximum Lift and Dump 96 in
    Length - With Bucket on Ground 155.7 in
    Bucket Pin Height - Carry Position 7.8 in
    Turning Radius from Center - Bucket (racked) 89.8 in
    Rack Back Angle - Maximum Height 84°
    Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 850 CCA battery, 1883 mm (74 in) low profile bucket, no optional counterweights, Cat PC 12 × 16.5 tires and manual quick coupler (unless otherwise noted).
    Roll Back Angle 28°
  • Hydraulic System
    Spec Value
    Hydraulic Flow - Standard - Loader Hydraulic Flow 23 gal/min
    Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 76 hp
    Hydraulic Flow - Standard - Hydraulic Power (Calculated) 44 hp
    Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 32 gal/min
    Hydraulic Flow - Standard - Loader Hydraulic Pressure 3335 psi
    Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 4061 psi
  • Cab
    Spec Value
    ROPS ISO 3471:2008
    FOPS ISO 3449:2005 Level I
  • Power Train
    Spec Value
    Travel Speed - Forward or Reverse - One Speed 6.6 mile/h
    Travel Speed - Forward or Reverse - Two Speed Option 9.4 mile/h
  • Service Refill Capacities
    Spec Value
    Cooling System 4.1 gal (US)
    Engine Crankcase 3.5 gal (US)
    Fuel Tank 31.7 gal (US)
    Hydraulic System 14.5 gal (US)
    Hydraulic Tank 10.3 gal (US)
    Chain Box - Each Side 2.7 gal (US)
    Diesel Exhaust Fluid (DEF) Tank 5 gal (US)
  • Air Conditioning System (if equipped)
    Spec Value
    Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
  • Noise Level
    Spec Value
    Outside Cab** 102 dB(A)
    Note (2) *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
    Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
    Inside Cab* 83 dB(A)
    Note (3) **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Standard Equipment

ELECTRICAL

  • 12 volt Electrical System
  • 100 ampere Alternator
  • Ignition Key Start/Stop Switch
  • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
  • Backup Alarm
  • Heavy Duty Battery, 850 CCA

OPERATOR ENVIRONMENT

  • Gauges: Fuel Level, DEF Level, Hour Meter
  • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
  • Adjustable Vinyl Seat
  • Fold In Ergonomic Contoured Armrest
  • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
  • ROPS Cab, Open, Tilt Up
  • FOPS, Level I
  • Top and Rear Windows
  • Floor Mat
  • Interior Rearview Mirror
  • 12 volt Electric Socket
  • Horn
  • Hand (Dial) and Foot Throttle, Electronic with Decel Feature
  • Adjustable Joystick Controls
  • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD Screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Drive Response and Creep Control
  • Storage Compartment with Netting

POWER TRAIN

  • Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
  • Air Cleaner, Dual Element, Radial Seal
  • S·O·SSM Sampling Valve, Hydraulic Oil
  • Filters, Cartridge-type, Hydraulic
  • Filters, Canister-type, Fuel and Water Separator
  • Radiator/Hydraulic Oil Cooler (side-by-side)
  • Spring Applied, Hydraulically Released Parking Brakes
  • Hydrostatic Transmission
  • Four Wheel Chain Drive

OTHER

  • Engine Enclosure, Lockable
  • Extended Life Antifreeze, –37° C (–34° F)
  • Machine Tie Down Points (6)
  • Support, Lift Arm
  • Hydraulic Oil Level Sight Gauge
  • Radiator Coolant Level Sight Gauge
  • Radiator, Expansion Bottle
  • Cat ToughGuard™ Hose
  • Auxiliary, Hydraulics, Continuous Flow
  • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
  • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
  • Electrical Outlet, Beacon
  • Belly Pan Cleanout
  • Variable Speed Demand Fan
  • Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

  • Hydraulics, Standard or High Flow XPS
  • Quick Coupler, Mechanical or Powered
  • High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
  • Power Train: One Speed, Two Speed or Two Speed with Speed Sensitive Ride Control
  • Tires, 12 × 16.5 or 14 × 17.5
  • PERFORMANCE PACKAGE (must select one of the following):
    – Performance Package H1: Standard Flow Hydraulics (No Self Level)
    – Performance Package H2: Standard Flow, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    – Performance Package H3: High Flow XPS, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
  • COMFORT PACKAGE (must select one of the following):
    – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
    – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
    – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
    – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

OPTIONAL EQUIPMENT

  • External Counterweights
  • Beacon, Rotating
  • Engine Block Heater – 120V
  • Oil, Hydraulic, Cold Operation
  • Paint, Custom
  • Heavy Duty Battery, 850 CCA, with Battery Disconnect
  • Heavy Duty Battery, 1,000 CCA, with Battery Disconnect
  • Product Link PL641, Cellular
  • Variable Speed Demand Fan with Reversing Functionality
  • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
