New Attachments

Cat

LR116 Landscape Rake

For scarifying the soil and collecting debris for easy removal.

Photos

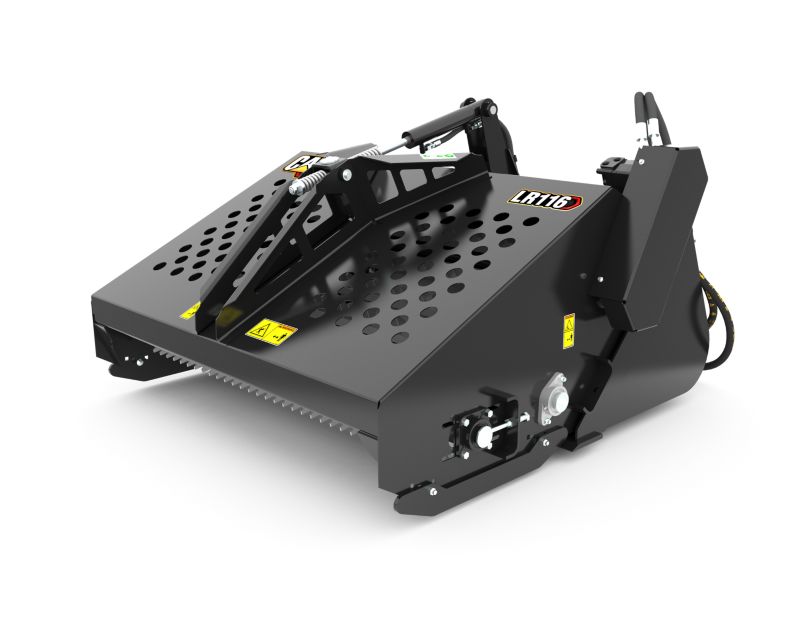

  • Studio Shot
    Studio Shot

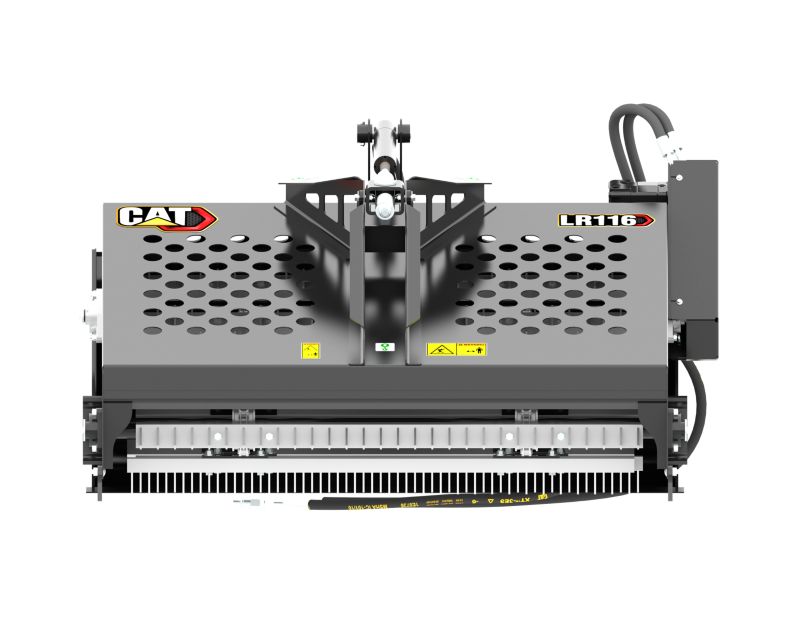

  • Front View
    Front View

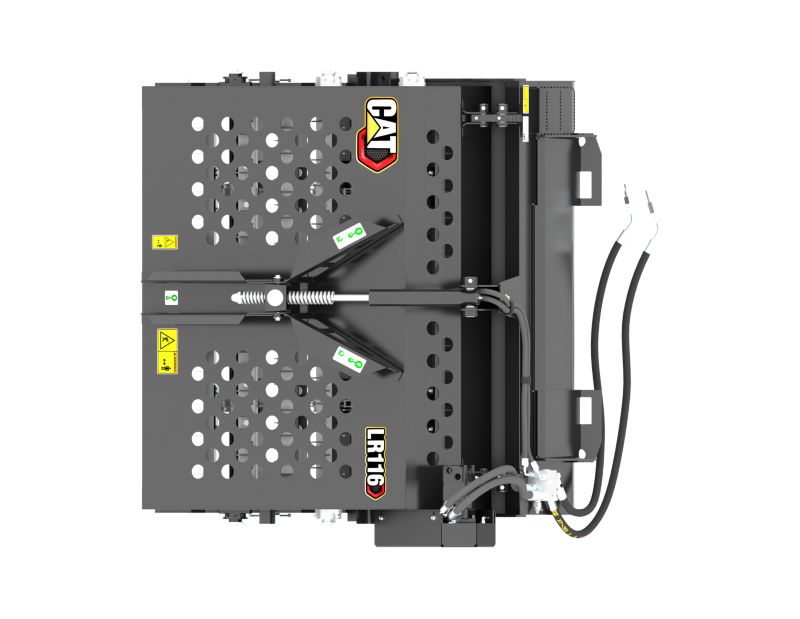

  • Top View
    Top View

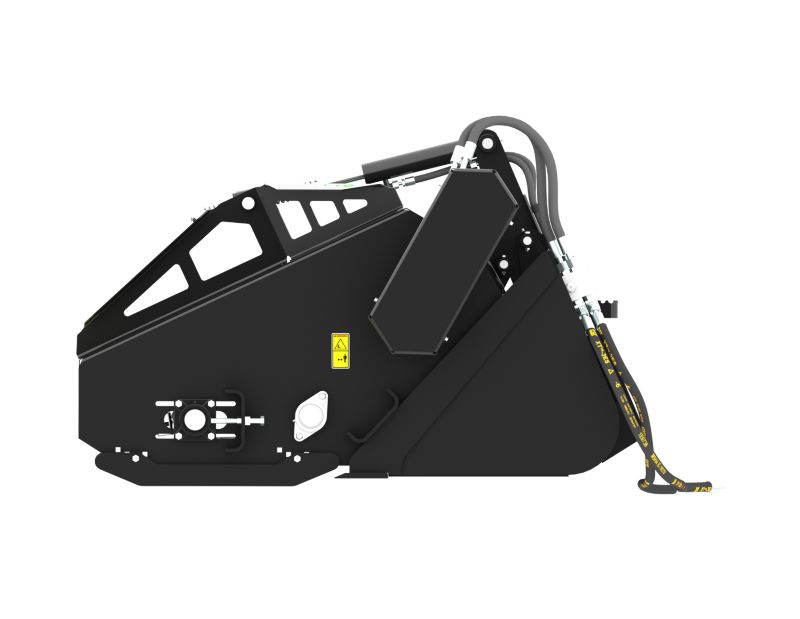

  • Left View
    Left View

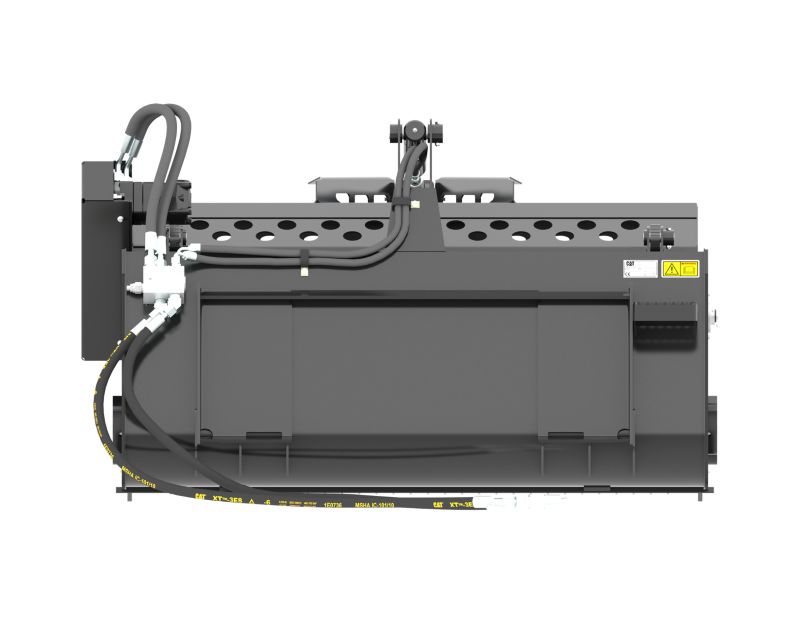

  • Rear View
    Rear View

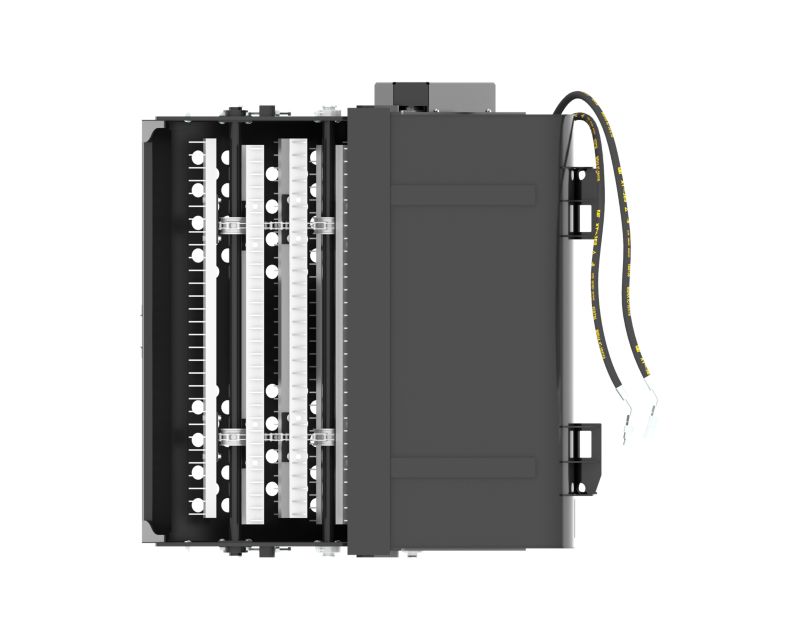

  • Bottom View
    Bottom View

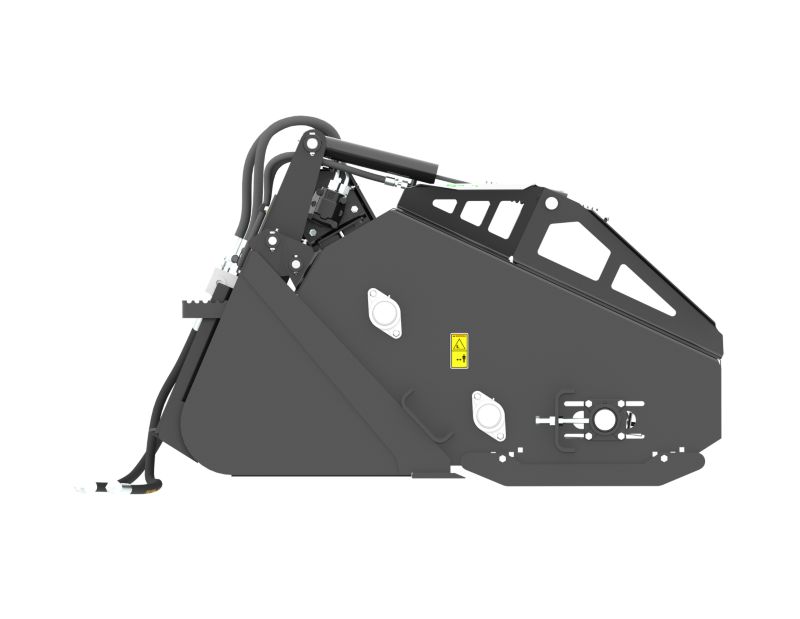

  • Right View
    Right View
  • Cat® Landscape Rake on a 259D Compact Track Loader
    Cat® Landscape Rake on a 259D Compact Track Loader
  • Cat® Landscape Rake Making a Pass on the Jobsite
    Cat® Landscape Rake Making a Pass on the Jobsite

Videos

  • Cat® Landscape Rake at Work
  • Cat® Landscape Rake Overview
  • Cat® Landscape Rake Operator Tips
  • Cat® Landscape Rake Operation Guide
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Landscape Rakes except where indicated.

Documents

Features

Application

Application

Uses the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal.

Application

Uses the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal.
Travel Direction

Travel Direction

Designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.

Travel Direction

Designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.
Robust Design

Robust Design

Chain reduction drive system and steel teeth are built for maximum strength and durability in the toughest soil conditions.

Robust Design

Chain reduction drive system and steel teeth are built for maximum strength and durability in the toughest soil conditions.
Quick Dumping

Quick Dumping

Quick dumping capability is accomplished with a poppet check valve that stops flow to the hydraulic motor and directs flow to the rake head cylinder. Once the hopper bucket is full, simply reverse flow to actuate the rake head cylinder and dump the bucket.

Quick Dumping

Quick dumping capability is accomplished with a poppet check valve that stops flow to the hydraulic motor and directs flow to the rake head cylinder. Once the hopper bucket is full, simply reverse flow to actuate the rake head cylinder and dump the bucket.
Conveyor Tubes

Conveyor Tubes

Bolt-on conveyor tubes for easy replacement and serviceability.

Conveyor Tubes

Bolt-on conveyor tubes for easy replacement and serviceability.

Specifications

  • General
    Spec Value
    Working Width 62 in
    Bucket Capacity - Struck 0.4 yd³
    Weight 1311.7 lb
    Raking Width 54.5 in
    Overall Width 66.3 in
    Height 38.9 in
    Length 63.8 in
    Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Motor Displacement 19.2 in³/rev
    Driven Shaft Speed 165 rpm @ 80 L/min (21 gpm)
    Number of Hard Face Tines 372
    Rock Size Range 19-152 mm (0.75-6 in)
    Drive Method Chain Reduction
    Drive Chain #80H
    Conveyor Chain #2060H
    Required Hydraulics Standard Flow
