Ideal for interior demolition tasks.
Cat
S308 Mobile Scrap & Demolition Shear
Photos
-

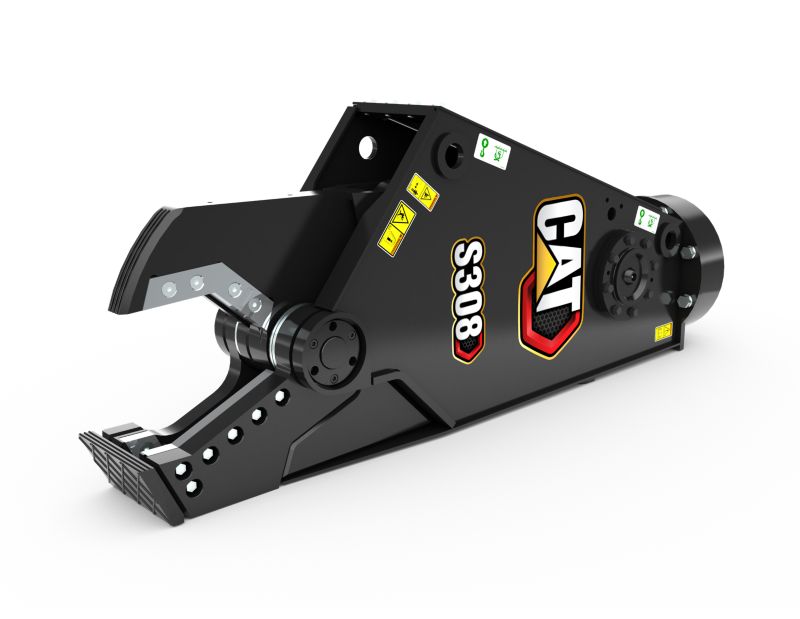

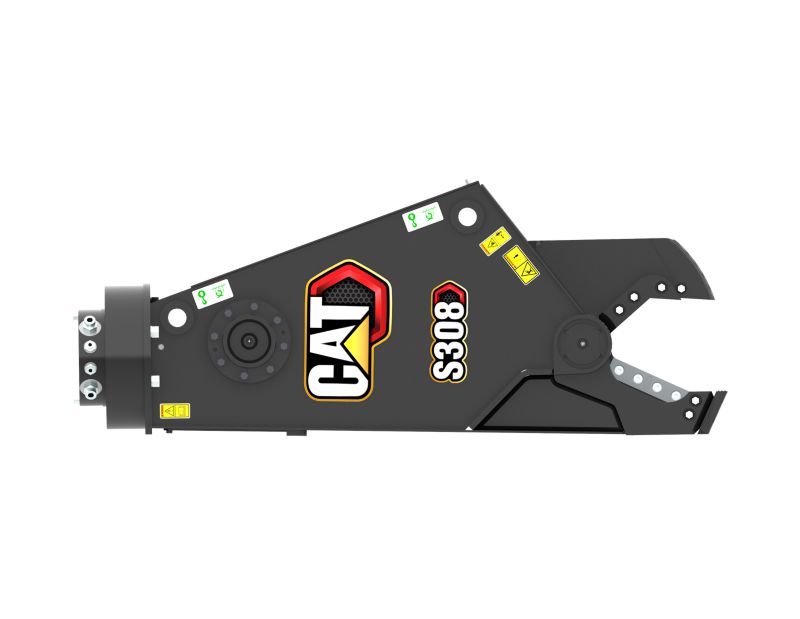

Studio Shot -

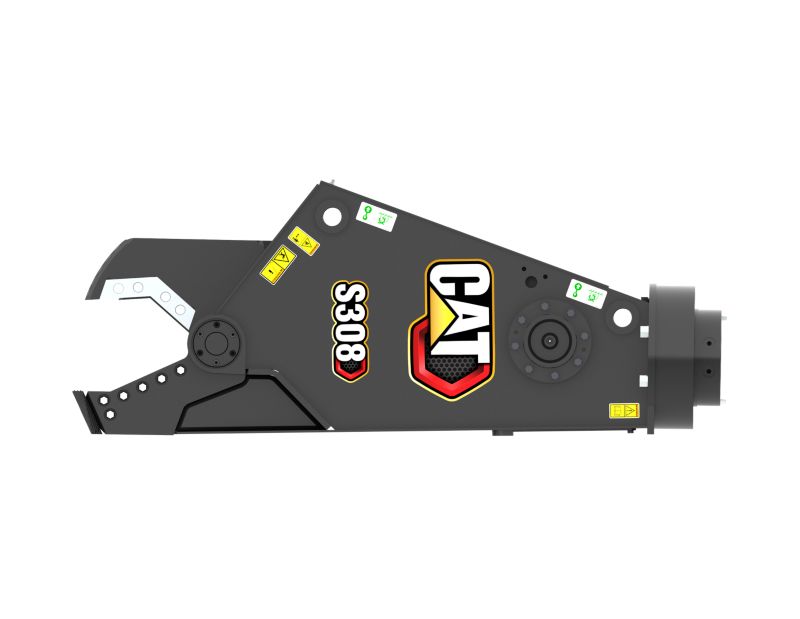

Front View -

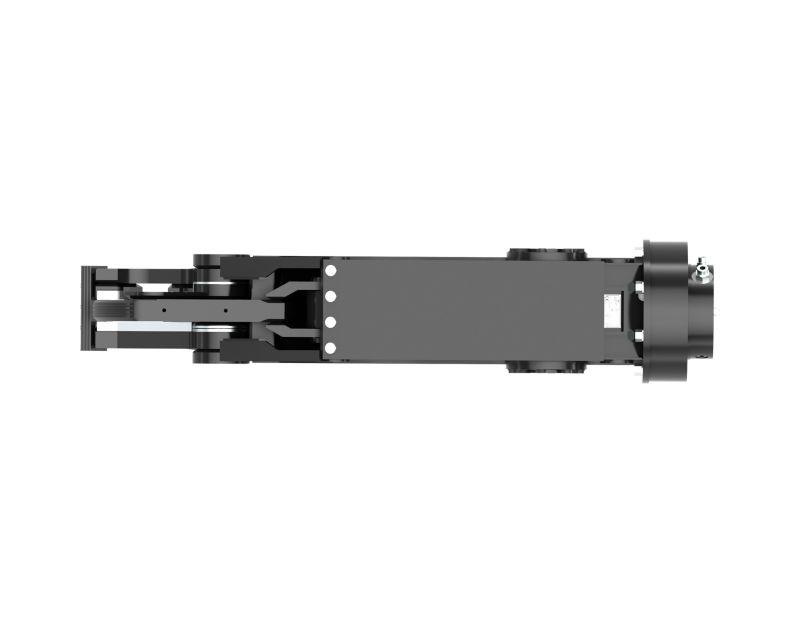

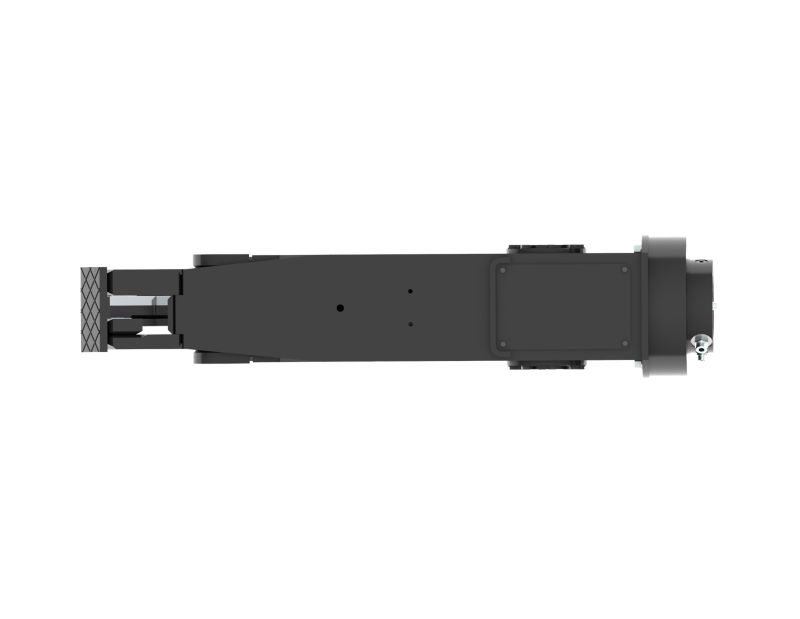

Top View -
Left View -

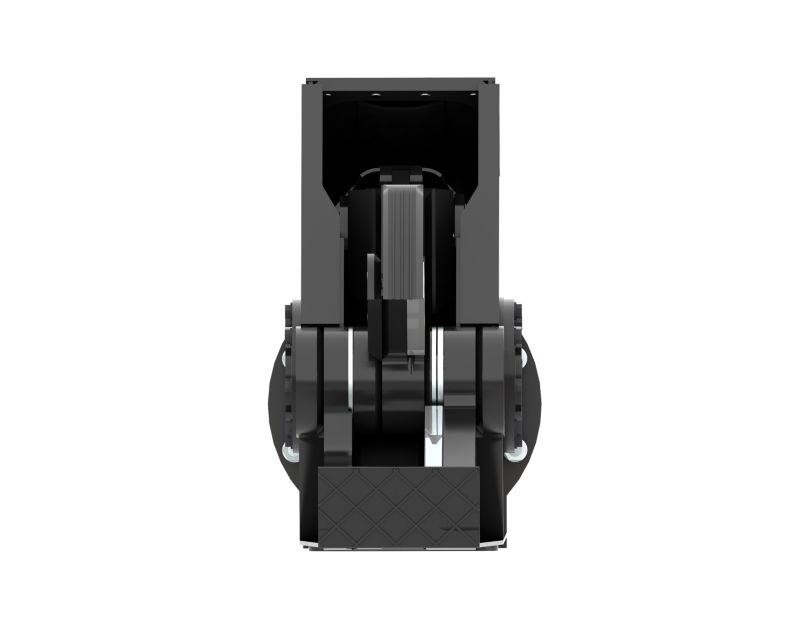

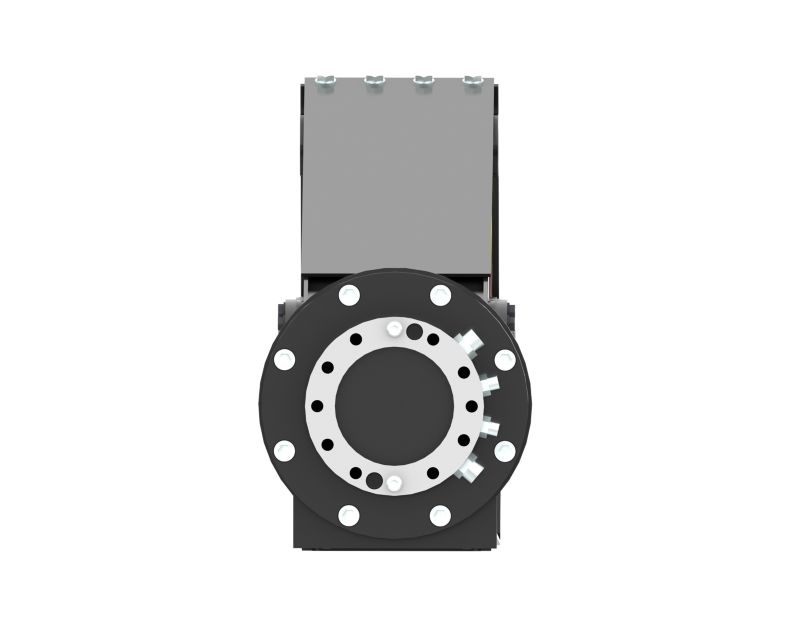

Rear View -
Bottom View -
Right View
Videos
360° View
Exterior
Model shown represents features on all Cat® Shears except where indicated.
Features

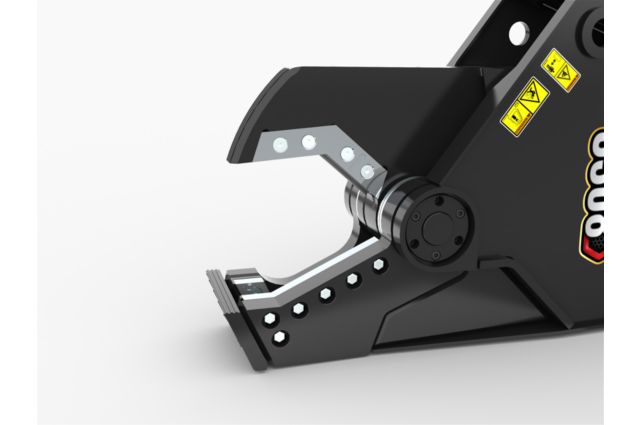

Jaw Design
Unique straight lower jaw design effectively enhances the cutting force by facilitating the spreading out of steel along the length of the jaw, maximizing the shear cutting force.
Jaw Design
Unique straight lower jaw design effectively enhances the cutting force by facilitating the spreading out of steel along the length of the jaw, maximizing the shear cutting force.

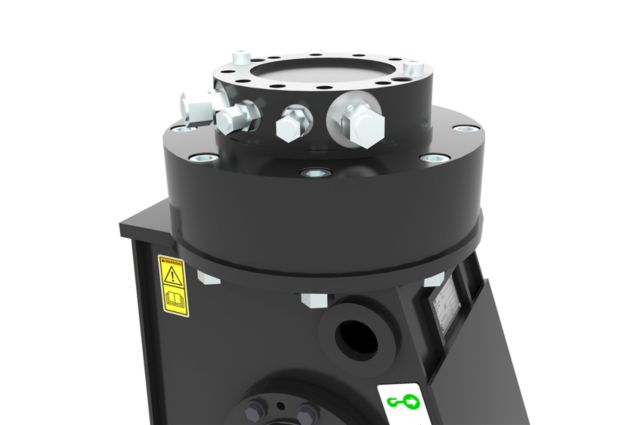

360° Rotation
Operator can spin the shear 360 degrees in either direction to quickly position the jaws for a cut.
360° Rotation
Operator can spin the shear 360 degrees in either direction to quickly position the jaws for a cut.

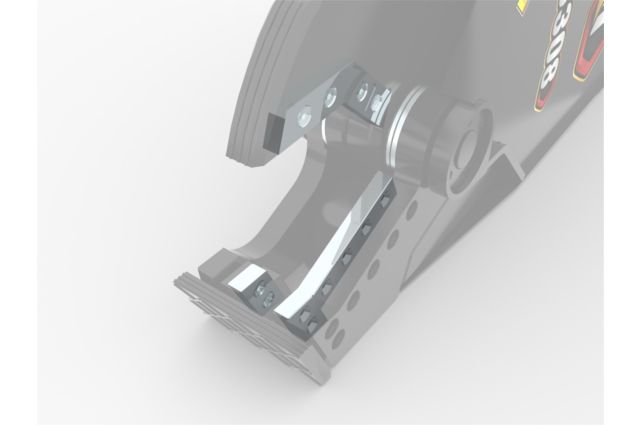

Reversible Knives
The five main, side and front knives are fully reversible with four effective cutting edges.
Reversible Knives
The five main, side and front knives are fully reversible with four effective cutting edges.

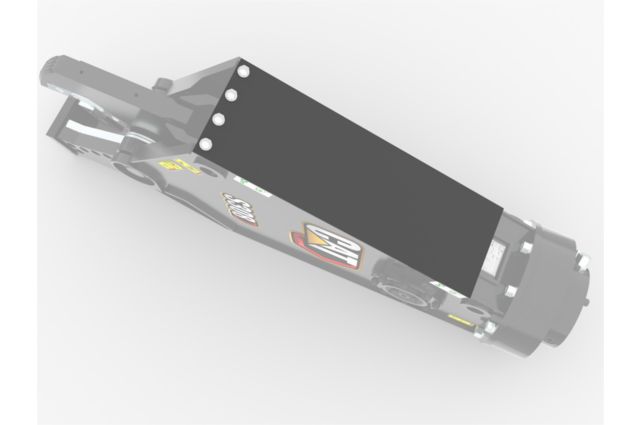

Easy Maintenance
Large access panels on the top and bottom of the shear housing make it easier to service inside components.
Easy Maintenance
Large access panels on the top and bottom of the shear housing make it easier to service inside components.

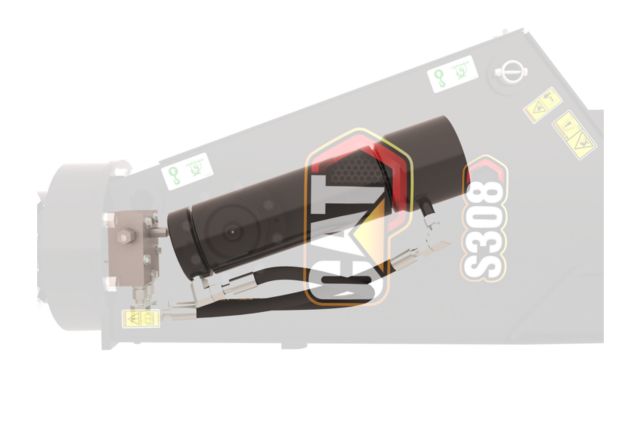

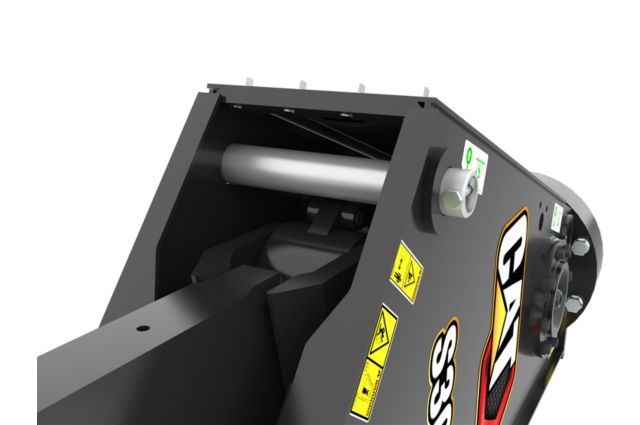

Protected Cylinder
Design of the shear housing and cylinder rod guarding provides full protection of the cylinder throughout the complete cutting cycle.
Protected Cylinder
Design of the shear housing and cylinder rod guarding provides full protection of the cylinder throughout the complete cutting cycle.

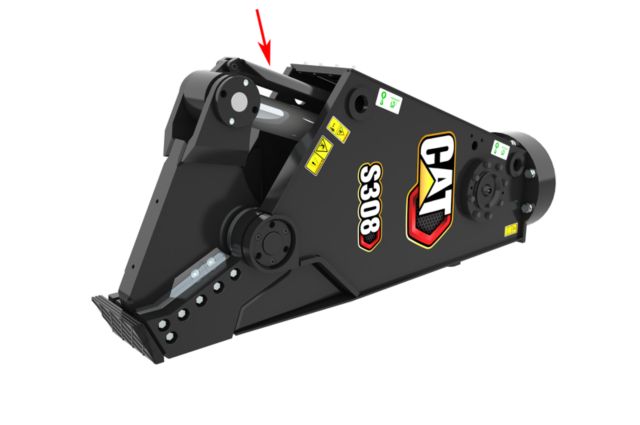

Jaw Lockout Pin
Included with every shear to provide confidence that working in the jaw area is safe.
Jaw Lockout Pin
Included with every shear to provide confidence that working in the jaw area is safe.
Speed Valve
Provides optimum flow regeneration to improve cycle times and machine productivity.
Speed Valve
Provides optimum flow regeneration to improve cycle times and machine productivity.

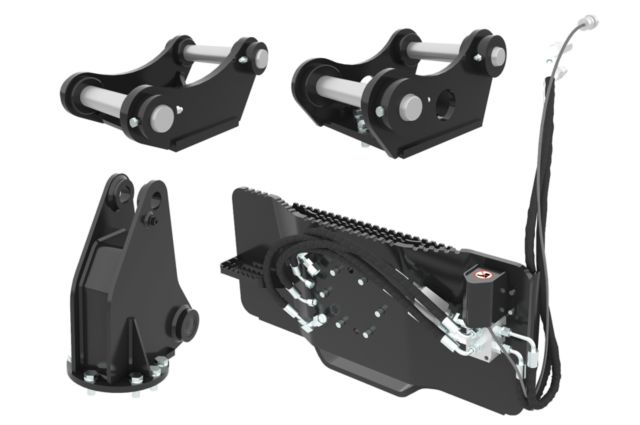

Mounting Options
Mounting options for the S308 Shear include a skid steer loader mounting bracket, a 7/8/9 ton stick mount, and a 5/6 ton boom mount bracket.
Mounting Options
Mounting options for the S308 Shear include a skid steer loader mounting bracket, a 7/8/9 ton stick mount, and a 5/6 ton boom mount bracket.

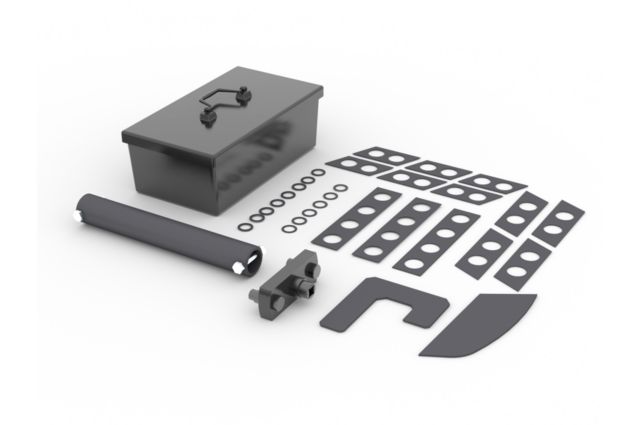

Included Service Kit
Each shear comes included with a service kit and tool box.
Included Service Kit
Each shear comes included with a service kit and tool box.
Specifications
-
General
Spec Value Tip Force 43.3 Sh Ton Rotation 360 Degrees Jaw Opening 9.4 in Jaw Depth 11.4 in Jaw Width - Moving 2.4 in Jaw Width - Fixed 9.1 in Cycle Time - Close 2.5 Seconds Cycle Time - Open 3.5 Seconds Rotation Circuit - Maximum Flow 5.3 gal/min Rotation Circuit - Maximum Relief Pressure 2900.8 psi Cutting Circuit - Maximum Flow 15.9 gal/min Cutting Circuit - Maximum Relief Pressure 3626 psi Throat Force 203.7 Sh Ton Apex Force 73.4 Sh Ton Weight 1212.5 lb Height 26.3 in Length 67.3 in Width 15.4 in
