New Attachments

Cat

2337 mm (92 in) Dozer Blade

Designed for rough and finish grading in dirt, gravel, and light dozing.

Photos

  • Studio Shot

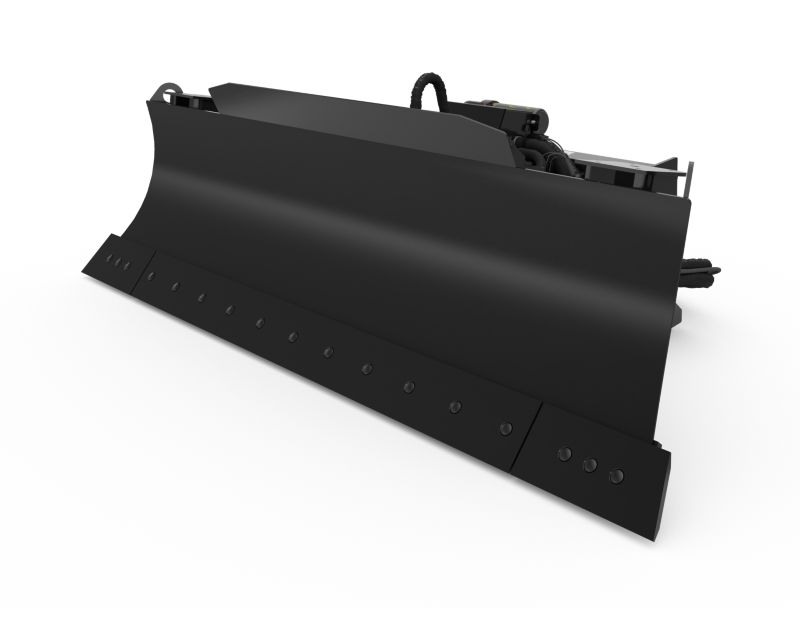

    Studio Shot

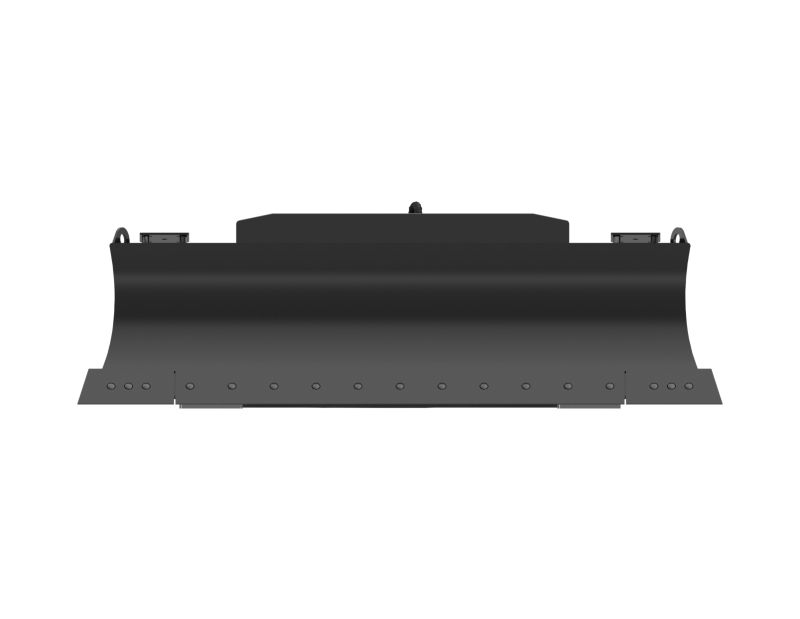

  • Front View
    Front View
  • Top View

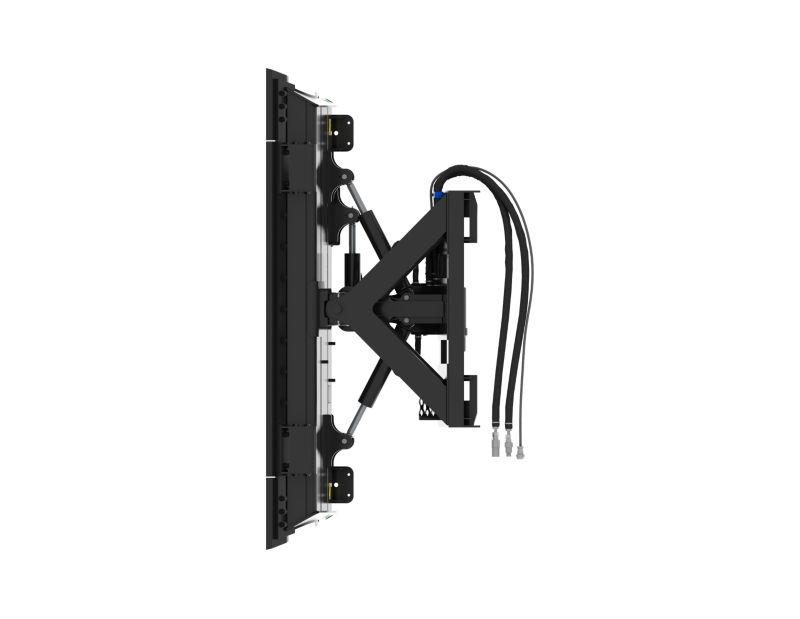

    Top View

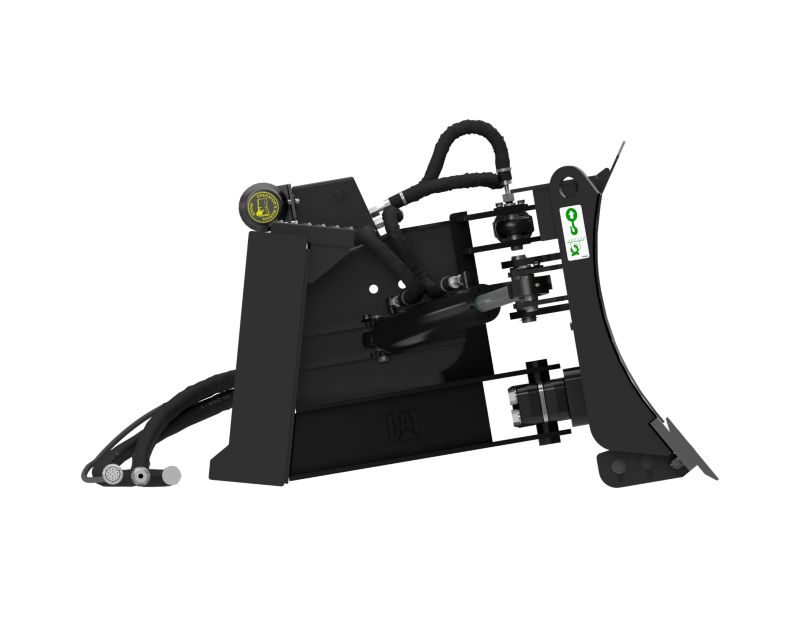

  • Left View
    Left View
  • Rear View

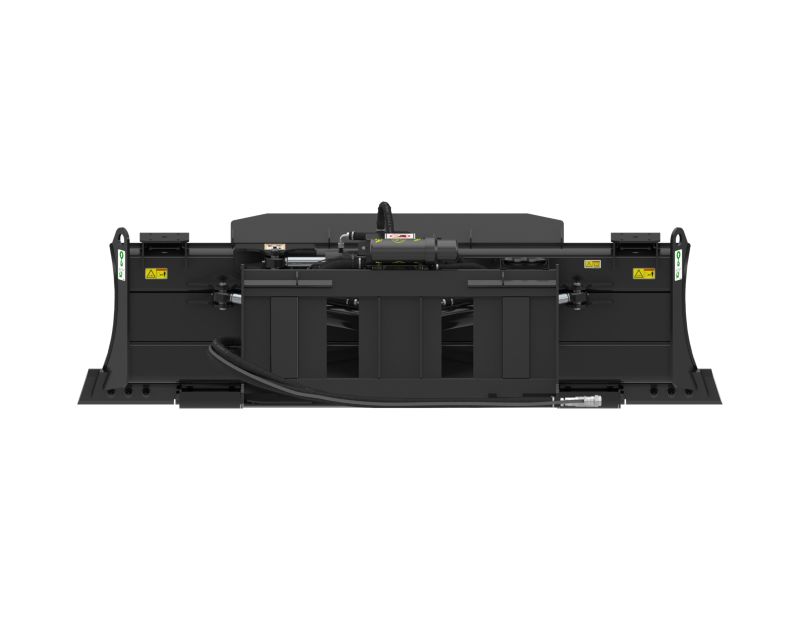

    Rear View
  • Bottom View
    Bottom View
  • Right View
    Right View

Videos

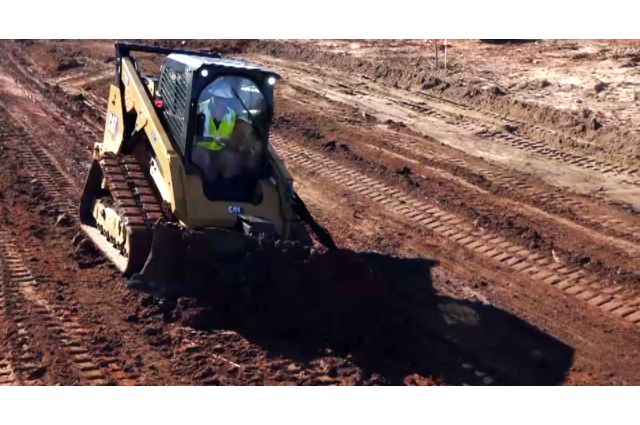

  • Cat® Blades at Work
  • Cat® Dozer Blade Operating Tips
  • Cat® Angle Blade and Dozer Blade Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Features shown represent all Cat® Dozer Blades except where indicated.

Documents

Features

Application

Application

Designed for rough and finish grading in dirt and gravel as well as for light dozing.

Application

Designed for rough and finish grading in dirt and gravel as well as for light dozing.

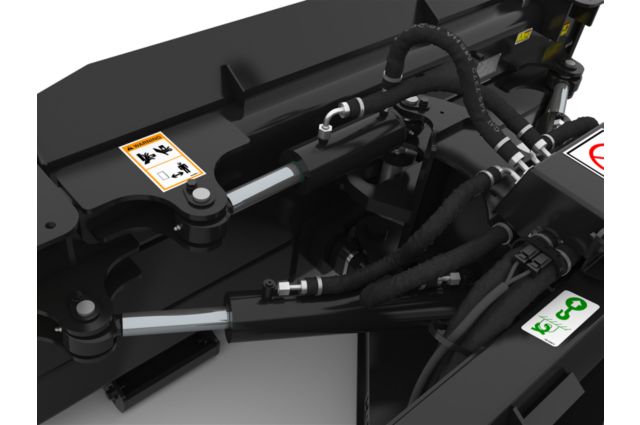

VPAT Design

VPAT Design

Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.

VPAT Design

Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.

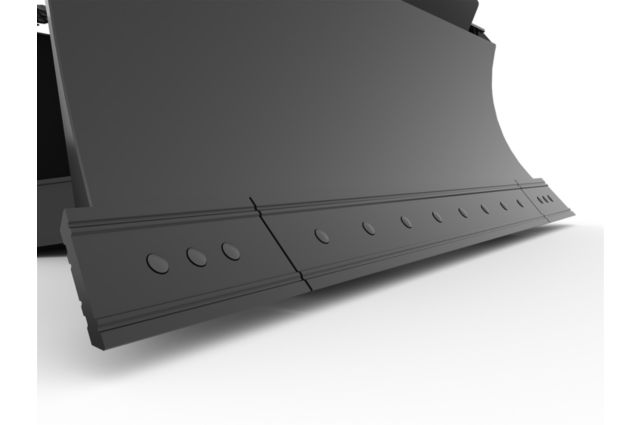

Replaceable Cutting Edge

Replaceable Cutting Edge

Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.

Replaceable Cutting Edge

Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.

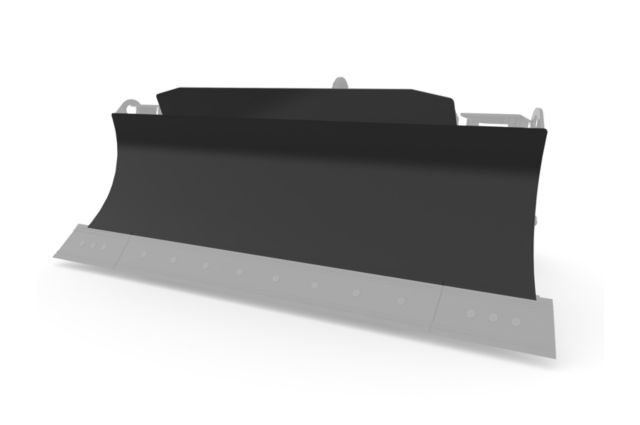

Spill Guard

Spill Guard

An integrated spill guard prevents material from spilling over the top of the blade in full blade scenarios.

Spill Guard

An integrated spill guard prevents material from spilling over the top of the blade in full blade scenarios.

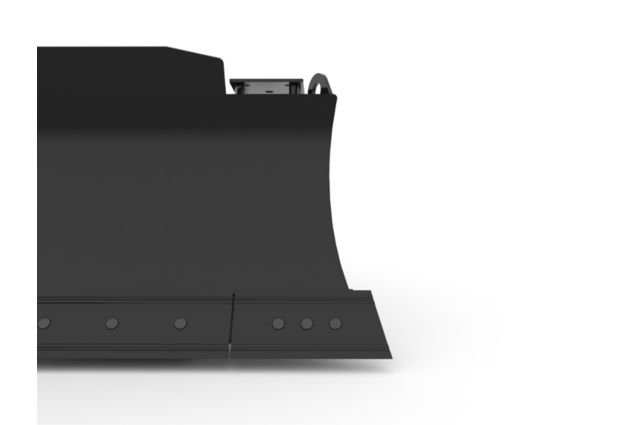

Angled Blade Ends

Angled Blade Ends

Modeled after track-type tractor blades, this allows flush cutting against a vertical surface when the blade is fully tilted.

Angled Blade Ends

Modeled after track-type tractor blades, this allows flush cutting against a vertical surface when the blade is fully tilted.

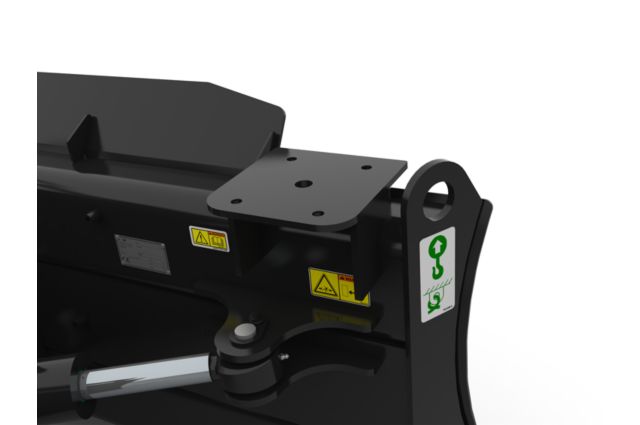

Mast Mounting Points

Mast Mounting Points

To accept external reference masts for use by GPS, Laser, or other leveling systems.

Mast Mounting Points

To accept external reference masts for use by GPS, Laser, or other leveling systems.

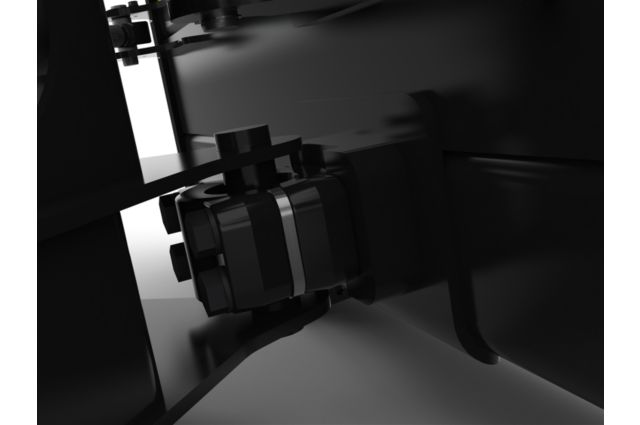

Removable Shims

Removable Shims

Allows for adjustment of trunnion due to interface wear during normal usage.

Removable Shims

Allows for adjustment of trunnion due to interface wear during normal usage.

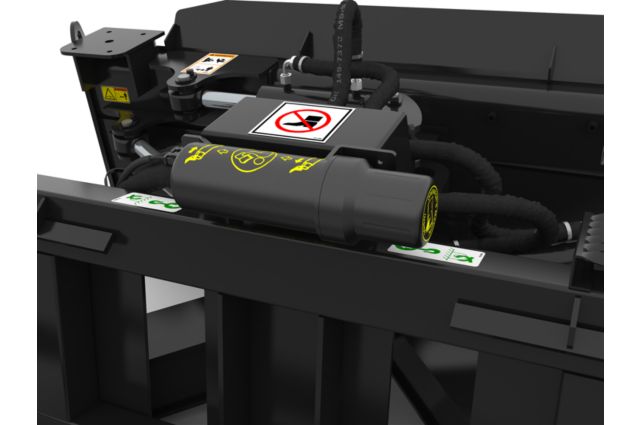

OMM Container

OMM Container

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

OMM Container

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

Specifications

  • General
    Spec Value
    Blade Width 92 in
    Width - Fully Angled 80.7 in
    Maximum Blade Angle - Right/Left of Center 30 degrees
    Tilt Angle Range +/- 10 degrees
    Blade Height 24.4 in
    Overall Height 25.1 in
    Length 40.5 in
    Weight 1085 lb
    Cutting Edge Thickness 0.6 in
    Required Hydraulics Standard Flow
    Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Interface Type Skid Steer Coupler
