Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base.
Cat
GB120 Grader Blade
Photos
-

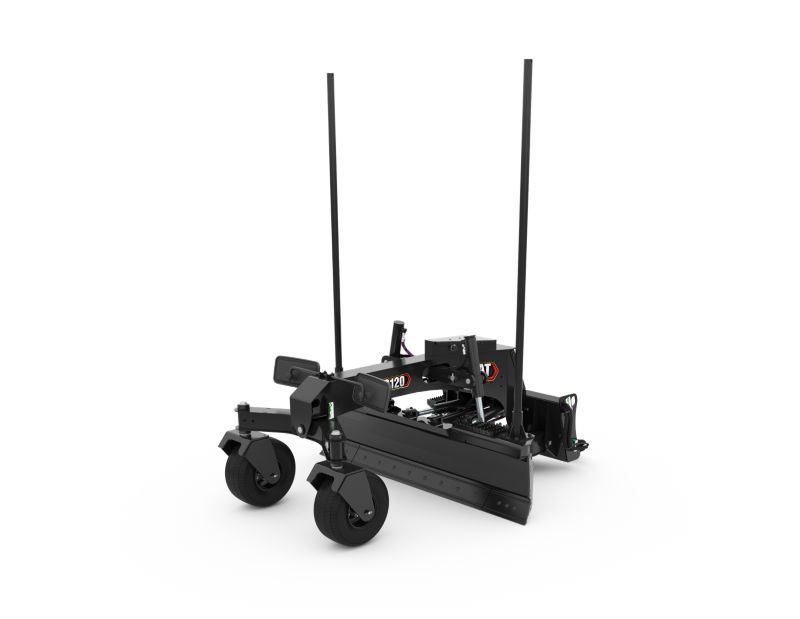

Studio Shot -
Front View -

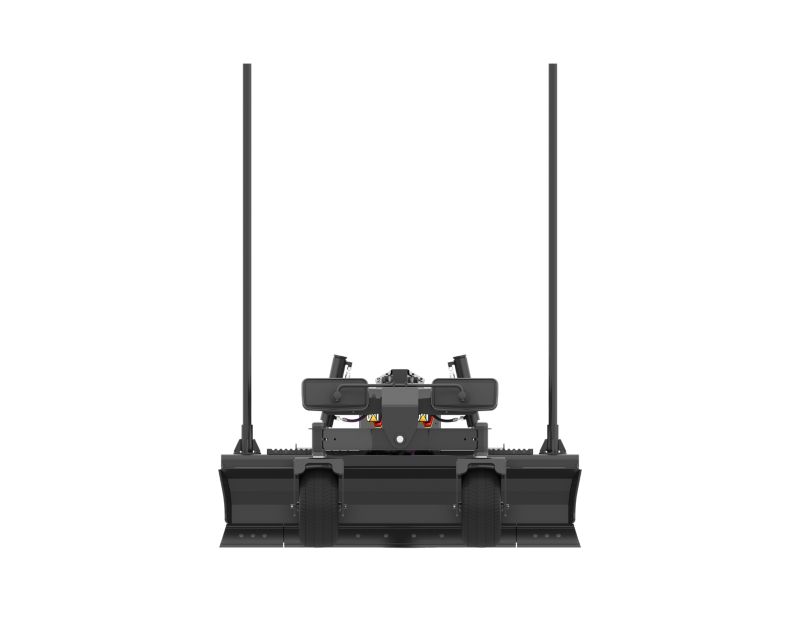

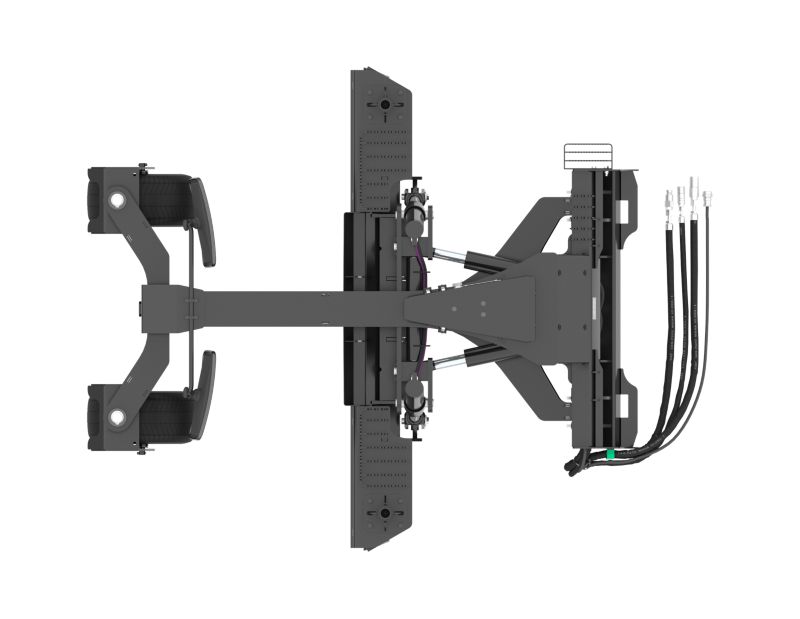

Top View -

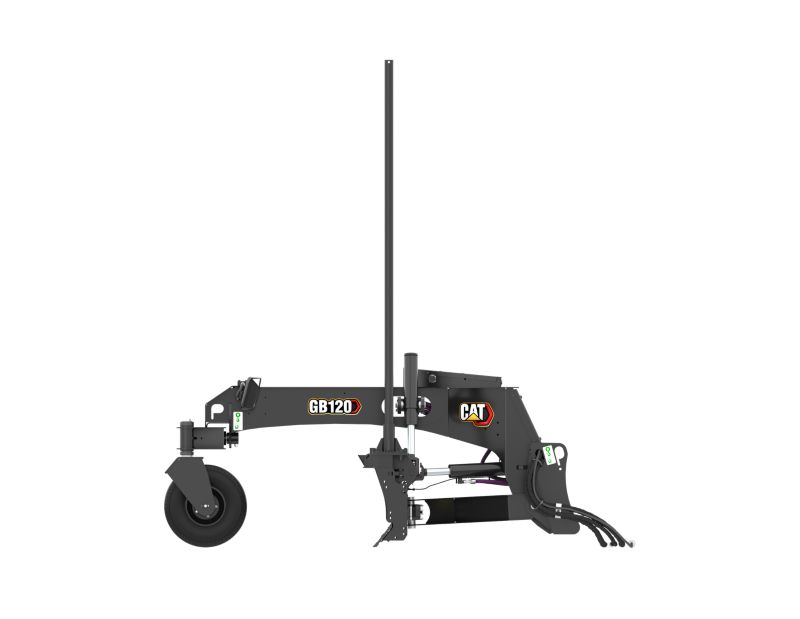

Left View -

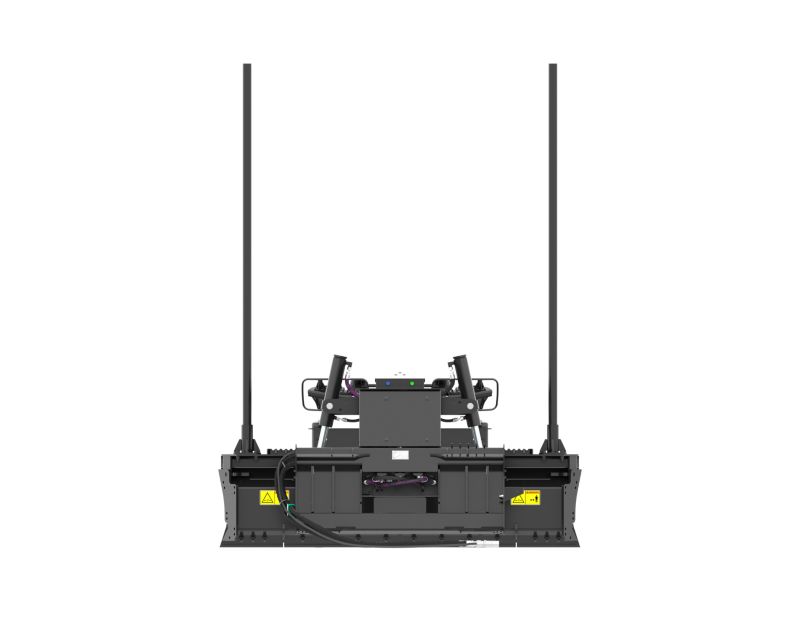

Rear View -

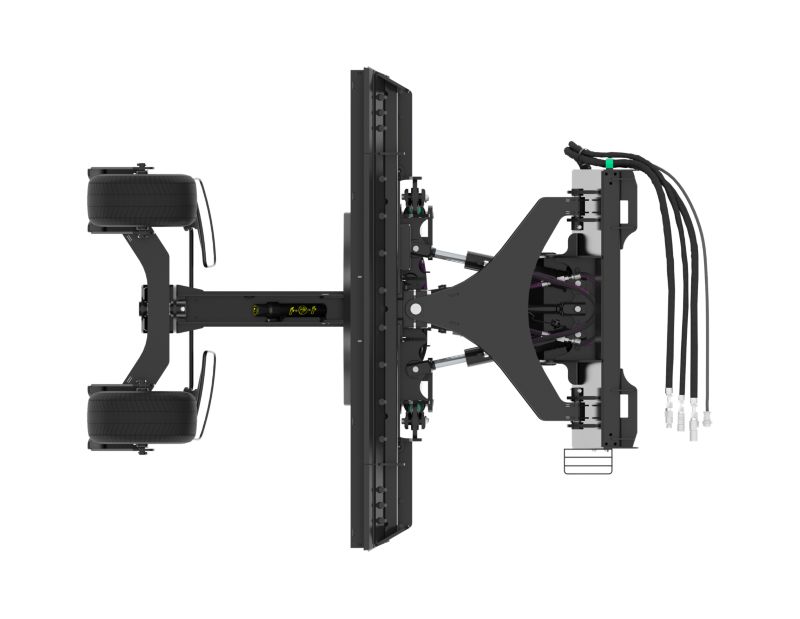

Bottom View -

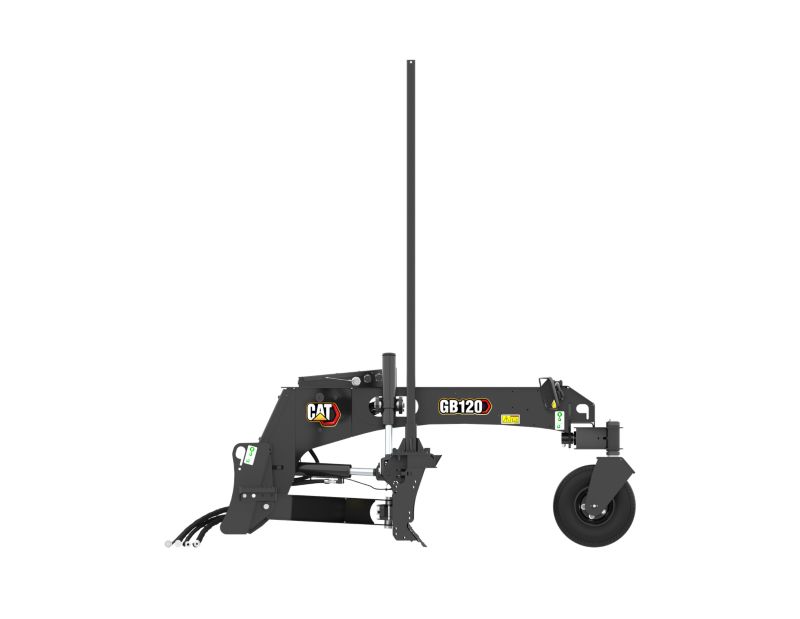

Right View
Videos
360° View
Exterior
Model shown represents features on all Cat® Grader Blades except where indicated.
Documents
Features
Application
Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base. There is an assist feature of the blade that takes the unit beyond Smart. The Smart grader blade brings cross slope to Skid Steer Loader and Compact Track Loader platforms.
Application
Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base. There is an assist feature of the blade that takes the unit beyond Smart. The Smart grader blade brings cross slope to Skid Steer Loader and Compact Track Loader platforms.
Attachment Control Mode
Attachment Control Mode (manual) turns the D3 and Smart Grader into a machine that is controlled more intuitively for the job at hand. The left joystick maintains control of the machine drive functions. The right joysticks now operate the attachment.
Attachment Control Mode
Attachment Control Mode (manual) turns the D3 and Smart Grader into a machine that is controlled more intuitively for the job at hand. The left joystick maintains control of the machine drive functions. The right joysticks now operate the attachment.
Angle Indication in Machine Display
The dedicated screen of the Smart Dozer provides the operator with feedback on the orientation of the attachment. The operator will see attachment blade slope as well as angle of the blade.
Angle Indication in Machine Display
The dedicated screen of the Smart Dozer provides the operator with feedback on the orientation of the attachment. The operator will see attachment blade slope as well as angle of the blade.
Cross Slope Control
With cross slope enabled, the operator selects the desired cross slope of the blade by placing the blade to the desired position. Then the attachment maintains that desired slope during operation, even when the machine slope changes.
Cross Slope Control
With cross slope enabled, the operator selects the desired cross slope of the blade by placing the blade to the desired position. Then the attachment maintains that desired slope during operation, even when the machine slope changes.
External Reference Ready
Grader Blade attachment is external reference ready. Cat Grade (GPS and UTS), EW GO!, Total Station.
External Reference Ready
Grader Blade attachment is external reference ready. Cat Grade (GPS and UTS), EW GO!, Total Station.
Curved Moldboard
Curved moldboard allows for material to roll and fold, improving capacity and performance. Flowing material will easily find low spots and improve grading and leveling performance.
Curved Moldboard
Curved moldboard allows for material to roll and fold, improving capacity and performance. Flowing material will easily find low spots and improve grading and leveling performance.
Wear Indicating Cutting Edges
Wear indicating cutting edges feature 20% more wear material on the ground engaging section of the edge and also indicate when it is time to flip (center section only) or replace the edge.
Wear Indicating Cutting Edges
Wear indicating cutting edges feature 20% more wear material on the ground engaging section of the edge and also indicate when it is time to flip (center section only) or replace the edge.
Dual Parabolic Mirrors
Dual parabolic mirrors provide full visibility to the front cutting edge allowing the operator to see how much the blade is loading and see out to the corners of the blade.
Dual Parabolic Mirrors
Dual parabolic mirrors provide full visibility to the front cutting edge allowing the operator to see how much the blade is loading and see out to the corners of the blade.
Centrally Located Electronics
Technology components are centrally located and simply route to their respective harnesses back to this location on the tool. Then, a single harness routes to the control module in the cab or on the tool.
Centrally Located Electronics
Technology components are centrally located and simply route to their respective harnesses back to this location on the tool. Then, a single harness routes to the control module in the cab or on the tool.
Protected Hydraulic Valve and ECM
The hydraulic valve and ECM (Electronic Control Module) are enclosed and mounted within the frame of the tool, protected from damage.
Protected Hydraulic Valve and ECM
The hydraulic valve and ECM (Electronic Control Module) are enclosed and mounted within the frame of the tool, protected from damage.
Independent Front Axle with Dual Wheels
Dual front wheels are mounted on an independent axle and on casters to provide stability in both directions of travel. These wheels are air filled and will provide balance for the blade in both automatic and manual operation.
Independent Front Axle with Dual Wheels
Dual front wheels are mounted on an independent axle and on casters to provide stability in both directions of travel. These wheels are air filled and will provide balance for the blade in both automatic and manual operation.
Optional Side Wings
Optional side wings allow the operator to make the blade wider and carry material similar to box blades.
Optional Side Wings
Optional side wings allow the operator to make the blade wider and carry material similar to box blades.
Mast Mounting Points
Standard fixed masts provide great performance for single or dual laser technology configurations as well as supporting 3D technology. Bolt pattern fits Accugrade™ Std. GNSS masts.
Mast Mounting Points
Standard fixed masts provide great performance for single or dual laser technology configurations as well as supporting 3D technology. Bolt pattern fits Accugrade™ Std. GNSS masts.
Serrated Steps
Serrated bolt-on step provides safe ingress and egress from machine cab. Additional weld-on serrated steps on the blade ensure safe receiver adjustment, install, or removal.
Serrated Steps
Serrated bolt-on step provides safe ingress and egress from machine cab. Additional weld-on serrated steps on the blade ensure safe receiver adjustment, install, or removal.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
Specifications
-
General
Spec Value Overall Width 78.4 in Blade Width 78 in Width - Fully Angled 68.8 in Optimal Hydraulic Flow 50-86 L/min (13-23 gpm) Optimal Hydraulic Pressure 180-230 bar (2600-3340 psi) Required Hydraulics Standard Flow Overall Length 88.4 in Overall Height with Masts 104.4 in Overall Height 41.2 in Weight 1970.9 lb Tilt Angle Range +/- 15 degrees Maximum Blade Angle - Right/Left of Center 30 degrees Blade Height 17 in Ground Clearance 6 in Maximum Cutting Depth 4 in Interface Type Skid Steer Coupler
