New Attachments

Cat

2134 mm (84 in) Angle Blade

Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

Photos

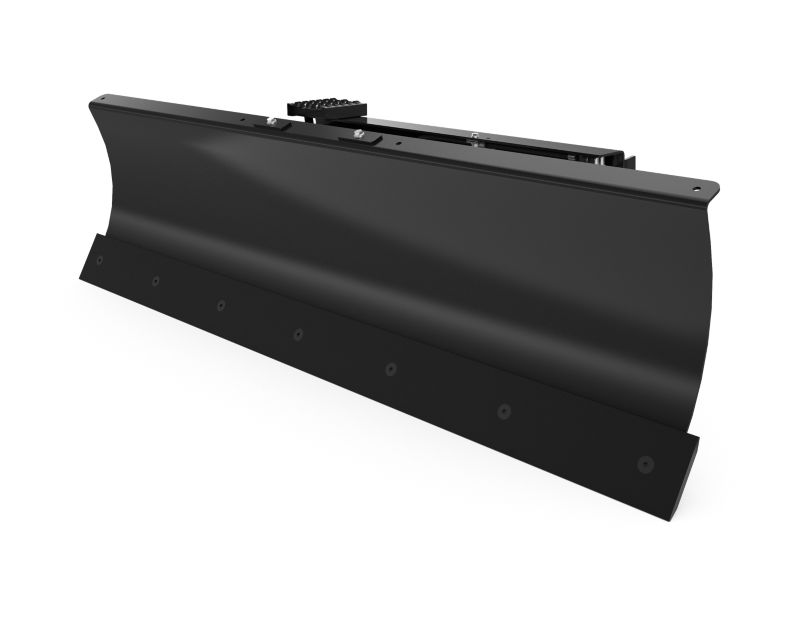

  • Studio Shot
    Studio Shot

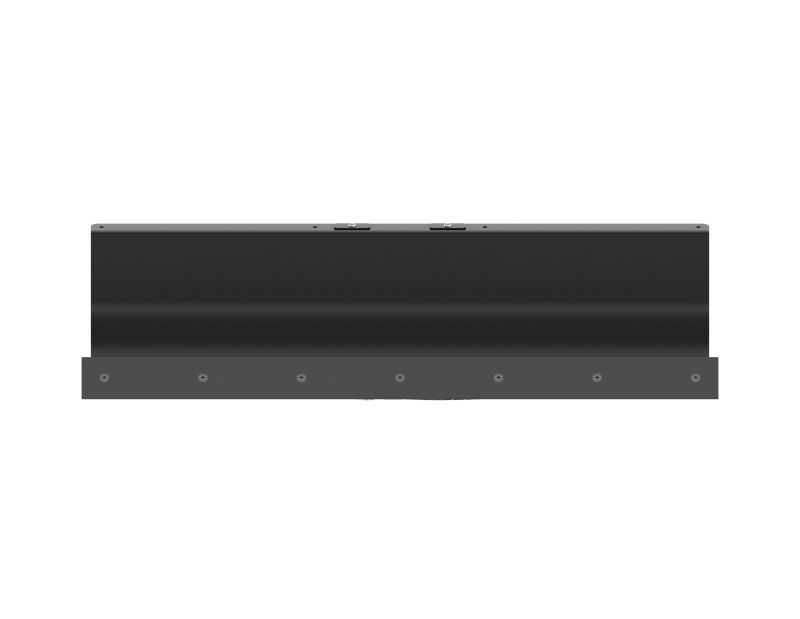

  • Front View
    Front View

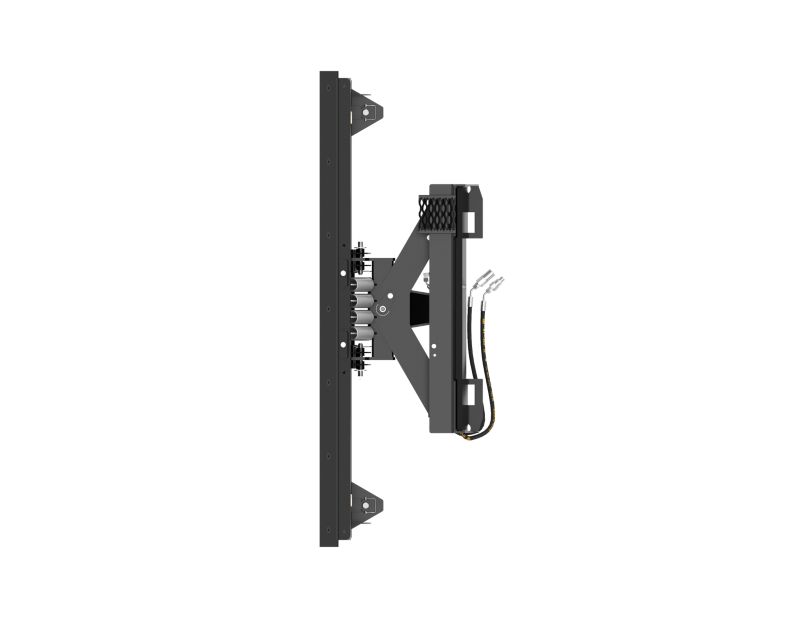

  • Top View
    Top View

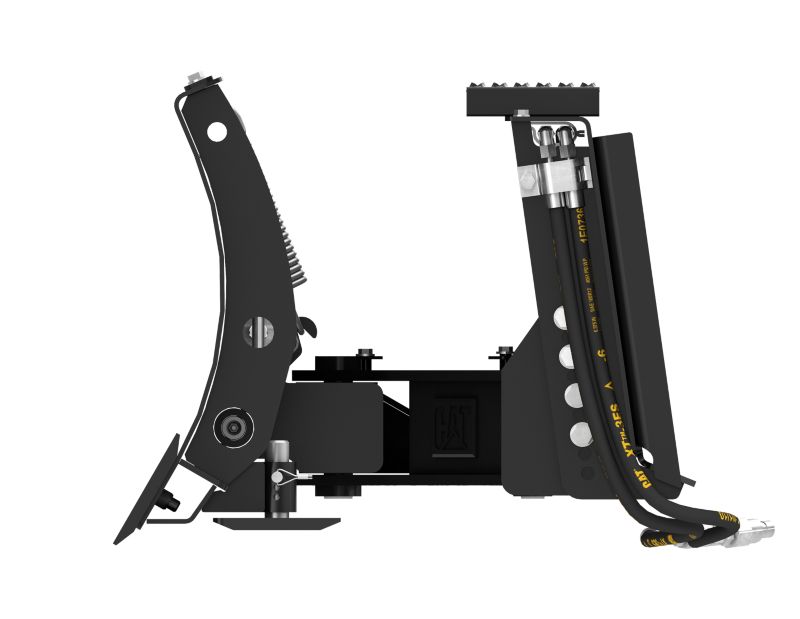

  • Left View
    Left View

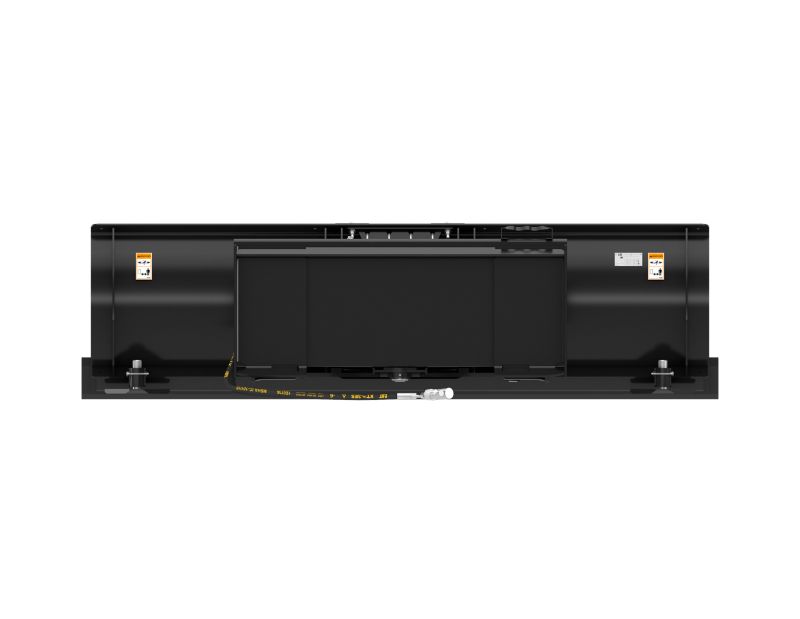

  • Rear View
    Rear View

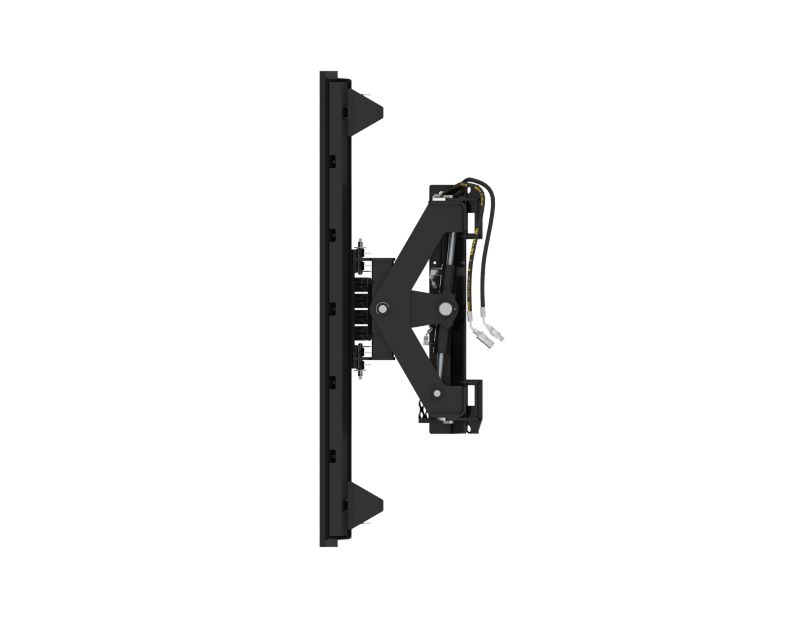

  • Bottom View
    Bottom View

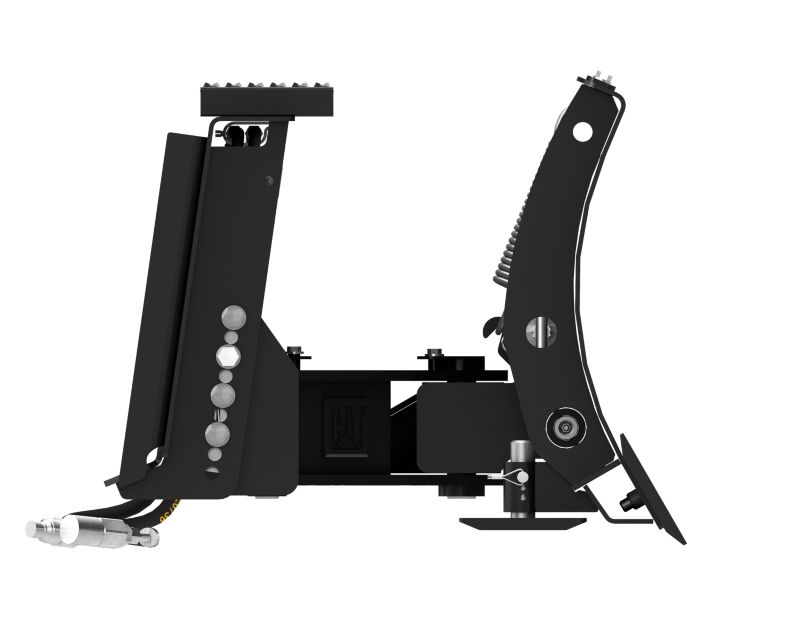

  • Right View
    Right View
  • Cat® Blade at Work
    Cat® Blade at Work

Videos

  • Cat® Blades at Work
  • Cat® Angle Blade Operating Tips
  • Cat® Angle Blade and Dozer Blade Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Angle Blades except where indicated.

Documents

Features

Application

Application

Designed for moving dirt, gravel, livestock waste and snow. Also ideal for finish grade work in construction and landscaping applications.

Application

Designed for moving dirt, gravel, livestock waste and snow. Also ideal for finish grade work in construction and landscaping applications.
Two-Way Blade

Two-Way Blade

Two-way blade can be operated with the blade locked for aggressive dozing or with spring-loaded trip engaged for pushing snow or livestock waste.

Two-Way Blade

Two-way blade can be operated with the blade locked for aggressive dozing or with spring-loaded trip engaged for pushing snow or livestock waste.
Angle Range

Angle Range

Blade angles +/- 30 degrees to assist in various tasks.

Angle Range

Blade angles +/- 30 degrees to assist in various tasks.
Curved Moldboard

Curved Moldboard

Curved moldboard with standard reversible/replaceable bolt-on, hardened DH-2 steel cutting edge delivers long life and high performance.

Curved Moldboard

Curved moldboard with standard reversible/replaceable bolt-on, hardened DH-2 steel cutting edge delivers long life and high performance.
Adjustable Skid Shoes

Adjustable Skid Shoes

Adjustable skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting-edge depth.

Adjustable Skid Shoes

Adjustable skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting-edge depth.
Spherical Rod Eye Cylinder

Spherical Rod Eye Cylinder

Spherical rod eye cylinder adds another degree of movement to jointed section for better impact protection.

Spherical Rod Eye Cylinder

Spherical rod eye cylinder adds another degree of movement to jointed section for better impact protection.
Four Pre-loaded Springs

Four Pre-loaded Springs

Four pre-loaded springs provide appropriate force with spring-loaded trip engaged. Springs can be removed individually to accommodate a lighter trip.

Four Pre-loaded Springs

Four pre-loaded springs provide appropriate force with spring-loaded trip engaged. Springs can be removed individually to accommodate a lighter trip.
Adjustable Interface

Adjustable Interface

Allows for proper ground interface with different hinge pin heights on compact wheel loaders, skid steer and compact track loaders.

Adjustable Interface

Allows for proper ground interface with different hinge pin heights on compact wheel loaders, skid steer and compact track loaders.
Optional Snow Kit

Optional Snow Kit

Optional snow kit with heavy-duty guard assembly, two edge markers and mounting hardware.

Optional Snow Kit

Optional snow kit with heavy-duty guard assembly, two edge markers and mounting hardware.
Optional Non-Metallic Blade

Optional Non-Metallic Blade

Optional bolt-on, non-metallic edge reduces surface scratches or marring of concrete and asphalt surfaces.

Optional Non-Metallic Blade

Optional bolt-on, non-metallic edge reduces surface scratches or marring of concrete and asphalt surfaces.

Specifications

  • General
    Spec Value
    Blade Width 84 in
    Width - Fully Angled 76.7 in
    Maximum Blade Angle - Right/Left of Center 30 degrees
    Blade Height 24.2 in
    Cutting Edge Width 86.5 in
    Length 29.6 in
    Weight 729.7 lb
    Cutting Edge Thickness 0.6 in
    Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Required Hydraulics Standard Flow
    Interface Type Skid Steer Coupler
