Designed to handle a wide array of materials in a variety of operating conditions.
Cat
1883 mm (74 in) Utility Grapple Bucket
Photos
-

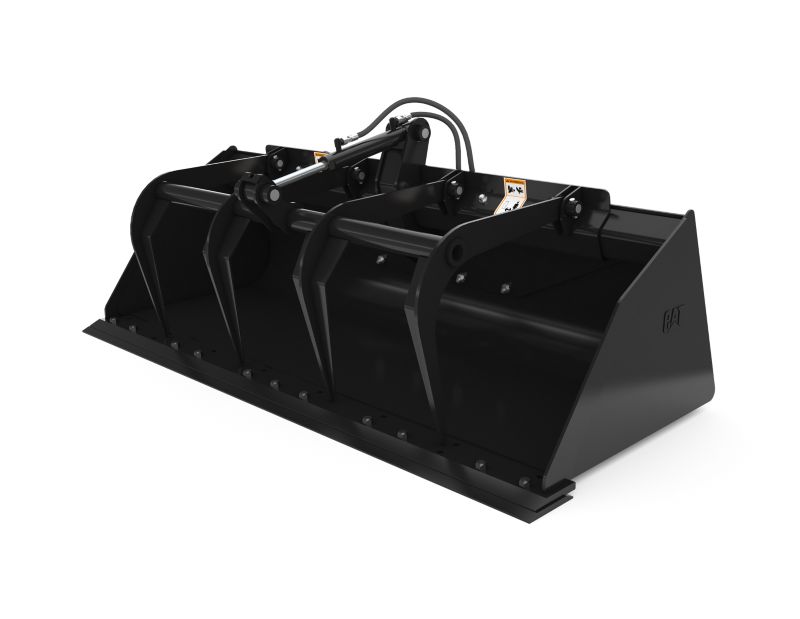

Studio Shot -

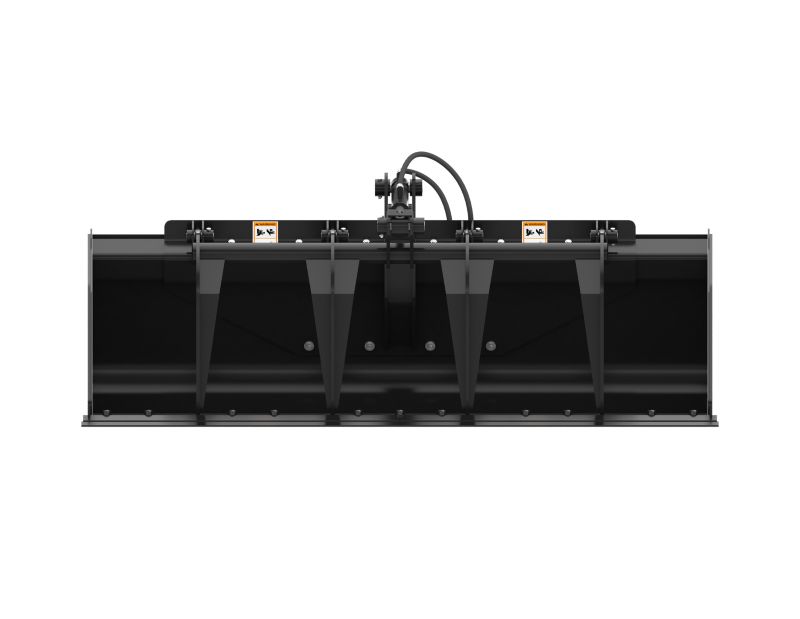

Front View -

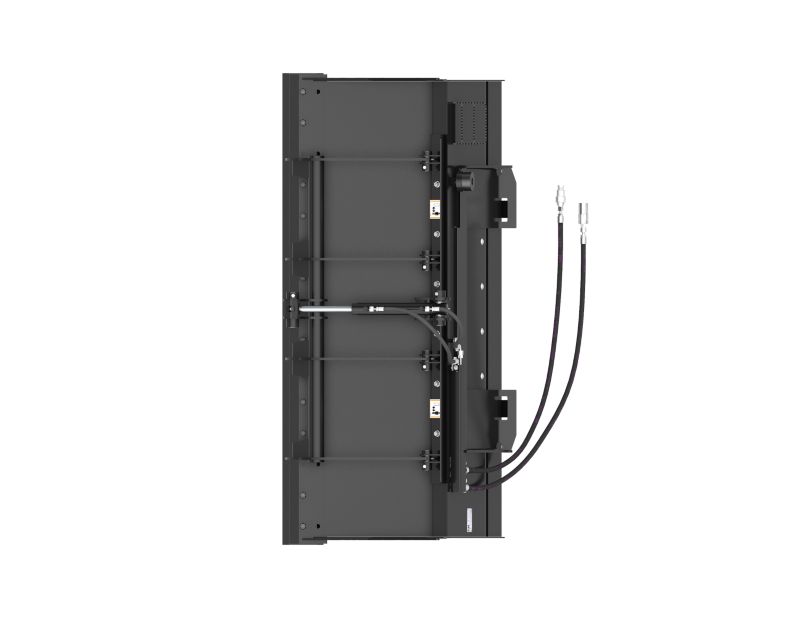

Top View -

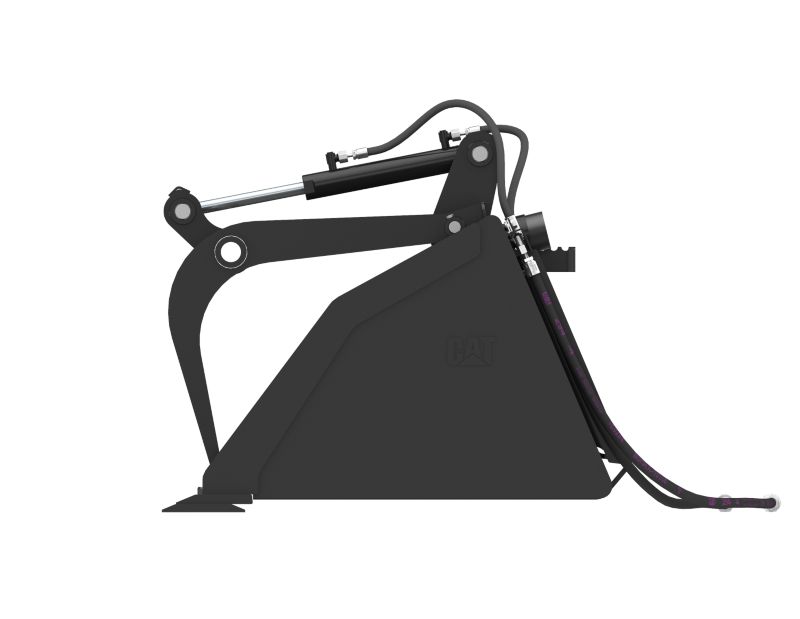

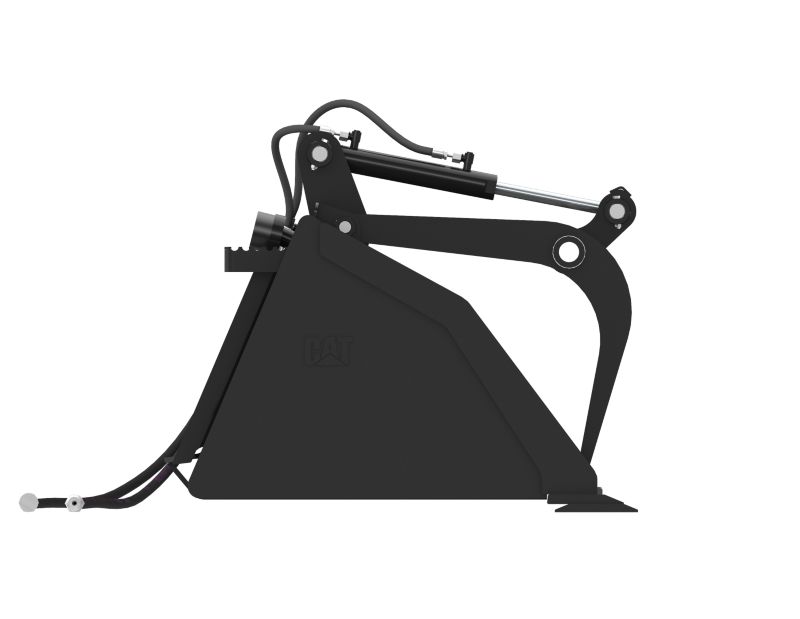

Left View -

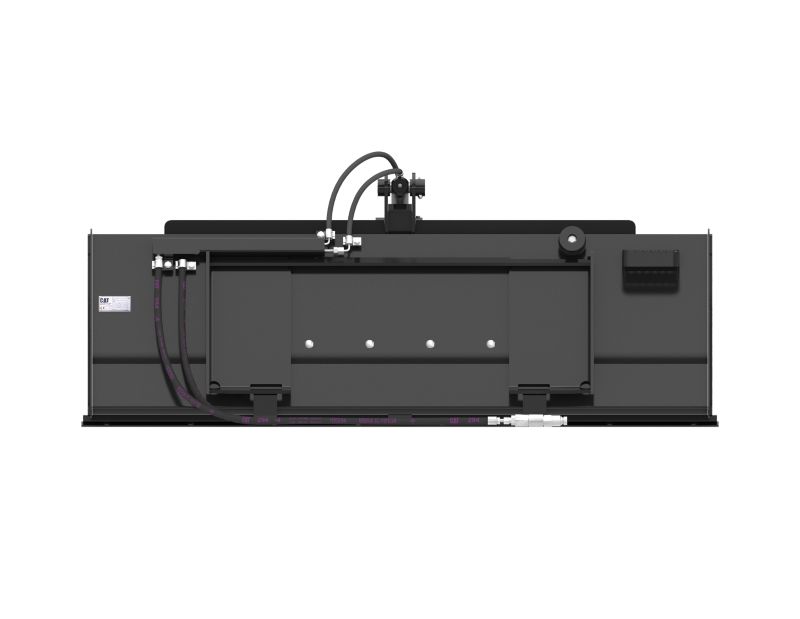

Rear View -

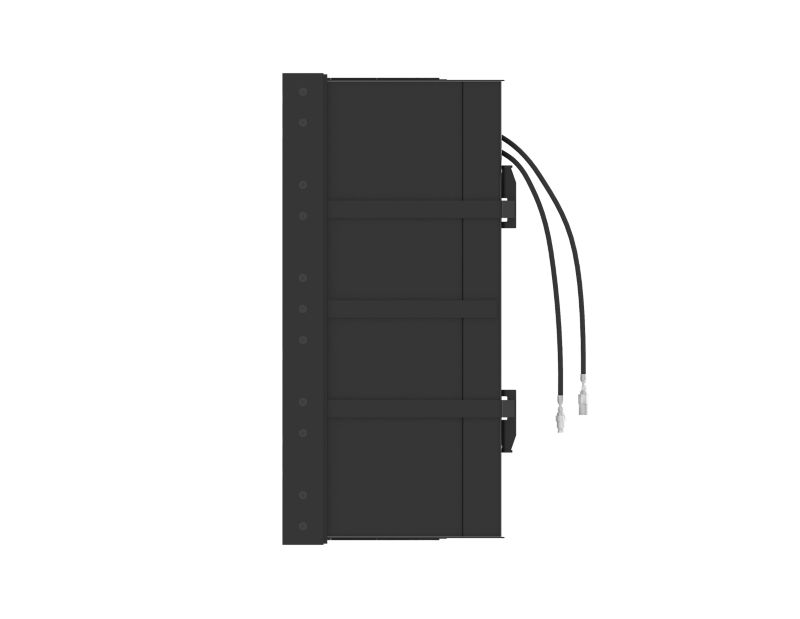

Bottom View -
Right View
Videos
Features
Application

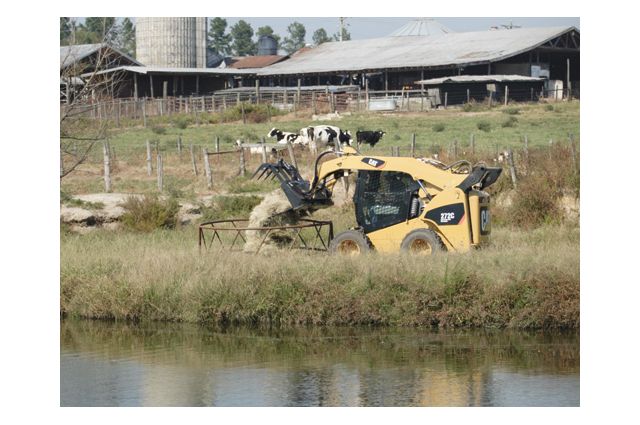

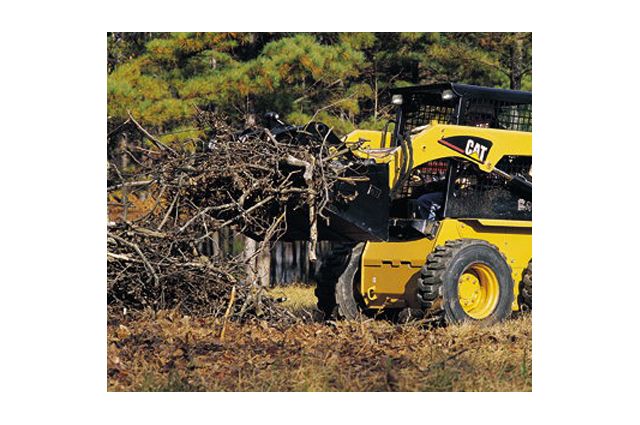

Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.
Application
Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.
Light Duty Design
Light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.
Light Duty Design
Light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.

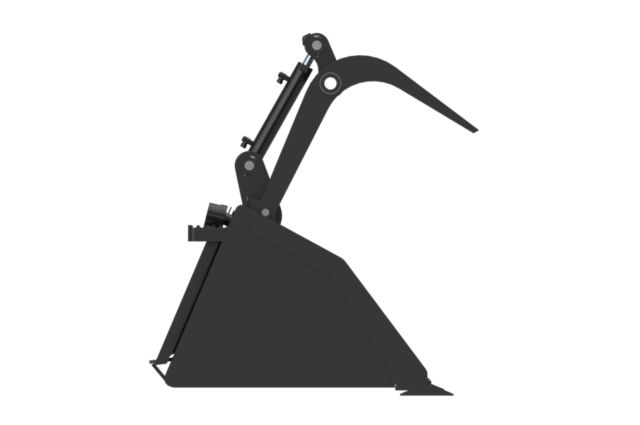

Wide Jaw Opening
Wide vertical jaw opening allows for handling of large, bulky material.
Wide Jaw Opening
Wide vertical jaw opening allows for handling of large, bulky material.

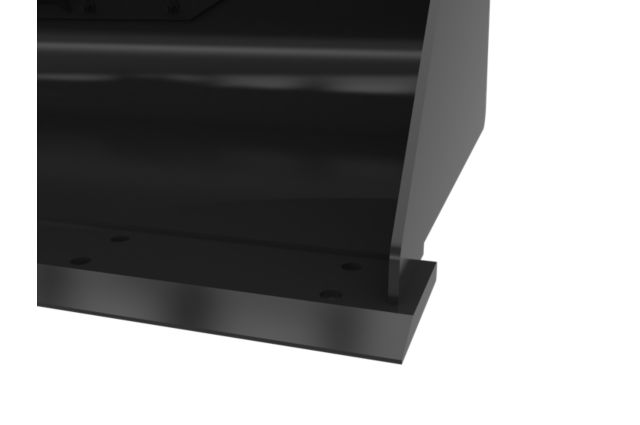

Hardened Bucket Edge
Hardened bucket base edge provides excellent penetration and wear life.
Hardened Bucket Edge
Hardened bucket base edge provides excellent penetration and wear life.
Specifications
-
General
Spec Value Width 74.1 in Height - Grapples Closed 29.1 in Jaw Opening 35.5 in Length 36.8 in Weight 820.1 lb Base Edge Thickness 0.7 in Cutting Edge Thickness 0.6 in Operating Pressure 3335.9 psi Capacity 0.68 yd³ Interface Type Skid Steer Coupler
