Ziegler CAT

Caterpillar

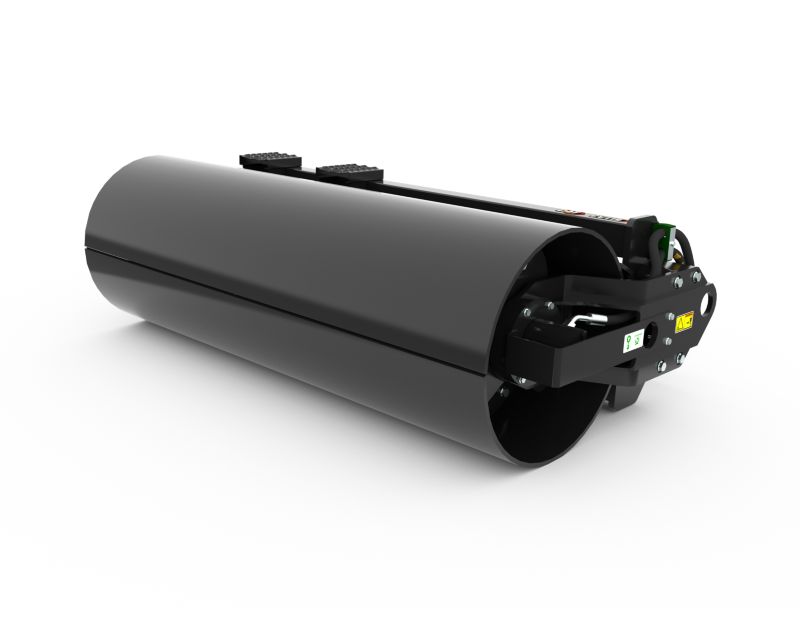

CV18B Vibratory Drum Compactor

Vibratory action and dynamic force provides excellent compaction in a compact size.

Photos

Videos

  • Cat® Vibratory Drum Compactors at Work
  • Cat® Vibratory Drum Compactors Operating Tips
  • Cat® Vibratory Drum Compactors Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

Features

Specifications

  • General
    Spec Value
    Drum Width 73 in
    Weight 2138 lb
    Required Hydraulics Standard Flow
    Overall Width 80 in
    Height 25 in
    Length 40 in
    Drum Diameter 25 in
    Required Hydraulic Flow 42-86 L/min (11-23 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Drum Frequency at Maximum Flow 2,946 vibrations/minute
    Drum Oscillation Tilt Range ± 15 degrees
    Dynamic Force 11903 lb
    Amplitude 0.043 in
    Motor Size 1.72 in³
    Drive Method Gear Motor - Direct
