New Attachments

Cat

1524 mm (60 in) Multi V-Plow

Two independently operating blades that can hydraulically angle into five different blade configurations to move snow with maximum efficiency and power.

Photos

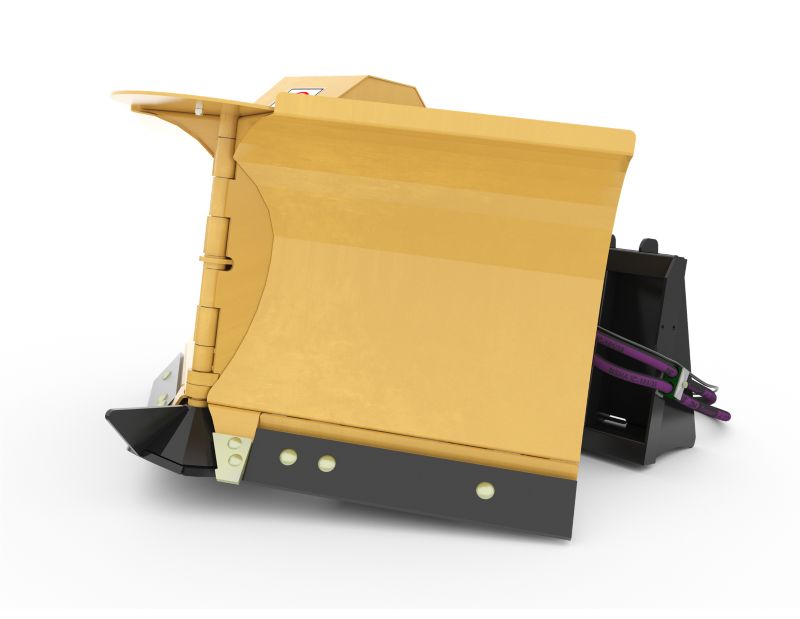

  • Studio Shot
    Studio Shot

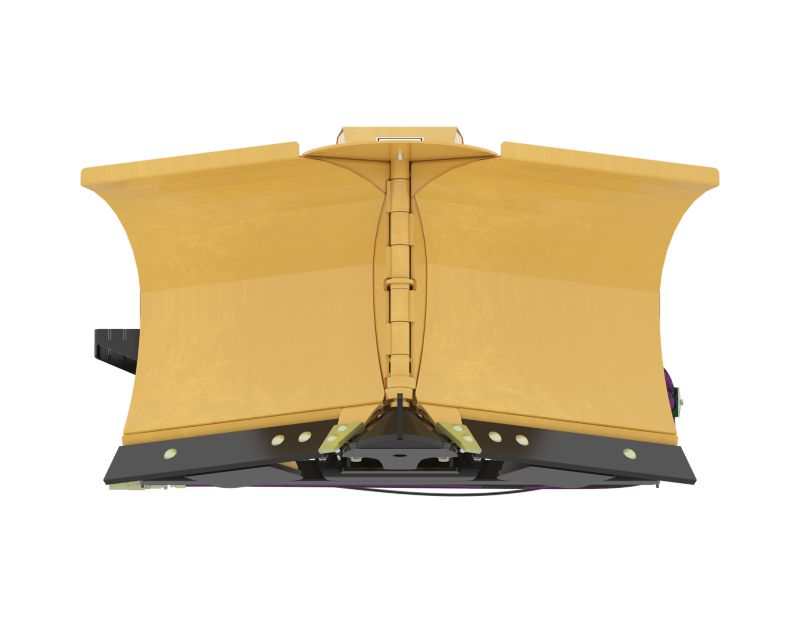

  • Front View
    Front View

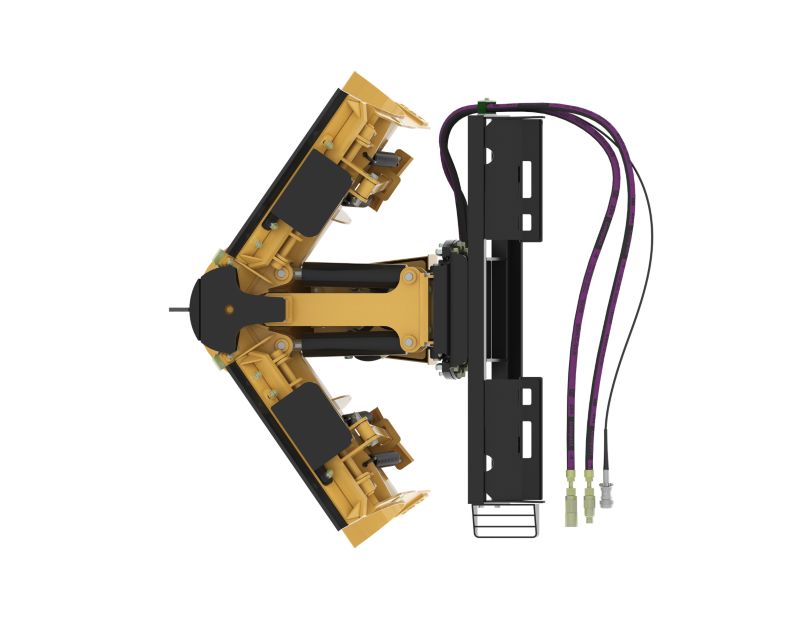

  • Top View
    Top View

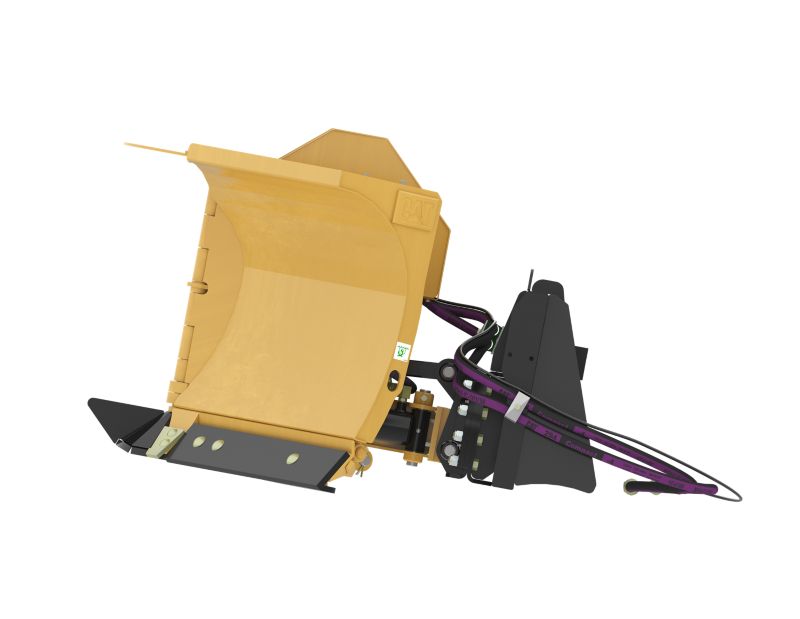

  • Left View
    Left View

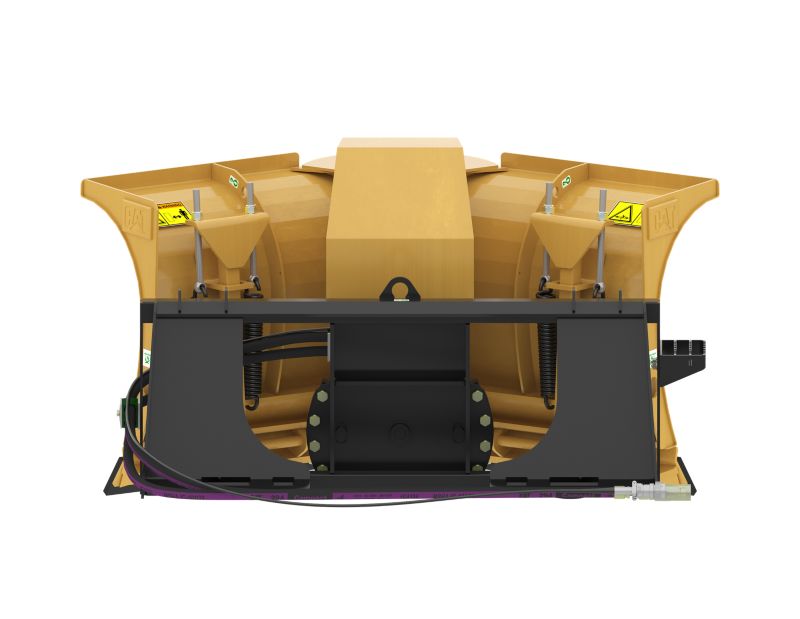

  • Rear View
    Rear View

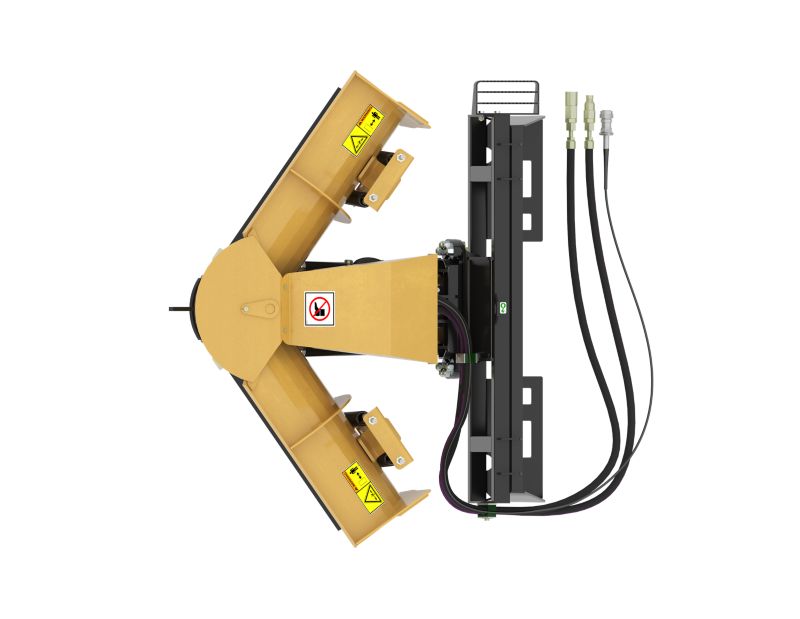

  • Bottom View
    Bottom View

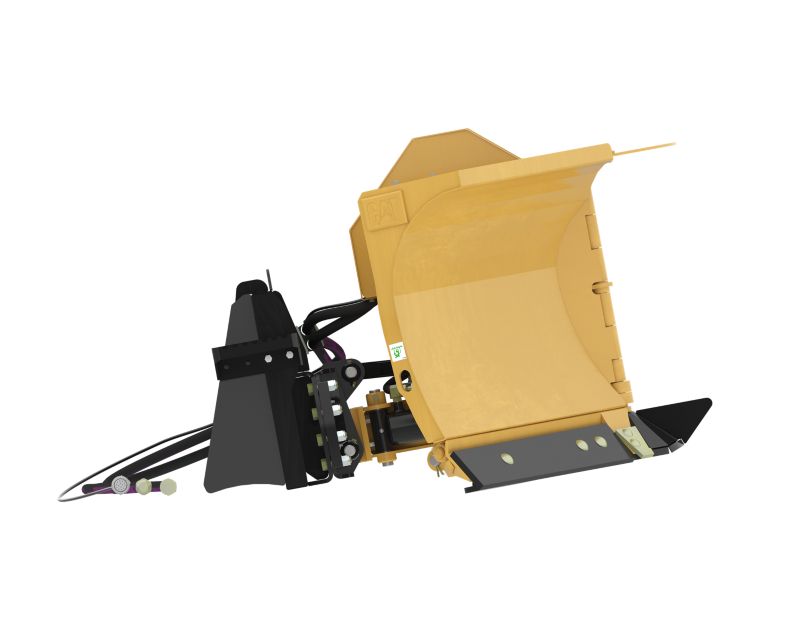

  • Right View
    Right View
  • Cat V-Plow Cutting Through Snow
    Cat V-Plow Cutting Through Snow
  • Cat V-Plow Moving Snow In Angle Blade Setup
    Cat V-Plow Moving Snow In Angle Blade Setup
  • Cat V-Plow Pushing Snow in Scoop Setup
    Cat V-Plow Pushing Snow in Scoop Setup

Videos

  • Cat® Multi V-Plow at Work
  • Cat® Multi V-Plow Features
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Multi V-Plows except where indicated.

Documents

Features

Curved Moldboard

Curved Moldboard

Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.

Curved Moldboard

Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.
Adjustable Skid Plates

Adjustable Skid Plates

Adjustable skid plates reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.

Adjustable Skid Plates

Adjustable skid plates reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.
Blade Float

Blade Float

Blade float allows the plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently.

Blade Float

Blade float allows the plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently.
Adjustable Trip Edges

Adjustable Trip Edges

Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the v-plow and machine.

Adjustable Trip Edges

Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the v-plow and machine.
Bolt-On Serrated Step

Bolt-On Serrated Step

Bolt-On serrated step provides safe and ergonomic access to machine cab that is replaceable if damaged.

Bolt-On Serrated Step

Bolt-On serrated step provides safe and ergonomic access to machine cab that is replaceable if damaged.
V (scoop mode) Blade Configuration

V (scoop mode) Blade Configuration

V (scoop mode) blade configuration pushes, collects, piles high or holds snow for removal to another area for final clean up.

V (scoop mode) Blade Configuration

V (scoop mode) blade configuration pushes, collects, piles high or holds snow for removal to another area for final clean up.
V (plow mode) Blade Configuration

V (plow mode) Blade Configuration

V (plow mode) blade configuration quickly cuts initial pathway through deep, hard packed snow piles and drifts.

V (plow mode) Blade Configuration

V (plow mode) blade configuration quickly cuts initial pathway through deep, hard packed snow piles and drifts.
Right/Left Angled Blade Configuration

Right/Left Angled Blade Configuration

Right/Left angled blade configuration quickly and easily windrows snow to the designated side of the machine.

Right/Left Angled Blade Configuration

Right/Left angled blade configuration quickly and easily windrows snow to the designated side of the machine.
Straight Blade Configuration

Straight Blade Configuration

Straight blade configuration provides maximum width for piling and stacking snow high and clearing light snow cove.

Straight Blade Configuration

Straight blade configuration provides maximum width for piling and stacking snow high and clearing light snow cove.

Specifications

  • General
    Spec Value
    Straight Width 60 in
    Angled Width 53 in
    Interface Type Skid Steer Coupler
    V-Width - Scoop Mode 54 in
    V-Width - Plow Mode 58.4 in
    Weight 639.3 lb
    Blade Height 29 in
    Overall Height 32.5 in
    Length 52 in
    Hydraulic Angling - Left/Right of Center ±35 Degrees
    Float ±5 Degrees
    Optimal Hydraulic Flow 57-76 lpm (15-20 gpm)
    Optimal Hydraulic Pressure 150-230 bar (2176-3340 psi)
    Trip Edge Quantity 2
    Trip Edge Type Steel
    Trip Edge Height 4 in
    Trip Edge Pivot Height 3.3 in
    Required Hydraulics Standard Flow
