New Attachments

Cat

890 mm (35 in) Single Tine Bale Spear

Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.

Photos

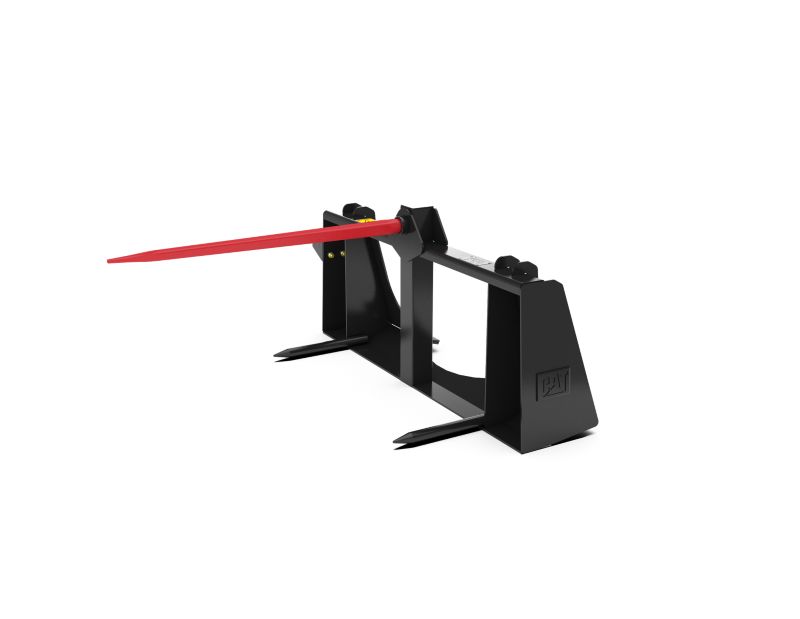

  • Studio Shot
    Studio Shot

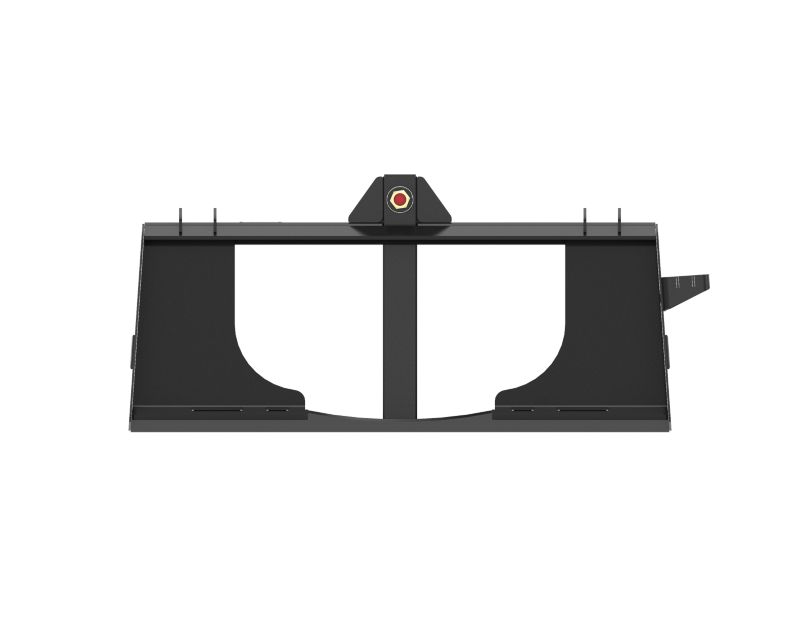

  • Front View
    Front View

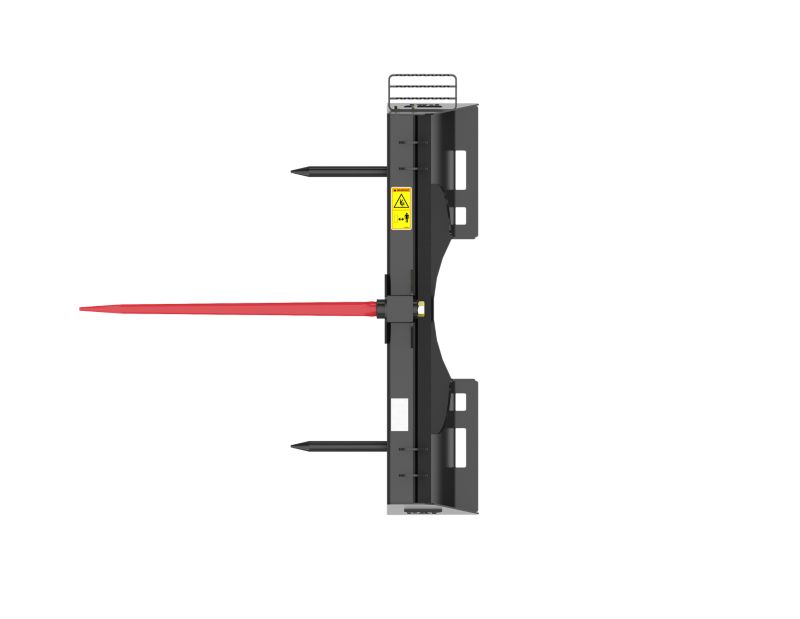

  • Top View
    Top View

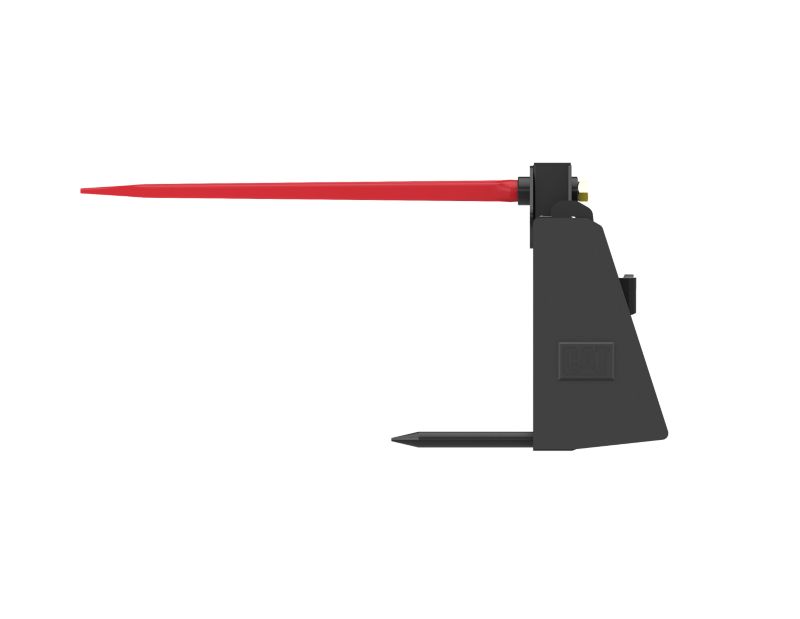

  • Left View
    Left View

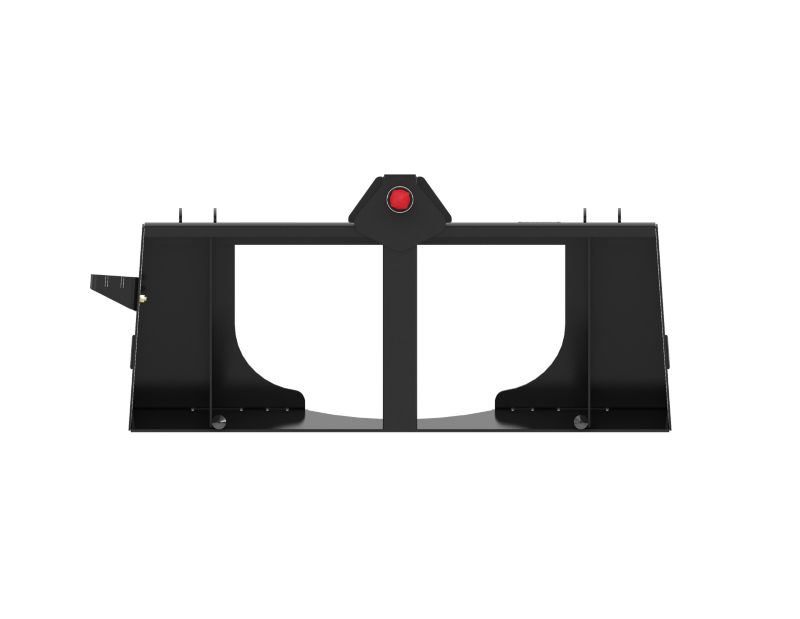

  • Rear View
    Rear View

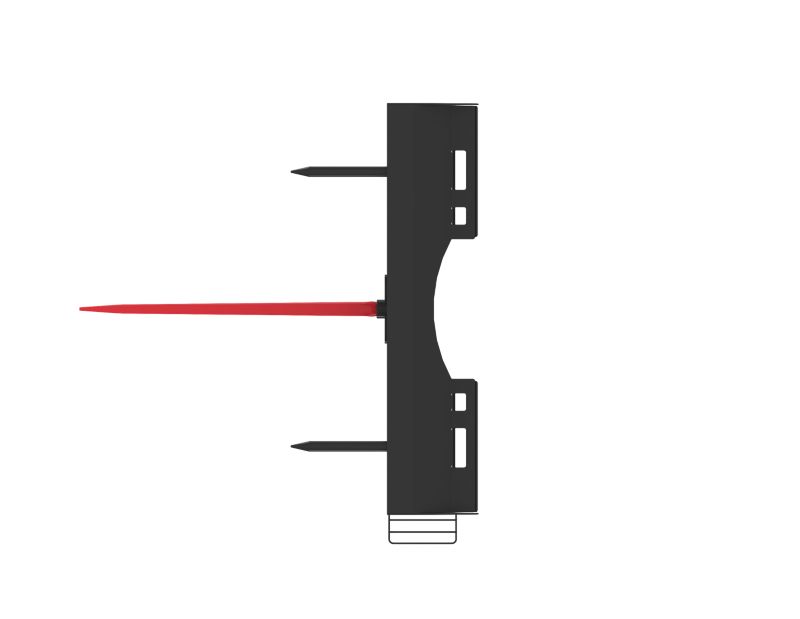

  • Bottom View
    Bottom View
  • Right View
    Right View

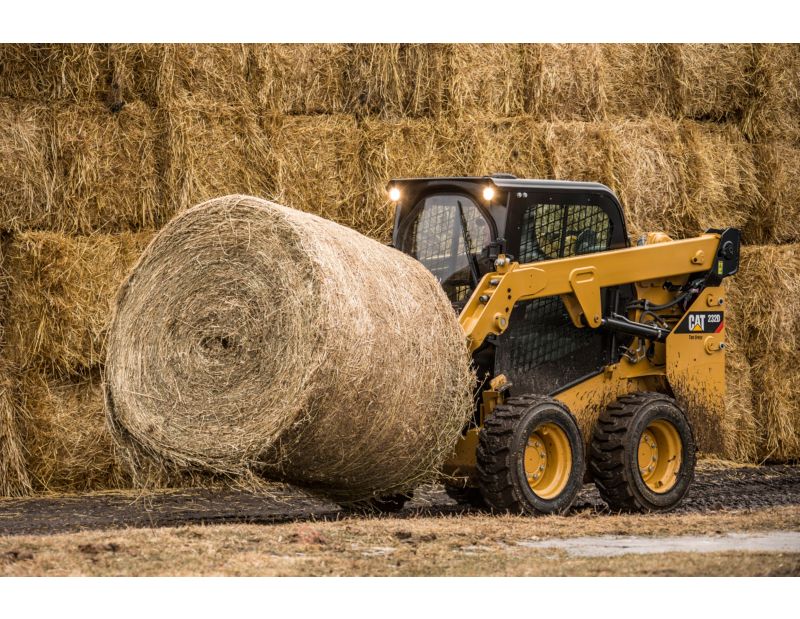

  • Cat® Bale Spear in Action
    Cat® Bale Spear in Action

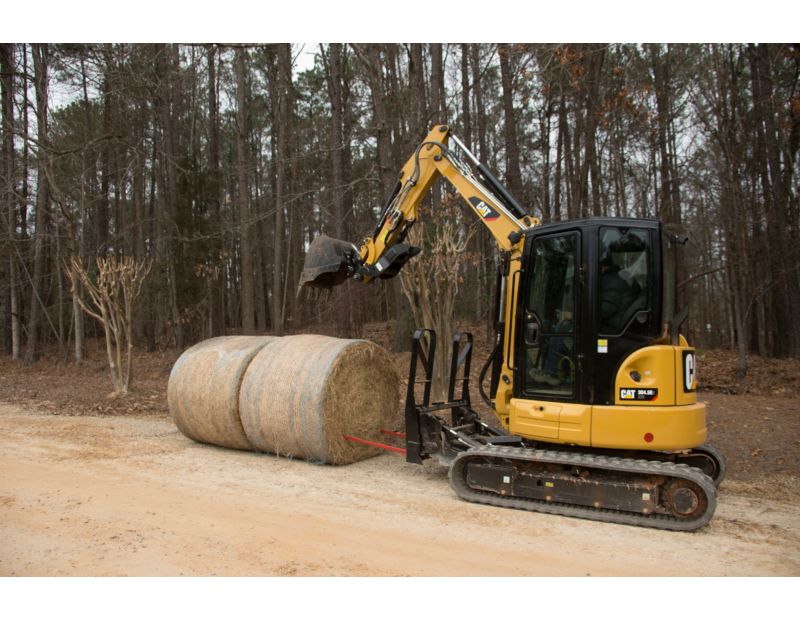

  • Cat® Bale Spear in use on a Cat 304.5E2
    Cat® Bale Spear in use on a Cat 304.5E2

Videos

  • Cat® Bale Spear at Work
  • Cat® Bale Handling Solutions Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Bale Spears except where indicated.

Documents

Features

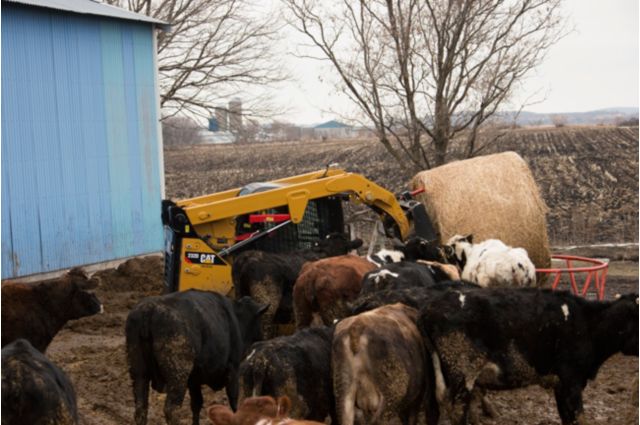

Application

Application

Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.

Application

Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.
Two Length Options

Two Length Options

Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.

Two Length Options

Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.

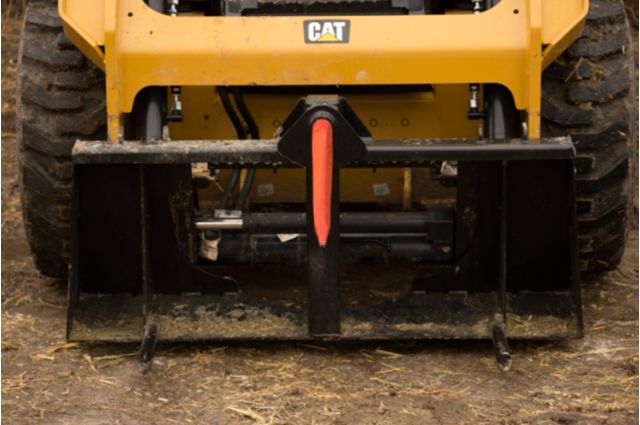

Stabilizer Spears

Stabilizer Spears

Single Bale Spear has two additional stabilizer spears located on the bottom of the frame, ensuring the security of baled material when traveling and loading.

Stabilizer Spears

Single Bale Spear has two additional stabilizer spears located on the bottom of the frame, ensuring the security of baled material when traveling and loading.

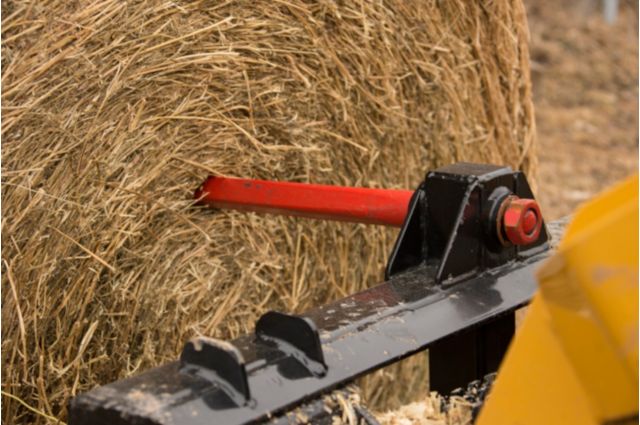

Conical Tapered Tines

Conical Tapered Tines

A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.

Conical Tapered Tines

A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.

Specifications

  • General
    Spec Value
    Overall Width 50.6 in
    Overall Height 22.4 in
    Capacity 2004 lb
    Usable Tine Length 35 in
    Overall Depth 46.7 in
    Weight 154.3 lb
    Tine Spacing 31.5 in
    Stabilizer Tine Length 11.1 in
