New Attachments

Caterpillar

BP115C Pickup Broom

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Photos

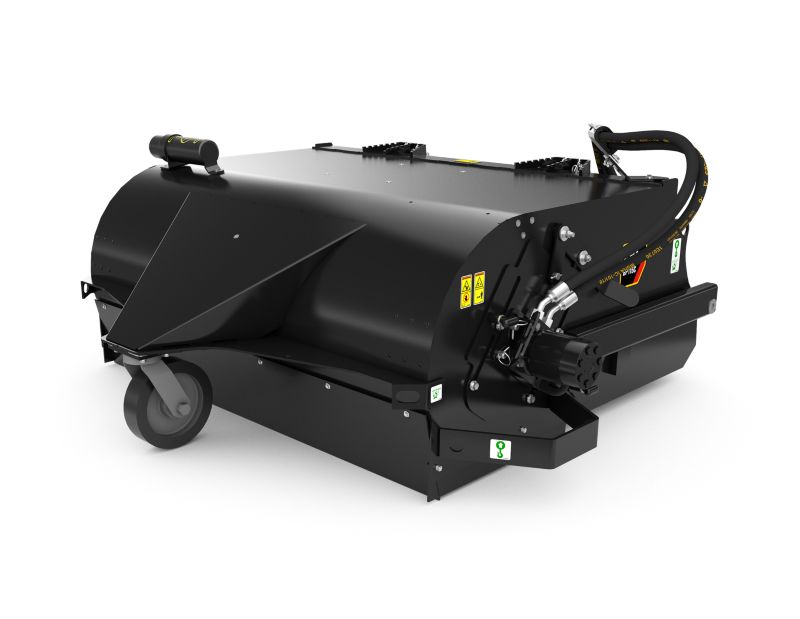

  • Studio Shot
    Studio Shot

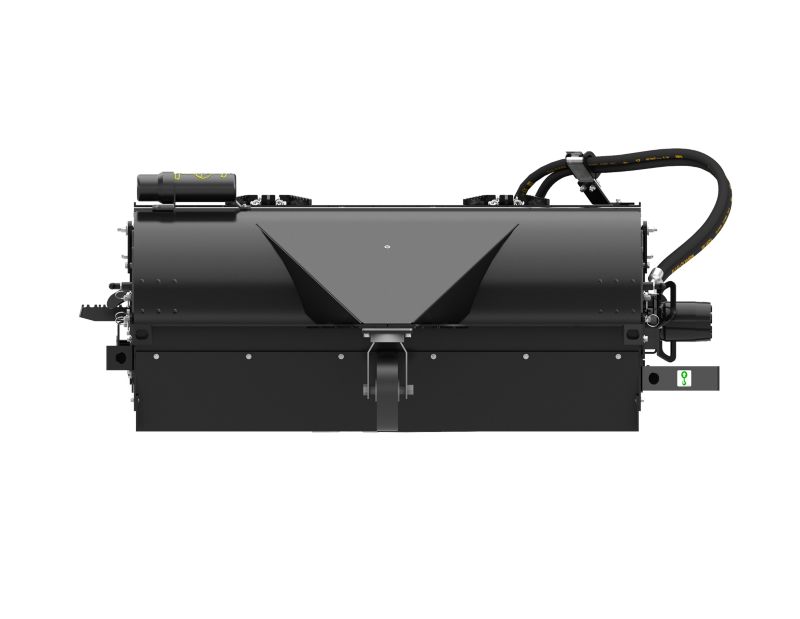

  • Front View
    Front View

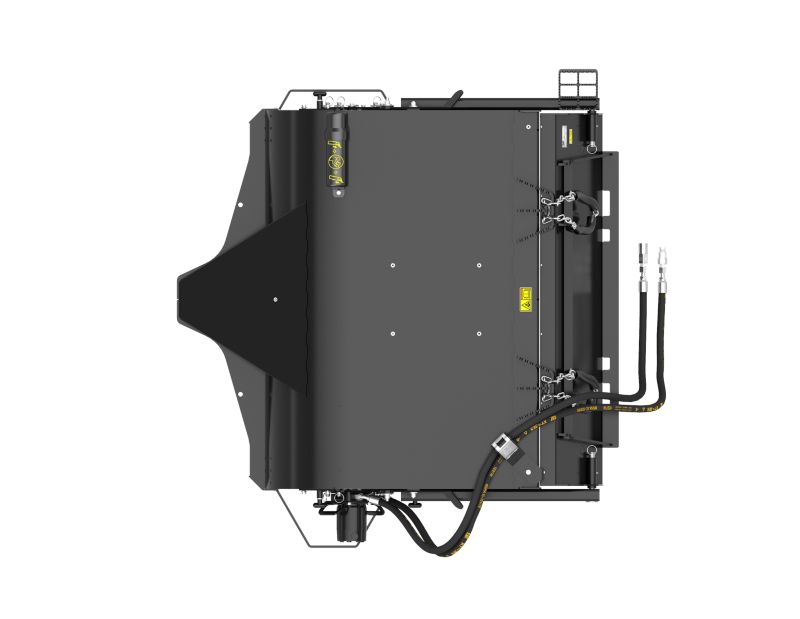

  • Top View
    Top View

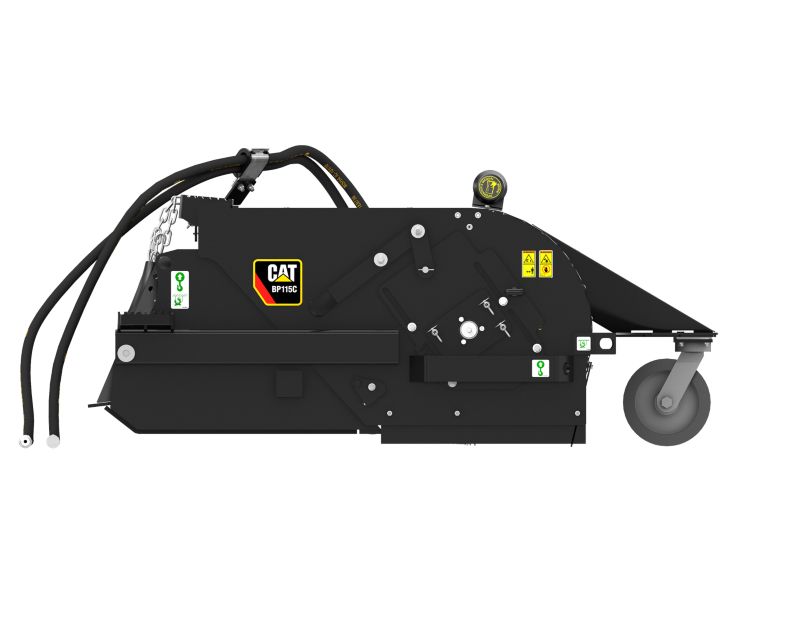

  • Left View
    Left View

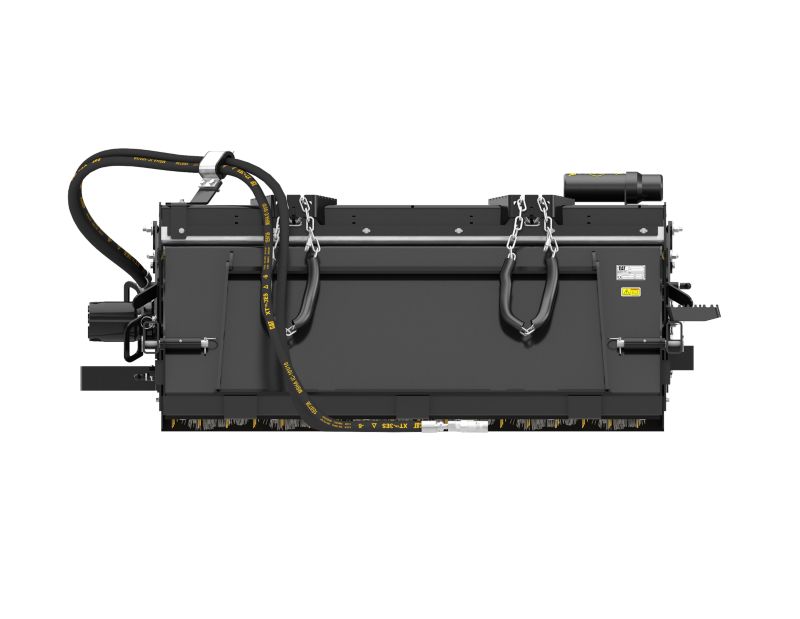

  • Rear View
    Rear View

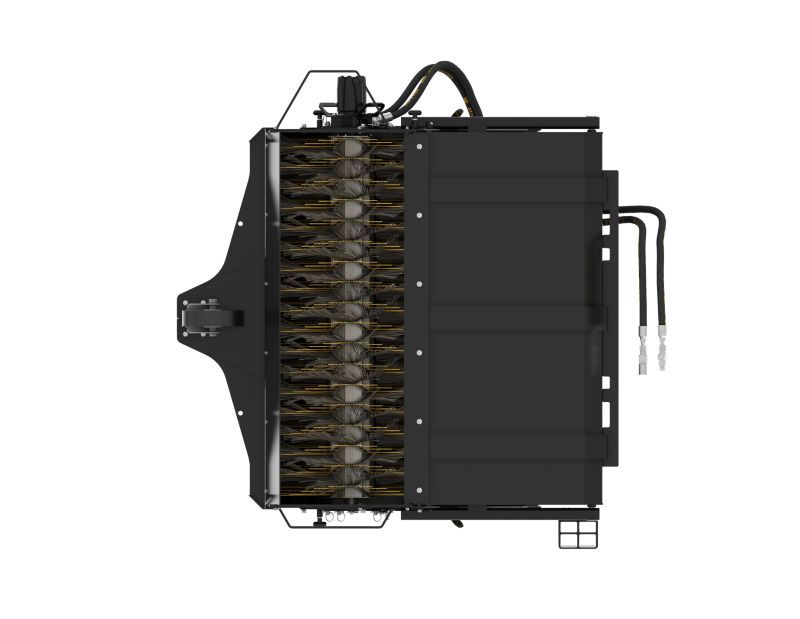

  • Bottom View
    Bottom View

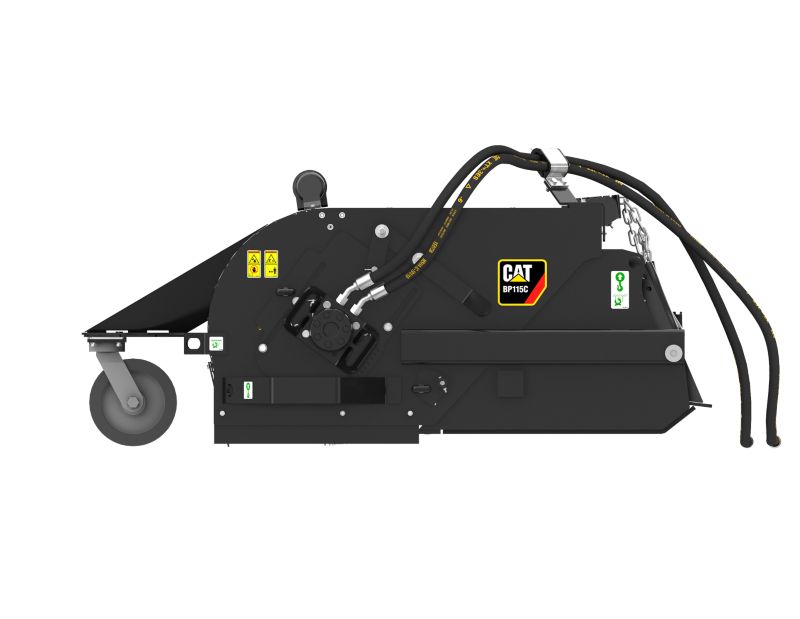

  • Right View
    Right View

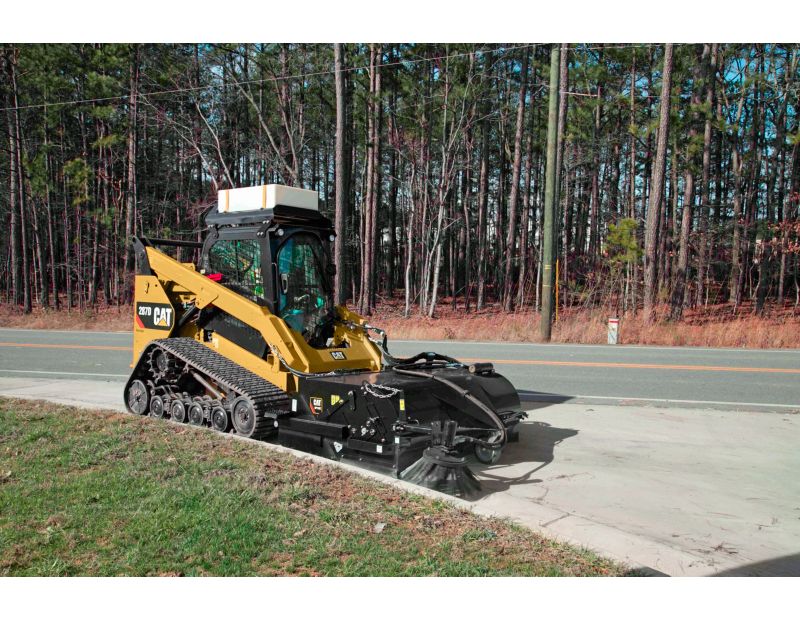

  • Cat® Pickup Broom at Work (shown with optional Dust Control Kit, Water Tank Kit and Gutter Brush)
    Cat® Pickup Broom at Work (shown with optional Dust Control Kit, Water Tank Kit and Gutter Brush)

Videos

  • Cat® Angle Broom and Utility Broom for Compact Equipment at Work
  • Cat® Brooms at Work
  • Cat® Pickup Broom and Utility Broom Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Pickup Brooms except where indicated.

Documents

Features

Application

Application

Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.

Application

Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.
Large Hopper Capacity

Large Hopper Capacity

Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening permits fast, efficient dumping.

Large Hopper Capacity

Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening permits fast, efficient dumping.
Adjustable Volumizer

Adjustable Volumizer

Adjustable volumizer allows more material retention in hopper, giving operator more sweeps before stopping to empty material.

Adjustable Volumizer

Adjustable volumizer allows more material retention in hopper, giving operator more sweeps before stopping to empty material.
Guide Wheel

Guide Wheel

Heavy-duty low profile pneumatic guide wheel supports the hood during sweeping.

Guide Wheel

Heavy-duty low profile pneumatic guide wheel supports the hood during sweeping.
Optional Gutter Brush

Optional Gutter Brush

Optional all-steel wire gutter brush mounted on the left or right side of the broom assists in removing material from gutters and pavement edges.

Optional Gutter Brush

Optional all-steel wire gutter brush mounted on the left or right side of the broom assists in removing material from gutters and pavement edges.
Optional Dust Control

Optional Dust Control

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.

Optional Dust Control

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.
Broom Material Options

Broom Material Options

Standard broom material is made of replaceable polypropylene and steel wire sections. Optional replacement brushes include all polypropylene and all steel wire.

Broom Material Options

Standard broom material is made of replaceable polypropylene and steel wire sections. Optional replacement brushes include all polypropylene and all steel wire.
Interior Deflectors

Interior Deflectors

Interior deflectors, rear bucket seal, and side brush stripping direct dirt and dust into the bucket, reducing spillage and air-borne contaminants.

Interior Deflectors

Interior deflectors, rear bucket seal, and side brush stripping direct dirt and dust into the bucket, reducing spillage and air-borne contaminants.
Dual Chain and Loader Arm Bracket System

Dual Chain and Loader Arm Bracket System

Dual chain and loader arm bracket system holds broom housing horizontally when emptying the hopper.

Dual Chain and Loader Arm Bracket System

Dual chain and loader arm bracket system holds broom housing horizontally when emptying the hopper.
Bristle Height Adjustment

Bristle Height Adjustment

Bristle height adjustments have been simplified with the use of handle and a tool-less locking feature.

Bristle Height Adjustment

Bristle height adjustments have been simplified with the use of handle and a tool-less locking feature.
Motor Serviceability

Motor Serviceability

Motor serviceability is enhanced with a handle shaped motor bracket, core connection is close to broom wall and single retention pins allow for quick brush change and less downtime.

Motor Serviceability

Motor serviceability is enhanced with a handle shaped motor bracket, core connection is close to broom wall and single retention pins allow for quick brush change and less downtime.
Replaceable Bolt-On Cutting Edges

Replaceable Bolt-On Cutting Edges

Replaceable bolt-on cutting edges increase wear life of hopper bucket.

Replaceable Bolt-On Cutting Edges

Replaceable bolt-on cutting edges increase wear life of hopper bucket.
Tool Mounted Operation and Maintenance Manual Holder

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Specifications

  • General
    Spec Value
    Overall Width 78.3 in
    Sweeping Width 60 in
    Brush Diameter 26 in
    Required Hydraulics Standard Flow
    Height 34.3 in
    Length 72.3 in
    Weight 1159.6 lb
    Required Hydraulic Flow 42-86 L/min (11-23 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Motor Displacement 24.7 in³/rev
    Brush Speed at Maximum Flow 199 rpm
    Hopper Capacity 0.5 yd³
    Gutter Brush Weight 90.4 lb
    Drive Method Direct Drive
