New Attachments

Cat

BRX318 Industrial Brushcutter

Cat® Industrial Brushcutters are best for right of way maintenance, clearing land and brush cutting.

Photos

  • Studio Shot

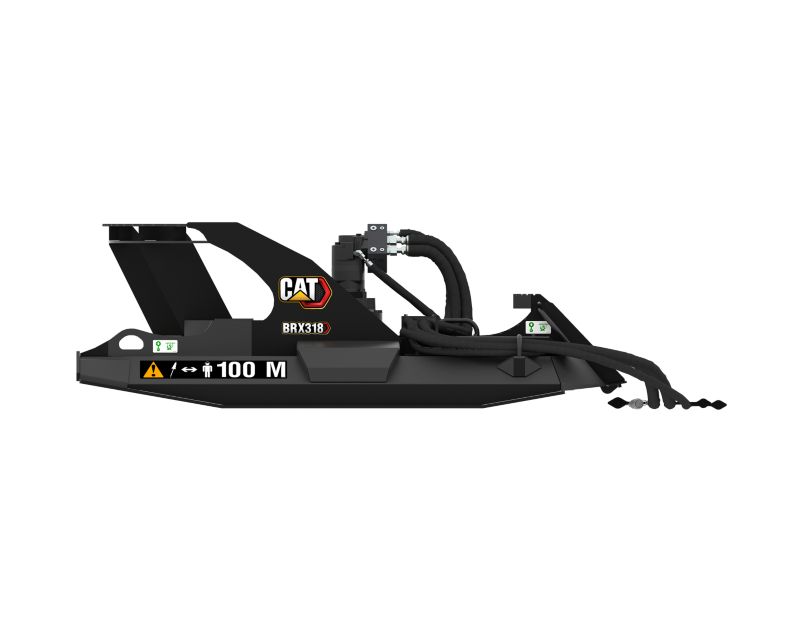

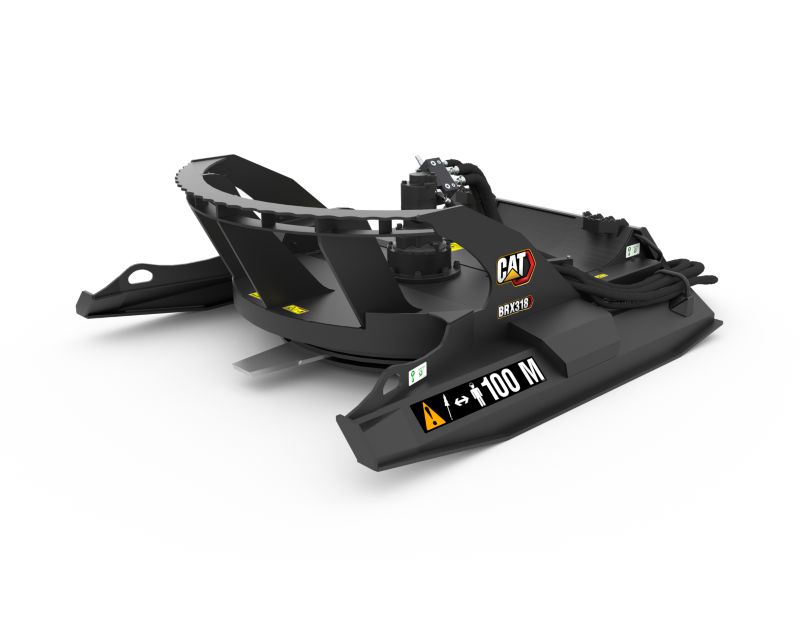

    Studio Shot
  • Front View

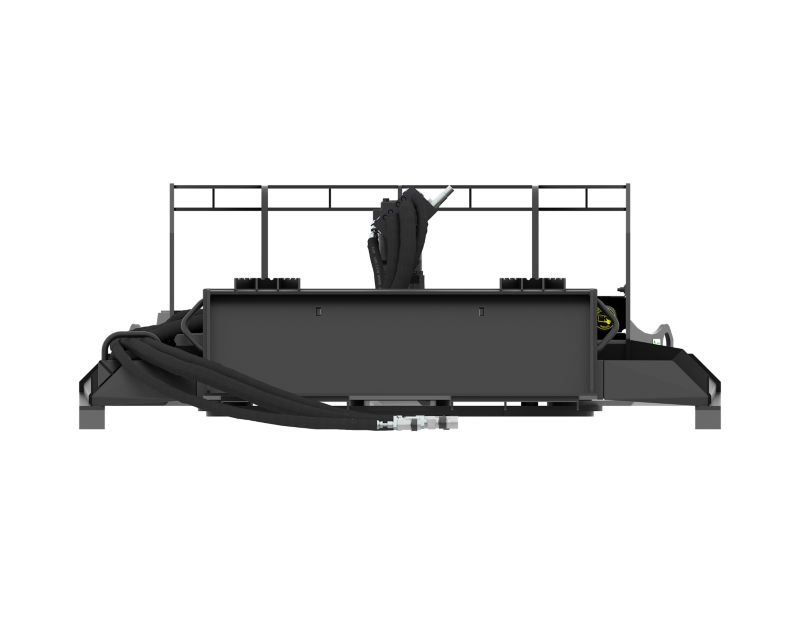

    Front View
  • Top View

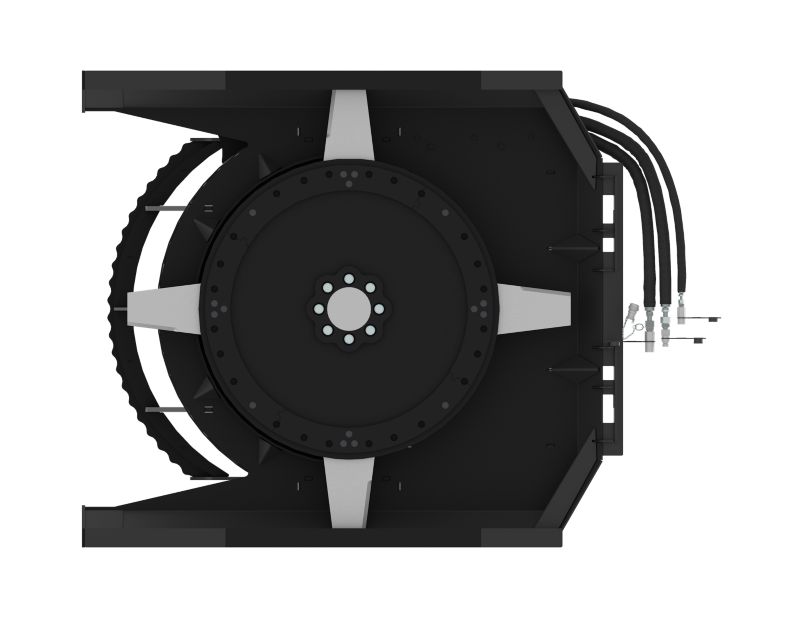

    Top View
  • Left View
    Left View
  • Rear View
    Rear View
  • Bottom View

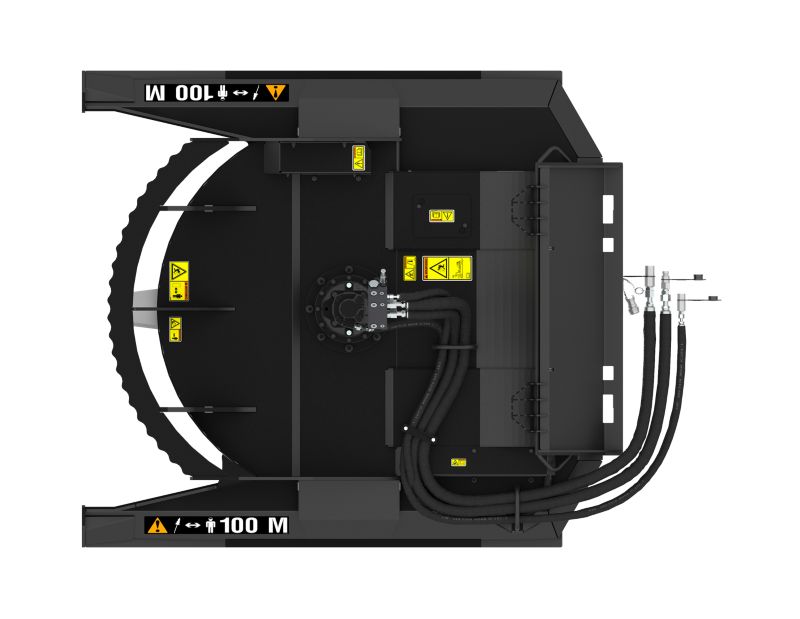

    Bottom View
  • Right View
    Right View

Videos

  • Cat® Industrial Brushcutters at Work
  • Cat® Industrial Brushcutter Overview
  • Cat® Industrial Brushcutter Operating Tips
  • Cat® Industrial Brushcutter Production Study
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Brushcutters except where indicated.

Documents

Features

Application

Application

Cat® Industrial Brushcutters are used for clearing overgrowth from highway medians, utility easements and for initial land clearing for housing, parks and recreational areas.

Application

Cat® Industrial Brushcutters are used for clearing overgrowth from highway medians, utility easements and for initial land clearing for housing, parks and recreational areas.
Fully Balanced Blade Carrier

Fully Balanced Blade Carrier

Fully balanced blade carrier holds four blades to prevent unnecessary vibration. Blade carrier weighing 409 kg (900 lb) provides unmatched blade inertia. High inertia energy allows blades to wing through dense brush.

Fully Balanced Blade Carrier

Fully balanced blade carrier holds four blades to prevent unnecessary vibration. Blade carrier weighing 409 kg (900 lb) provides unmatched blade inertia. High inertia energy allows blades to wing through dense brush.
Hardened Reversible Blades

Hardened Reversible Blades

Hardened reversible blades provide aggressive cutting of material and deliver high performance and durability. Blades are attached to blade carrier with three bolts that can easily be torqued from an access panel on the top of frame.

Hardened Reversible Blades

Hardened reversible blades provide aggressive cutting of material and deliver high performance and durability. Blades are attached to blade carrier with three bolts that can easily be torqued from an access panel on the top of frame.
Long Life Motor w/ Anti-Cavitation Valve

Long Life Motor w/ Anti-Cavitation Valve

Anti-cavitation valve protects vital motor components improving tool life and ensuring adequate machine and tool performance.

Long Life Motor w/ Anti-Cavitation Valve

Anti-cavitation valve protects vital motor components improving tool life and ensuring adequate machine and tool performance.
Integrated Accumulator

Integrated Accumulator

Integrated accumulator in hydraulic system works in conjunction with the anti-cavitation valve to reduce pressure spikes to the drive motor. On shut-down, the accumulator discharges oil to the motor to slowly spin down the drivetrain. This reduces noise emitted by the motor and the cavitation.

Integrated Accumulator

Integrated accumulator in hydraulic system works in conjunction with the anti-cavitation valve to reduce pressure spikes to the drive motor. On shut-down, the accumulator discharges oil to the motor to slowly spin down the drivetrain. This reduces noise emitted by the motor and the cavitation.
Heavy-Duty Skids

Heavy-Duty Skids

Heavy-duty skids allow easy movement of brushcutter through uneven terrain while maintaining stability of the work tool and machine.

Heavy-Duty Skids

Heavy-duty skids allow easy movement of brushcutter through uneven terrain while maintaining stability of the work tool and machine.
Reinforced Push Bar

Reinforced Push Bar

Control and guide foliage into blades. Push bar extends beyond blades protecting bystanders.

Reinforced Push Bar

Control and guide foliage into blades. Push bar extends beyond blades protecting bystanders.
Tuned Hydraulic Performance

Tuned Hydraulic Performance

The Industrial Brushcutter is designed to match with standard flow, high flow XPS, and high flow XHP hydraulics. Each hydraulic platform optimizes recovery time and reduces heat load on the carrier to work in high ambient temperature environments.

Tuned Hydraulic Performance

The Industrial Brushcutter is designed to match with standard flow, high flow XPS, and high flow XHP hydraulics. Each hydraulic platform optimizes recovery time and reduces heat load on the carrier to work in high ambient temperature environments.
Rigid Frame and Heavy Bearing Case

Rigid Frame and Heavy Bearing Case

Improved tool life with reinforced corner gussets to provide strength in critical areas and also mulch cut material. Heavy duty bearing case secures blade carrier to the drive system with a series of eight bolts.

Rigid Frame and Heavy Bearing Case

Improved tool life with reinforced corner gussets to provide strength in critical areas and also mulch cut material. Heavy duty bearing case secures blade carrier to the drive system with a series of eight bolts.
Tool Mounted Operation and Maintenance Manual Holder

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Specifications

  • General
    Spec Value
    Overall Width 75.2 in
    Cutting Width 72 in
    Maximum Cutting Diameter 8 in
    Required Hydraulics High Flow XPS
    Overall Length 85.4 in
    Overall Height 28.9 in
    Weight 2363.4 lb
    Optimal Hydraulic Flow 120-125 L/min (31-33 gpm)
    Optimal Hydraulic Pressure 200-280 bar (2800-4100 psi)
    Tip Speed (Depends On Flow) 3,180-3,300 mpm (10,433-10,827 fpm)
    Motor Displacement 11.9 in³/rev
    Drive Shaft Torque 444-829 N·m (327-611 lb/ft)
