Ziegler CAT

Caterpillar

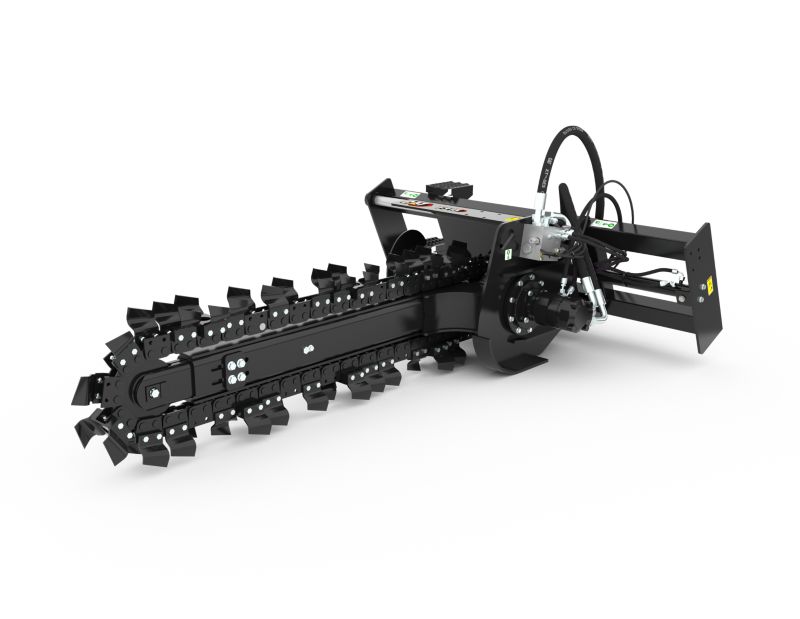

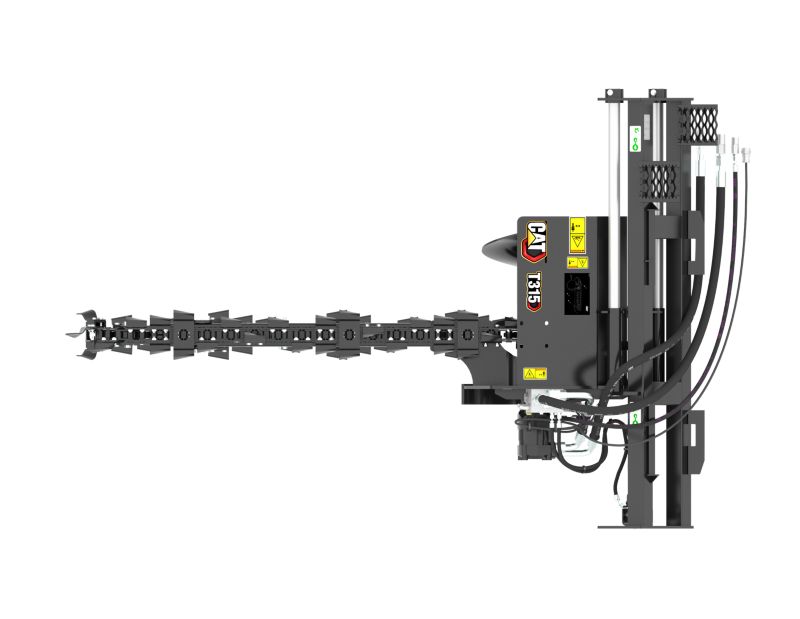

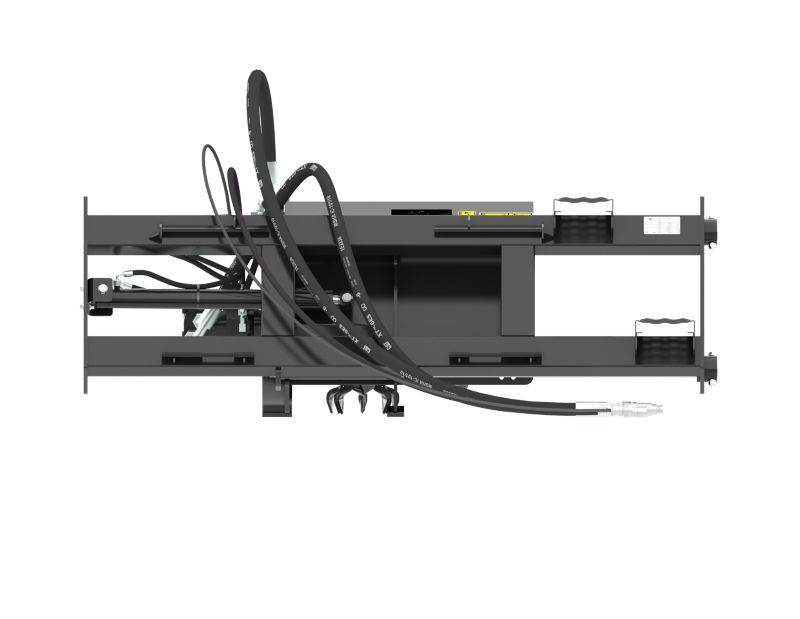

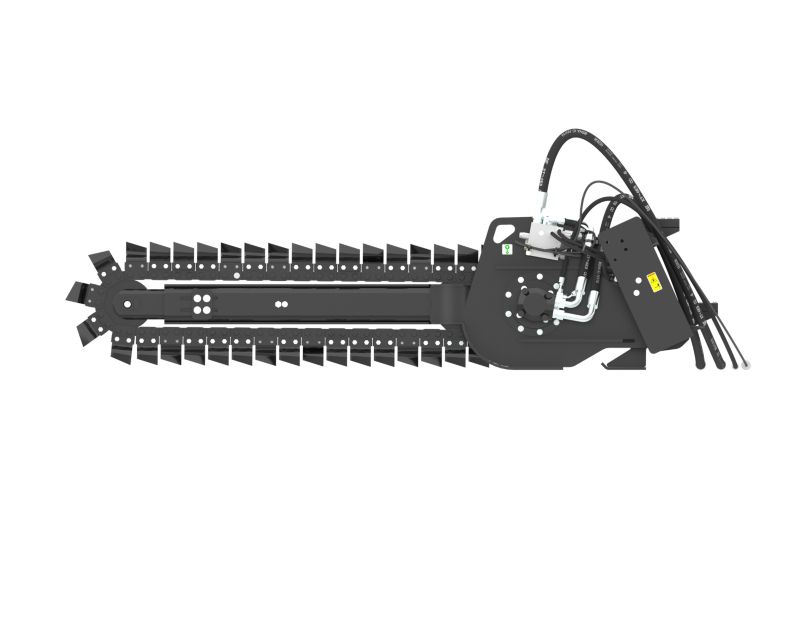

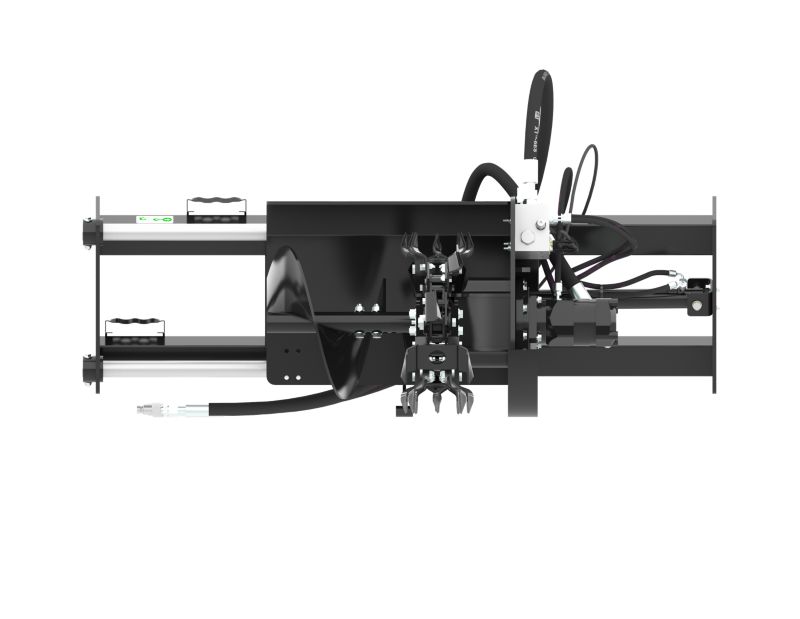

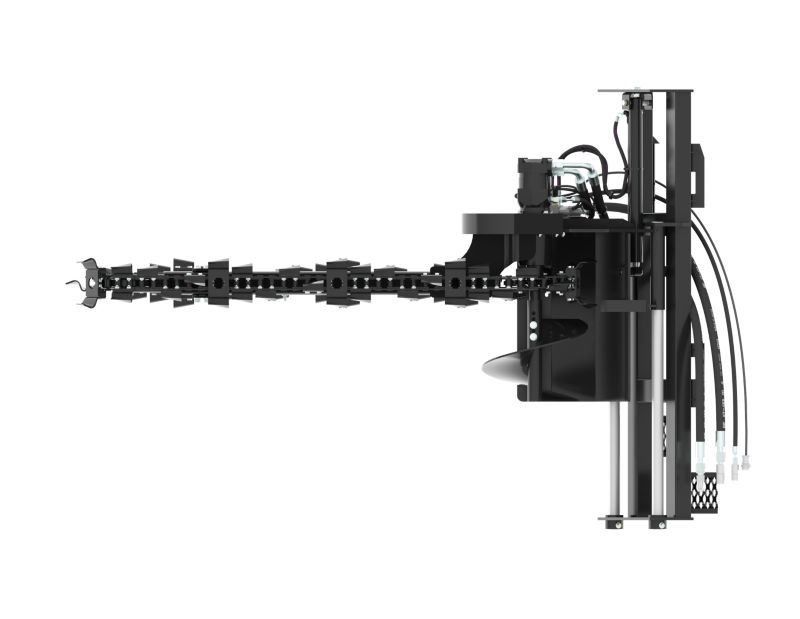

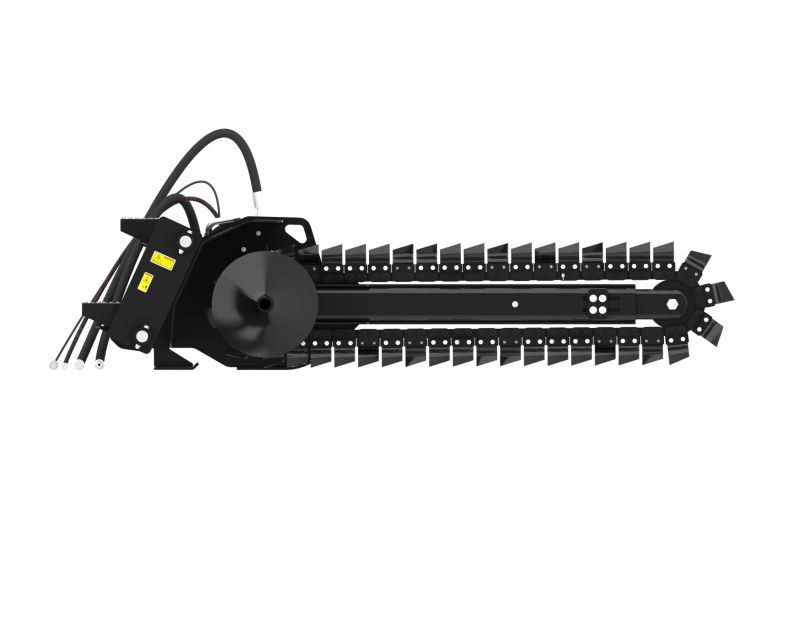

T315 High Flow Trencher with standard teeth

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Photos

Videos

  • Cat® Trenchers at Work
  • Cat® Trenchers Production Study
  • Cat® Trencher Operating Tips
  • Cat® Trencher Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Trenchers except where indicated.

Features

Specifications

  • General
    Spec Value
    Standard Boom Length 60 in
    Cutting Width 8 in
    Chain Type Standard
    Required Hydraulics High Flow XPS
    Overall Width 74.8 in
    Overall Length 118.5 in
    Weight 1287.1 lb
    Overall Height 30.9 in
    Optimal Hydraulic Flow 95-152 L/min (25-40 gpm)
    Optimal Hydraulic Pressure 207-310 bar (3300-4500 psi)
    Drive Shaft Speed at Maximum Flow 207 rpm
    Side Shift Travel 22 in
    Maximum Auger Clearance 21 in
    Spoil Auger Diameter 18 in
    Optional Cutting Widths 152, 254, 305 mm (6, 10, 12 in)
