Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.
Caterpillar
1140 mm (45 in) Dual Tine Bale Spear
Photos
-

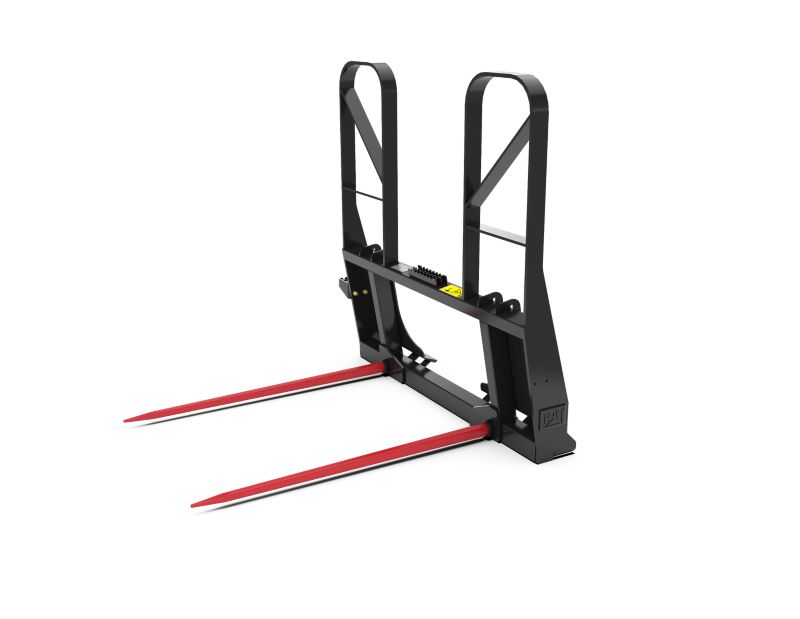

Studio Shot -

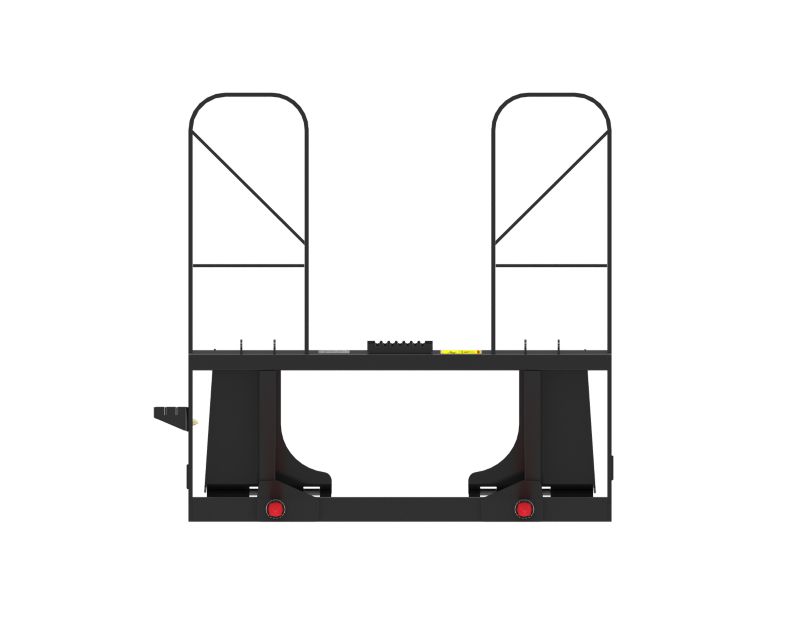

Front View -

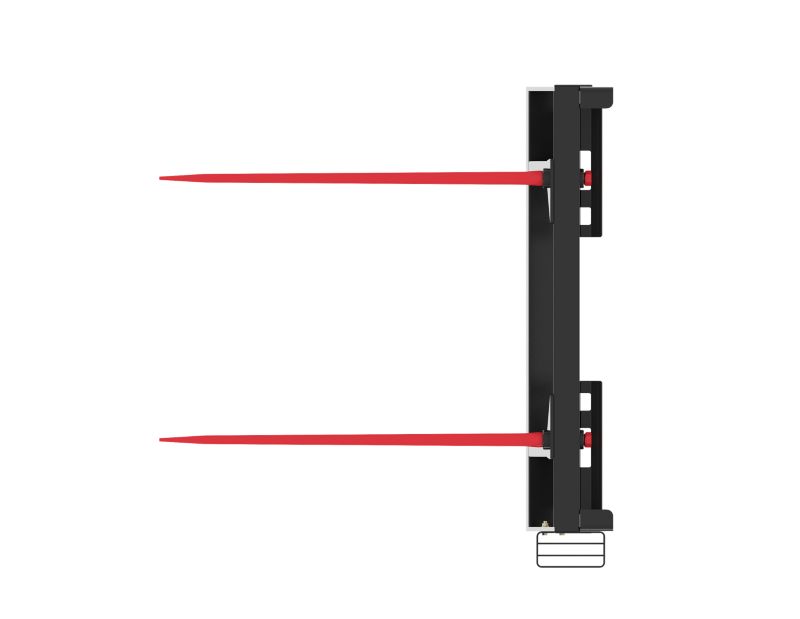

Top View -

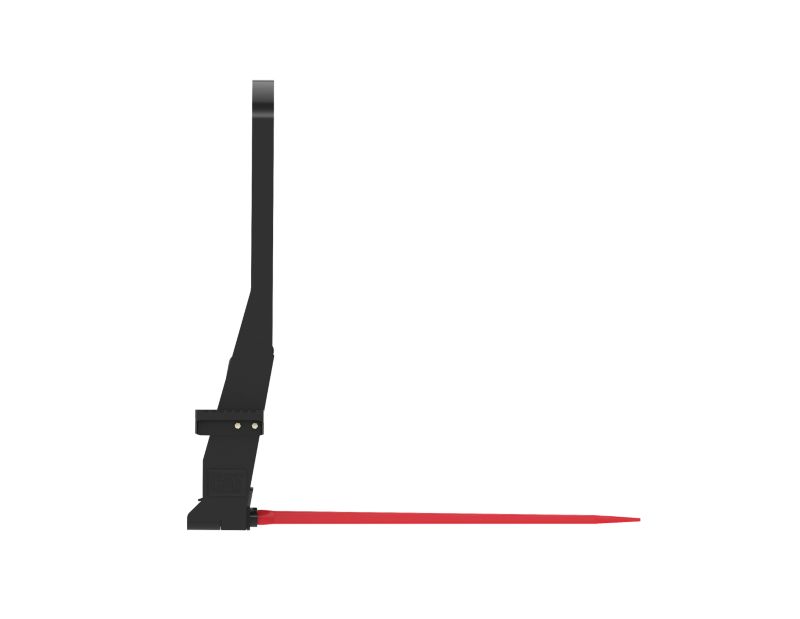

Left View -

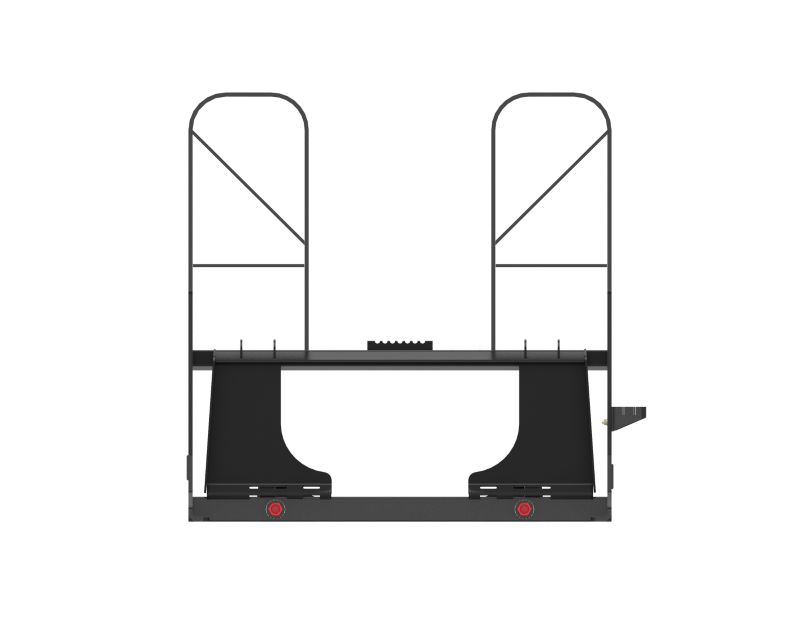

Rear View -

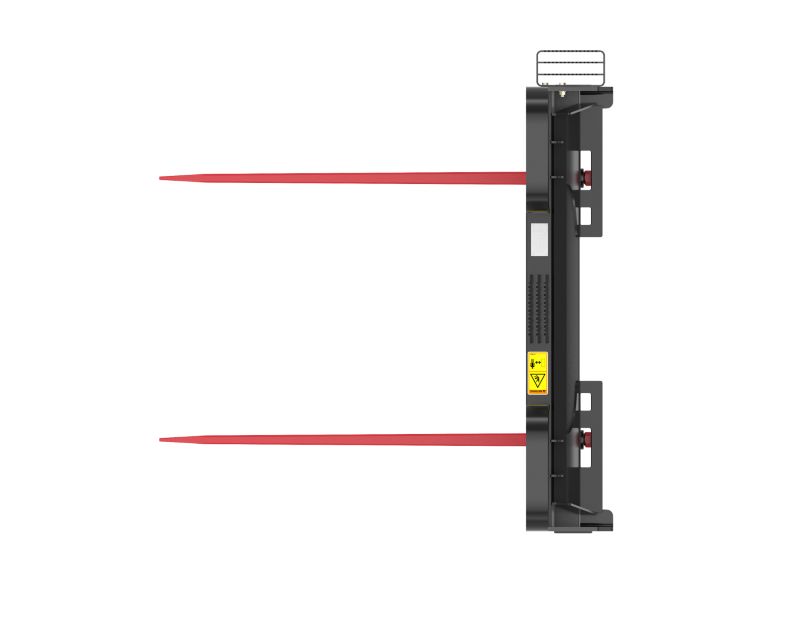

Bottom View -
Right View -
Cat® Bale Spear in Action -
Cat® Bale Spear in use on a Cat 304.5E2
Videos
360° View
Exterior
Model shown represents features on all Cat® Bale Spears except where indicated.
Documents
Features
Application
Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.
Application
Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.
Two Length Options
Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.
Two Length Options
Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.
Stabilizer Spears
Single Bale Spear has two additional stabilizer spears located on the bottom of the frame, ensuring the security of baled material when traveling and loading.
Stabilizer Spears
Single Bale Spear has two additional stabilizer spears located on the bottom of the frame, ensuring the security of baled material when traveling and loading.
Conical Tapered Tines
A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.
Conical Tapered Tines
A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.
Heavy Duty High Back Structure
Dual tine Bale Spear models are equipped with a durable heavy duty back rest that allows excellent visibility, and easy ingress and egress from the machine cab.
Heavy Duty High Back Structure
Dual tine Bale Spear models are equipped with a durable heavy duty back rest that allows excellent visibility, and easy ingress and egress from the machine cab.
Specifications
-
General
Spec Value Overall Width 55 in Overall Height 51 in Capacity 3000 lb Usable Tine Length 45 in Overall Depth 53 in Weight 267 lb Tine Spacing 28 in
