Ziegler CAT

New Attachments

Caterpillar

1676 mm (66 in) Utility Forks

Cat® Utility Forks are designed to handle a wide array of materials in a variety of operating conditions.

Photos

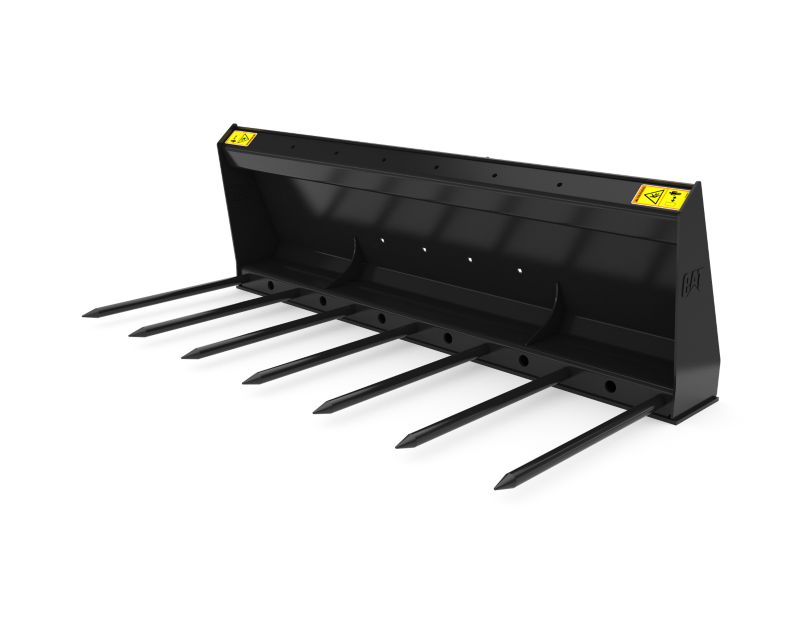

  • Studio Shot
    Studio Shot

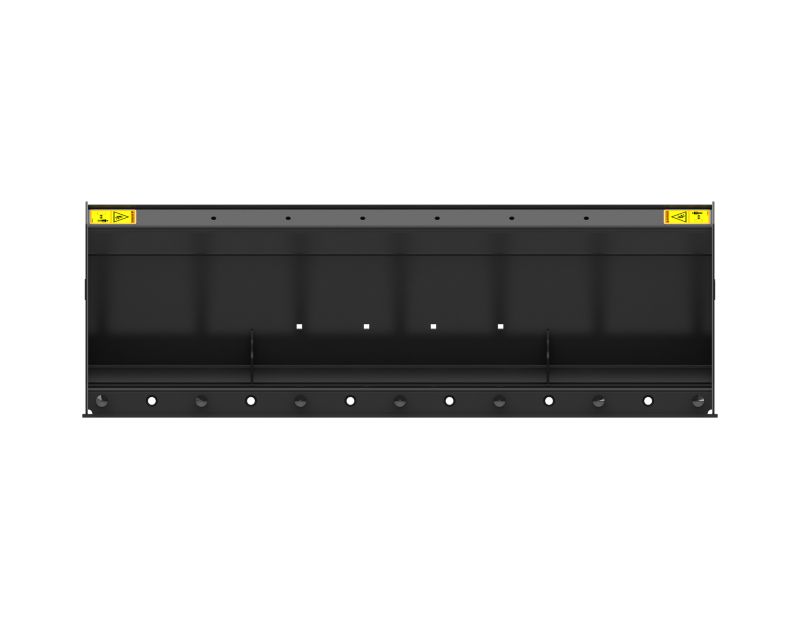

  • Front View
    Front View

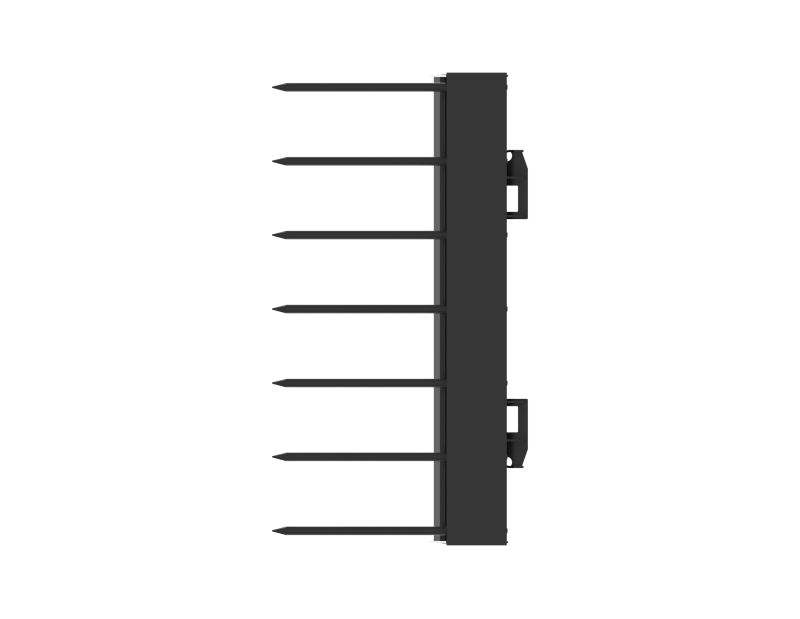

  • Top View
    Top View

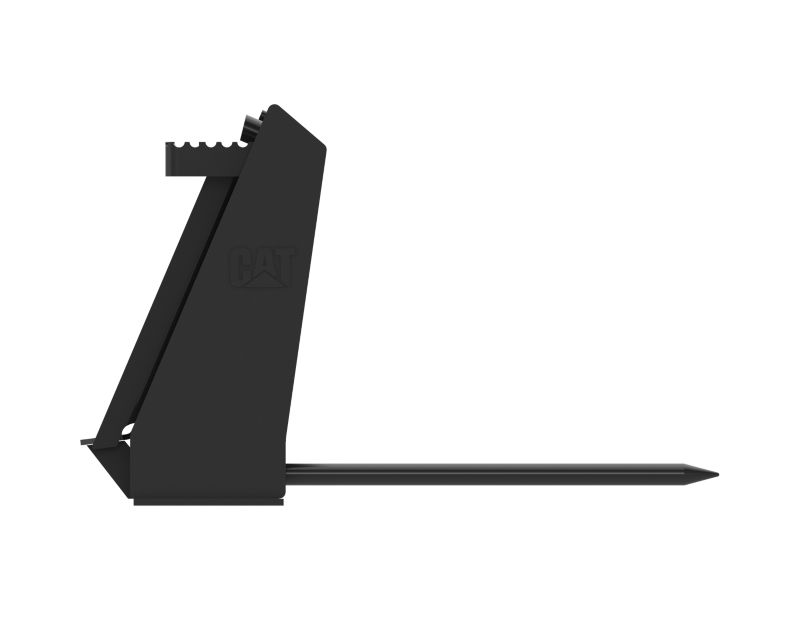

  • Left View
    Left View

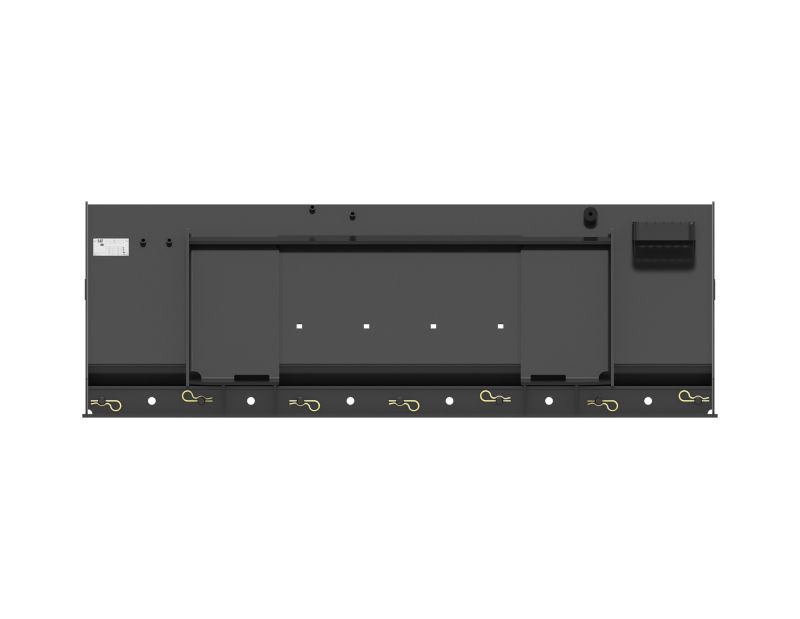

  • Rear View
    Rear View
  • Bottom View
    Bottom View

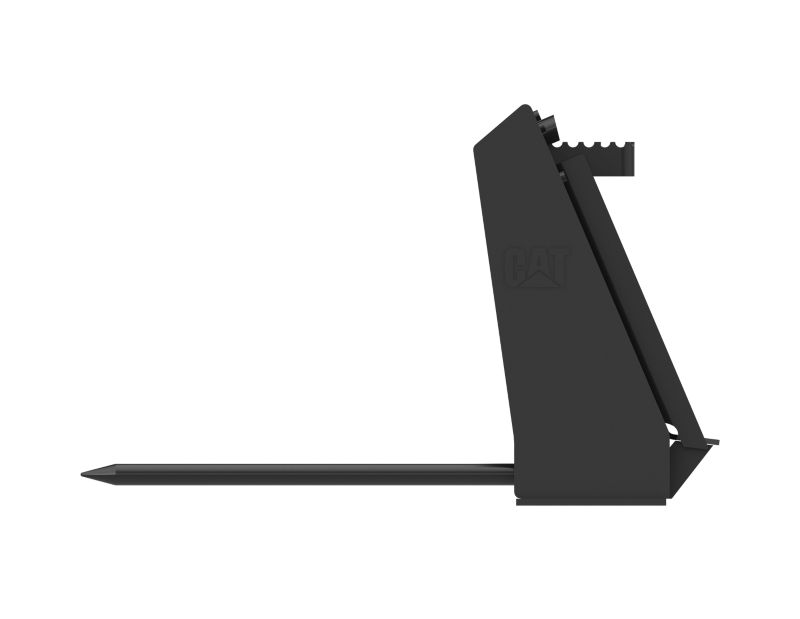

  • Right View
    Right View

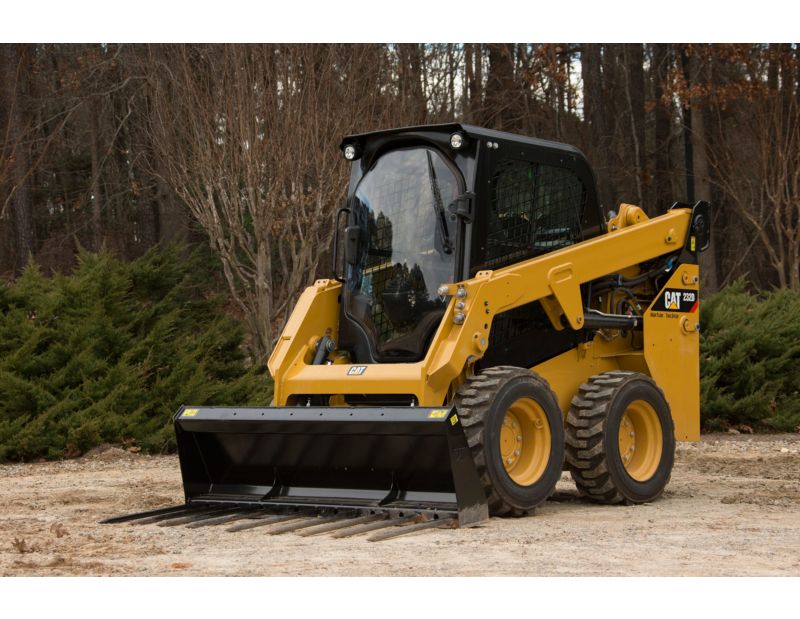

  • Utility Forks on a D-Series Skid Steer Loader
    Utility Forks on a D-Series Skid Steer Loader

Videos

  • Cat® Forks for Compact Machines at Work
  • Cat® Forks Attachment at Work
  • Cat® Forks for Skid Steer Loaders Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

Documents

Features

Application

Application

Designed for handling a variety of light materials in farming, ranching and landscaping applications.

Application

Designed for handling a variety of light materials in farming, ranching and landscaping applications.

Primary Uses

Primary Uses

Primary uses include removal of dry compacted livestock waste, transport of small bales, handling of loose materials such as straw and hay, loosening of bedding material and aeration of soil.

Primary Uses

Primary uses include removal of dry compacted livestock waste, transport of small bales, handling of loose materials such as straw and hay, loosening of bedding material and aeration of soil.

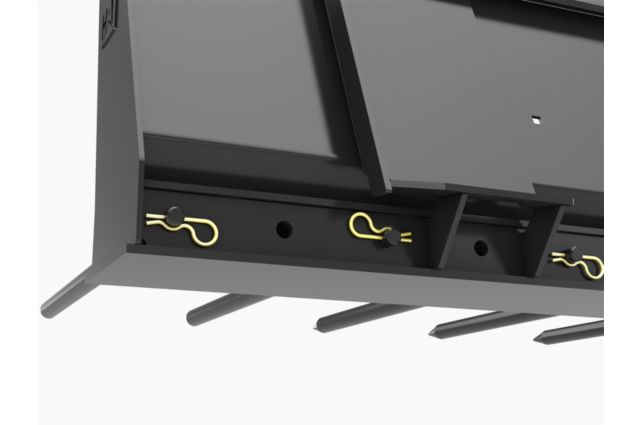

Movable / Replaceable Tines

The lower box channel is pre-drilled to accept various combinations of pin-on fork tines.

Movable / Replaceable Tines

The lower box channel is pre-drilled to accept various combinations of pin-on fork tines.

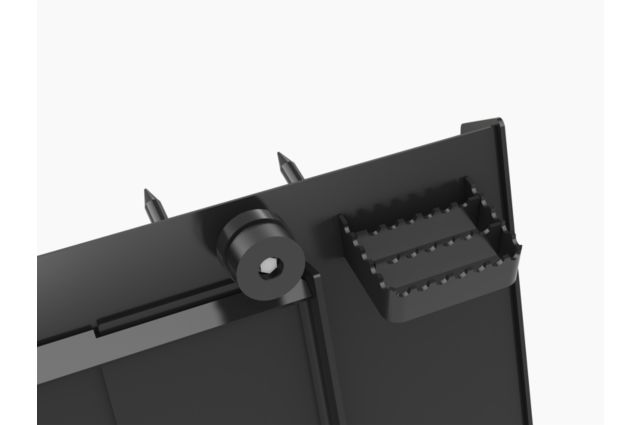

Serrated Step / Rubber Bumber

Serrated weld-on step provides safe ingress and egress from machine cab. Also, a bolt-on rubberbumper limits rack back travel on the larger Cat radial lift machines.

Serrated Step / Rubber Bumber

Serrated weld-on step provides safe ingress and egress from machine cab. Also, a bolt-on rubberbumper limits rack back travel on the larger Cat radial lift machines.

Not Designed for Large, Round Bales

NOTE: Utility Forks are not designed for piercing and carrying large, round bales.

Not Designed for Large, Round Bales

NOTE: Utility Forks are not designed for piercing and carrying large, round bales.

Specifications

  • General
    Spec Value
    Width 66 in
    Height 22.9 in
    Weight 436.5 lb
    Length 36.4 in
    Usable Tine Length 25.1 in
    Tine Diameter 1.3 in
    Number of Tines 7
    Tine Width 1.3 in
    Interface Type Skid Steer Coupler
