Ziegler CAT

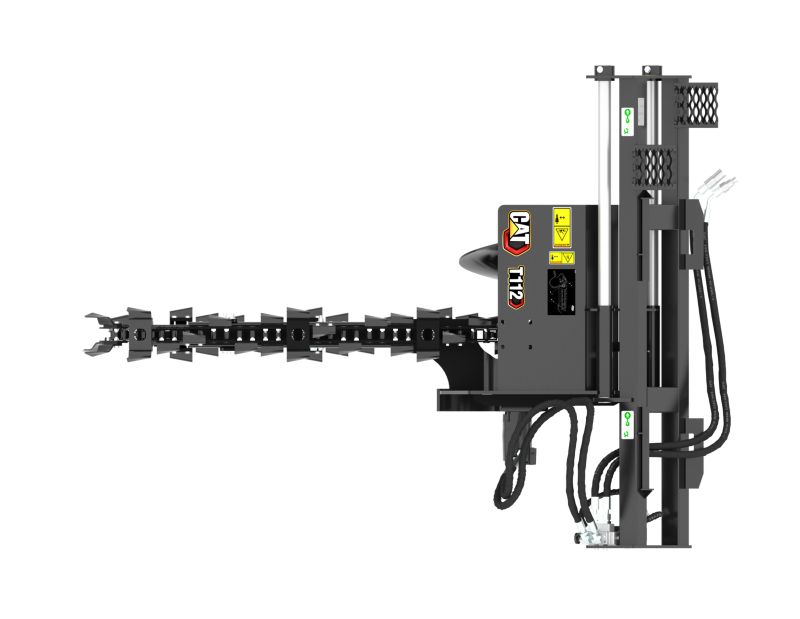

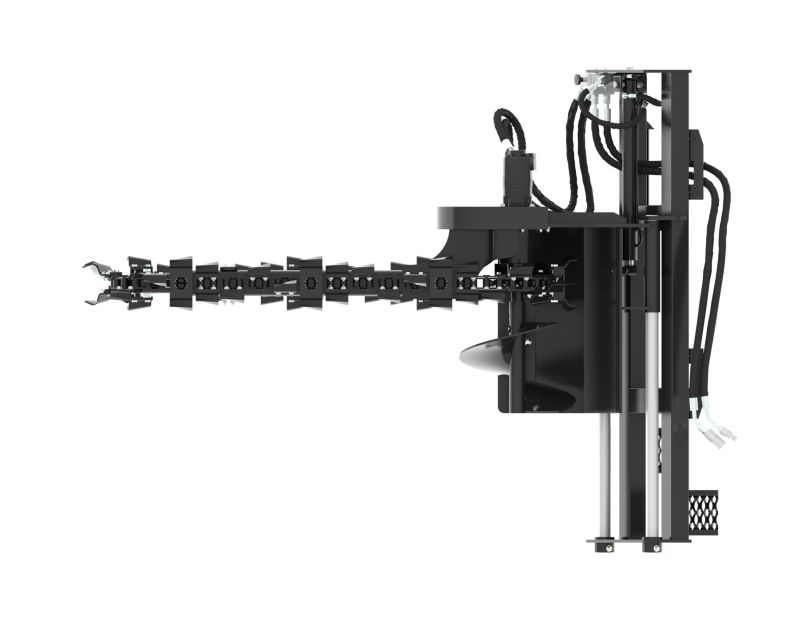

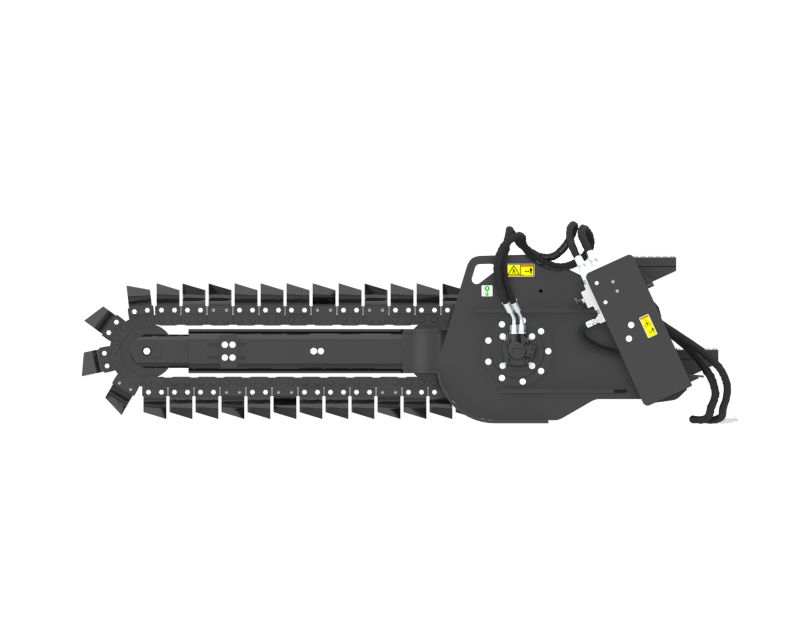

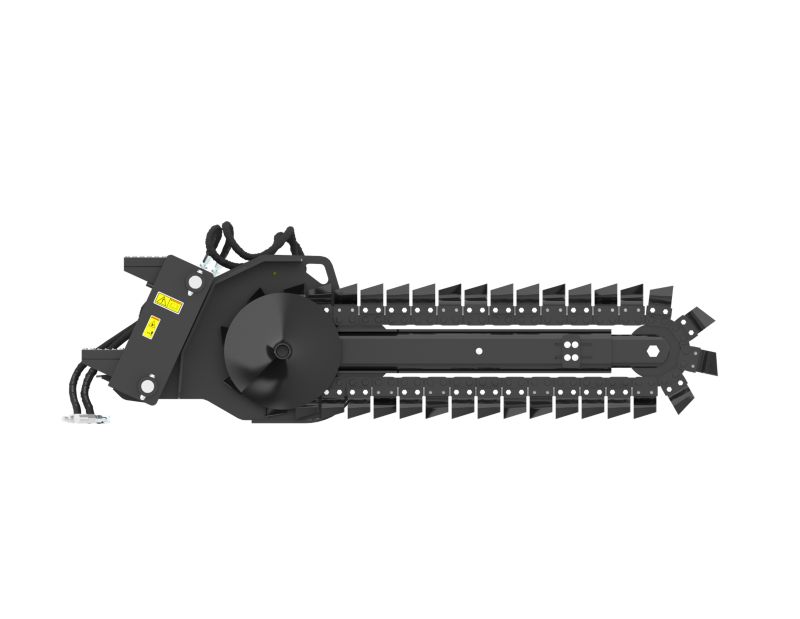

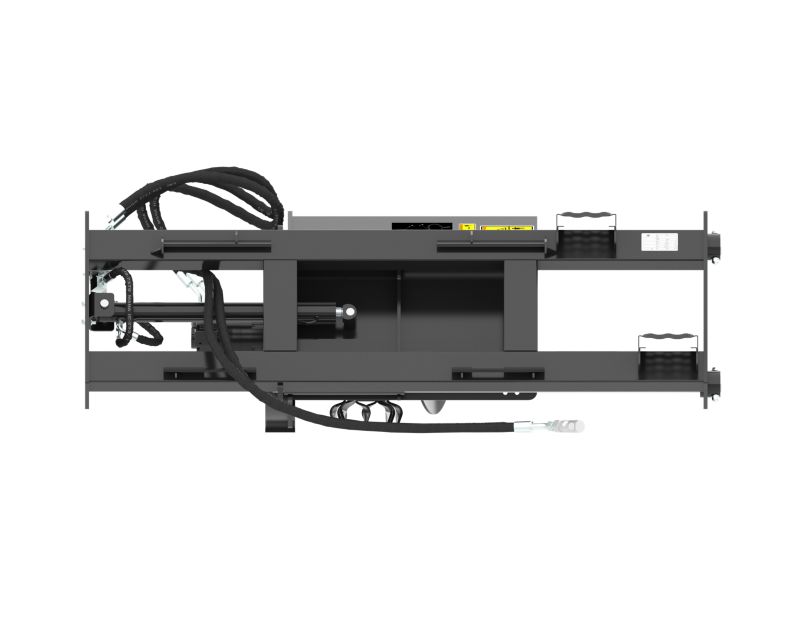

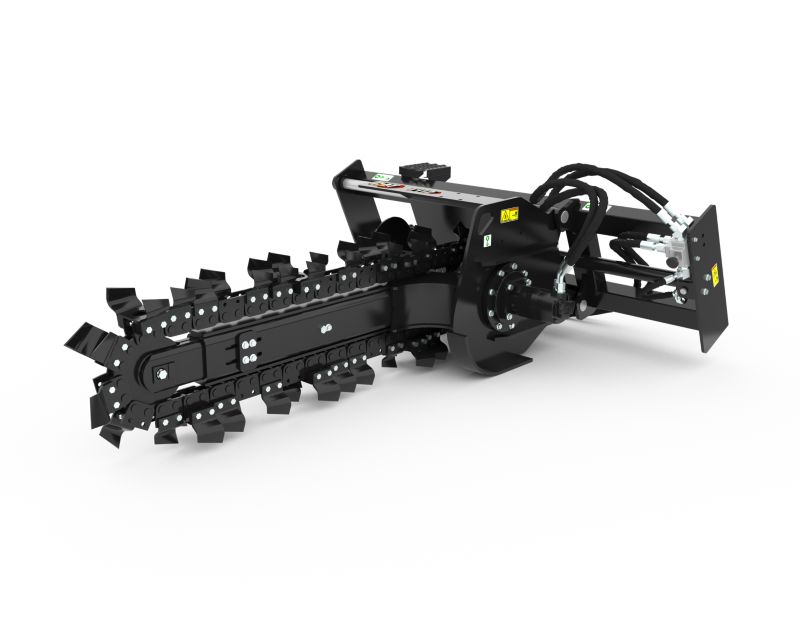

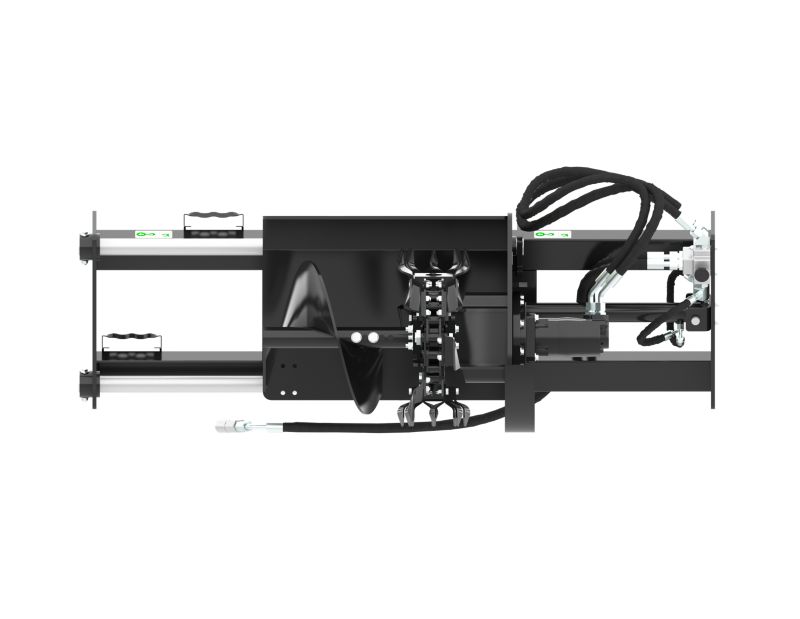

T9B Hydraulic Trencher with standard teeth

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Brand: Caterpillar

Photos

Videos

  • Cat® Trenchers at Work
  • Cat® Trenchers Production Study
  • Cat® Trencher Operating Tips
  • Cat® Trencher Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

Specifications

  • General
    SpecValue
    Standard Boom Length 48 in
    Cutting Width 8 in
    Chain Type Standard
    Required Hydraulics Standard Flow
    Overall Width 74.8 in
    Overall Length 106.5 in
    Weight 1186 lb
    Overall Height 30.9 in
    Required Hydraulic Flow 42-86 L/min (11-23 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Drive Shaft Speed at Maximum Flow 203 rpm
    Side Shift Travel 22 in
    Maximum Auger Clearance 21 in
    Spoil Auger Diameter 18 in
    Optional Cutting Widths 152, 254, 305 mm (6, 10, 12 in)
