New Attachments

Cat

A41 Auger

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural andlandscaping applications.

Photos

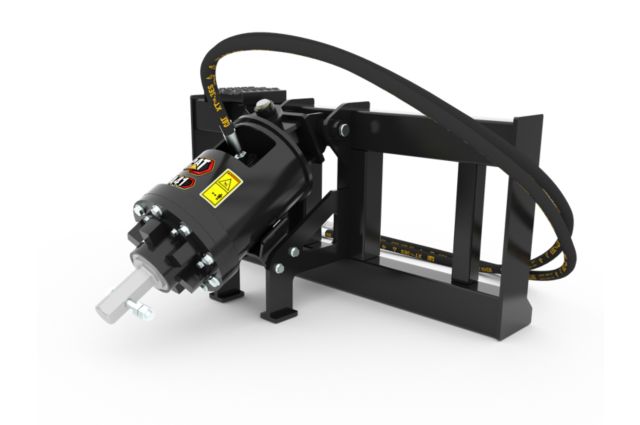

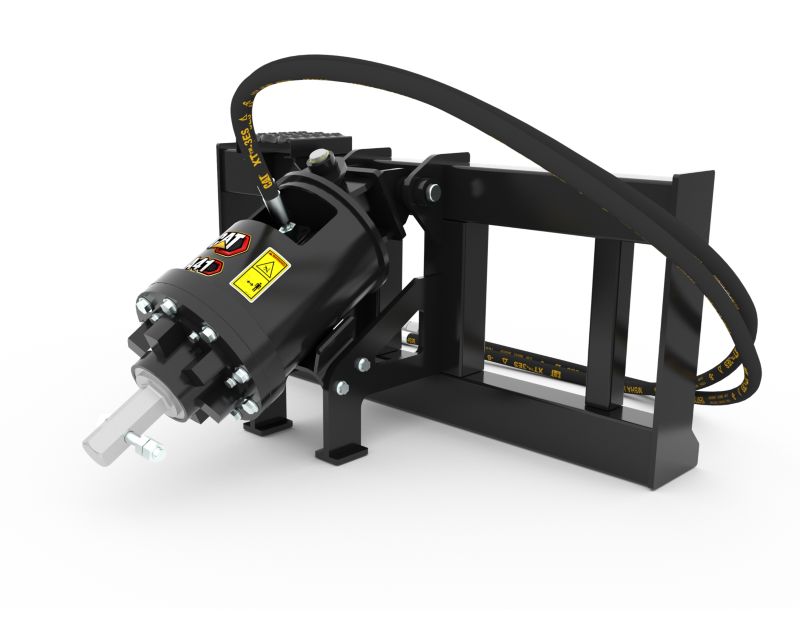

  • Studio Shot
    Studio Shot

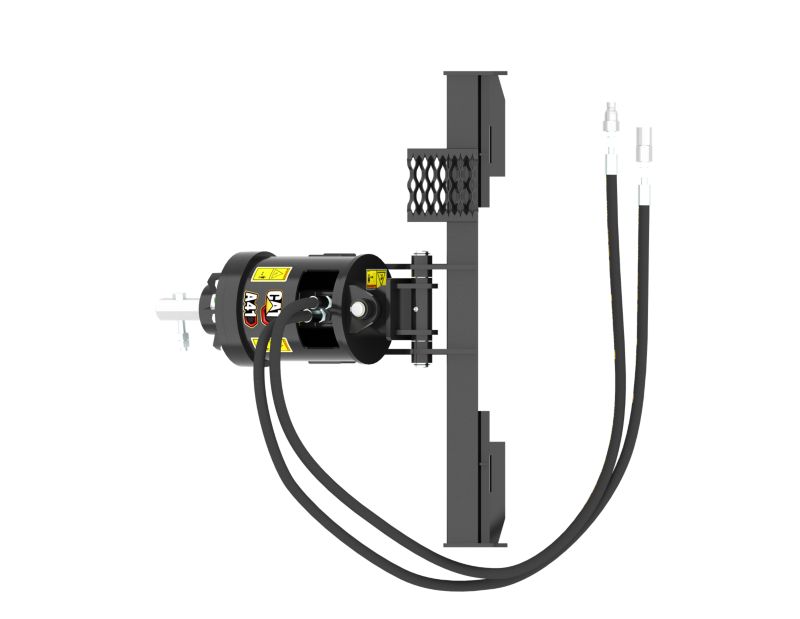

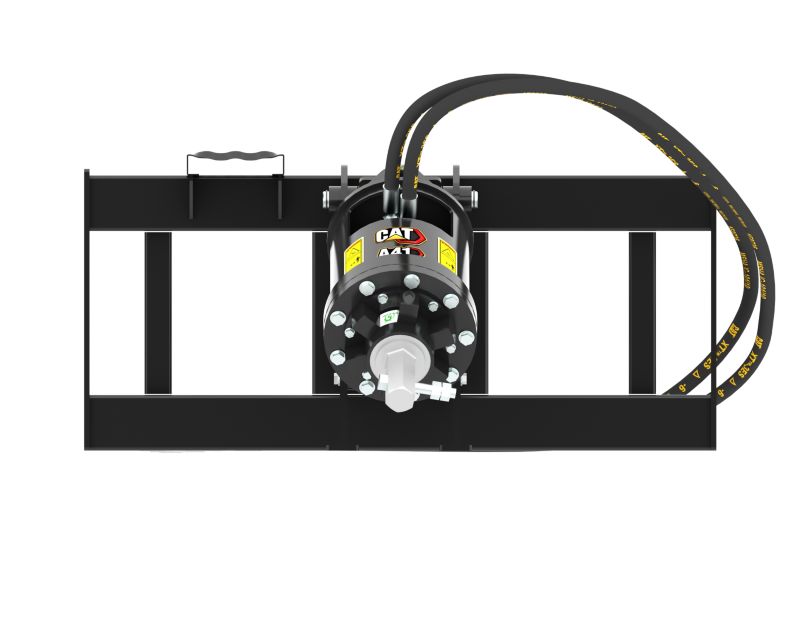

  • Front View
    Front View

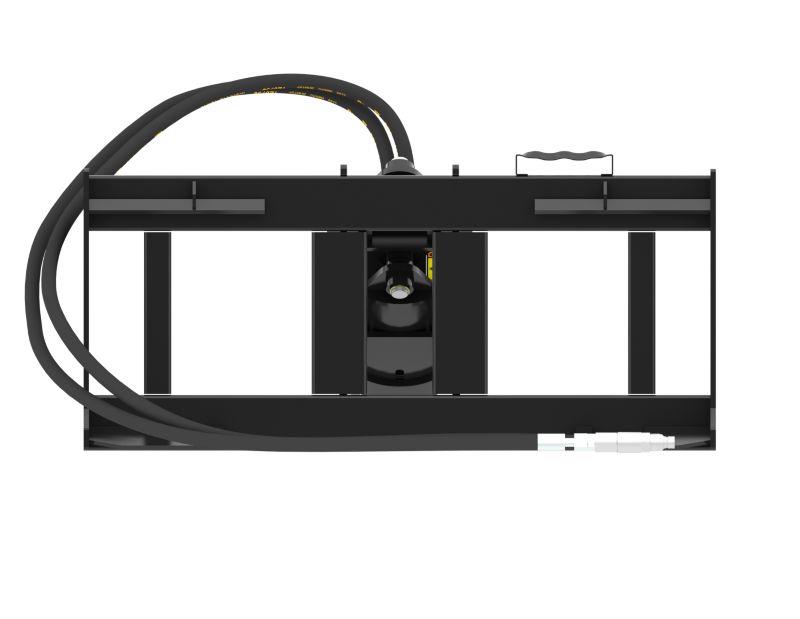

  • Top View
    Top View

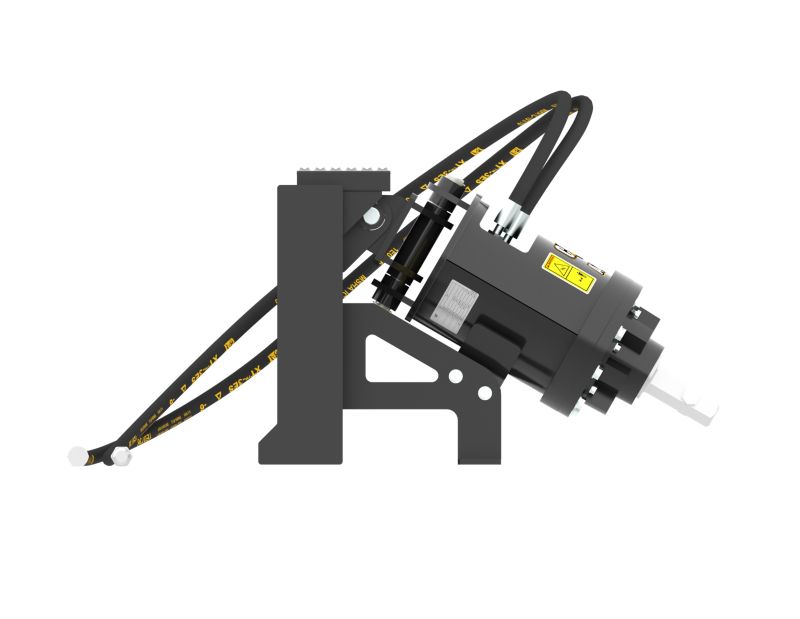

  • Left View
    Left View
  • Rear View
    Rear View
  • Bottom View
    Bottom View

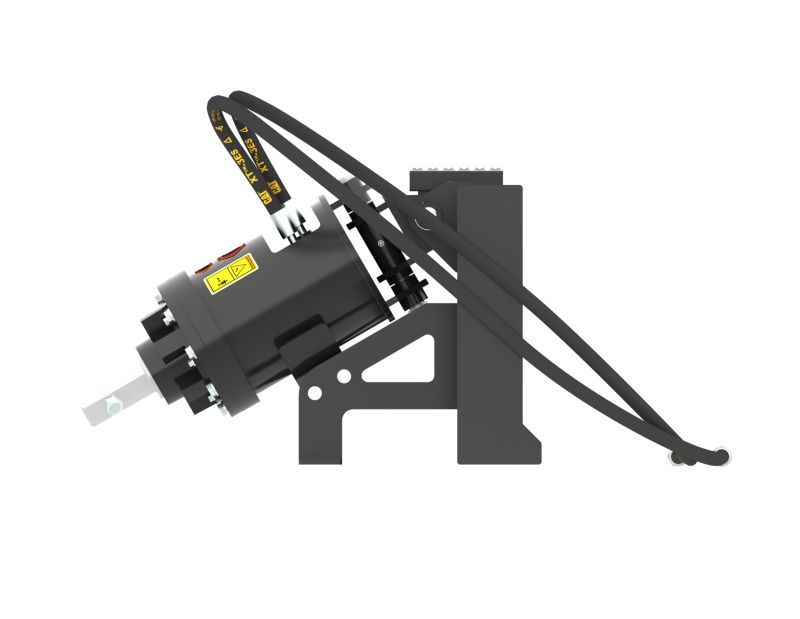

  • Right View
    Right View

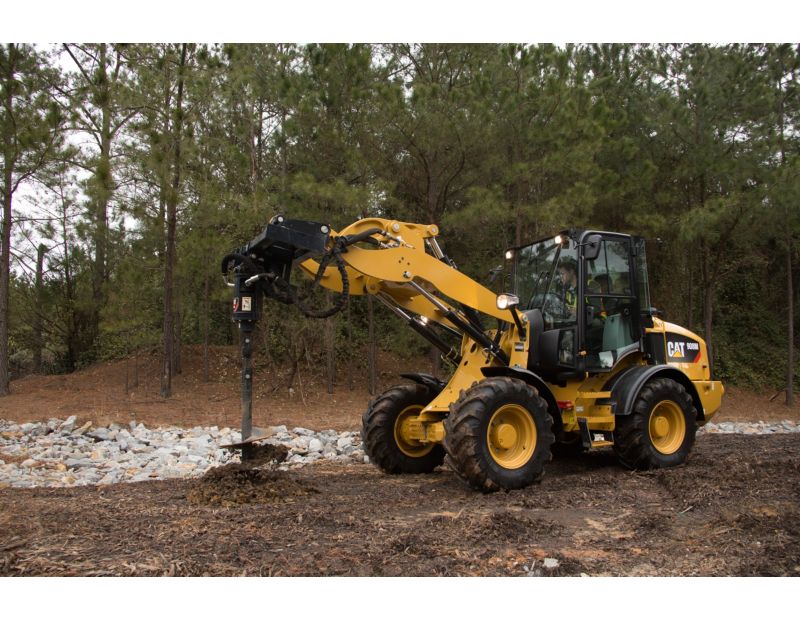

  • Cat® Auger at Work on a 908M Compact Wheel Loader
    Cat® Auger at Work on a 908M Compact Wheel Loader

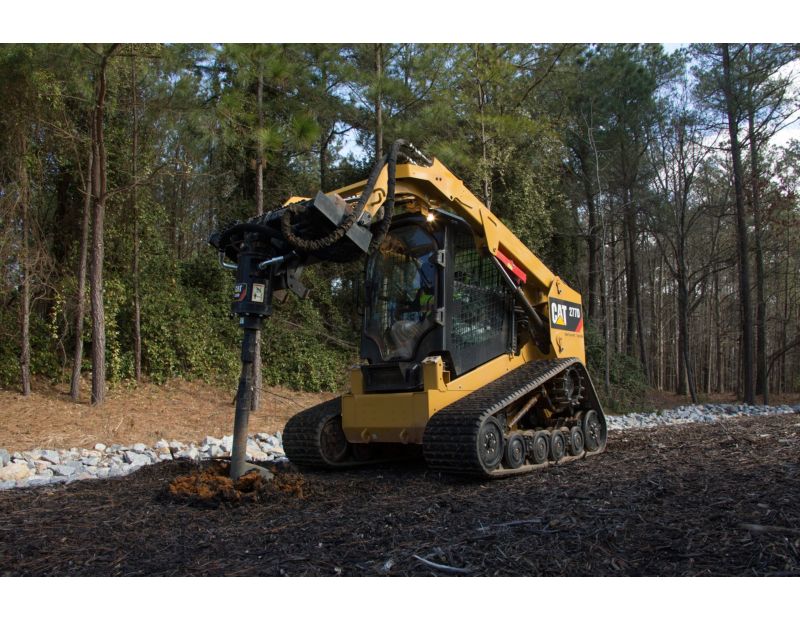

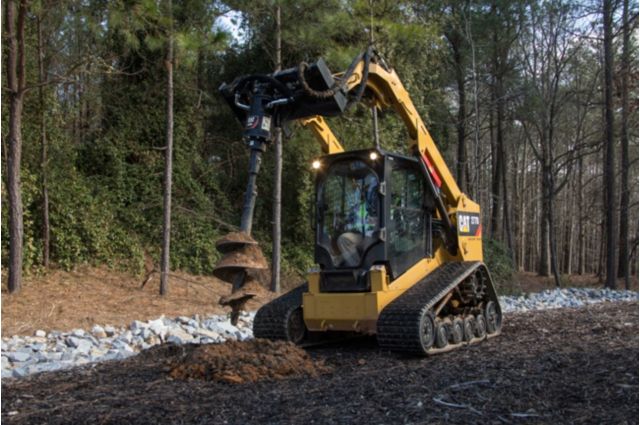

  • Cat® Auger at Work on a 277D Multi Terrain Loader
    Cat® Auger at Work on a 277D Multi Terrain Loader

Videos

  • Cat® Auger Attachment at Work
  • Cat® Auger Attachment Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Augers except where indicated.

Documents

Features

Application

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

  • A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
  • A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
  • A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

  • A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
  • A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
  • A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

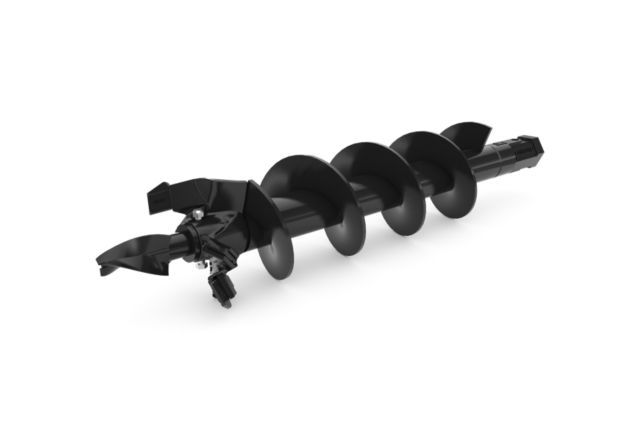

Rugged Bits for Every Application

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

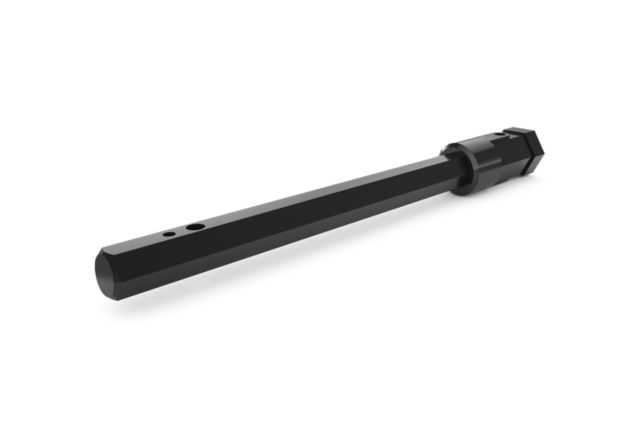

Bit Extensions and Adapters

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.
Rugged Mounting Bracket

Rugged Mounting Bracket

Exclusive Cat® mounting bracket for superior structural reinforcement, positioning flexibility, easy transportation, and near vertical storage. Also includes serrated step to allow safer and easier access into the cab.

Rugged Mounting Bracket

Exclusive Cat® mounting bracket for superior structural reinforcement, positioning flexibility, easy transportation, and near vertical storage. Also includes serrated step to allow safer and easier access into the cab.

Specifications

  • General
    Spec Value
    Drive Shaft Torque at Maximum Pressure 3037.3 lb/ft
    Drive Method Gerotor Motor - Single Planetary Reduction
    Mounting Bracket Design Skid Steer Loader Coupler
    Required Hydraulics Standard Flow
    Optimal Hydraulic Flow 42-83 L/min (11-22 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Overall Width - With Bracket 45.4 in
    Overall Length - With Bracket 23.5 in
    Overall Height 36.8 in
    Housing Diameter 9.9 in
    Swing Range 102 degrees
    Swing Range (fore/aft) 120 degrees
    Swing Range (L/R) 102 degrees
    Weight 366 lb
    Motor Displacement 15 in³
    Bit Speed at Maximum Flow 71 rpm
    Hex Output Shaft Size 2 in
