Cat

1140 mm (45 in) Single Tine Bale Spear

Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.

Photos

Videos

  • Cat® Bale Spear at Work
  • Cat® Bale Handling Solutions Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

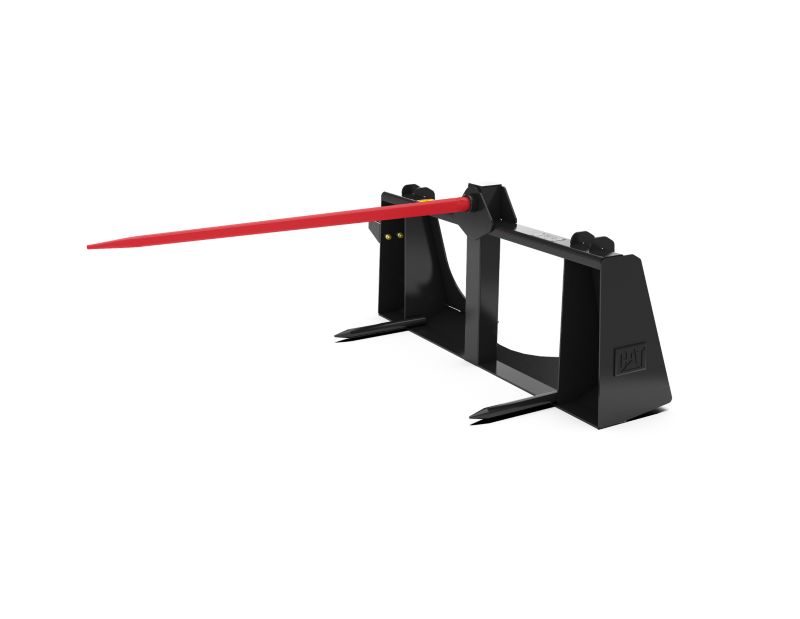

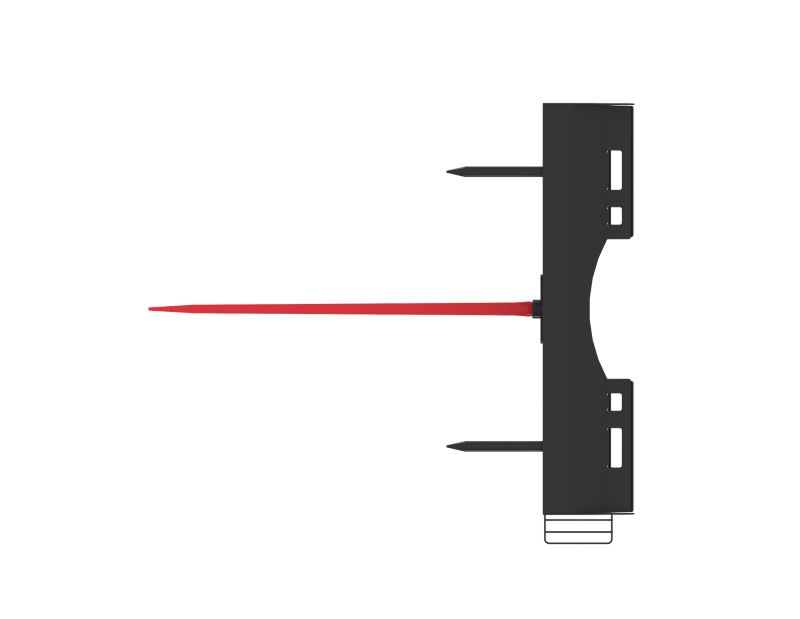

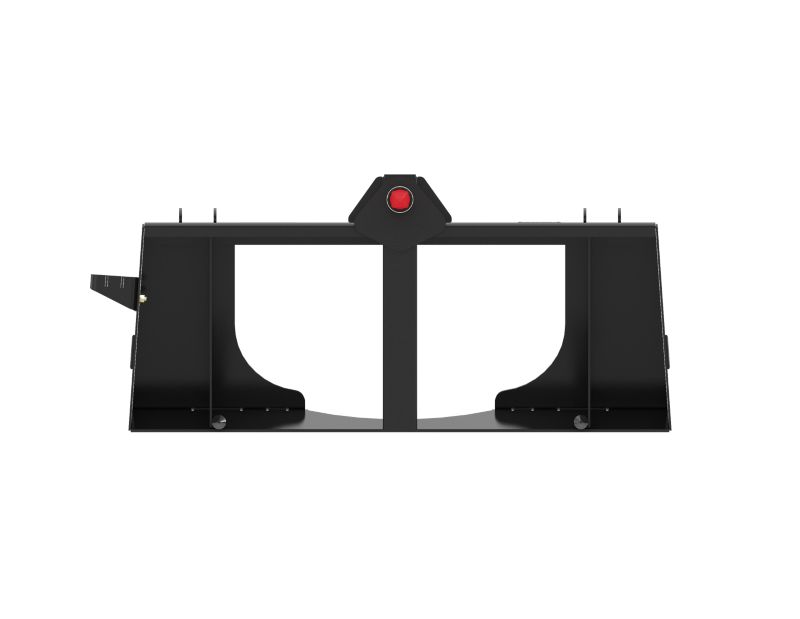

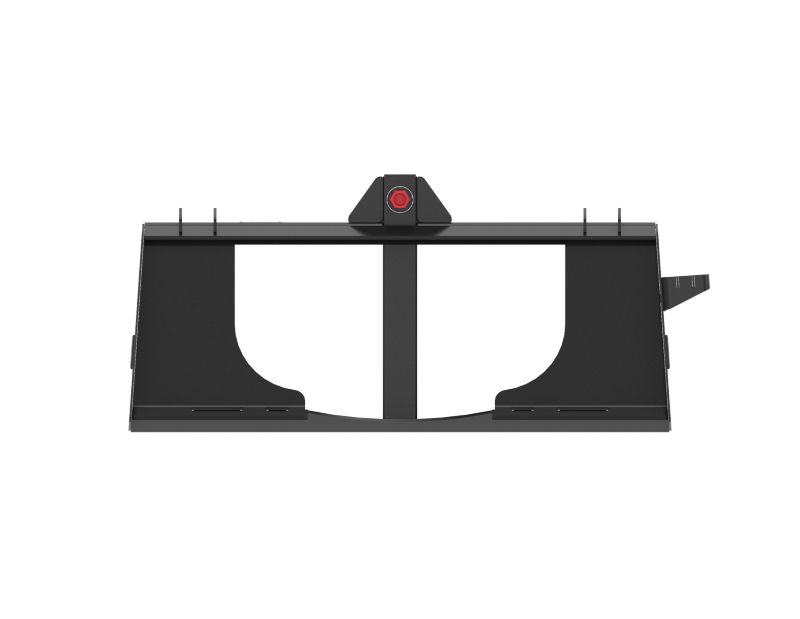

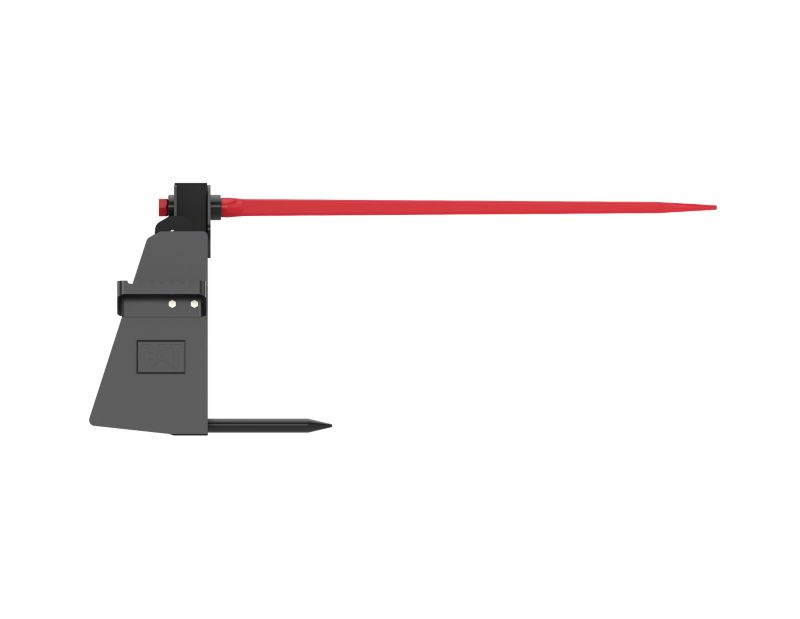

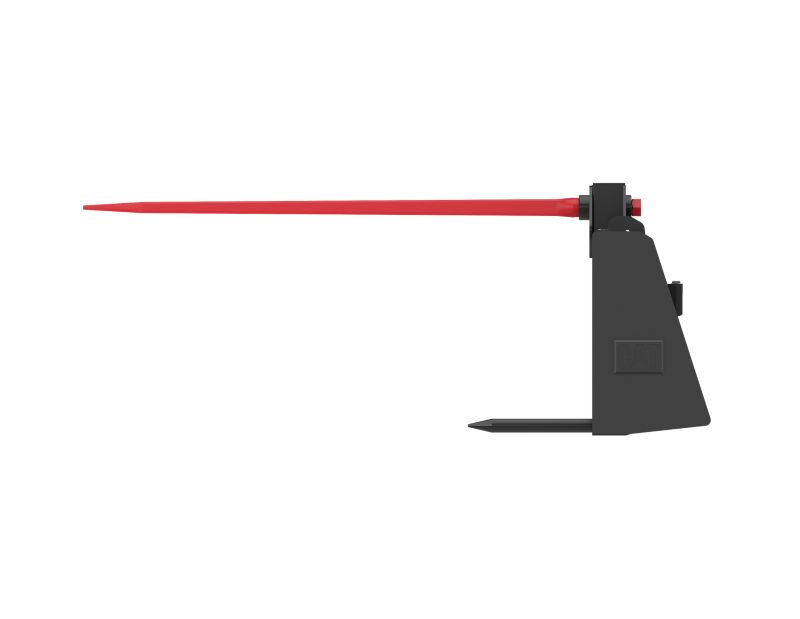

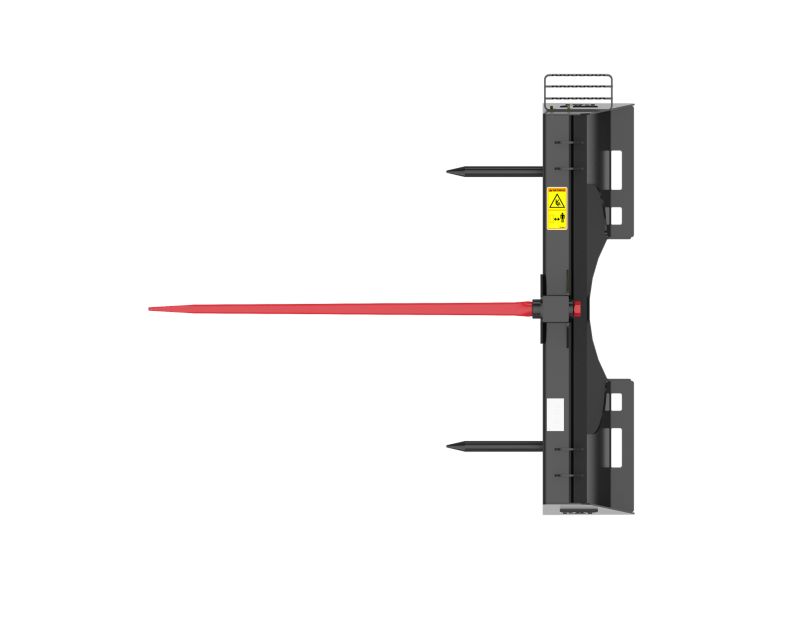

Model shown represents features on all Cat® Bale Spears except where indicated.

Features

Specifications

  • General
    Spec Value
    Overall Width 50.6 in
    Overall Height 22.4 in
    Capacity 2004 lb
    Usable Tine Length 44.9 in
    Overall Depth 56.8 in
    Weight 158.7 lb
    Tine Spacing 31.5 in
    Stabilizer Tine Length 11.1 in
