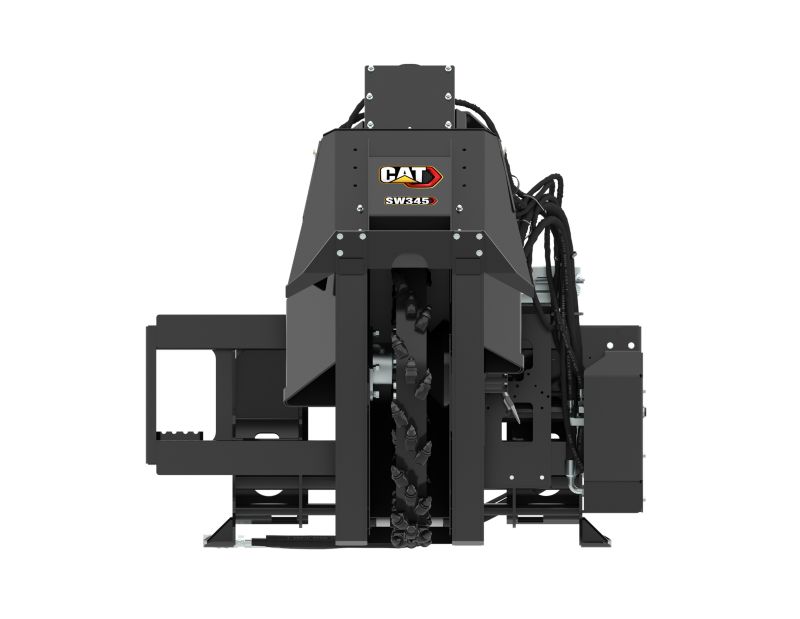

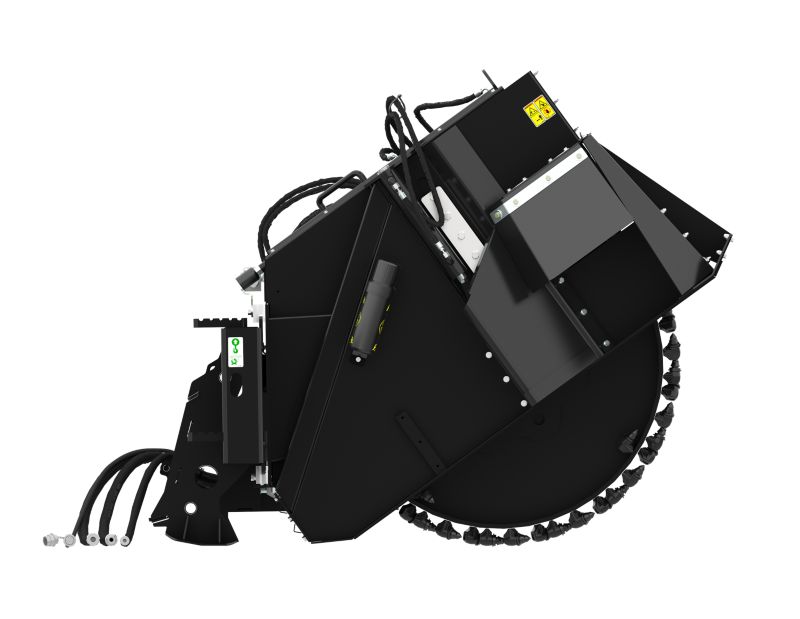

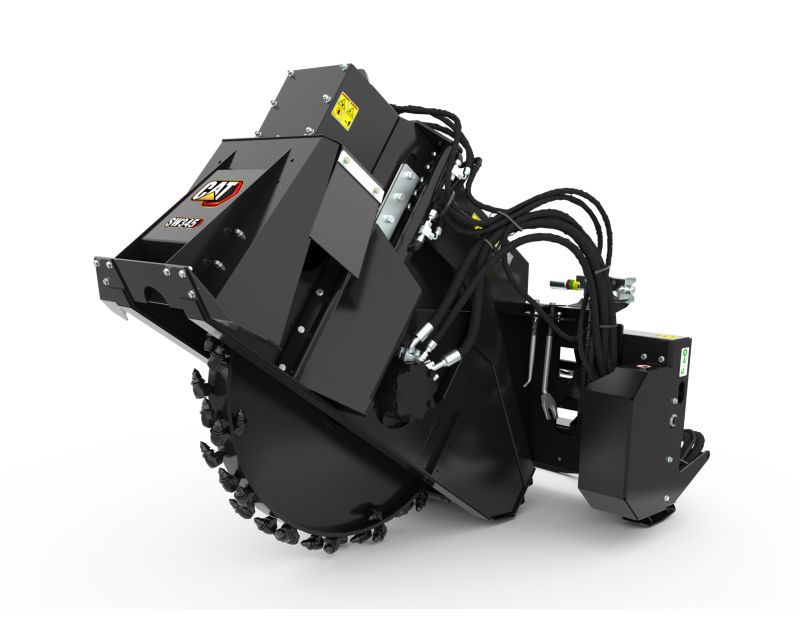

SW345, 130 mm (5 in) Wheel Saw

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.



  • Cat® Wheel Saw at Work
  • Cat® Wheel Saw Overview
  • Cat® Wheel Saw Operator Tips
  • Cat® SW480 Wheel Saw and 272D3 XE Skid Steer Loader Customer Story
  • An Attachment for Every Job - Cat® Work Tool Attachments

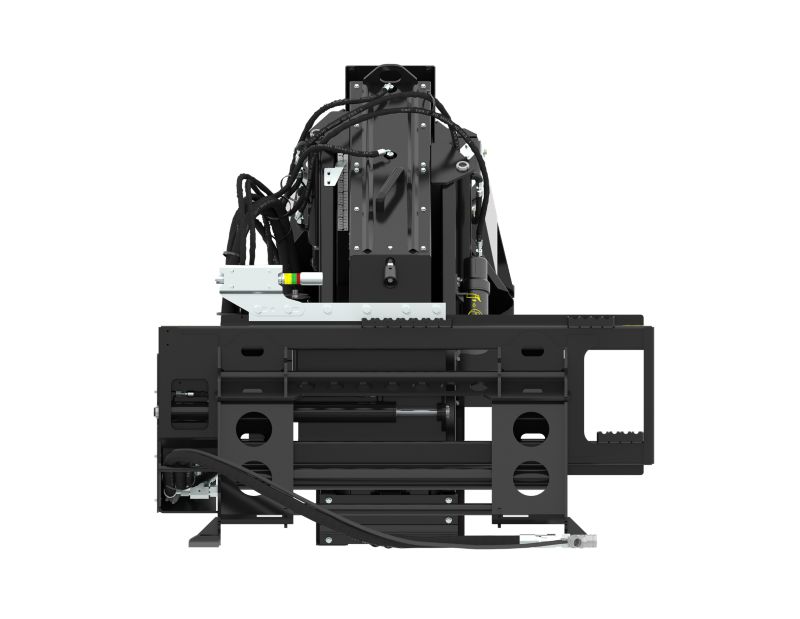

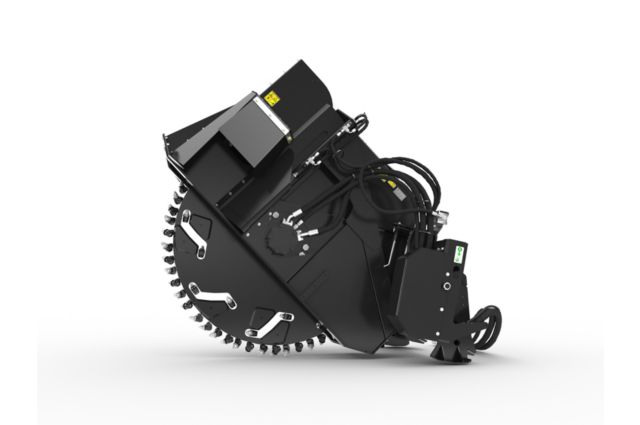

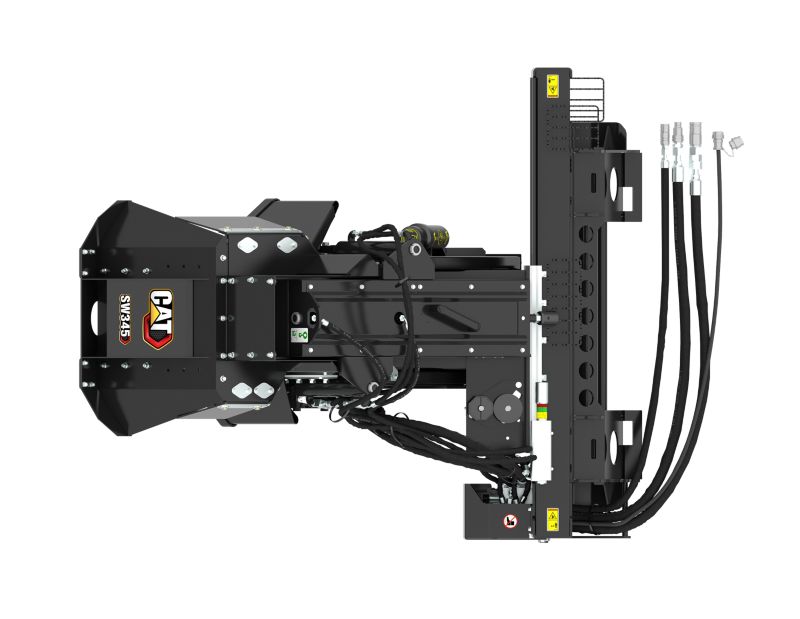

360° View


Model shown represents features on all Cat® Wheel Saws except where indicated.



  • General
    Spec Value
    Maximum Cutting Depth 17.7 in
    Wheel Width 5.1 in
    Weight 2239.9 lb
    Overall Width 65.2 in
    Overall Height 57.3 in
    Length 85.2 in
    Required Hydraulics High Flow XPS
    Optimal Hydraulic Flow 98-125 L/min (26-33 gpm)
    Optimal Hydraulic Pressure 230-280 bar (3300-4000 psi)
    Motor Displacement 85.7 in³/rev
    Wheel Torque at Maximum Pressure 4605.3 lb/ft
    Wheel Speed at Maximum Flow 89 RPM
    Bit Speed at Maximum Flow 1145 ft/min

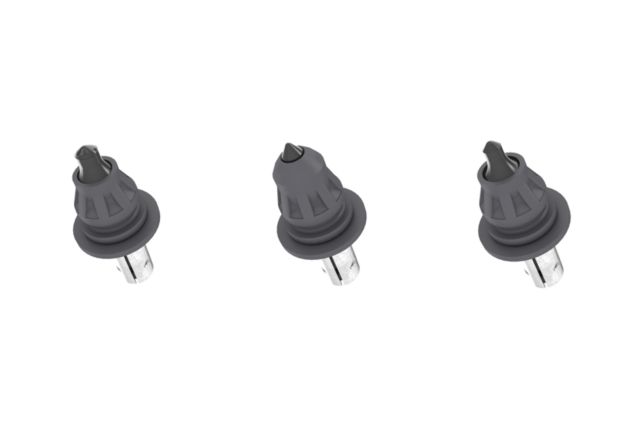

    Conical Bits - Per Wheel 64
    Standard Bit Type Concrete
    Optional Bit Type All Purpose

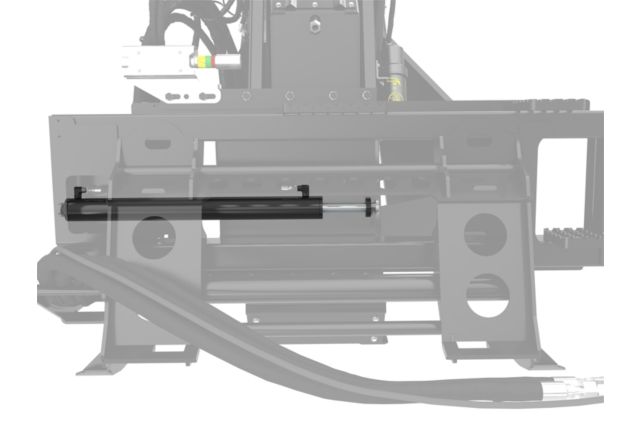

    Side Shift Travel 21.7 in

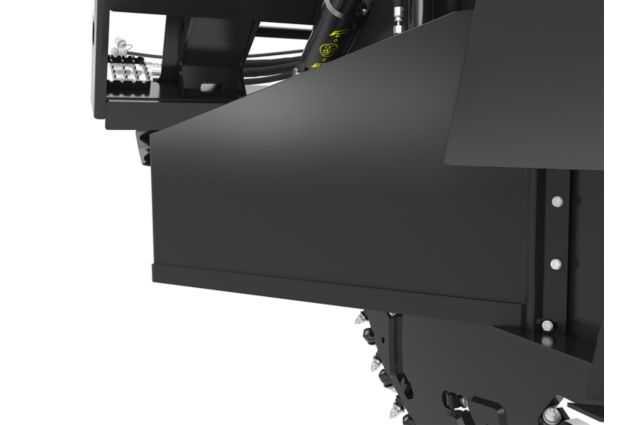

    Trench Cleaning Device Yes

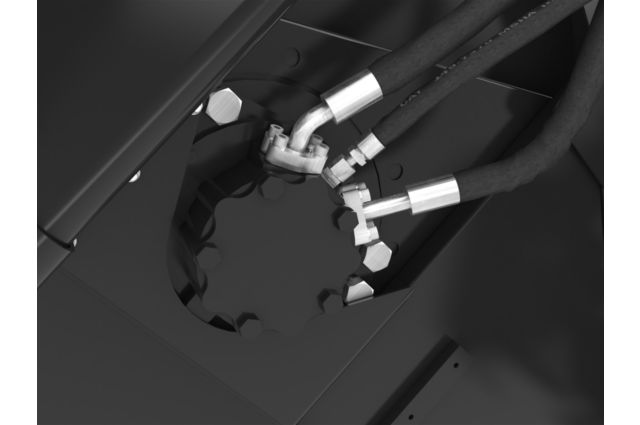

    Drive Method Direct Drive
    Interface Type Skid Steer Coupler
