Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.
Cat

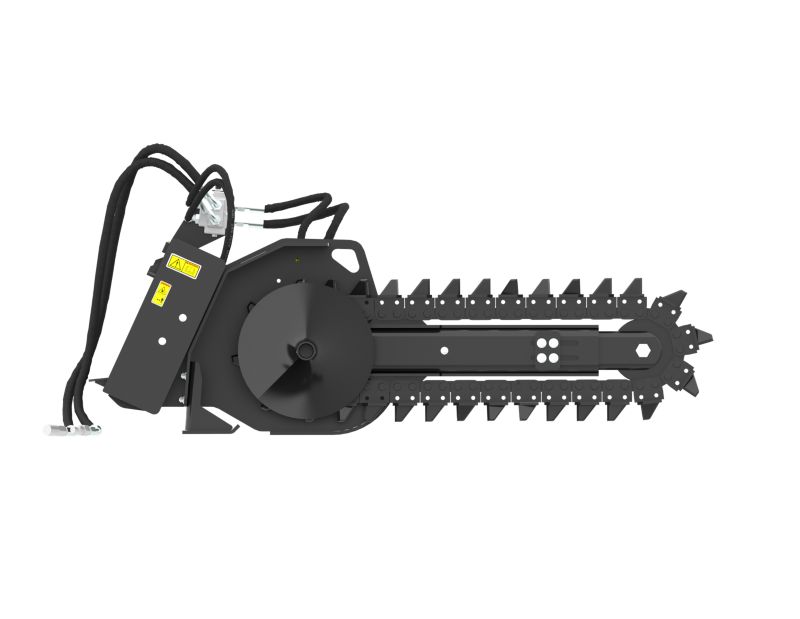

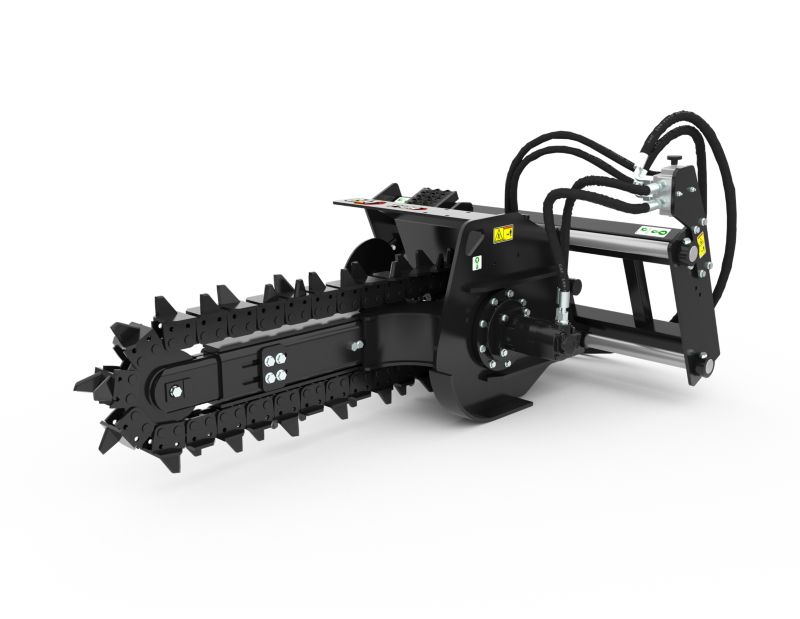

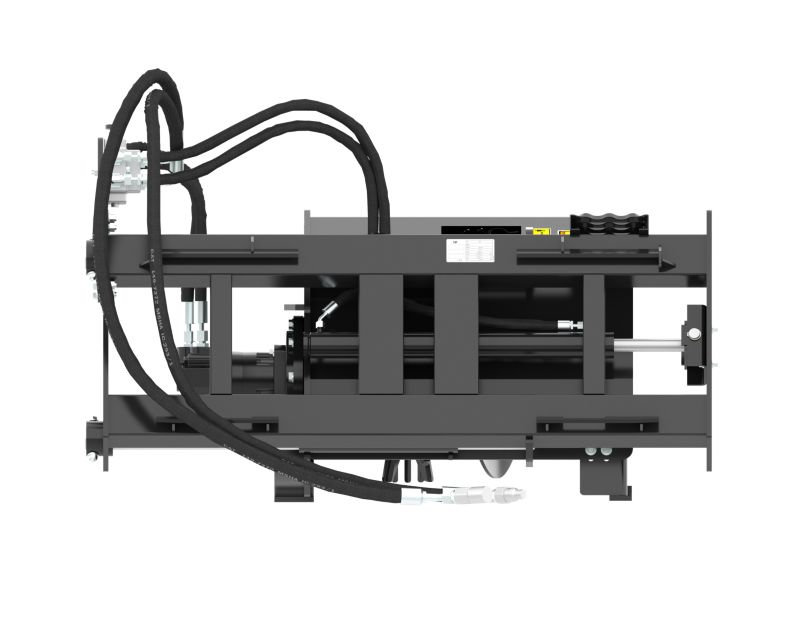

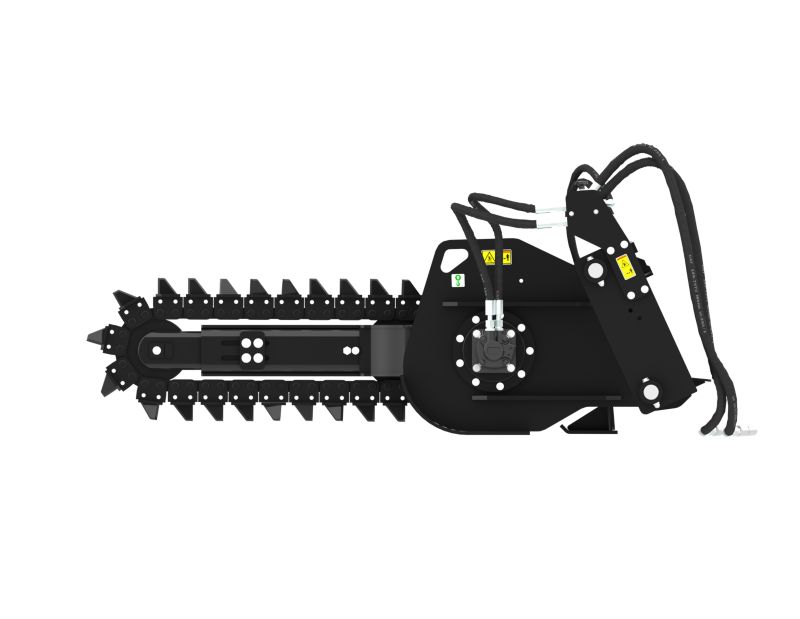

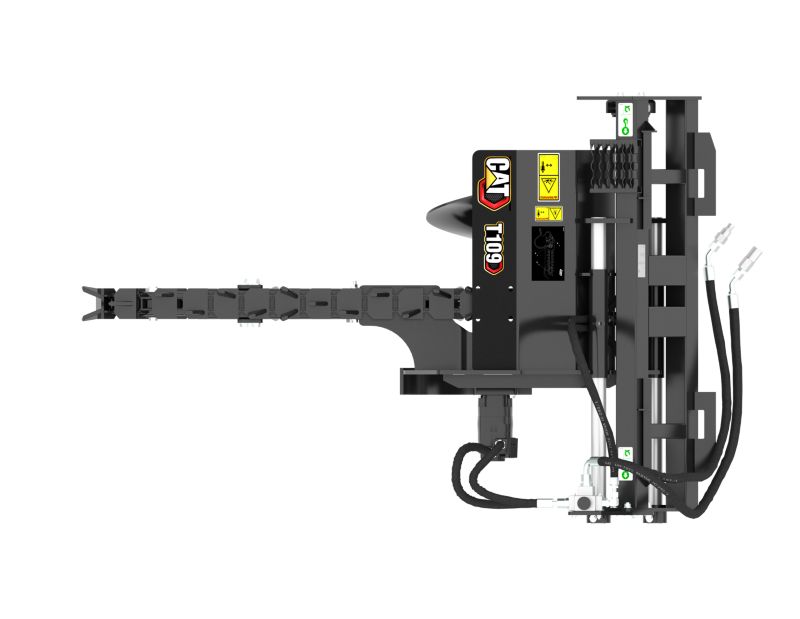

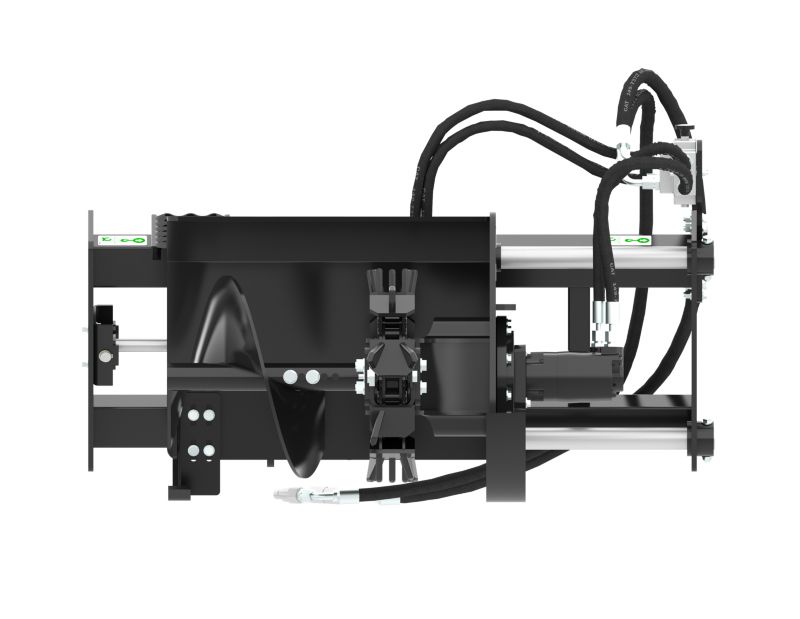

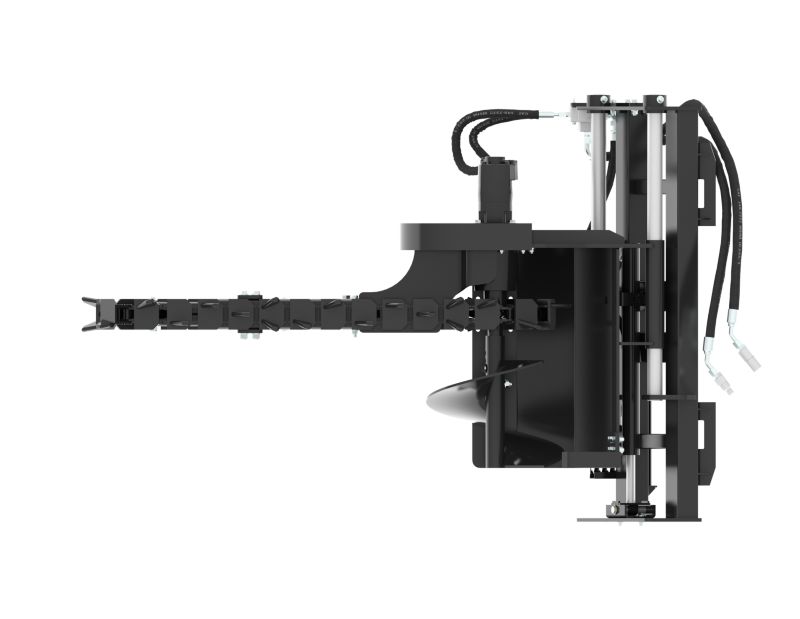

T109 Hydraulic Trencher with terminator teeth
Photos
Videos
360° View
Exterior
Model shown represents features on all Cat® Trenchers except where indicated.
Documents
Features
Specifications
-
General
Spec Value Standard Boom Length 36 in Cutting Width 6 in Chain Type Terminator Required Hydraulics Standard Flow Overall Width 56.1 in Overall Length 92.4 in Weight 1076.1 lb Overall Height 30.9 in Optimal Hydraulic Flow 42-86 L/min (11-23 gpm) Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) Drive Shaft Speed at Maximum Flow 203 rpm Side Shift Travel 16.5 in Maximum Auger Clearance 21 in Spoil Auger Diameter 18 in Optional Cutting Widths 203, 254, 305 mm (8, 10, 12 in)
