Designed for removing snow from streets, parking lots, driveways and sidewalks.
Cat
SR318 Snow Blower
Photos
-

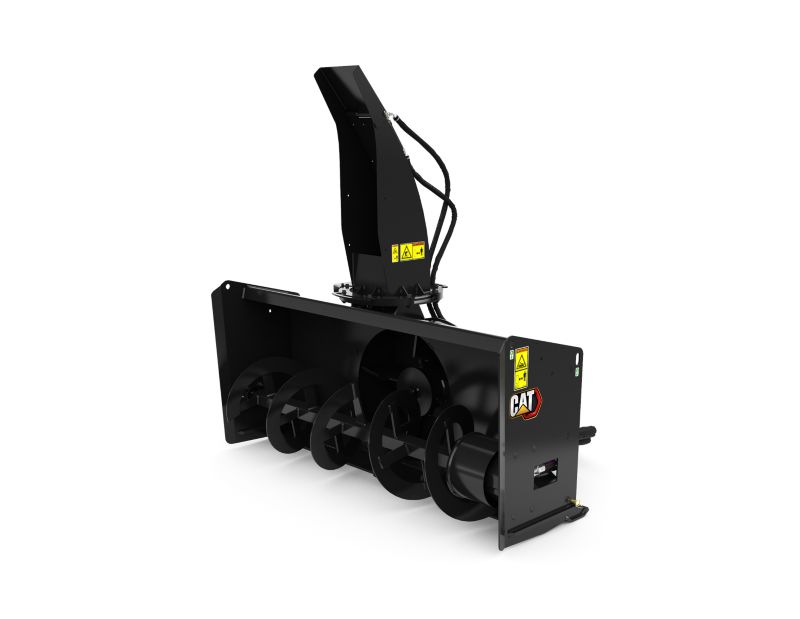

Studio Shot -

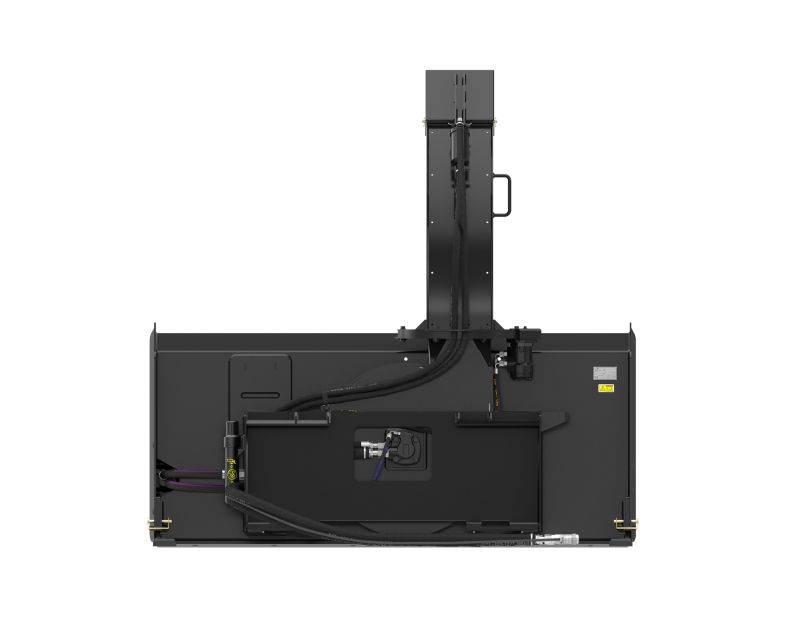

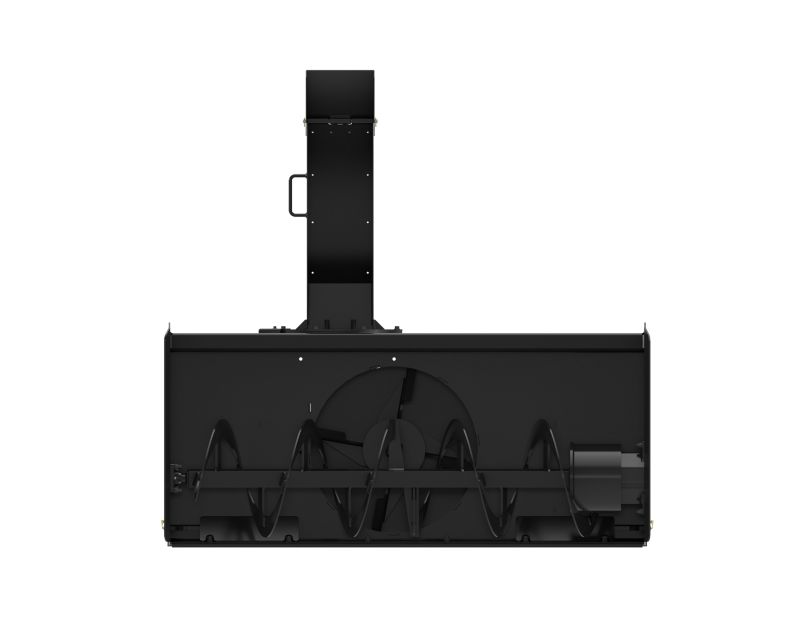

Front View -

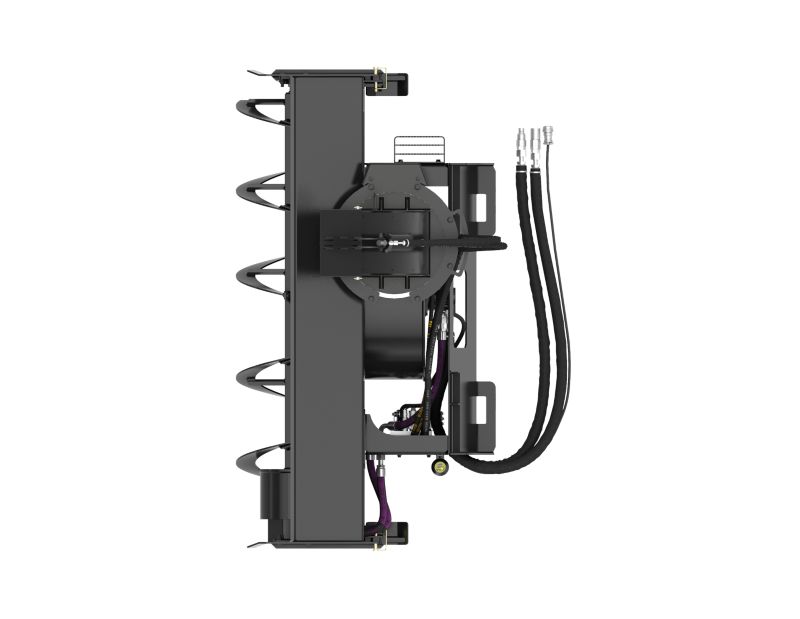

Top View -

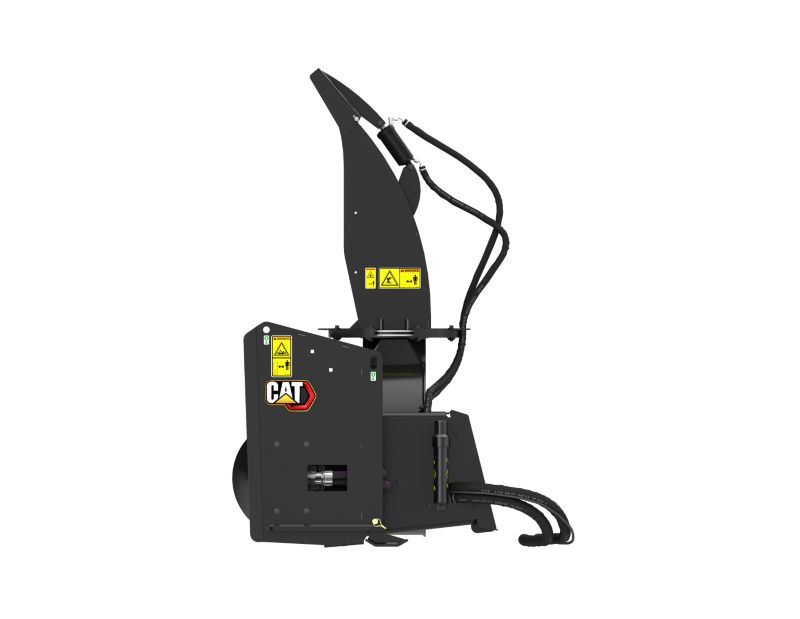

Left View -
Rear View -
Bottom View -

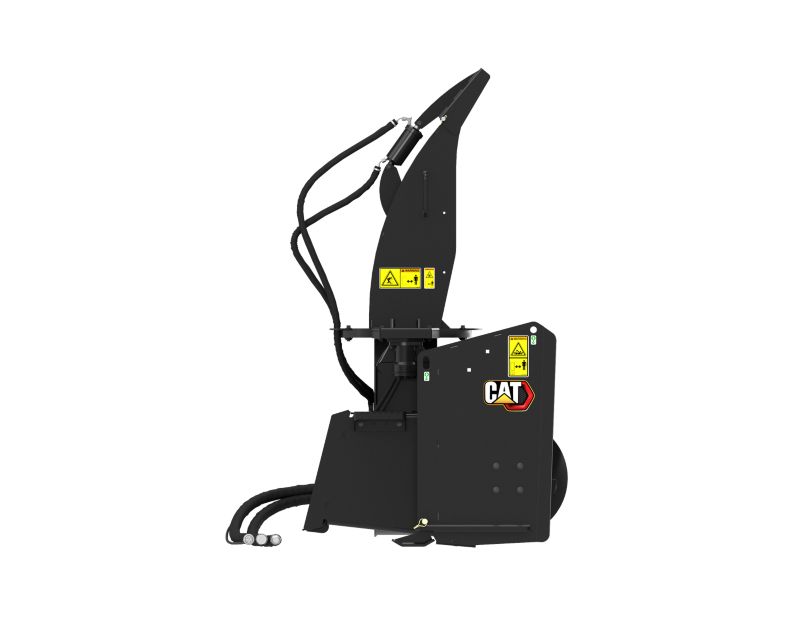

Right View
Videos
360° View
Exterior
Model shown represents features on all Cat® Snow Blowers except where indicated.
Documents
Features
Application
Designed for removing snow from streets, parking lots, driveways and sidewalks.
Application
Designed for removing snow from streets, parking lots, driveways and sidewalks.
Two Stage Design
Two-stage design uses auger and impeller to move a greater capacity of snow quickly and efficiently. Also, the auger and impeller are reversible which allows the operator to expel obstructions without exiting the machine.
Two Stage Design
Two-stage design uses auger and impeller to move a greater capacity of snow quickly and efficiently. Also, the auger and impeller are reversible which allows the operator to expel obstructions without exiting the machine.
Fan Style Impeller
Provides smooth operation and continuous flow of material in a variety of snow conditions.
Fan Style Impeller
Provides smooth operation and continuous flow of material in a variety of snow conditions.
Hydraulic Controls
Machine joysticks control chute and deflector. No additional wires or hardware to connect. Complete control with plug-n-play simplicity.
Hydraulic Controls
Machine joysticks control chute and deflector. No additional wires or hardware to connect. Complete control with plug-n-play simplicity.
Chute Rotation and Deflector
270 degrees of rotation permits snow discharge to front or sides of machine preventing snow blow back on operator. Hydraulically controlled deflector makes it easy to control how far snow is thrown.
Chute Rotation and Deflector
270 degrees of rotation permits snow discharge to front or sides of machine preventing snow blow back on operator. Hydraulically controlled deflector makes it easy to control how far snow is thrown.
Offset Chute
Improves visibility and allows full range of motion on Compact Wheel Loader machines.
Offset Chute
Improves visibility and allows full range of motion on Compact Wheel Loader machines.
Adjustable Skid Shoes
Adjust height of cutting edge to suit the job needs.
Adjustable Skid Shoes
Adjust height of cutting edge to suit the job needs.
Reversible Bolt-On Cutting Edge
Bolt-On reversible cutting edge adds extra life to the cutting edge and make replacement simple.
Reversible Bolt-On Cutting Edge
Bolt-On reversible cutting edge adds extra life to the cutting edge and make replacement simple.
Rugged Access Step and Grab Handle
Wide steps with grating and large profile serrations provide better traction. Chute mounted grab handle allows stability when entering and exiting machine.
Rugged Access Step and Grab Handle
Wide steps with grating and large profile serrations provide better traction. Chute mounted grab handle allows stability when entering and exiting machine.
Specifications
-
General
Spec Value Intake Width 63.5 in Overall Width 73.9 in Weight 996.5 lb Overall Height 72.6 in Overall Length 37.4 in Required Hydraulics High Flow XPS Optimal Hydraulic Flow 125 L/min (33 gpm) Optimal Hydraulic Pressure 280 bar (4061.1 psi) Cutting Height 34.1 in Maximum Throw 40 ft Auger Diameter 18 in Impeller Fan Diameter 25 in Impeller Fan Width 8.7 in Chute Rotation 270 degrees
