New Attachments

Caterpillar

CV117 Vibratory Drum Compactor

Vibratory action and dynamic force provides excellent compaction in a compact size.

Photos

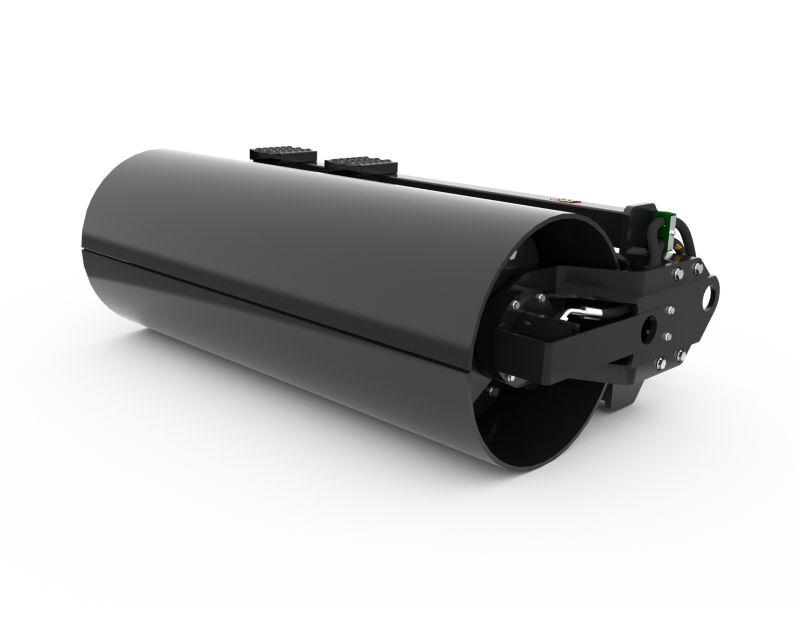

  • Studio Shot

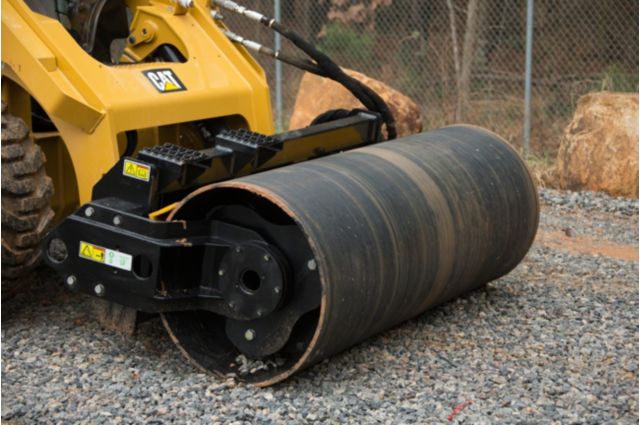

    Studio Shot
  • Front View

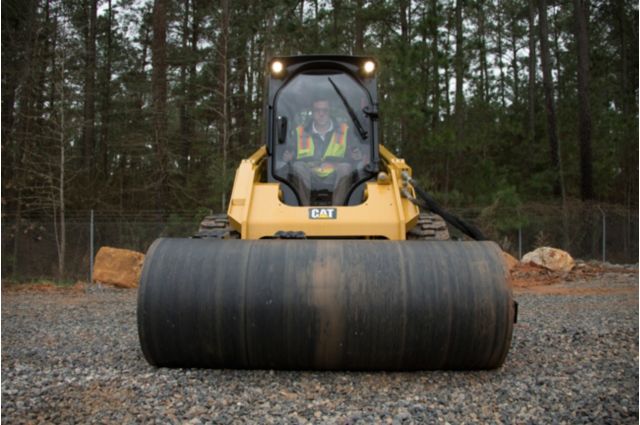

    Front View

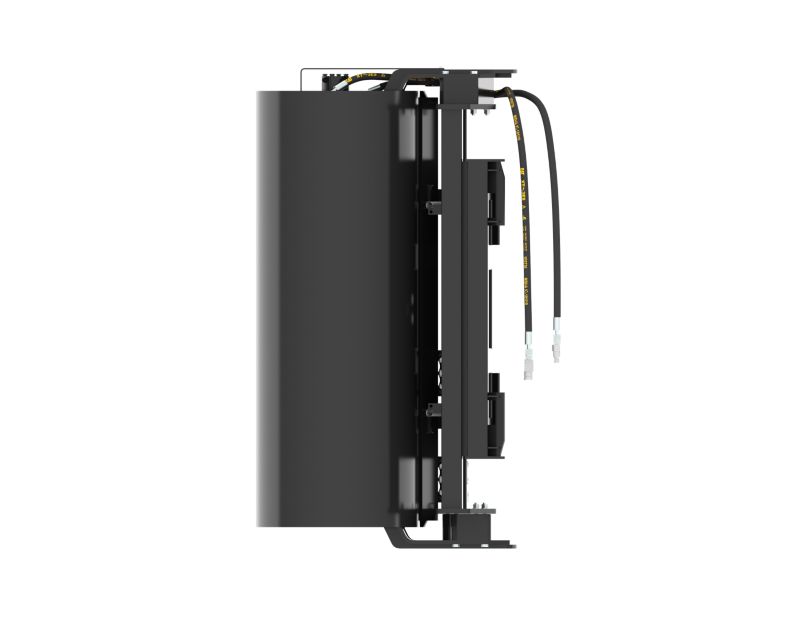

  • Top View

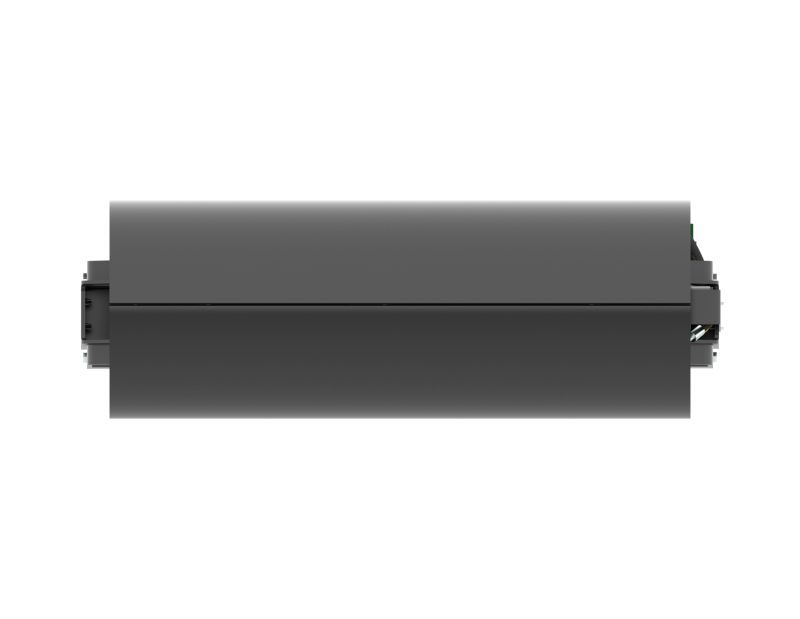

    Top View

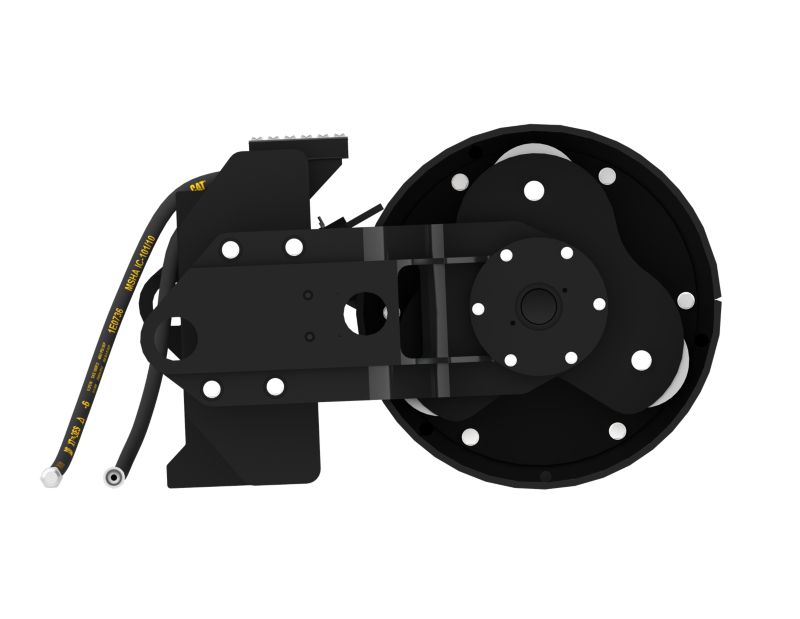

  • Left View
    Left View
  • Rear View
    Rear View

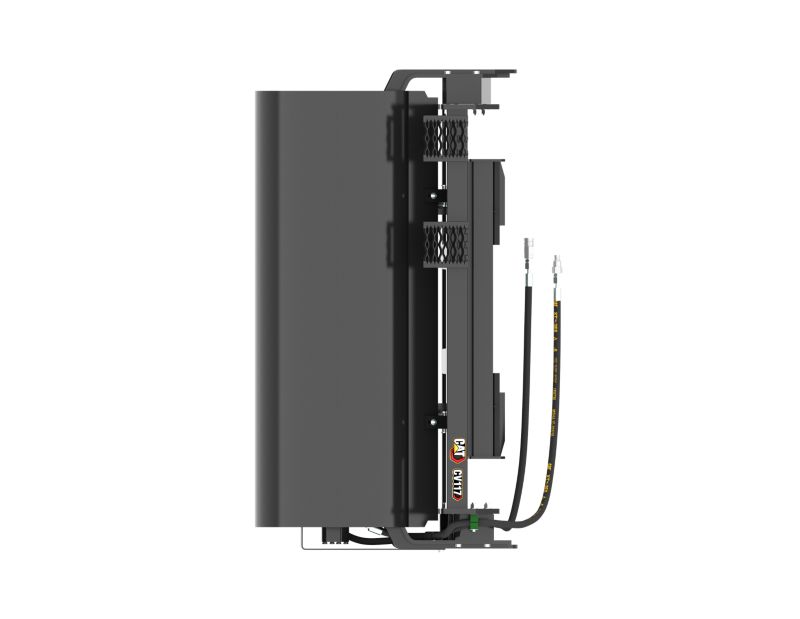

  • Bottom View

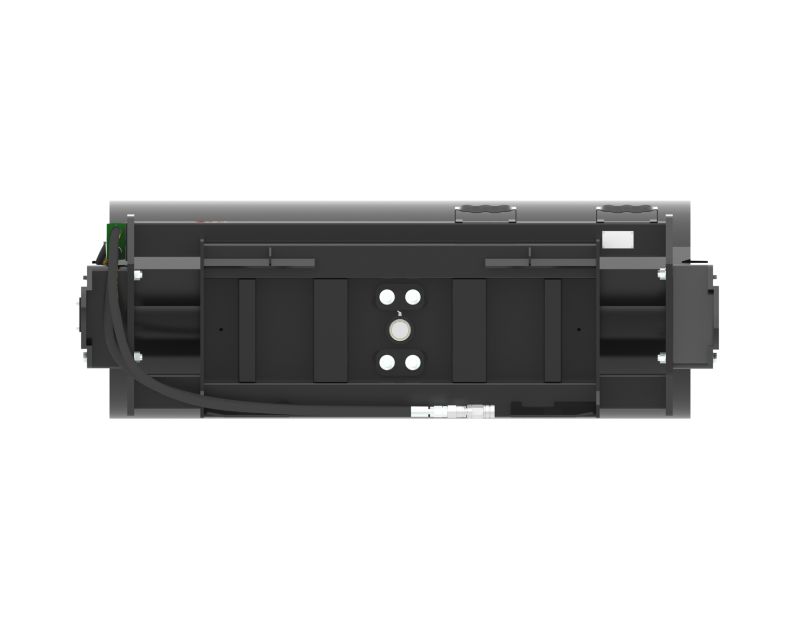

    Bottom View
  • Right View
    Right View
  • Cat® 246D Skid Steer Loader and Vibratory Drum Compactor at Work

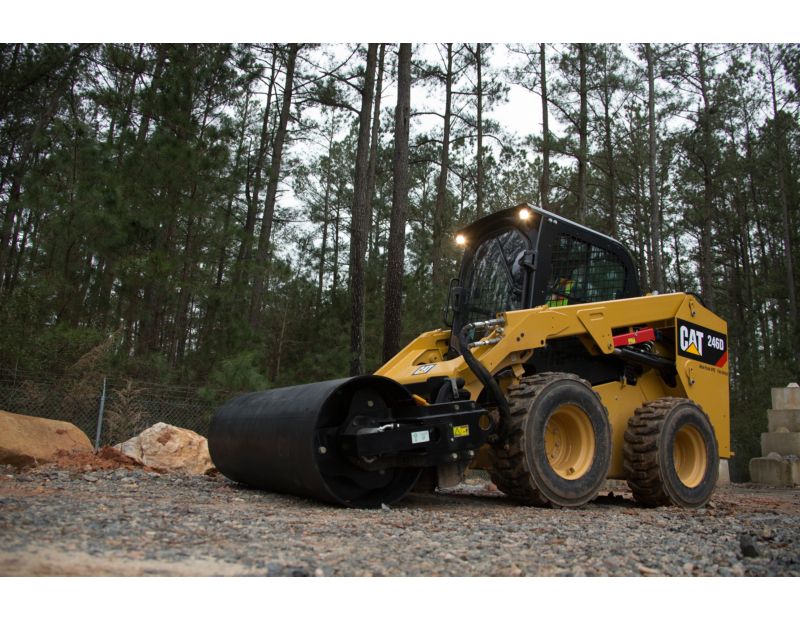

    Cat® 246D Skid Steer Loader and Vibratory Drum Compactor at Work
  • Cat® Vibratory Drum Compactor Smoothing a Path

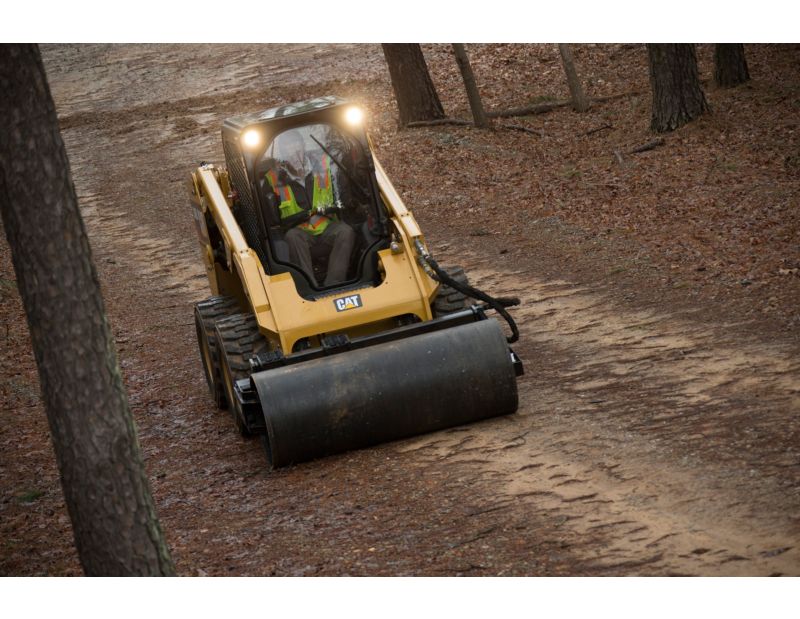

    Cat® Vibratory Drum Compactor Smoothing a Path

Videos

  • Cat® Vibratory Drum Compactors at Work
  • Cat® Vibratory Drum Compactors Operating Tips
  • Cat® Vibratory Drum Compactors Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Vibratory Drum Compactors except where indicated.

Documents

Features

Application

Application

Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.

Application

Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.

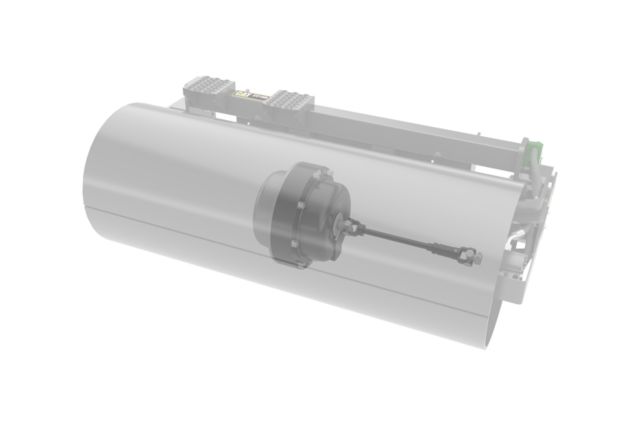

Vibratory Pod Design

Vibratory Pod Design

Caterpillar exclusive vibratory pod design delivers desired balance between frequency and amplitude to provide a superior matte finish.

Vibratory Pod Design

Caterpillar exclusive vibratory pod design delivers desired balance between frequency and amplitude to provide a superior matte finish.
Higher Compaction Forces

Higher Compaction Forces

High compaction forces result in fewer passes for greater productivity.

Higher Compaction Forces

High compaction forces result in fewer passes for greater productivity.

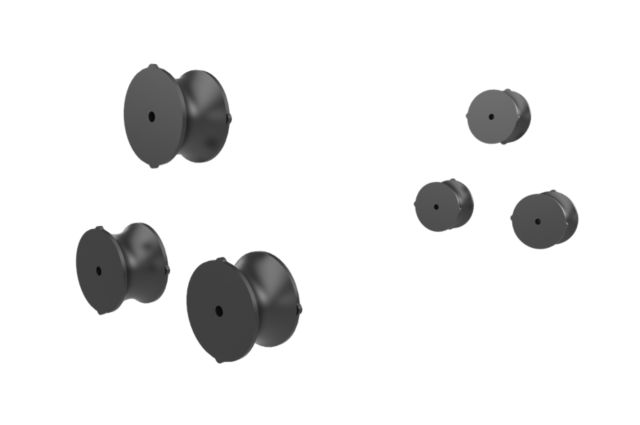

Replaceable Rubber Mounts

Replaceable Rubber Mounts

Replaceable rubber mounts isolate vibration and enhance vibratory capabilities.

Replaceable Rubber Mounts

Replaceable rubber mounts isolate vibration and enhance vibratory capabilities.
High Strength Steel Drums

High Strength Steel Drums

Durable high-strength steel drums are roll formed and finish welded for a smoother surface and longer life.

High Strength Steel Drums

Durable high-strength steel drums are roll formed and finish welded for a smoother surface and longer life.
Pivoting Interface

Pivoting Interface

Pivoting interface allows the drum to oscillate +/-15 degrees and follow the contour of the ground.

Pivoting Interface

Pivoting interface allows the drum to oscillate +/-15 degrees and follow the contour of the ground.

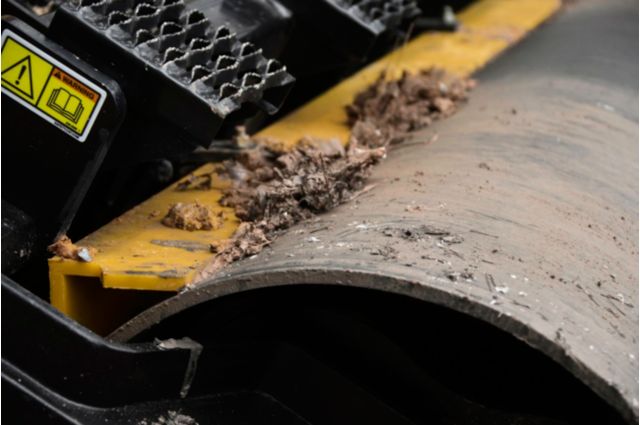

Spring-Loaded Scraper Bar

Spring-Loaded Scraper Bar

Spring-loaded dual direction non-metallic scraper bar maintains constant pressure on drum to prevent material build up. Non-metallic design minimizes noise.

Spring-Loaded Scraper Bar

Spring-loaded dual direction non-metallic scraper bar maintains constant pressure on drum to prevent material build up. Non-metallic design minimizes noise.

Specifications

  • General
    Spec Value
    Drum Width 66 in
    Weight 2063.5 lb
    Required Hydraulics Standard Flow
    Overall Width 73 in
    Height 25 in
    Length 39.7 in
    Drum Diameter 25 in
    Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Drum Frequency at Maximum Flow 2,946 vibrations/minute
    Drum Oscillation Tilt Range ± 15 degrees
    Dynamic Force 11902.7 lb
    Amplitude 0.046 in
    Motor Size 1.7 in³
    Drive Method Gear Motor - Direct
