Caterpillar

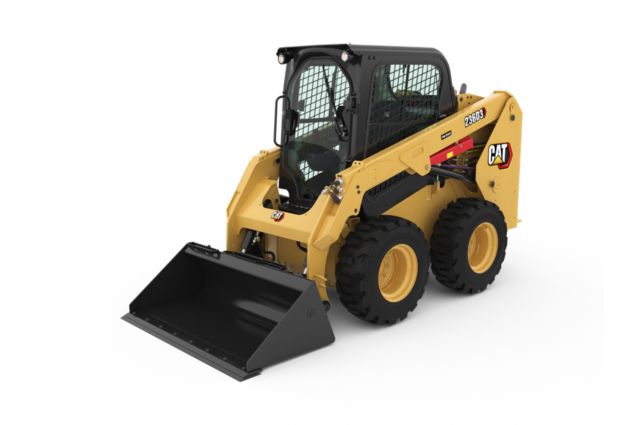

236D3 Skid Steer Loader

Gross Power - SAE J1995

74.3 HP

Rated Operating Capacity

1800 lb

Operating Weight

6567 lb

Overview

The Cat® 236D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.

Photos

Videos

  • Overview
  • Features and Benefits
  • At Work
  • SSL and CTL At Work
  • Daily Maintenenace
  • Experience What You Inspired

360° View

Exterior

Interior

Showroom

Virtual Product Tour

Features

Specifications

  • Engine
    Spec Value
    Gross Power - SAE J1995 74.3 HP
    Net Power - SAE 1349 73.2 HP
    Displacement 203 in³
    Stroke 4.7 in
    Bore 3.7 in
    Net Flywheel Power 73.2 HP
    Engine Model Cat 3.3B DIT (turbo)
    Peak Torque - 1,500 rpm - SAE J1995 195 ft·lbf
    Net Power - ISO 9249 73.9 HP
  • Operating Specifications
    Spec Value
    Rated Operating Capacity 1800 lb
    Tipping Load 3600 lb
    Breakout Force - Tilt Cylinder 5003 lb
    Rated Operating Capacity with Optional Counterweight 2000 lb
    Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
  • Weights
    Spec Value
    Operating Weight 6567 lb
    Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
  • Dimensions
    Spec Value
    Wheel Base 43.5 in
    Height - Top of Cab 82 in
    Vehicle Width over Tires 66 in
    Ground Clearance 7.7 in
    Departure Angle 26°
    Maximum Dump Angle 48°
    Maximum Reach - With Arms Parallel to Ground 53.3 in
    Turning Radius from Center - Machine Rear 64.5 in
    Bucket Pin Height - Maximum Lift 122.9 in
    Length - Without Bucket 108.9 in
    Rack Back Angle - Maximum Height 91°
    Turning Radius from Center - Bucket 83 in
    Turning Radius from Center - Coupler 51.8 in
    Clearance at Maximum Lift and Dump 92.9 in
    Reach - Maximum Lift/Dump 16 in
    Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
    Bumper Overhang - Behind Rear Axle 40.2 in
    Maximum Overall Height 156.6 in
    Length - With Bucket on Ground 137.3 in
    Bucket Pin Height - Carry Position 7.5 in
  • Hydraulic System
    Spec Value
    Hydraulic Flow - Standard - Loader Hydraulic Flow 20 gal/min
    Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure 3335 psi
    Hydraulic Flow - Standard - Hydraulic Power (Calculated) 39 HP
    Hydraulic Flow - Standard - Loader Hydraulic Pressure 3335 psi
    Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow 30 gal/min
    Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 58 HP
  • Cab
    Spec Value
    ROPS ISO 3471:2008
    FOPS ISO 3449:2005 Level I
  • Power Train
    Spec Value
    Travel Speed - Forward or Reverse - Two Speed Option 10.6 mile/h
    Travel Speed - Forward or Reverse - One Speed 7 mile/h
  • Service Refill Capacities
    Spec Value
    Chain Box - Each Side 2.3 gal (US)
    Cooling System 3.7 gal (US)
    Engine Crankcase 3 gal (US)
    Fuel Tank 24.8 gal (US)
    Hydraulic System 13.2 gal (US)
    Hydraulic Tank 10.3 gal (US)
  • Noise Level
    Spec Value
    Outside Cab** 101 dB(A)
    Note (2) *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
    Note (3) **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
    Inside Cab* 83 dB(A)
    Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
  • Air Conditioning System (if equipped)
    Spec Value
    Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Standard Equipment

ELECTRICAL

  • 12 volt Electrical System
  • 80 ampere Alternator
  • Ignition Key Start/Stop Switch
  • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
  • Backup Alarm
  • Heavy Duty Battery, 850 CCA

OPERATOR ENVIRONMENT

  • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
  • Gauges: Fuel Level, Hour Meter
  • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged, Engine Emission System
  • Adjustable Vinyl Seat
  • Fold In Ergonomic Contoured Armrest
  • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
  • ROPS Cab, Open, Tilt Up
  • FOPS, Level I
  • Top and Rear Windows
  • Floor Mat
  • Interior Rearview Mirror
  • 12 volt Electric Socket
  • Horn
  • Hand (Dial) Throttle, Electronic
  • Adjustable Joystick Controls
  • Anti-theft Security System with 6-button Keypad
  • Storage Compartment with Netting

POWER TRAIN

  • Cat C3.3B, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
  • Air Cleaner, Dual Element, Radial Seal
  • S·O·SSM Sampling Valve, Hydraulic Oil
  • Filters, Cartridge-type, Hydraulic
  • Filters, Canister-type, Fuel and Water Separator
  • Radiator/Hydraulic Oil Cooler (side-by-side)
  • Spring Applied, Hydraulically Released Parking Brakes
  • Hydrostatic Transmission
  • Four Wheel Chain Drive

OTHER

  • Engine Enclosure, Lockable
  • Extended Life Antifreeze, –36° C (–33° F)
  • Machine Tie Down Points (6)
  • Support, Lift Arm
  • Hydraulic Oil Level Sight Gauge
  • Radiator Coolant Level Sight Gauge
  • Radiator, Expansion Bottle
  • Cat ToughGuard™ Hose
  • Auxiliary, Hydraulics, Continuous Flow
  • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
  • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
  • Electrical Outlet, Beacon
  • Belly Pan Cleanout
  • Variable Speed Demand Fan
  • Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

  • Hydraulics, Standard or High Flow
  • Quick Coupler, Mechanical or Powered
  • Highly Visible Seat Belt, 50 mm (2 in) or 75 mm (3 in)
  • EU Preparation Package
  • Power Train: One Speed, One Speed with Speed Sensitive Ride Control, Two Speed or Two Speed with Speed Sensitive Ride Control
  • Tires, 10 × 16.5 or 12 × 16.5
  • PERFORMANCE PACKAGES:
    – Performance Package H1: Standard Flow Hydraulics (No Self Level)
    – Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    – Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
  • COMFORT PACKAGES:
    – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
    – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
    – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
    – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

OPTIONAL EQUIPMENT

  • Hand-Foot Style Controls
  • External Counterweights
  • Beacon, Rotating
  • Engine Block Heater – 120V
  • Oil, Hydraulic, Cold Operation
  • Paint, Custom
  • Product Link PL641, Cellular
  • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
