High-performance cutting and mulching of vegetation and overgrowth.
Cat
HM215 High Flow Mulcher
Photos
-

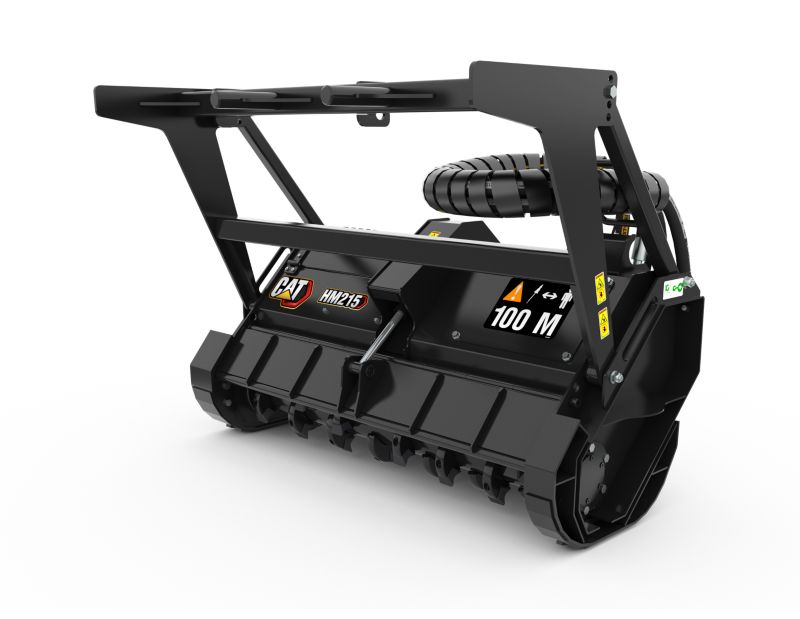

Studio Shot -

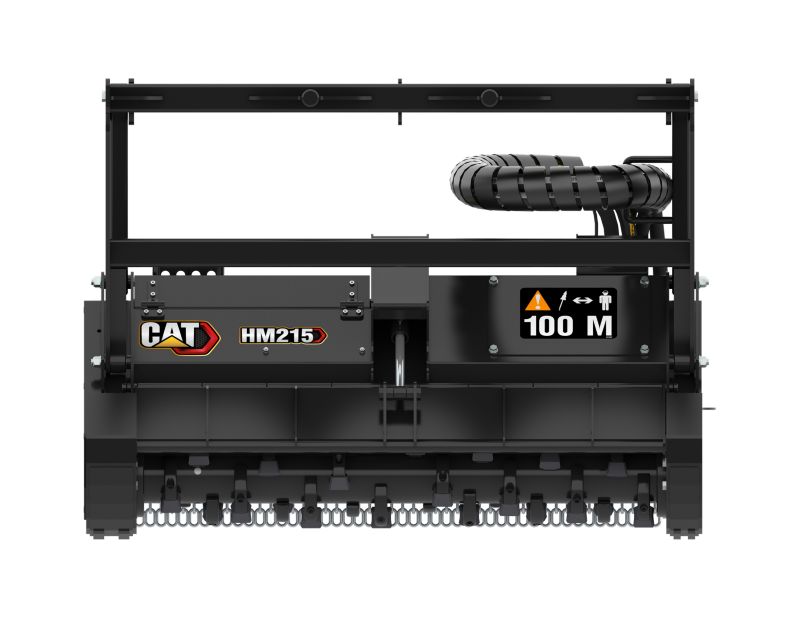

Front View -
Top View -

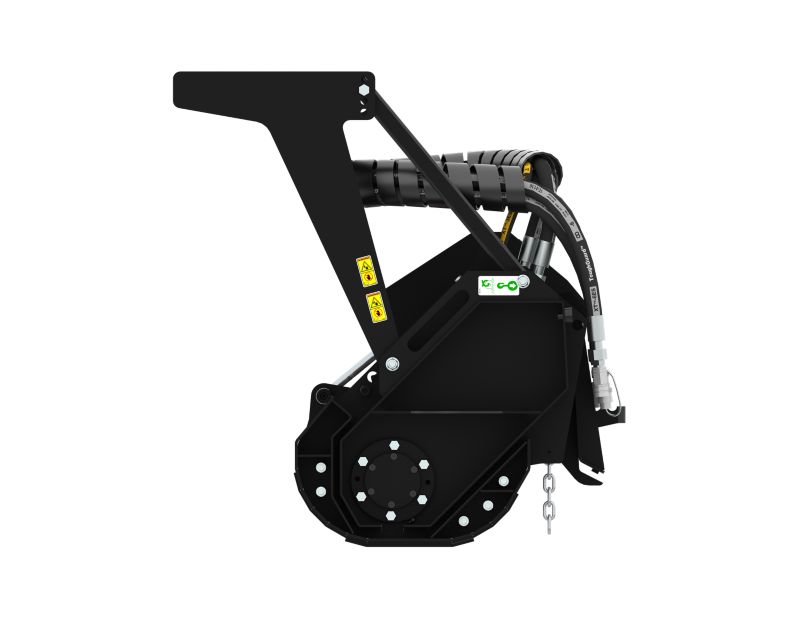

Left View -

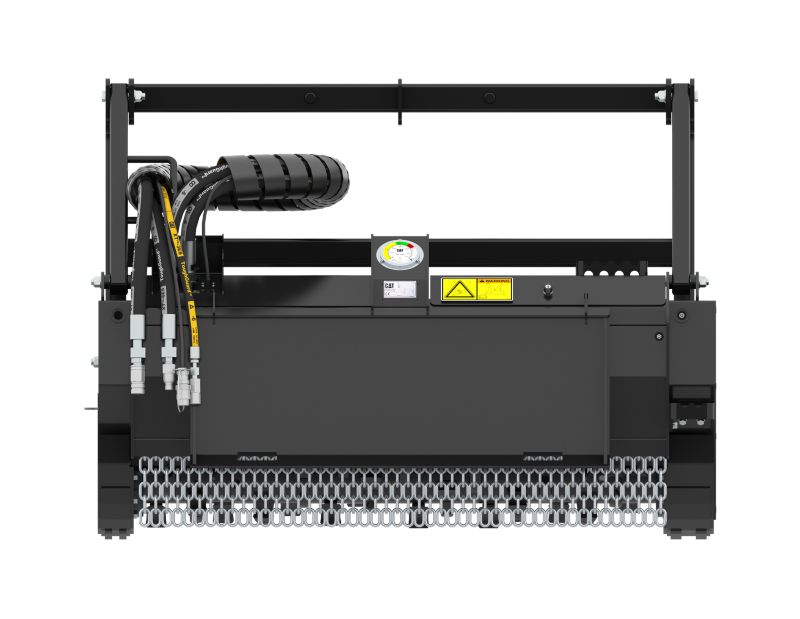

Rear View -
Bottom View -
Right View -

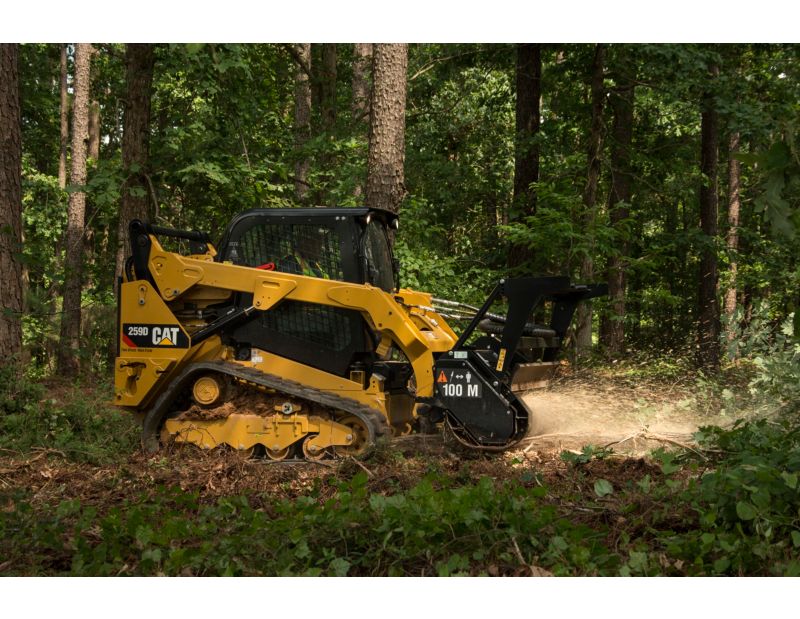

Cat® 259D Compact Track Loader and HM215C Mulcher -

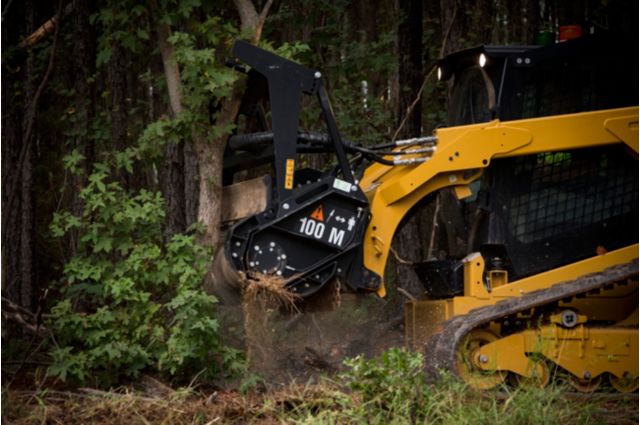

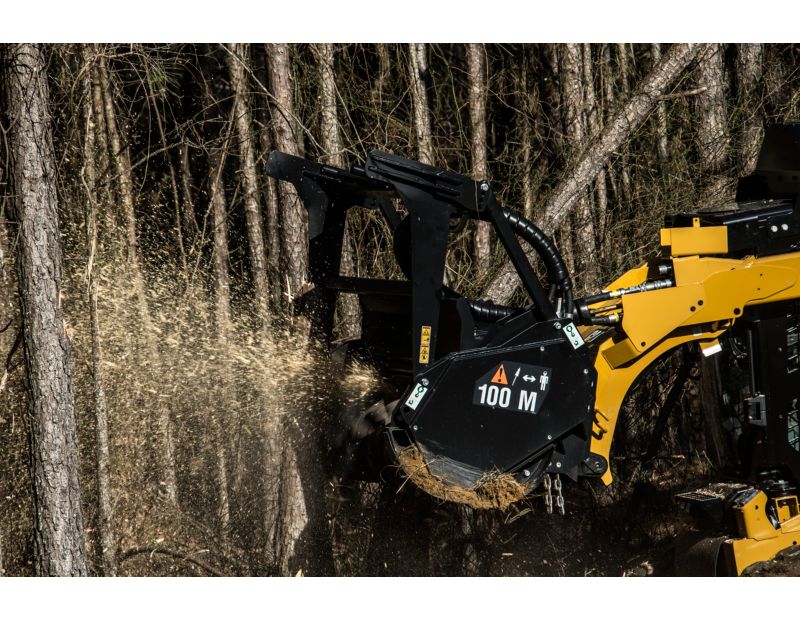

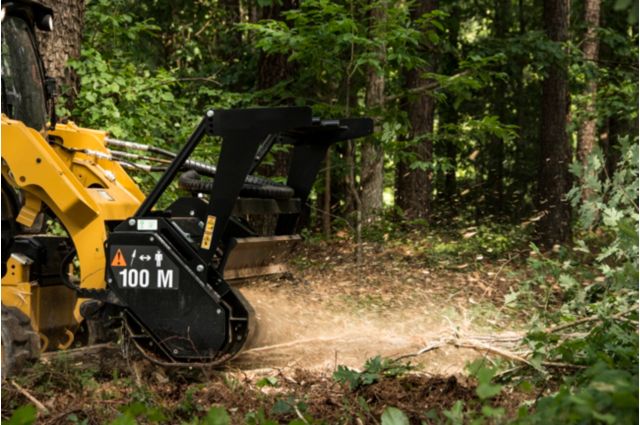

Cat® Mulcher in Action
Videos
360° View
Exterior
360° view. Double click on the image to zoom in on any area of the product.
Documents
Features
Application
Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.
Application
Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.
High Performance Mulching
Designed for high-performance cutting, and mulching vegetation and undergrowth from typical wooded terrain. Reduces saplings, shrubs and trees into mulched material.
High Performance Mulching
Designed for high-performance cutting, and mulching vegetation and undergrowth from typical wooded terrain. Reduces saplings, shrubs and trees into mulched material.
Rugged Mulching Head

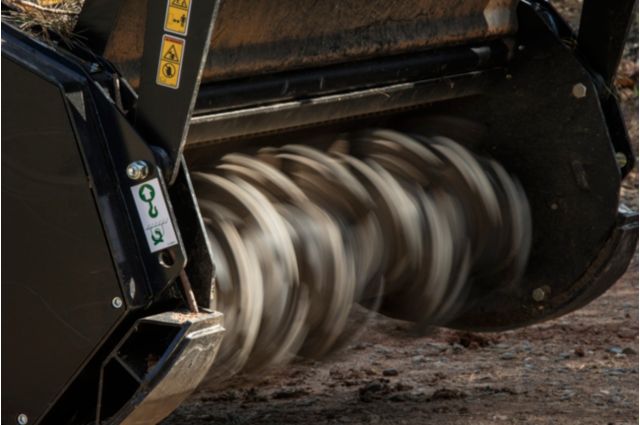

Rugged mulching head processes trees up to 200 mm (8 in) diameter for effective land clearing applications.
Rugged Mulching Head
Rugged mulching head processes trees up to 200 mm (8 in) diameter for effective land clearing applications.
Dual Speed Hydraulic Motor
Dual speed, axial piston motor provides smooth, efficient performance while delivering optimal torque under changing material loads.
Dual Speed Hydraulic Motor
Dual speed, axial piston motor provides smooth, efficient performance while delivering optimal torque under changing material loads.

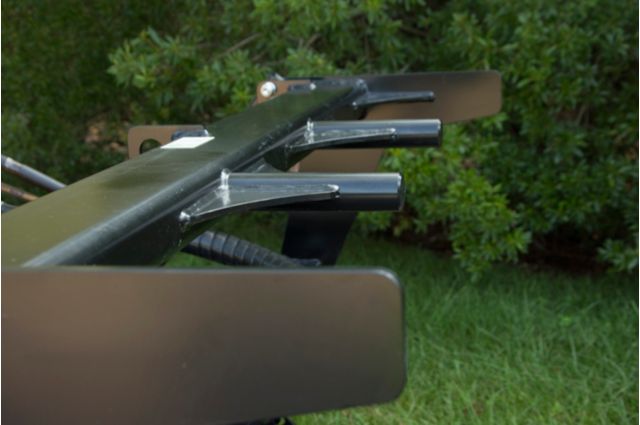

Adjustable Push Frame
Standard adjustable push frame allows for control of trees for optimal cutting and efficiency. Low profile design improves operator visibility and pin-style segments provide the opportunity to control which section of teeth are cutting, improving tooth life.
Adjustable Push Frame
Standard adjustable push frame allows for control of trees for optimal cutting and efficiency. Low profile design improves operator visibility and pin-style segments provide the opportunity to control which section of teeth are cutting, improving tooth life.

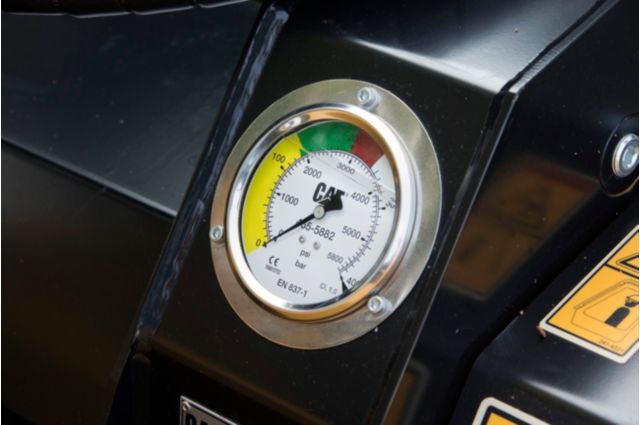

Color-Coded Pressure Gauge
Color-coded pressure gauge is standard equipment that provides operator feedback in order to maximize productivity. With green, yellow, and red regions, the operator has indication of the load being applied to the mulcher and if adjustments can be made to maximize productivity in changing material loads.
Color-Coded Pressure Gauge
Color-coded pressure gauge is standard equipment that provides operator feedback in order to maximize productivity. With green, yellow, and red regions, the operator has indication of the load being applied to the mulcher and if adjustments can be made to maximize productivity in changing material loads.
Hydraulically Operated Front Hood

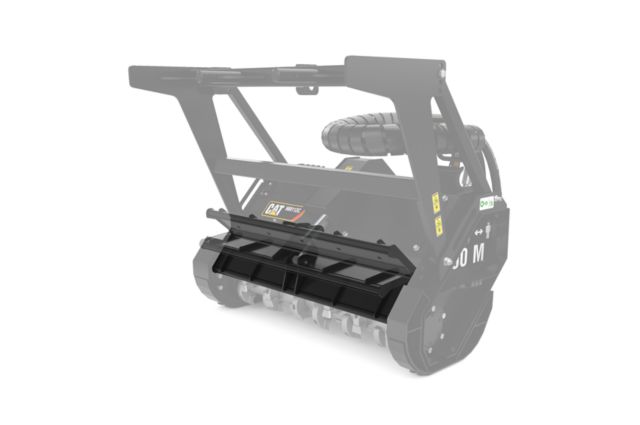

Hydraulically operated front hood is standard. Linkage is enclosed within mulcher frame on High Flow models. Quick to open and close door allows for finer finished material to be produced from cutting all types of vegetation.
Hydraulically Operated Front Hood
Hydraulically operated front hood is standard. Linkage is enclosed within mulcher frame on High Flow models. Quick to open and close door allows for finer finished material to be produced from cutting all types of vegetation.

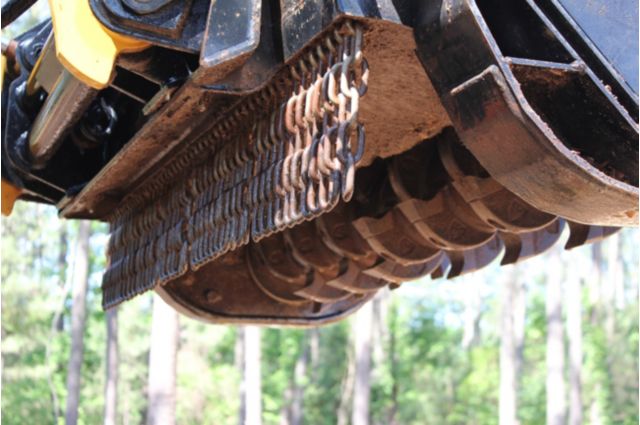

Rear Chain Guard Protection
Rear chain guard protection reduces spread of material.
Rear Chain Guard Protection
Rear chain guard protection reduces spread of material.

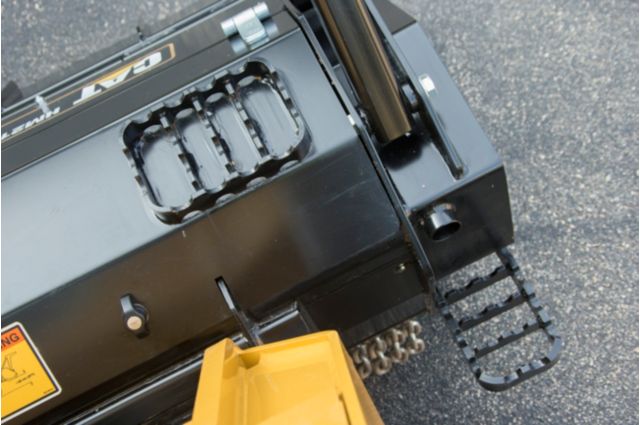

Serrated Steps
Serrated steps allow for safe and easy access in and out of the cab.
Serrated Steps
Serrated steps allow for safe and easy access in and out of the cab.
Lockable Service Panel
Hinged and lockable service panel allows easy access to hoses. Lockable with your Cat key, the service panel allows easy access to drive train components during service and inspection.
Lockable Service Panel
Hinged and lockable service panel allows easy access to hoses. Lockable with your Cat key, the service panel allows easy access to drive train components during service and inspection.

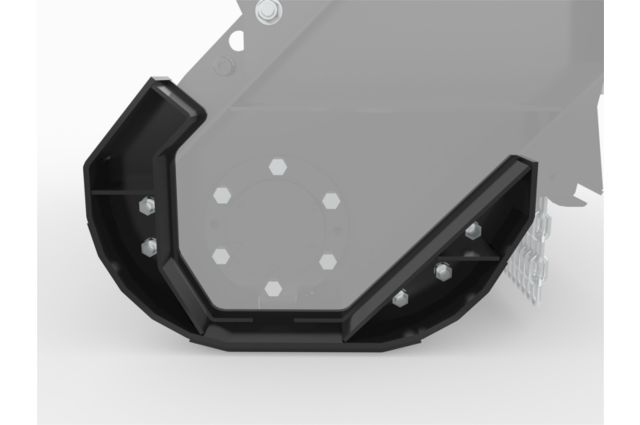

Replaceable Skid Shoes
Replaceable skid shoes allow for quick replacement when worn from use.
Replaceable Skid Shoes
Replaceable skid shoes allow for quick replacement when worn from use.
Tool Mounted Operation and Maintenance Manual (OMM) Holder
Located inside the lockable service panel and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
Tool Mounted Operation and Maintenance Manual (OMM) Holder
Located inside the lockable service panel and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
Specifications
-
General
Spec Value Overall Width 69.2 in Working Width 58.3 in Length 48 in Overall Height 50.4 in Weight 1803.4 lb Drive Method V-Belt Motor Axial Piston Dual Speed Required Hydraulics High Flow Optimal Hydraulic Flow 96-117 L/min (25-31 gpm) Optimal Hydraulic Pressure 200-230 bar (2900-3336 psi) Drum Speed 2480-3020 RPM Fixed Teeth per Drum 36 Maximum Cutting Diameter 7.9 in Maximum Cutting Depth 2.8 in
