249D3 Compact Track Loader

Gross Power - SAE J1995

67.1 HP

Rated Operating Capacities - 35% Tipping Load

1740 lb

Operating Weight

7831 lb

Overview

The Cat® 249D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Photos
Videos
360° View
Showroom

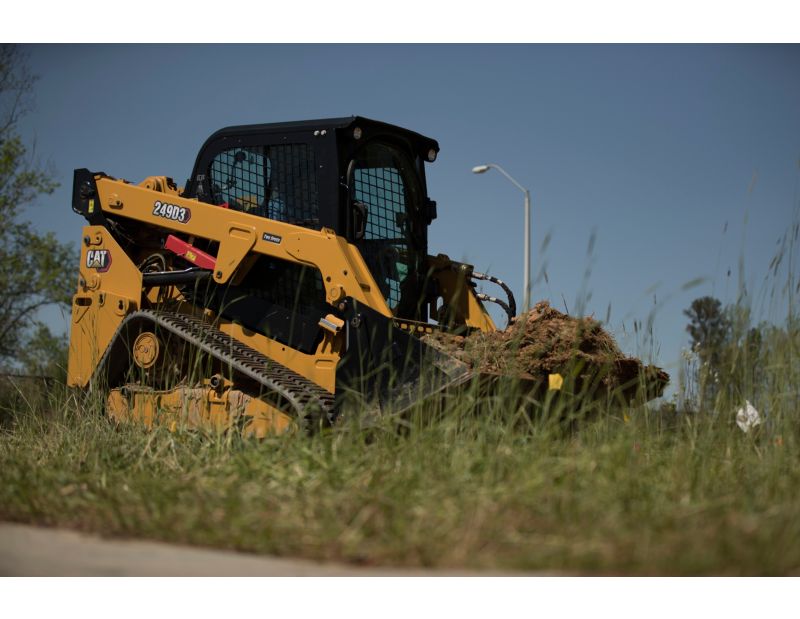

Cat® 249D3 Compact Track Loader

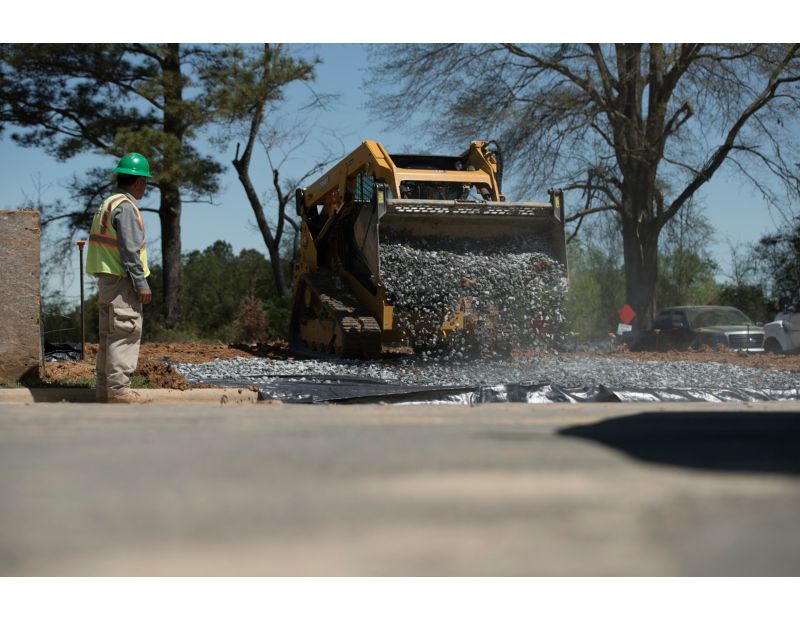

Cat® 249D3 Compact Track Loader

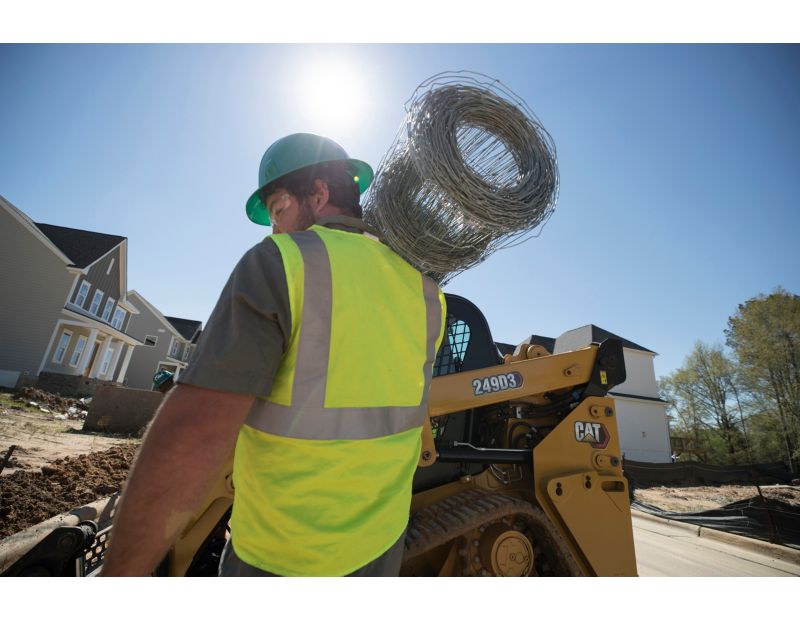

Cat® 249D3 Compact Track Loader

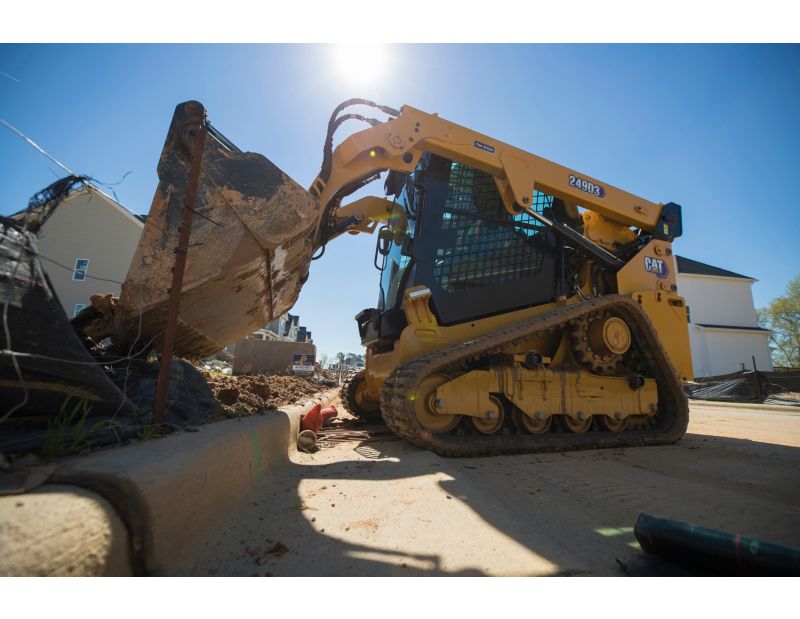

Cat® 249D3 Compact Track Loader

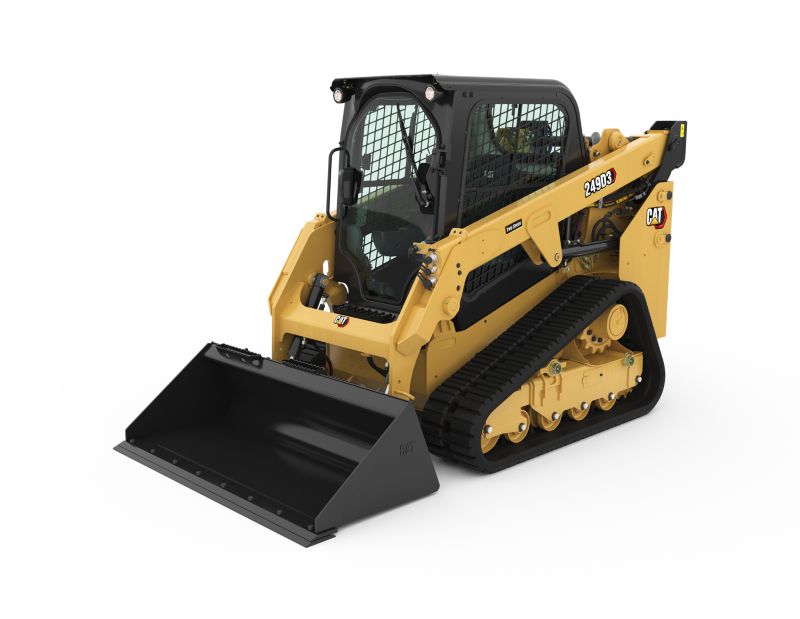

Cat® 249D3 Compact Track Loader

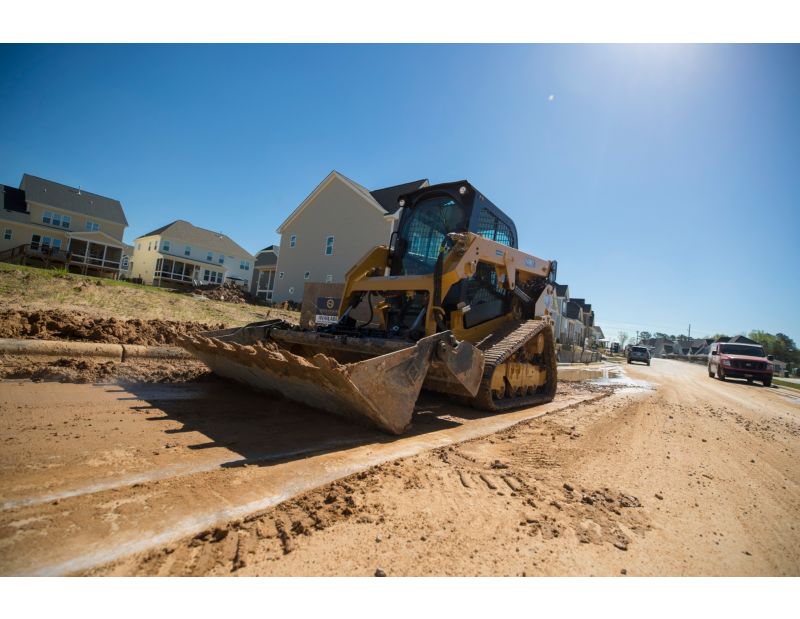

Cat® 249D3 Compact Track Loader

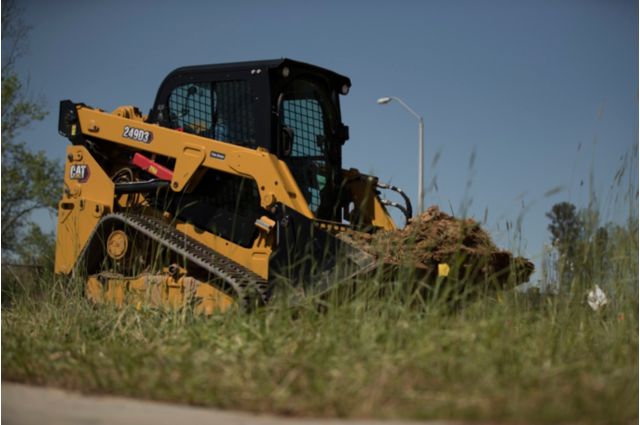

Cat® 249D3 Compact Track Loader
Cat® 249D3 Compact Track Loader
Cat® 249D3 Compact Track Loader

At Work
Overview
Features and Benefits
Daily Maintenance
Track Maintenance and Adjustment
Experience What You Inspired
D3 Series Skid Steer and Compact Track Loaders

Exterior

Interior

Virtual Product Tour

Documents

Features

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

A Smooth Ride

A standard, fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

Sustainability

The Cat® C2.2 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.

Specifications
Standard Equipment
Optional Equipment

Specifications

Engine

Spec	Value
Gross Power - SAE J1995	67.1 HP 50.1 kW
Displacement	134.3 in³ 2.2 l
Bore	3.3 in 84 mm
Stroke	3.9 in 100 mm
Net Power - ISO 9249	66.5 HP 49.6 kW
Net Power	65.8 HP 49.1 kW
Net Power - SAE 1349	65.8 HP 49.1 kW
Peak Torque - 1,500 rpm - SAE J1995	153 ft·lbf 208 N·m
Engine Model	Cat C2.2 CRDI Cat C2.2 CRDI

Operating Specifications

Spec	Value
Rated Operating Capacities - 35% Tipping Load	1740 lb 790 kg
Tipping Load	4970 lb 2260 kg
Ground Contact Area - With 320 mm/12.6 in Track	1373 in² 0.89 m²
Ground Pressure - With 320 mm/12.6 in Track	5.7 psi 39.3 kPa
Breakout Force - Tilt Cylinder	3907 lb 1772 kg
Ground Contact Area - With 400 mm/15.7 in Track	1716 in² 1.11 m²
Ground Pressure - With 400 mm/15.7 in Track	4.7 psi 32.2 kPa
Rated Operating Capacities - 50% Tipping Load	2485 lb 1130 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Rated Operating Capacity with Optional Counterweight	2700 lb 1225 kg

Weights

Spec	Value
Operating Weight	7831 lb 3552 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Dimensions

Spec	Value
Length - Track on Ground	54.5 in 1384 mm
Overall Length - Track	71.2 in 1808 mm
Height - Top of Cab	80.3 in 2039 mm
Ground Clearance	7.6 in 194 mm
Departure Angle	34.5° 34.5°
Maximum Dump Angle	48° 48°
Vehicle Width (400 mm/15.7 in tracks)	69.1 in 1756 mm
Length - With Bucket on Ground	127.3 in 3233 mm
Maximum Overall Height	150.8 in 3831 mm
Bucket Pin Height - Carry Position	8.6 in 219 mm
Maximum Reach - With Arms Parallel to Ground	51.8 in 1317 mm
Length - Without Bucket	99.3 in 2523 mm
Turning Radius from Center - Machine Rear	57.4 in 1458 mm
Bucket Pin Height - Maximum Lift	118.2 in 3002 mm
Clearance at Maximum Lift and Dump	88.7 in 2253 mm
Vehicle Width (320 mm/12.6 in tracks)	66 in 1676 mm
Turning Radius from Center - Coupler	45.7 in 1160 mm
Reach - Maximum Lift/Dump	28.6 in 727 mm
Rack Back Angle - Maximum Height	87.5° 87.5°
Turning Radius from Center - Bucket	81.1 in 2060 mm
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Bucket Pin Reach - Maximum Lift	12.2 in 311 mm

Hydraulic System

Spec	Value
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3336 psi 23000 kPa
Hydraulic Flow - High Flow - Loader Hydraulic Flow	26 gal/min 99 l/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure	3336 psi 23000 kPa
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	50.9 HP 38 kW
Hydraulic Flow - Standard - Loader Hydraulic Flow	18 gal/min 69 l/min
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	35.5 HP 26.5 kW

Cab

Spec Value

ROPS ISO 3471:2008 ISO 3471:2008

FOPS ISO 3449:2005 Level I ISO 3449:2005 Level I

Spec	Value
ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 Level I ISO 3449:2005 Level I

Power Train

Spec	Value
Travel Speed - Forward or Reverse - One Speed	5 mile/h 8.1 km/h
Travel Speed - Forward or Reverse - Two Speed	7.6 mile/h 12.2 km/h

Service Refill Capacities

Spec	Value
Engine Crankcase	2.6 gal (US) 10 l
Fuel Tank	15.1 gal (US) 57 l
Hydraulic System	11.9 gal (US) 45 l
Cooling System	3.2 gal (US) 12 l
Hydraulic Tank	9 gal (US) 34 l

Noise Level

Spec	Value
Outside Cab***	103 dB(A) 103 dB(A)
Inside Cab**	83 dB(A) 83 dB(A)
Note (3)	***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (2)	**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Air Conditioning System (if equipped)

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Standard Equipment

ELECTRICAL

12 volt Electrical System
80 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 850 CCA

OPERATOR ENVIRONMENT

Gauges: Fuel Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged
Adjustable Vinyl Seat
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Open, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Interior Rearview Mirror
12 volt Electric Socket
Horn
Hand (Dial) Throttle, Electronic
Adjustable Joystick Controls
Anti-theft Security System with 6-button Keypad
Storage Compartment with Netting

POWER TRAIN

Cat C2.2, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V emission standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Canister-type, Fuel and Water Separator
ATAAC/Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released Parking Brakes
Hydrostatic Transmission, Two Speed Travel
Suspension – Independent Torsion Axles (4)

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –36° C (–33° F)
Machine Tie Down Points (6)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Variable Speed Demand Fan
Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

Hydraulics, Standard or High Flow
Quick Coupler, Mechanical or Powered
High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
EU Preparation Package (Europe only)
Steel Imbed Rubber Track – 320 mm (12.6 in) Block Tread or 400 mm (15.7 in) Bar Tread
Dual Flange Front Idler/Single Flange Rear Idler
PERFORMANCE PACKAGES:
– Performance Package H1: Standard Flow Hydraulics (No Self Level)
– Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
– Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
COMFORT PACKAGES
– Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
– Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
– Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
– Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

OPTIONAL EQUIPMENT

Hand-Foot Style Controls
External Counterweights
Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Paint, Custom
Product Link PL641, Cellular
Ride Control
Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response, and Creep Control. (Standard Equipment in Europe Only)
Work Tool Return to Dig and Work Tool Positioner
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
