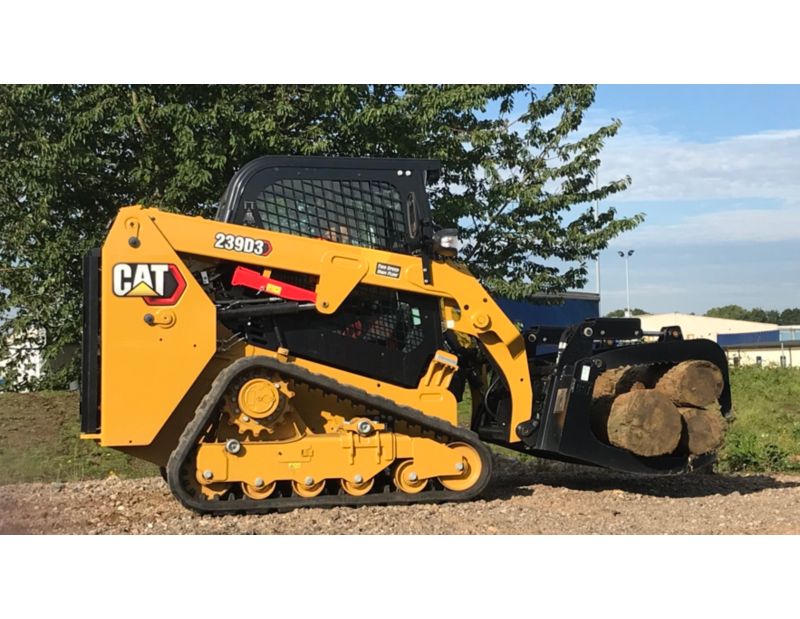

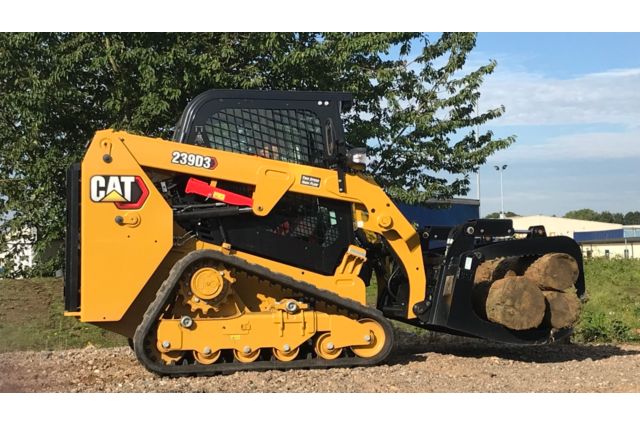

The Cat® 239D3 Compact Track Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.
Caterpillar
239D3 Compact Track Loader
Overview
Photos
Videos
360° View
Exterior
Interior
Showroom
Virtual Product Tour
Features
Specifications
-
Engine
Spec Value Gross Power - SAE J1995 67.1 hp Displacement 134.3 in³ Bore 3.3 in Stroke 3.9 in Peak Torque - 1,500 rpm - SAE J1995 153 ft·lbf Net Power - SAE 1349 65.8 hp Net Power - ISO 9249 66.5 hp Engine Model Cat C2.2 CRDI Net Power 65.8 hp -
Operating Specifications
Spec Value Rated Operating Capacities - 35% Tipping Load 1530 lb Tipping Load 4370 lb Breakout Force - Tilt Cylinder 3913 lb Rated Operating Capacity with Optional Counterweight 2400 lb Ground Contact Area - With 320 mm/12.6 in Track 1373 in² Ground Pressure - With 320 mm/12.6 in Track 5.4 psi Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). Ground Contact Area - With 400 mm/15.7 in Track 1716 in² Ground Pressure - With 400 mm/15.7 in Track 4.4 psi Rated Operating Capacities - 50% Tipping Load 2185 lb -
Weights
Spec Value Operating Weight 7434 lb Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). -
Dimensions
Spec Value Vehicle Width (320 mm/12.6 in tracks) 66 in Ground Clearance 7.7 in Length - With Bucket on Ground 127.3 in Length - Without Bucket 99.3 in Maximum Reach - With Arms Parallel to Ground 53.4 in Turning Radius from Center - Bucket 81.5 in Overall Length - Track 71.2 in Reach - Maximum Lift/Dump 22.2 in Vehicle Width (400 mm/15.7 in tracks) 69.1 in Maximum Overall Height 143.5 in Bucket Pin Height - Carry Position 8.6 in Length - Track on Ground 54.5 in Clearance at Maximum Lift and Dump 81 in Bucket Pin Height - Maximum Lift 111.2 in Departure Angle 34.5° Rack Back Angle - Maximum Height 85.5° Turning Radius from Center - Coupler 45.6 in Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). Height - Top of Cab 80.1 in Maximum Dump Angle 50.3° Turning Radius from Center - Machine Rear 57.4 in -
Hydraulic System
Spec Value Hydraulic Flow - High Flow - Loader Hydraulic Flow 26 gal/min Hydraulic Flow - Standard - Loader Hydraulic Pressure 3336 psi Hydraulic Flow - Standard - Loader Hydraulic Flow 18 gal/min Hydraulic Flow - High Flow - Loader Hydraulic Pressure 3336 psi Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 50.9 hp Hydraulic Flow - Standard - Hydraulic Power (Calculated) 35.5 hp -
Cab
Spec Value ROPS ISO 3471:2008 FOPS ISO 3449:2005 Level I -
Power Train
Spec Value Travel Speed - Forward or Reverse - Two Speed 7.6 mile/h Travel Speed - Forward or Reverse - One Speed 5 mile/h -
Service Refill Capacities
Spec Value Cooling System 3.2 gal (US) Engine Crankcase 2.6 gal (US) Fuel Tank 15.1 gal (US) Hydraulic System 11.9 gal (US) Hydraulic Tank 9 gal (US) -
Noise Level
Spec Value Note (2) **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. Outside Cab*** 103 dB(A) Note (3) ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Inside Cab** 83 dB(A) -
Air Conditioning System (if equipped)
Spec Value Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Standard Equipment
ELECTRICAL
- 12 volt Electrical System
- 80 ampere Alternator
- Ignition Key Start/Stop Switch
- Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
- Backup Alarm
- Heavy Duty Battery, 850 CCA
OPERATOR ENVIRONMENT
- Gauges: Fuel Level, Hour Meter
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged
- Adjustable Vinyl Seat
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Open, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Interior Rearview Mirror
- 12 volt Electric Socket
- Horn
- Hand (Dial) Throttle, Electronic
- Adjustable Joystick Controls
- Anti-theft Security System with 6-button Keypad
- Storage Compartment with Netting
POWER TRAIN
- Cat C2.2, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V emission standards
- Air Cleaner, Dual Element, Radial Seal
- S·O·SSM Sampling Valve, Hydraulic Oil
- Filters, Cartridge-type, Hydraulic
- Filters, Canister-type, Fuel and Water Separator
- ATAAC/Radiator/Hydraulic Oil Cooler (side-by-side)
- Spring Applied, Hydraulically Released Parking Brakes
- Hydrostatic Transmission, Two Speed Travel
- Suspension – Independent Torsion Axles (4)
OTHER
- Engine Enclosure, Lockable
- Extended Life Antifreeze, –36° C (–33° F)
- Machine Tie Down Points (6)
- Support, Lift Arm
- Hydraulic Oil Level Sight Gauge
- Radiator Coolant Level Sight Gauge
- Radiator, Expansion Bottle
- Cat ToughGuard™ Hose
- Auxiliary, Hydraulics, Continuous Flow
- Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
- Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
- Electrical Outlet, Beacon
- Belly Pan Cleanout
- Variable Speed Demand Fan
- Product Link™ PL240, Cellular
MANDATORY EQUIPMENT
- Hydraulics, Standard or High Flow
- Quick Coupler, Mechanical or Powered
- High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
- EU Preparation Package (Europe only)
- Steel Imbed Rubber Track – 320 mm (12.6 in) Block Tread or 400 mm (15.7 in) Bar Tread
- Dual Flange Front Idler/Single Flange Rear Idler
- PERFORMANCE PACKAGES:
– Performance Package H1: Standard Flow Hydraulics (No Self Level)
– Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
– Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) - COMFORT PACKAGES:
– Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
– Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
– Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
– Enclosed ROPS with A/C (C3): C2 + Air Conditioner
Optional Equipment
OPTIONAL EQUIPMENT
- Hand-Foot Style Controls
- External Counterweights
- Beacon, Rotating
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- Paint, Custom
- Product Link PL641, Cellular
- Ride Control
- Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response and Creep Control
- Work Tool Return to Dig and Work Tool Positioner
- Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
