Cat 908 Compact Wheel Loader
Overview
Photos
-

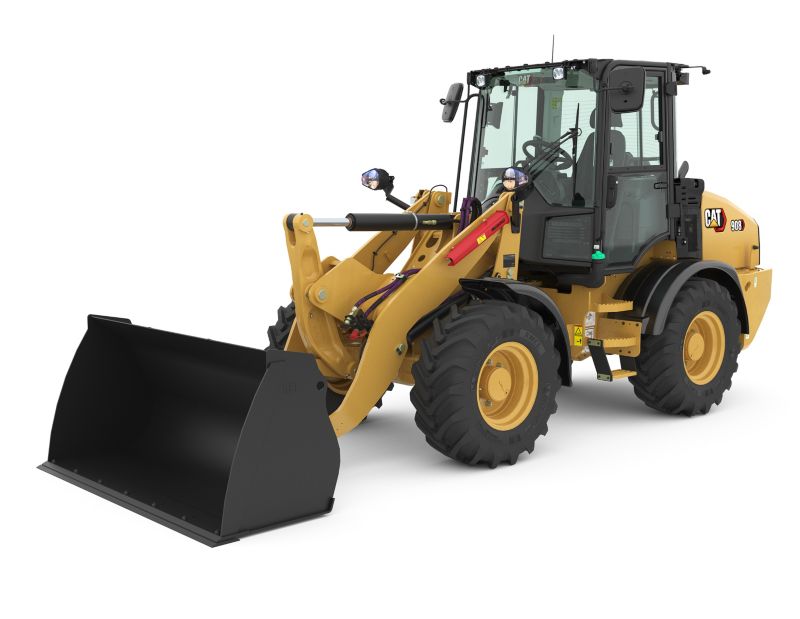

Studio Shot -

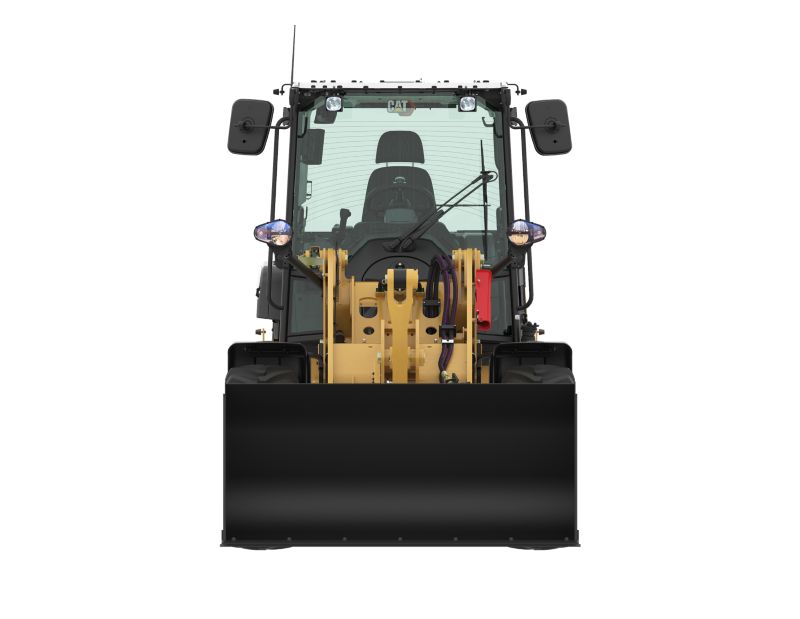

Front View -

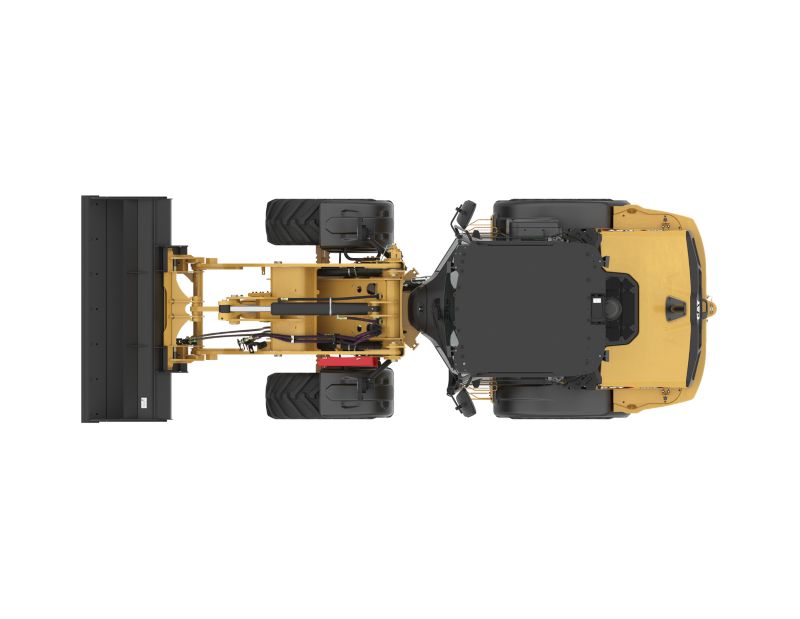

Top View -

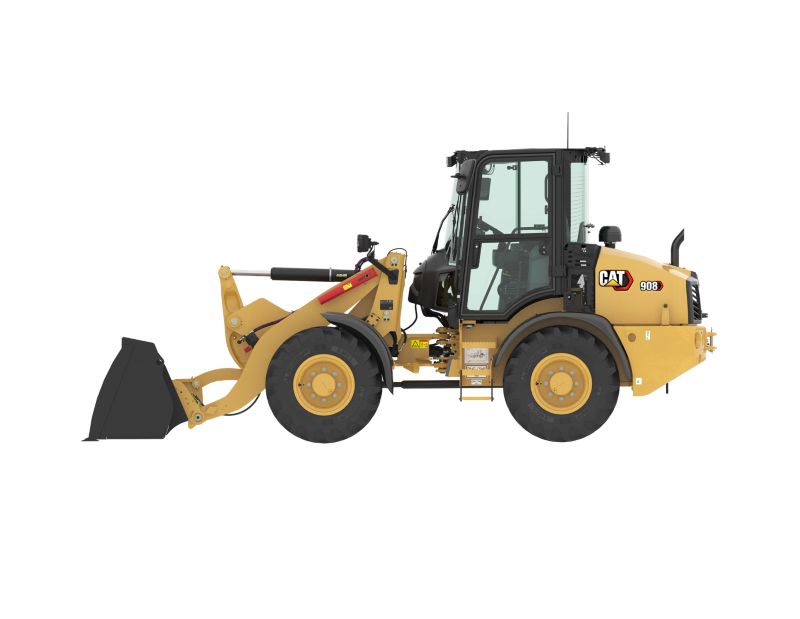

Left View -

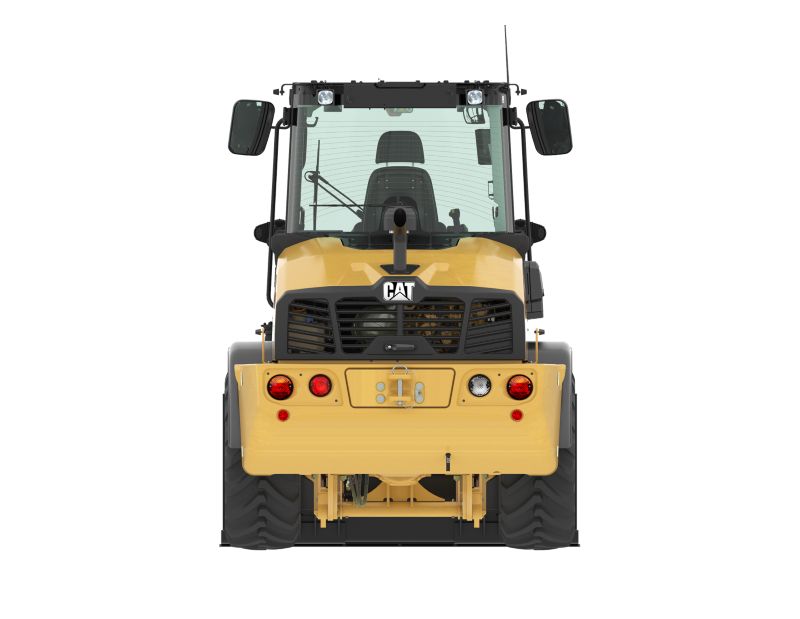

Rear View -

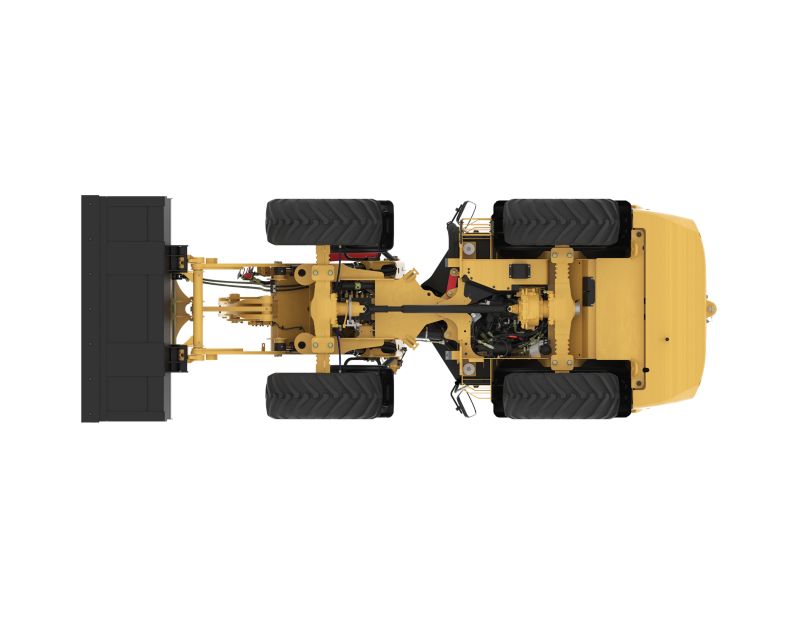

Bottom View -

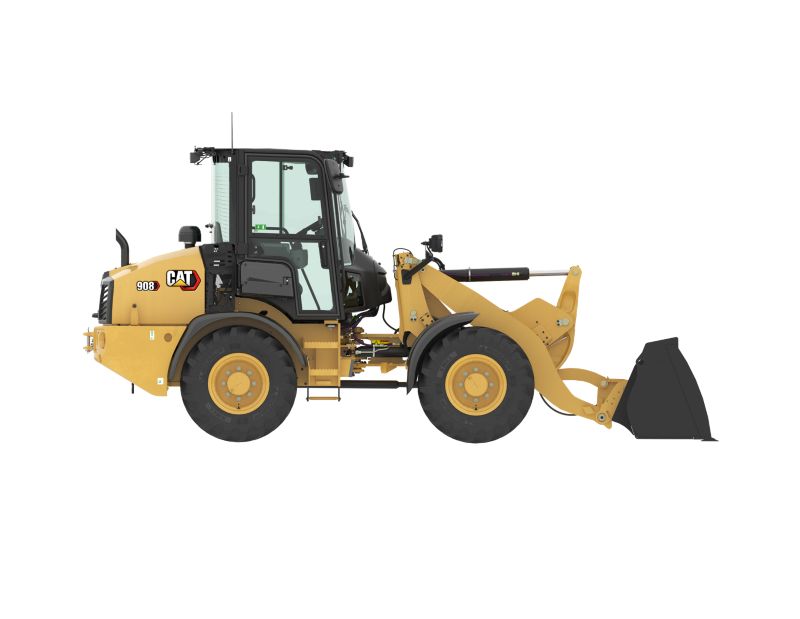

Right View
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
CONFIGURED FOR SUCCESS
Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has ahigh torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines meet U.S. EPA Tier 4 Final and EU Stage V emission standards with a clean emission module designed to manage itself so you can concentrate on the task at hand or emit equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
CONFIGURED FOR SUCCESS
Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has ahigh torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines meet U.S. EPA Tier 4 Final and EU Stage V emission standards with a clean emission module designed to manage itself so you can concentrate on the task at hand or emit equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
EFFICIENTLY POWERFUL
- Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
- “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.
EFFICIENTLY POWERFUL
- Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
- “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.
WORK MADE EASY
- All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.
WORK MADE EASY
- All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.
CUSTOMIZE YOUR EXPERIENCE
- Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
- Machine security is enhanced with a standard keycode or optional Bluetooth® technology.
CUSTOMIZE YOUR EXPERIENCE
- Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
- Machine security is enhanced with a standard keycode or optional Bluetooth® technology.
AFTERMARKET AND SERVICES
- Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
- Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
- Integrated Technology available to reduce service costs and maintenance.
AFTERMARKET AND SERVICES
- Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
- Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
- Integrated Technology available to reduce service costs and maintenance.
Specifications
-
Engine
Spec Value Maximum Gross Power 74.7 HP Engine Model Cat C2.8* Maximum Engine Speed 2550 rpm Maximum Gross Power - Rated Engine Speed 2400 r/min Maximum Gross Power - SAE J1995 74.7 HP Maximum Gross Power - ISO 14396 74.3 HP Maximum Gross Power - ISO 14396 (metric) 75.3 mhp Rated Net Power - Rated Engine Speed 2400 r/min Rated Net Power - SAE J1349 72.7 HP Rated Net Power - ISO 9249 72.1 HP Rated Net Power - 2,400 rpm - ISO 9249 (metric) 73.1 mhp Maximum Gross Torque - SAE J1995 222 lb/ft Maximum Gross Torque - ISO 14396 221 lb/ft Maximum Net Torque - SAE J1349 218 lb/ft Maximum Net Torque - ISO 9249 217 lb/ft Displacement 171 in³ Bore 3.54 in Stroke 4.33 in Note Advertised power is tested per the specified standard in effect at the time of manufacture Note (1) Net power advertised is the power available at the flywheel. Note (2) *Two Cat C2.8 engine emission options are available: 1) Meets U.S. EPA Tier 4 Final, EU Stage V. 2) U.S. EPA Tier 3 and EU Stage IIIA equivalent. Tier 3 engine specs are 0.3 kW/0.4 hp more gross power (SAE J1995), 0.2 kW/0.3 hp on net power (SAE J1349) and 1 N·m/0.7 lb-ft higher on gross torque (SAE J1995). Note (3) #Maximum gross and net torque measured at 1,600 rpm. -
Weights
Spec Value Operating Weight 14617 lb -
Buckets
Spec Value Bucket Capacities 0.75-1.55 m³ (1.0-2.0 yd³) Bucket Capacities - General Purpose 0.80-1.35 m³ (1.0-1.7 yd³) Multi-Purpose 0.75-1.1 m³ (1.0-1.4 yd³) Bucket Capacities - Light Material 1.25-1.55 m³ (1.6-2.0 yd³) Note Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration. Note (1) Bucket capacities stated include BOCE, in line with ISO 7546. -
Service Refill Capacities
Spec Value Fuel Tank 24 Gal Cooling System 3.2 Gal Engine Crankcase 2.3 Gal Axles - Front Center Differential 2.3 Gal Axles - Rear Center Differential 2.3 Gal Hydraulic System - Including Tank 18.6 Gal Hydraulic Tank 11.8 Gal Transmission 0.6 Gal Note No Diesel Exhaust Fluid (DEF) fluid needed on this size engine. -
Axles
Spec Value Front Fixed (standard), Locking Differential (optional) Rear Fixed (standard), Locking Differential (optional) Note Oscillation of ±11 degrees via hitch between front and rear frames. -
Steering
Spec Value Steering Articulation Angle - Each Direction 39 ° Maximum Flow - Steering Pump 12.3 gal/min Maximum Working Pressure - Steering Pump 3336 psi Steering Cycle Times – (full left to full right) – at High Idle 2.8 s Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left 3.25 turns or 4.00 turns -
Transmission
Spec Value Forward and Reverse - Speed Range Creep# 6 mile/h Forward and Reverse - Speed Range 1* 6 mile/h Forward and Reverse - Speed Range 2** - High Speed 10.5 mile/h Forward and Reverse - Speed Range 2** - Standard 12 mile/h Forward and Reverse - Speed Range 3*** 25 mile/h Note #Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph). Note (1) *Creep function not available in this gear or above. Note (2) **Max speed dependent on model and configuration (standard vs. high speed transmission). Note (3) ***Reverse is 30 km/h (19 mph). -
Tires
Spec Value Tire Size - Standard *405/70 R20 SPT9 Tire Size - Optional 405/70 R20 Powerloads Tire Size - Optional (1) 400/70 R20 XMCL/Bibload Tire Size - Optional (2) 360/80 R20 TRI 2 Tire Size - Optional (3) 40X14-20 TL, SM/TR Note *This tire has been used for all dimension, stability and performance data. Note (1) Other tire choices are available. Contact your Cat dealer for details. Note (2) Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. -
Cab
Spec Value ROPS ISO 3471:2008 FOPS ISO 3449:2005 Level II Note (1) Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU. -
Loader Hydraulic System
Spec Value Main Relief - 1st Auxiliary (3rd slice) 3408 psi Main Relief - 1st Auxiliary (3rd slice) - Standard Flow* 24 gal/min Main Relief - 1st Auxiliary (3rd slice) - High Flow* 33 gal/min Main Relief - 2nd Auxiliary (4th slice) 3408 psi Main Relief - 2nd Auxiliary (4th slice) - Flow 12 gal/min Hydraulic Cycle Time - Rackback 2.5 s Hydraulic Cycle Time - Lift 5.8 s Hydraulic Cycle Time - Dump 1.8 s Hydraulic Cycle Time - Float Down 3.6 s Note * Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display. -
Dimensions - With HPL-V Coupler - Approximate#
Spec Value Height: Ground to Cab** 8.75 ft Height: Ground to Beacon** 9.33 ft Height: Ground Axle Center** 1.67 ft Height: Ground Clearance** 1 ft Length: Overall* 18.17 ft Length: Rear Axle to Bumper 4.5 ft Length: Hitch to Front Axle 3.5 ft Length: Wheel Base 7.08 ft Clearance: Bucket at 45° * 8.58 ft Clearance: Load over Height** 9.75 ft Clearance: Level Bucket** 10.5 ft Height: Bucket Pin** 11.17 ft Height: Overall** 14.17 ft Reach: Bucket at 45° * 2.33 ft Carry Height: Bucket Pin 1.17 ft Dig Depth** 0.33 ft Width: Bucket 6.75 ft Width: Tread Center 5.08 ft Turning Radius: Over Bucket 14.75 ft Width: Over Tires 6.67 ft Turning Radius: Outside of Tires 13.17 ft Turning Radius: Inside of Tires 6.5 ft Rack Angle at Full Lift 53° Dump Angle at Full Lift 45° Rack Angle at Carry 51° Departure Angle - Degrees 30° Articulation Angle - Degrees 39° Operating Weight: Bucket ^ 14633 lb Tipping Load - Straight - ISO 14397-1 † 10626 lb Tipping Load - Full Turn - ISO 14397-1 † 8895 lb Operating Weight: Carriage and Tines ^^ 14252 lb Tipping Load - Straight † 10626 lb 80% of Tip: Firm and Level EN474-3 †† 5815 lb Note (1) *Vary with bucket Note (2) **Vary with tire Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket. Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center). Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing. Note (6) ††Full compliance to EN474-3 and SAE J1197. Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%). Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9 Length: Front Axle to Front of Coupler 3.92 ft -
Dimensions - With SSL Coupler - Approximate
Spec Value Height - Ground to Cab 8.75 ft Height: Ground to Beacon** 9.33 ft Height: Ground Axle Center** 1.67 ft Height - Ground Clearance 1 ft Length - Overall with Bucket 18.67 ft Length: Rear Axle to Bumper 4.5 ft Length: Hitch to Front Axle 3.5 ft Length - Wheel Base 7.08 ft Clearance - Bucket at 45° 8.25 ft Clearance: Load over Height** 9.75 ft Clearance - Level Bucket 10.5 ft Height - Bucket Pin 11.17 ft Height: Overall** 14.42 ft Reach - Bucket at 45° 2.67 ft Carry Height: Bucket Pin 1.25 ft Dig Depth 0.45 ft Width - Bucket 6.75 ft Width - Tread Center 5.08 ft Turning Radius - Over Bucket 15.08 ft Width - Over Tires 6.67 ft Turning Radius: Outside of Tires 13.17 ft Turning Radius - Inside Tire 6.67 ft Rack Angle at Full Lift 50° Dump Angle at Full Lift 48° Rack Angle at Carry 54° Departure Angle - Degrees 30° Articulation Angle - Degrees 39° Operating Weight: Bucket ^ 14752 lb Tipping Load – Straight – ISO 14397-1 † 9581 lb Tipping Load – Full Turn – ISO 14397-1 † 8141 lb Operating Weight: Carriage and Tines ^^ 14391 lb Tipping Load - Straight † 9753 lb 80% of Tip: Firm and Level EN474-3 †† 5438 lb Note (1) *Vary with bucket Note (2) **Vary with tire Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket. Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center). Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing. Note (6) ††Full compliance to EN474-3 and SAE J1197. Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%). Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9 Tipping Load - Full Turn - ISO 14397-1† 6800 lb Length: Front Axle to Front of Coupler 4.75 ft -
Dimensions - High Lift - With HPL-V Coupler - Approximate#
Spec Value Height: Ground to Cab** 8.75 ft Height: Ground to Beacon** 9.33 ft Height: Ground Axle Center** 1.67 ft Height: Ground Clearance** 1 ft Length: Overall* 19.67 ft Length: Rear Axle to Bumper 4.5 ft Length: Hitch to Front Axle 3.5 ft Length: Wheel Base 7.08 ft Clearance: Bucket at 45° * 10.92 ft Clearance: Load over Height** 10.75 ft Clearance: Level Bucket** 12.08 ft Height: Bucket Pin** 12.75 ft Height: Overall** 15.67 ft Reach: Bucket at 45° * 3.25 ft Carry Height: Bucket Pin 1.17 ft Dig Depth** 0.33 ft Width: Bucket 6.75 ft Width: Tread Center 5.08 ft Turning Radius: Over Bucket 15.83 ft Width: Over Tires 6.67 ft Turning Radius: Outside of Tires 13.17 ft Turning Radius: Inside of Tires 6.5 ft Rack Angle at Full Lift 69° Dump Angle at Full Lift 40° Rack Angle at Carry 48° Departure Angle - Degrees 30° Articulation Angle - Degrees 39° Operating Weight: Bucket ^ 14848 lb Tipping Load - Straight - ISO 14397-1 † 9187 lb Tipping Load - Full Turn - ISO 14397-1 † 7645 lb Operating Weight: Carriage and Tines ^^ 14542 lb Tipping Load - Straight † 9187 lb 80% of Tip: Firm and Level EN474-3 †† 4706 lb Note (1) *Vary with bucket Note (2) **Vary with tire Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket. Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center). Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing. Note (6) ††Full compliance to EN474-3 and SAE J1197. Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%). Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9 -
Dimensions - High Lift - With SSL Coupler - Approximate
Spec Value Height: Ground to Cab** 8.75 ft Height: Ground to Beacon** 9.33 ft Height: Ground Axle Center** 1.67 ft Height: Ground Clearance** 1 ft Length: Overall* 20.17 ft Length: Rear Axle to Bumper 4.5 ft Length: Hitch to Front Axle 3.5 ft Length: Wheel Base 7.08 ft Clearance: Bucket at 45° * 10.42 ft Clearance: Load over Height** 10.75 ft Clearance: Level Bucket** 12.08 ft Height: Bucket Pin** 12.75 ft Height: Overall** 15.92 ft Reach: Bucket at 45° * 3.42 ft Carry Height: Bucket Pin 1.25 ft Dig Depth** 0.42 ft Width: Bucket 6.75 ft Width: Tread Center 5.08 ft Turning Radius: Over Bucket 16.17 ft Width: Over Tires 6.67 ft Turning Radius: Outside of Tires 13.17 ft Turning Radius: Inside of Tires 6.5 ft Rack Angle at Full Lift 66° Dump Angle at Full Lift 40° Rack Angle at Carry 42° Departure Angle - Degrees 30° Articulation Angle - Degrees 39° Operating Weight: Bucket ^ 15070 lb Tipping Load - Straight - ISO 14397-1 † 8385 lb Tipping Load - Full Turn - ISO 14397-1 † 6943 lb Operating Weight: Carriage and Tines ^^ 14714 lb Tipping Load - Straight † 8385 lb 80% of Tip: Firm and Level EN474-3 †† 4375 lb Note (1) *Vary with bucket Note (2) **Vary with tire Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket. Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center). Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing. Note (6) ††Full compliance to EN474-3 and SAE J1197. Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%). Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9 -
Sustainability
Spec Value Recyclability 93%
Standard Equipment
POWER TRAIN
- Emissions compliant, two options (Dependent on regional regulations.)
– U.S. EPA Tier 4 Final and EU Stage V
– U.S. EPA Tier 3 and EU Stage IIIA equivalent - Cat C2.8 engine
– Diesel particulate filter (Fit for Life) or muffler (Dependent on regional regulations.)
– Fuel, diesel, ultra low or low Sulphur (Dependent on regional regulations.)
– Hydrostatic transmission, two speed, with inching function, “shift on the go”
– Power train mode, hystat - Air cleaner, two stage filter, with in cab audio/visual indicator on display
- Axles, heavy duty, frame mounted with outboard planetary reduction
- Closed circuit breather
- Coolant, extended life, –36° C (–33° F)
- Drive shaft, sealed for life, universal joints
- Engine, auto idle shutdown, hibernation mode
- Engine oil, ECO drain tap and hose
- Fuel pump, priming (manual)/water separator/drain
HYDRAULICS
- Hydraulic pilot shut off switch, in cab
- Electro-hydraulic, fully proportional controls
- Dead engine lower, lift valve, manual
- Demand cooling fan, hydraulically drive
- Coupler/pin on attachment ready
- Caterpillar HYDO™ Advanced 10 hydraulic oil
- Hystat displacement pump, infinitely variable
- Implement valve, pressure compensated
- Joystick, single lever, single auxiliary roller
- Multi-function lift and tilt with loader arm float
- Motor, single drive with dedicated implement and steering pumps
ELECTRICAL
- Alternator, 100 amp sealed
- Battery, heavy duty, 12V, 90Ah and 1,000 CCA
- Battery disconnect switch
- Cab mounted fuse panel
- Lights, rear stop and turn, LED
- Lights, roading, front halogen
- Service (Electronic Technician™)
- Product Link™
OPERATOR ENVIRONMENT
- ROPS/FOPS certified canopy/cab
– 12V power outlets, interior/exterior
– Pedals, raised, foot, brake/inching, accelerator
– Lever, parking brake
– Cup holders (2)
– CB radio clip, phone holder
– Door release, internal (left and right)
– Hook, large, coat and hard hat
– Floormat, heavy duty, easy clean
– Mirrors, (2) external breakaway, (1) internal
– Operator station on isolation mounts
– Steering wheel, spinner knob, horn in center
– Seat belt, orange, retractable, 51 mm (2 in)
– Storage, personal (trays [3], seat pocket)
– Steering column, tilt adjusted
– Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
– Quick coupler switch, in cab - Display, analog and digital
– Gauges (2), hydraulic oil, engine coolant
– Digital with soft touch buttons – fuel level, speed range, speedometer, service hour meter, service/maintenance information, hydraulic and power train performance and aggressiveness settings, security passcode (multiple languages) - Joystick, seat mounted, standard multifunction
– FNR, auxiliary roller, speed range select, continuous flow, differential lock, horn
– Arm rest, padded right, multiple position vertical height - Seat, manual height adjustment, (cab) fabric with adjustable left arm rest, (canopy) vinyl
- Cab
– Doors (2), fixed glass
– Wipers, front and rear, full front coverage
– Windshield, front single piece
– Window, rear heated
– Radio ready, speakers and wiring
– Air vents, (4) screen, (7) directional
– Heating, mechanical control unit
– Sun visor, solid, front full width
– Interior light (incandescent)
OTHER
- Fenders, front and rear
- Ground level easy access daily service points
- Loader arm safety brace
- Lockable main and side engine enclosures
- Lockable, fuel cap, HVAC filters, nose cone
- Machine lifting/tie down points
- Paint, Electro-Coat primer, gloss topcoat
- Recovery hitch with pin
- Scheduled Oil Sampling (S·O·S℠) ports, engine oil and hydraulic oil
Optional Equipment
POWER TRAIN
- Antifreeze, extended life coolant, –50° C (–58° F)
- Cold start – jacket water heater, bypass valve
- Creep and throttle lock function
- Fuel pump, priming, electric (Dependent on regional regulations.)
- 40 km/h (25 mph) hydrostatic transmission, 3-speed, “shift on the go”, secondary steering and boosted brakes
- Power train mode, utility (includes keypad)
ELECTRICAL
- Lighting packages, multiple; front, rear, engine bay (LED or HAL)
- Push to start
- Work tool wiring harness, (3) in cab switches
HYDRAULICS
- Auxiliary flow, single standard (3) valve, single high flow (3) valve, dual high flow (4) valve
- Caterpillar Bio HYDO Advanced hydraulic oil
- Connect under pressure and case drain
- Ride Control or load check valves*
- Reversing fan
- Quick disconnect auxiliary hydraulics
OPERATOR STATION
- Air Conditioning, automatic temperature control (ATC)
- Doors, sliding windows (left and right)
- Interior light, door activated
- Joystick, FNR, twin auxiliary roller, differential lock, horn
- Joystick, seat mounted, multifunction
- Mirrors (2) electronically adjustable, heated external, plus lower parabolic mirror
- Phone holder, spring loaded
- Radio, FM or digital audio broadcast
- Seat belt options, multiple
- Seat packages; deluxe or premium
- Secondary display, front or rear view camera
- Soft touch keypad options, 8 or 16 button
- Storage, lockable box or lockable cooled box
- Sun visor, rear perforated
- USB ports (2), interior
OTHER
- Couplers, vertical (SSL), horizontal (HPL-V, HPL-A)
- Rotary sensors (snubbing, kickouts, parallel)
- High lift option
Related Products
1140 mm (45 in)
890 mm (35 in)
890 mm (35 in)
1140 mm (45 in)
Straight Snow Pushes
2.44 m (8 ft)
3.05 m (10 ft)
3.05 m (10 ft)
3.66 m (12 ft)
2.44 m (8 ft)
3.66 m (12 ft)
2.44 m (8 ft)
3.66 m (12 ft)
3.05 m (10 ft)
1.8 m (6 ft)
2.1 m (7 ft)
2.7 m (9 ft)
2.4 m (8 ft)
3.0 m (10 ft)
1803 mm (71 in)
2133 mm (84 in)
Bale Grabs
MB200
MB250
BRX118 Industrial

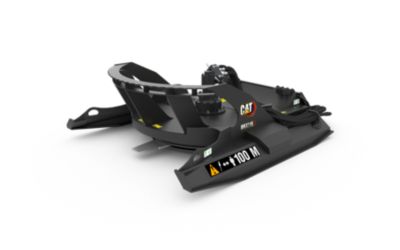

Brushcutters
A23
A41
A68
LT114
LT118
LR116
LR119
Trenchers
T315 Hydraulic Side Shift
T315 Hydraulic Side Shift
T109 Manual Side Shift
T112 Manual Side Shift
T112 Manual Side Shift
T112 Manual Side Shift
T112 Hydraulic Side Shift
T112 Hydraulic Side Shift
T112 Hydraulic Side Shift
T109 Hydraulic Side Shift
T109 Manual Side Shift
T109 Hydraulic Side Shift
T109 Manual Side Shift
T109 Manual Side Shift
T109 Hydraulic Side Shift
T109 Hydraulic Side Shift
T109 Manual Side Shift
T109 Hydraulic Side Shift
T112 Hydraulic Side Shift
T315 Hydraulic Side Shift
Trenchers
CV117
CV119
1.1 m3 (1.4 yd3), Skid Steer Coupler

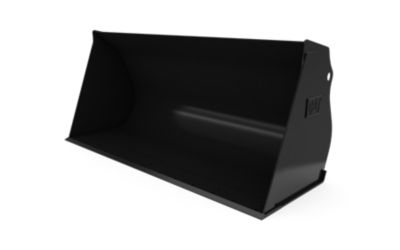

General Purpose Buckets

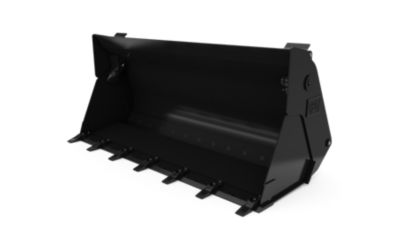

Multi-Purpose Buckets
0.9 m3 (1.2 yd3), Skid Steer Coupler, Bolt-On Teeth
0.9 m3 (1.2 yd3), Skid Steer Coupler, BOCE
BU115
BU118
2007 mm (79 in)
2337 mm (92 in)
Dozer Blades
2080 mm (82 in), Skid Steer Coupler, BOCE

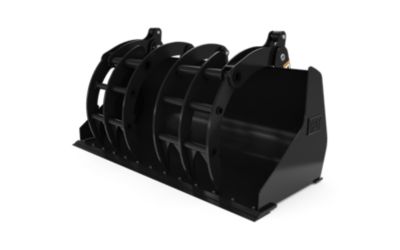

Industrial Grapple Buckets
