Caterpillar

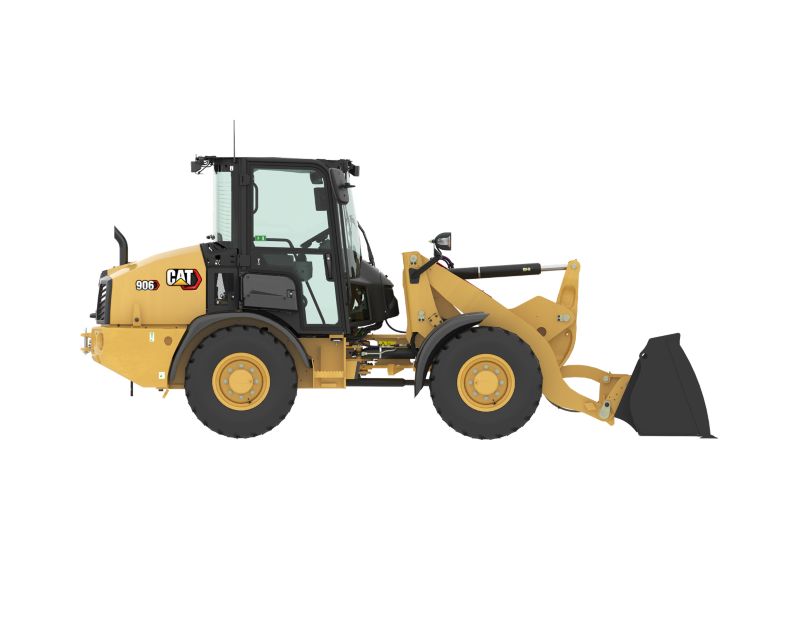

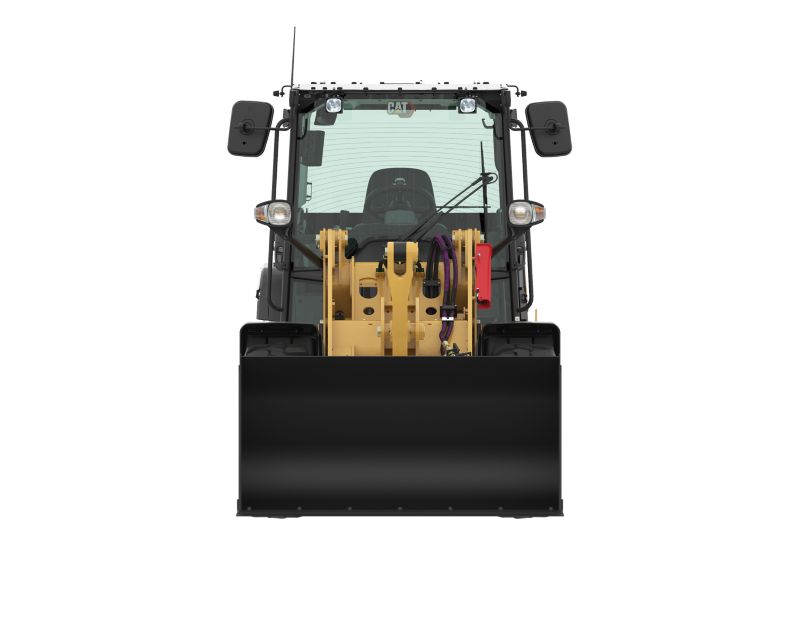

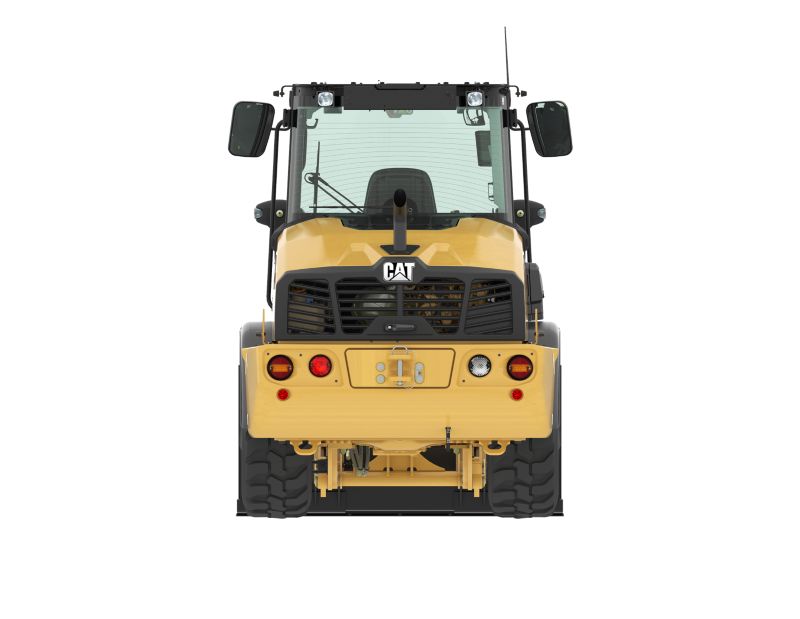

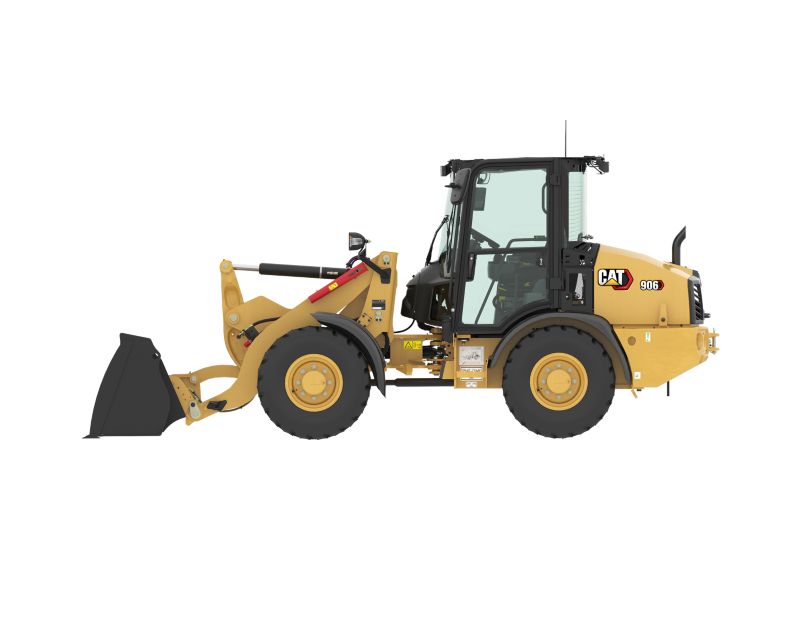

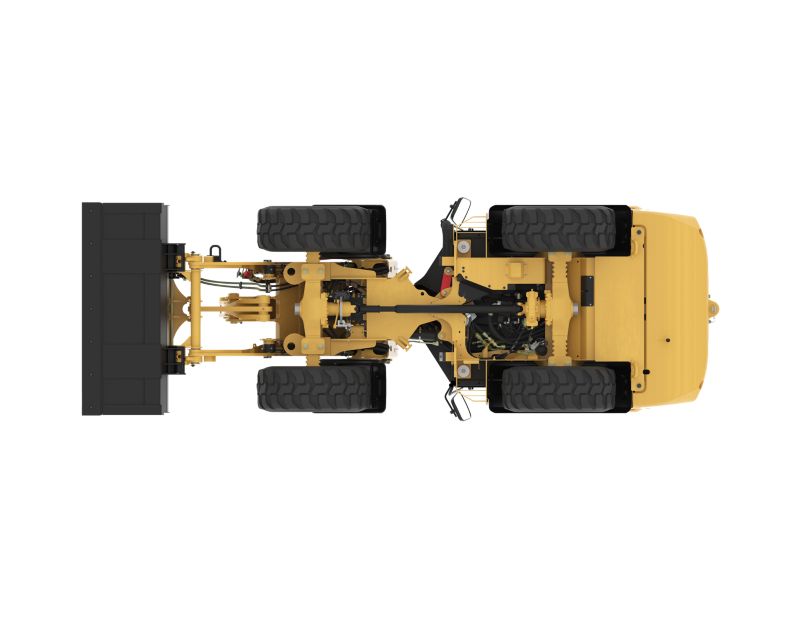

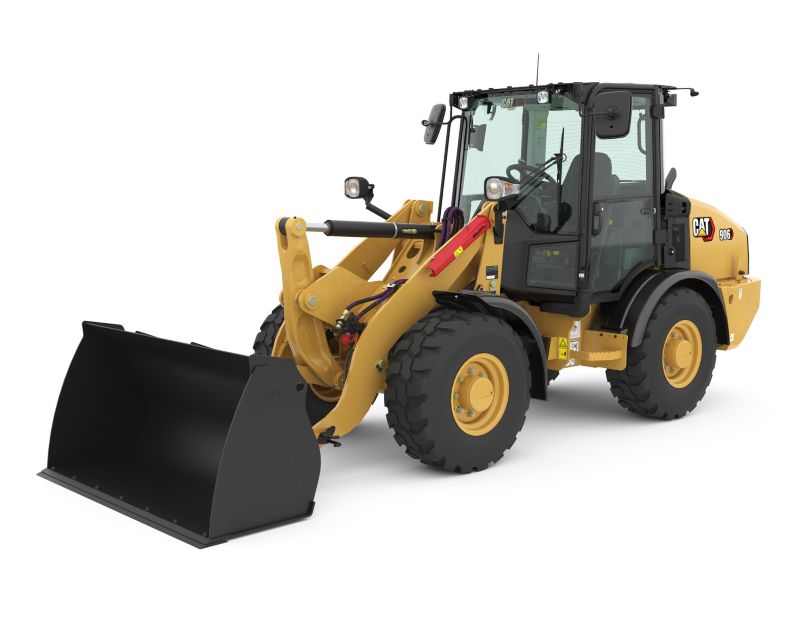

Cat 906 Compact Wheel Loader

Maximum Gross Power

74.7 HP

Operating Weight

12628 lb

Bucket Capacities

0.75-1.55 m³ (1.0-2.0 yd³)

Overview

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.

Photos

Videos

  • Construction | Cat® 906 Next Generation Compact Wheel Loader
  • Industrial Waste | Cat® 908 High Lift Next Generation Compact Wheel Loader
  • Landscaping Yard | Cat® 908 Next Generation Compact Wheel Loader

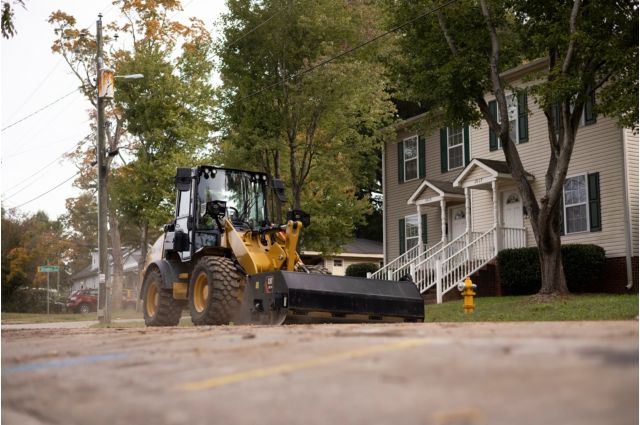

  • Cat® 906 Next Generation Compact Wheel Loader Removing Snow
  • New Cab Features | 906-907-908 Next Generation Cat® Compact Wheel Loaders
  • Performance Improvements | 906-907-908 Next Generation Cat® Compact Wheel Loaders
  • Operator Comfort and Controls | 906-907-908 Next Generation Cat® Compact Wheel Loaders
  • Machine Security | 906-907-908 Next Generation Cat® Compact Wheel Loaders
  • Powertrain Mode | 906-907-908 Next Generation Cat® Compact Wheel Loaders
  • Cat® 906, 907, 908 Next Generation Daily Maintenance and Inspection
  • Cab Evolution | Next Generation Cat® Compact Wheel Loaders

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° Interior view. Double click on the image to zoom in on any area of the product.

Features

Specifications

  • Engine
    Spec Value
    Maximum Gross Power 74.7 HP
    Engine Model Cat C2.8*
    Maximum Engine Speed 2550 rpm
    Maximum Gross Power - Rated Engine Speed 2400 r/min
    Maximum Gross Power - SAE J1995 74.7 HP
    Maximum Gross Power - ISO 14396 74.3 HP
    Maximum Gross Power - ISO 14396 (metric) 75.3 mhp
    Rated Net Power - Rated Engine Speed 2400 r/min
    Rated Net Power - SAE J1349 72.7 HP
    Rated Net Power - ISO 9249 72.1 HP
    Rated Net Power - 2,400 rpm - ISO 9249 (metric) 73.1 mhp
    Maximum Gross Torque - SAE J1995 222 lb/ft
    Maximum Gross Torque - ISO 14396 221 lb/ft
    Maximum Net Torque - SAE J1349 218 lb/ft
    Maximum Net Torque - ISO 9249 217 lb/ft
    Displacement 171 in³
    Bore 3.54 in
    Stroke 4.33 in
    Note Advertised power is tested per the specified standard in effect at the time of manufacture.
    Note (1) Net power advertised is the power available at the flywheel.
    Note (2) *Two Cat C2.8 engine emission options are available: 1) Meets U.S. EPA Tier 4 Final, EU Stage V. 2) U.S. EPA Tier 3 and EU Stage IIIA equivalent. Tier 3 engine specs are 0.3 kW/0.4 hp more gross power (SAE J1995), 0.2 kW/0.3 hp on net power (SAE J1349) and 1 N·m/0.7 lb-ft higher on gross torque (SAE J1995).
    Note (3) #Maximum gross and net torque measured at 1,600 rpm.
  • Weights
    Spec Value
    Operating Weight 12628 lb

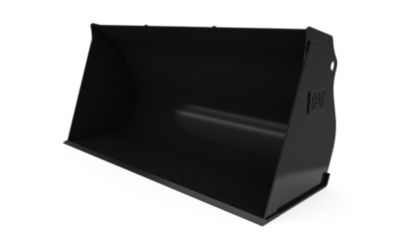

  • Buckets
    Spec Value
    Bucket Capacities 0.75-1.55 m³ (1.0-2.0 yd³)
    Bucket Capacities - General Purpose 0.80-1.35 m³ (1.0-1.7 yd³)
    Bucket Capacities - Light Material 1.25-1.55 m³ (1.6-2.0 yd³)
    Multi-Purpose 0.75-1.1 m³ (1.0-1.4 yd³)
    Note Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
    Note (1) Bucket capacities stated include BOCE, in line with ISO 7546.
  • Service Refill Capacities
    Spec Value
    Fuel Tank 18.5 Gal
    Cooling System 3.2 Gal
    Engine Crankcase 2.3 Gal
    Axles - Front Center Differential 2.3 Gal
    Axles - Rear Center Differential 2.3 Gal
    Hydraulic System - Including Tank 17.8 Gal
    Hydraulic Tank 11.8 Gal
    Transmission 0.6 Gal
    Note No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.
  • Axles
    Spec Value
    Front Fixed (standard) Locking Differential (optional)
    Rear Fixed (standard) Locking Differential (optional)
    Note Oscillation of ±11 degrees via hitch between front and rear frames.
  • Steering
    Spec Value
    Steering Articulation Angle - Each Direction 39 °
    Maximum Flow - Steering Pump 12.3 gal/min
    Maximum Working Pressure - Steering Pump 3336 psi
    Steering Cycle Times – (full left to full right) – at High Idle 2.8 s
    Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left 3.25 turns or 4.00 turns
  • Transmission
    Spec Value
    Forward and Reverse - Speed Range Creep# 6 mile/h
    Forward and Reverse - Speed Range 1* 6 mile/h
    Forward and Reverse - Speed Range 2** - High Speed 10.5 mile/h
    Forward and Reverse - Speed Range 2** - Standard 12 mile/h
    Forward and Reverse - Speed Range 3*** 25 mile/h
    Note #Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
    Note (1) *Creep function not available in this gear or above.
    Note (2) **Max speed dependent on model and configuration (standard vs. high speed transmission).
    Note (3) ***Reverse is 30 km/h (19 mph).
  • Tires
    Spec Value
    Tire Size - Standard *405/70 R18 SPT9
    Tire Size - Optional 405/70 R18 Powerloads
    Tire Size - Optional (1) 340/80 R18 XMCL/Bibload
    Tire Size - Optional (2) 340/80 R18 TRI 2
    Tire Size - Optional (3) 40X14-20 TL, SM/TR
    Tire Size - Optional 4 340/80 R18 Duraforce
    Note *This tire has been used for all dimension, stability and performance data.
    Note (1) Other tire choices are available. Contact your Cat dealer for details.
    Note (2) In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
    Note (3) Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
  • Cab
    Spec Value
    ROPS ISO 3471:2008
    FOPS ISO 3449:2005 Level II
    Note (1) Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.
  • Loader Hydraulic System
    Spec Value
    Main Relief - 1st Auxiliary (3rd slice) 3408 psi
    Main Relief - 1st Auxiliary (3rd slice) - Standard Flow* 21 gal/min
    Main Relief - 1st Auxiliary (3rd slice) - High Flow* 32 gal/min
    Main Relief - 2nd Auxiliary (4th slice) 3408 psi
    Main Relief - 2nd Auxiliary (4th slice) - Flow 12 gal/min
    Hydraulic Cycle Time - Rackback 2.2 s
    Hydraulic Cycle Time - Lift 5 s
    Hydraulic Cycle Time - Dump 1.6 s
    Hydraulic Cycle Time - Float Down 2.8 s
    Note * Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.
  • Dimensions - With HPL-V Coupler - Approximate#
    Spec Value
    Height: Ground to Cab** 8.08 ft
    Height: Ground to Beacon** 8.67 ft
    Height: Ground Axle Center** 1.58 ft
    Height: Ground Clearance** 1 ft
    Length: Overall* 17.58 ft
    Length: Rear Axle to Bumper 4.58 ft
    Length: Hitch to Front Axle 3.58 ft
    Length: Wheel Base 7.08 ft
    Clearance: Bucket at 45° * 8.25 ft
    Clearance: Load over Height** 9.5 ft
    Clearance: Level Bucket** 9.92 ft
    Height: Bucket Pin** 10.67 ft
    Height: Overall** 13.5 ft
    Reach: Bucket at 45° * 2.42 ft
    Carry Height: Bucket Pin 1.08 ft
    Dig Depth** 0.33 ft
    Width: Bucket 6.17 ft
    Width: Tread Center 4.67 ft
    Turning Radius: Over Bucket 14.17 ft
    Width: Over Tires 6.08 ft
    Turning Radius: Outside of Tires 12.92 ft
    Turning Radius: Inside of Tires 6.75 ft
    Rack Angle at Full Lift 56°
    Dump Angle at Full Lift 45°
    Rack Angle at Carry 51°
    Departure Angle - Degrees 30°
    Articulation Angle - Degrees 39°
    Operating Weight: Bucket ^ 12632 lb
    Tipping Load - Straight - ISO 14397-1 † 9760 lb
    Tipping Load - Full Turn - ISO 14397-1 † 8225 lb
    Operating Weight: Carriage and Tines ^^ 12240 lb
    Tipping Load - Straight † 7748 lb
    80% of Tip: Firm and Level EN474-3 †† 5211 lb
    Note (1) *Vary with bucket
    Note (2) **Vary with tire
    Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
    Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
    Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
    Note (6) ††Full compliance to EN474-3 and SAE J1197.
    Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
    Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines (tire supplier variability can impact dimensions by 2%).
    Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.
    Length: Front Axle to Front of Coupler 3.5 ft
    Tipping Load - Full Turn † 6514 lb
  • Dimensions - With SSL Coupler - Approximate
    Spec Value
    Height - Ground to Cab 8.08 ft
    Height: Ground to Beacon** 8.67 ft
    Height: Ground Axle Center** 1.58 ft
    Height - Ground Clearance 1 ft
    Length - Overall with Bucket 18.17 ft
    Length: Rear Axle to Bumper 4.58 ft
    Length: Hitch to Front Axle 3.58 ft
    Length - Wheel Base 7.08 ft
    Clearance - Bucket at 45° 7.83 ft
    Clearance: Load over Height** 9.5 ft
    Clearance - Level Bucket 9.92 ft
    Height - Bucket Pin 10.67 ft
    Height: Overall** 13.83 ft
    Reach - Bucket at 45° 2.67 ft
    Carry Height: Bucket Pin 1.17 ft
    Dig Depth 0.25 ft
    Width - Bucket 6.17 ft
    Width - Tread Center 4.67 ft
    Turning Radius - Over Bucket 14.67 ft
    Width - Over Tires 6.07 ft
    Turning Radius: Outside of Tires 12.92 ft
    Turning Radius - Inside Tire 6.75 ft
    Rack Angle at Full Lift 51°
    Dump Angle at Full Lift 50°
    Rack Angle at Carry 46°
    Departure Angle - Degrees 30°
    Articulation Angle - Degrees 39°
    Operating Weight: Bucket ^ 12863 lb
    Tipping Load – Straight – ISO 14397-1 † 8613 lb
    Tipping Load – Full Turn – ISO 14397-1 † 7220 lb
    Operating Weight: Carriage and Tines ^^ 12434 lb
    Tipping Load - Straight † 7359 lb
    80% of Tip: Firm and Level EN474-3 †† 4970 lb
    Note (1) *Vary with bucket
    Note (2) **Vary with tire
    Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
    Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
    Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
    Note (6) ††Full compliance to EN474-3 and SAE J1197.
    Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
    Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines (tire supplier variability can impact dimensions by 2%).
    Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.
    Tipping Load - Full Turn † 2818 kg
    Length: Front Axle to Front of Coupler 4.33 ft
  • Sustainability
    Spec Value
    Recyclability 93%

Standard Equipment

ELECTRICAL

  • Product Link™
  • Service (Electronic Technician™)
  • Lights, roading, front halogen
  • Lights, rear stop and turn, LED
  • Cab mounted fuse panel
  • Battery disconnect switch
  • Battery, heavy duty, 12V, 90Ah and 1,000 CCA
  • Alternator, 100 amp sealed

HYDRAULICS

  • Motor, single drive with dedicated implement and steering pumps
  • Multi-function lift and tilt with loader arm float
  • Joystick, single lever, single auxiliary roller
  • Implement valve, pressure compensated
  • Hystat displacement pump, infinitely variable
  • Caterpillar HYDO™ Advanced 10 hydraulic oil
  • Coupler/pin on attachment ready
  • Demand cooling fan, hydraulically driven
  • Dead engine lower, lift valve, manual
  • Electro-hydraulic, fully proportional controls
  • Hydraulic pilot shut off switch, in cab

OPERATOR ENVIRONMENT

  • Cab
    – Doors (2), fixed glass
    – Wipers, front and rear, full front coverage
    – Windshield, front single piece
    – Window, rear heated
    – Radio ready, speakers and wiring
    – Air vents, (4) screen, (7) directional
    – Heating, mechanical control unit
    – Sun visor, solid, front full width
    – Interior light (incandescent)
  • Seat, manual height adjustment, (cab) fabric with adjustable left arm rest, (canopy) vinyl
  • Joystick, seat mounted, standard multifunction
    – FNR, auxiliary roller, speed range select, continuous flow, differential lock, horn
    – Arm rest, padded right, multiple position vertical height
  • Display, analog and digital
    – Gauges (2), hydraulic oil, engine coolant
    – Digital with soft touch buttons – fuel level, speed range, speedometer, service hour meter, service/maintenance information, hydraulic and power train performance and aggressiveness settings, security passcode (multiple languages)
  • ROPS/FOPS certified canopy/cab
    – 12V power outlets, interior/exterior
    – Pedals, raised, foot, brake/inching, accelerator
    – Lever, parking brake
    – Cup holders (2)
    – CB radio clip, phone holder
    – Door release, internal (left and right)
    – Hook, large, coat and hard hat
    – Floormat, heavy duty, easy clean
    – Mirrors, (2) external breakaway, (1) internal
    – Operator station on isolation mounts
    – Steering wheel, spinner knob, horn in center
    – Seat belt, orange, retractable, 51 mm (2 in)
    – Storage, personal (trays [3], seat pocket)
    – Steering column, tilt adjusted
    – Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
    – Quick coupler switch, in cab

OTHER

  • Scheduled Oil Sampling (S·O·S℠) ports, engine oil and hydraulic oil
  • Recovery hitch with pin
  • Paint, Electro-Coat primer, gloss topcoat
  • Machine lifting/tie down points
  • Lockable, fuel cap, HVAC filters, nose cone
  • Lockable main and side engine enclosures
  • Loader arm safety brace
  • Ground level easy access daily service points
  • Fenders, front and rear

POWER TRAIN

  • Fuel pump, priming (manual)/water separator/drain
  • Engine oil, ECO drain tap and hose
  • Engine, auto idle shutdown, hibernation mode
  • Drive shaft, sealed for life, universal joints
  • Coolant, extended life, –36° C (–33° F)
  • Closed circuit breather
  • Axles, heavy duty, frame mounted with outboard planetary reduction
  • Air cleaner, two stage filter, with in cab audio/visual indicator on display
  • Cat C2.8 engine
    – Diesel particulate filter (Fit for Life) or muffler (Dependent on regional regulations.)
    – Fuel, diesel, ultra low or low Sulphur (Dependent on regional regulations.)
    – Hydrostatic transmission, two speed, with inching function, “shift on the go”
    – Power train mode, hystat
  • Emissions compliant, two options (Dependent on regional regulations.)
    – U.S. EPA Tier 4 Final and EU Stage V
    – U.S. EPA Tier 3 and EU Stage IIIA equivalent

Optional Equipment

ELECTRICAL

  • Work tool wiring harness, (3) in cab switches
  • Push to start
  • Lighting packages, multiple; front, rear, engine bay (LED or HAL)

HYDRAULICS

  • Quick disconnect auxiliary hydraulics
  • Reversing fan
  • Ride Control or load check valves (Dependent on regional regulations.)
  • Connect under pressure and case drain
  • Caterpillar Bio HYDO Advanced hydraulic oil
  • Auxiliary flow, single standard (3) valve, single high flow (3) valve, dual high flow (4) valve

OPERATOR STATION

  • USB ports (2), interior
  • Sun visor, rear perforated
  • Storage, lockable box or lockable cooled box
  • Soft touch keypad options, 8 or 16 button
  • Secondary display, front or rear view camera
  • Seat packages; deluxe or premium
  • Seat belt options, multiple
  • Radio, FM or digital audio broadcast
  • Phone holder, spring loaded
  • Mirrors (2) electronically adjustable, heated external, plus lower parabolic mirror
  • Joystick, seat mounted, multifunction
  • Interior light, door activated
  • FNR, twin auxiliary roller, continuous flow, differential lock, horn
  • Doors, sliding windows (left and right)
  • Air Conditioning, automatic temperature control (ATC)

OTHER

  • Rotary sensors (snubbing, kickouts, parallel)
  • Couplers, vertical (SSL), horizontal (HPL-V, HPL-A)

POWER TRAIN

  • Power train mode, utility (includes keypad)
  • Hydrostatic transmission, 3-speed, “shift on the go”, secondary steering and boosted brakes
  • Fuel pump, priming (Higher regulated countries), electric (Dependent on regional regulations.)
  • Creep and throttle lock function
  • Cold start – jacket water heater, bypass valve
  • Antifreeze, extended life coolant, –50° C (–58° F)
