910 Compact Wheel Loader

Maximum Gross Power

110 HP

Operating Weight

18102 lb

Bucket Capacities

1.3-3.5 m3 (1.7-4.6 yd3)

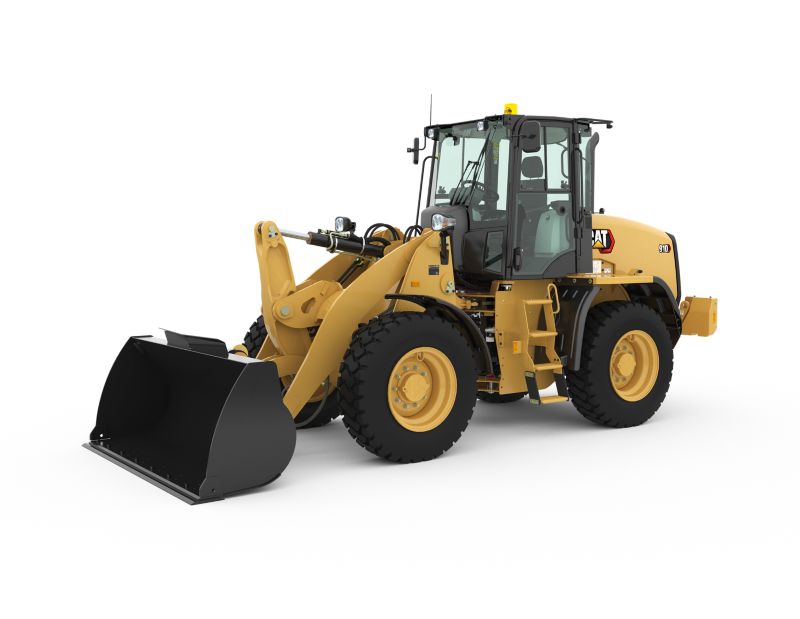

The Cat® 910 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.



  • The New Cat® Wheel Loaders are Here For You
  • Cat® 910, 914, 920 Compact Wheel Loaders at Work
  • Cat® 910, 914, 920 Compact Wheel Loaders Overview
  • Cat® 910, 914, 920 Compact Wheel Loaders Features and Benefits

360° View

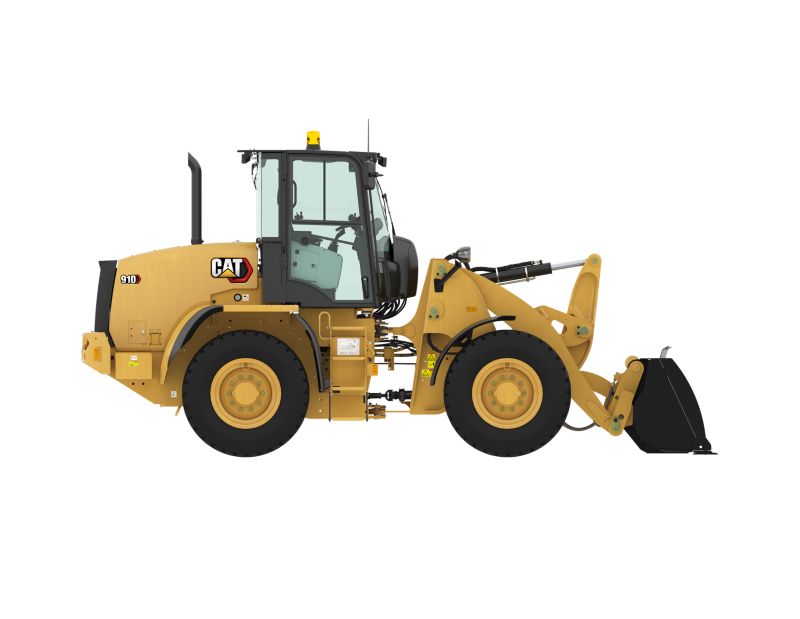

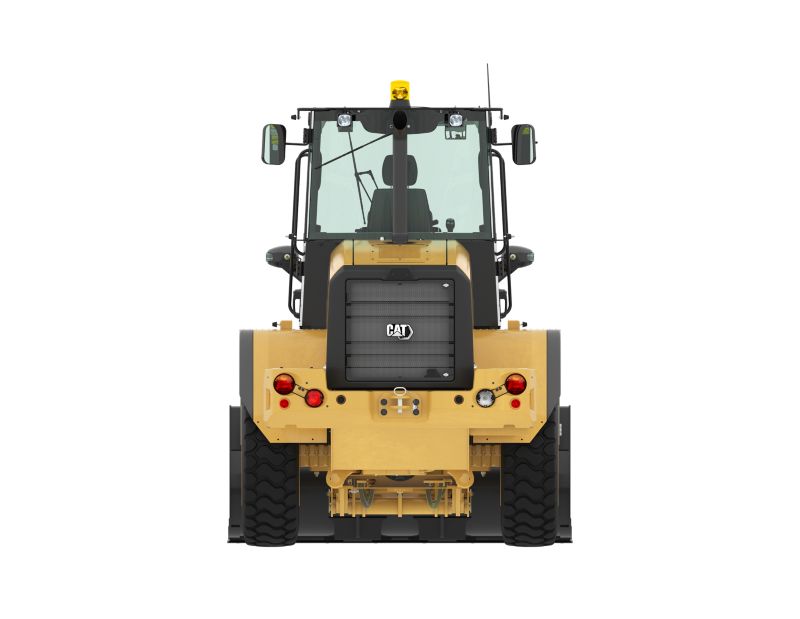

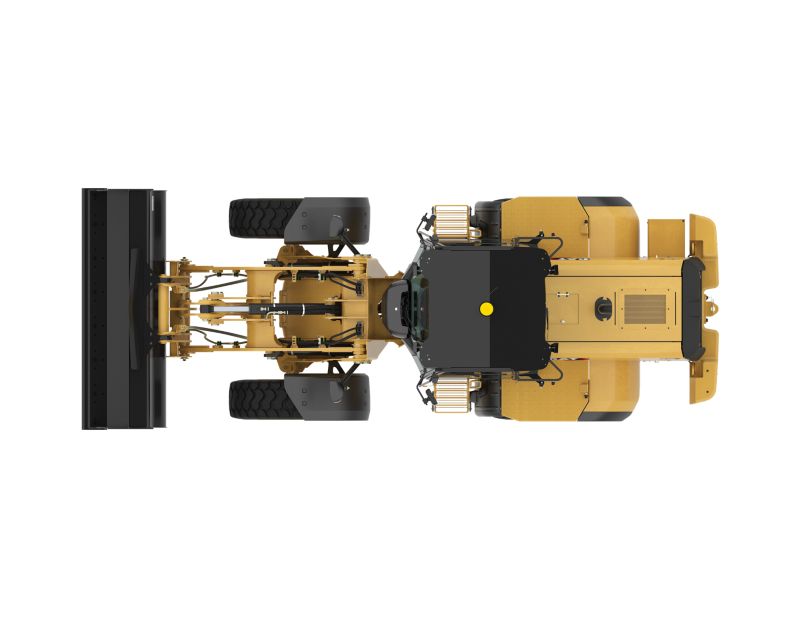

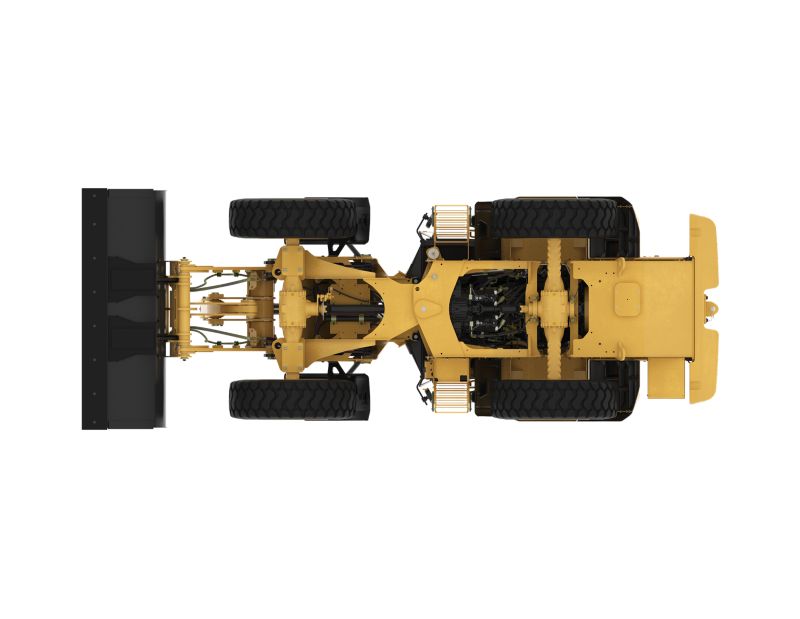

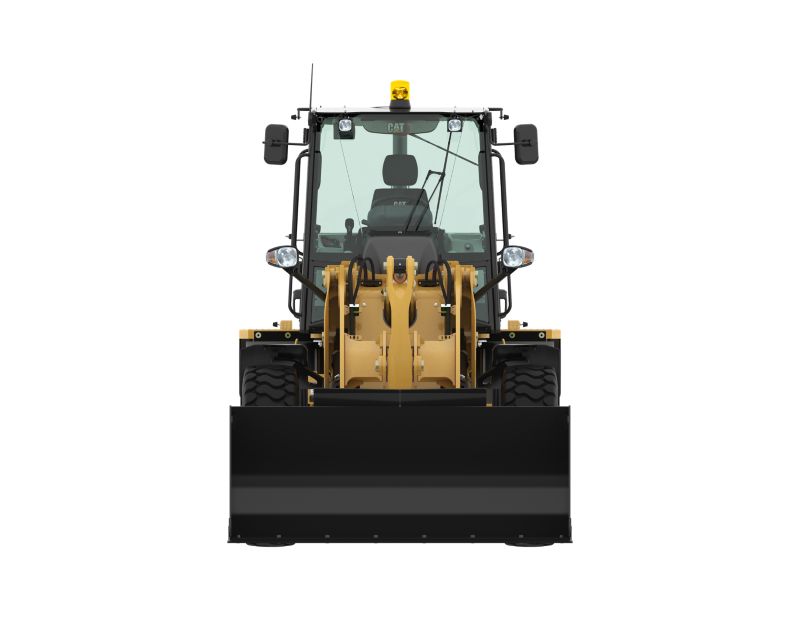

360° Exterior view. Double click on the image to zoom in on any area of the product.


360° Interior view. Double click on the image to zoom in on any area of the product.



  • Engine
    Spec Value
    Rated Net Power - Rated Engine Speed 2200 r/min
    Maximum Gross Power - Rated Engine Speed 1800 r/min
    Rated Net Power - SAE J1349 99 HP
    Maximum Gross Power - ISO 14396 (metric) 112 HP
    Rated Net Power - ISO 9249 98 HP
    Maximum Gross Torque - SAE J1995 335 ft·lbf
    Maximum Gross Torque - ISO 14396 332 ft·lbf
    Maximum Net Torque - SAE J1349 329 ft·lbf
    Maximum Net Torque - ISO 9249 327 ft·lbf
    Displacement 220 in³
    Bore 3.85 in
    Stroke 4.72 in
    Engine Model Cat C3.6
    Emissions Engine meets Tier 4 Final/Stage V emission standards.
    Note Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
    Maximum Gross Power - ISO 14396 110 HP
    Maximum Gross Power 110 HP
  • Buckets
    Spec Value
    Bucket Capacities 1.3-3.5 m3 (1.7-4.6 yd3)
    Bucket Capacities - General Purpose 1.3-1.9 m³ (1.7-2.5 yd³)
    Bucket Capacities - Light Material 2.5-3.5 m³ (3.3-4.6 yd³)
  • Weights
    Spec Value
    Operating Weight 18102 lb
  • Steering
    Spec Value
    Maximum Working Pressure - Steering Pump 2683 psi
    Steering Articulation Angle - Each Direction 40 °
    Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed 3.2 s
    Maximum Flow - Steering Pump 17 gal/min
    Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left 3.75 turns
  • Loader Hydraulic System
    Spec Value
    Hydraulic Cycle Time - Dump, at Maximum Reach 1.4 s
    Hydraulic Cycle Time - Total Cycle Time 12.5 s
    Maximum Working Pressure - Implement Pump 3408 psi
    Relief Pressure - Tilt Cylinder 4931 psi
    Hydraulic Cycle Time - Rackback 2.2 s
    Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure 3046 psi
    Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift 5.2 s
    Maximum Flow - Implement Pump 32 gal/min
    Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure 3046 psi
    Maximum Flow - Implement Pump - 4th Function, Maximum Flow 24 gal/min
    Maximum Flow - Implement Pump - 3rd Function, Maximum Flow 24 gal/min
    Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level 3.7 s
  • Service Refill Capacities
    Spec Value
    Cooling System 5.7 gal (US)
    Fuel Tank 43.6 gal (US)
    Hydraulic System - Including Tank 25.9 gal (US)
    Hydraulic Tank 14.5 gal (US)
    Transmission 0.8 gal (US)
    Note DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
    Axles - Front Center Differential 2 gal (US)
    Axles - Rear Center Differential 2 gal (US)
    Engine Crankcase 2.6 gal (US)
    Diesel Exhaust Fluid (DEF) Tank 4.8 gal (US)
  • Transmission
    Spec Value
    Note *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
    Forward and Reverse - Speed Range 3 25 mile/h
    Forward and Reverse - Speed Range 2* 12.5 mile/h
    Forward and Reverse - Speed Range 1* 6.3 mile/h
  • Tires
    Spec Value
    Note (2) In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
    Standard Size 15.5 R25 L2 XTLA
    Other Choices Include 17.5 R25 L2 XTLA; 15.5 R25 L3 XHA2; 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow
    Note (3) Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
    Note (1) Other tire choices are available. Contact your Cat dealer for details.
  • Cab
    Spec Value
    ROPS ISO 3471:2008
    FOPS ISO 3449:2005
    Note (2) The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A).
    Note (3) The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).
    Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
    Note (4) *The measurements were conducted with the cab doors and windows closed.
  • Axles
    Spec Value
    Front Fixed; Locking differential (standard)
    Rear Oscillating ±11 degrees; Locking differential (Standard)
  • Sustainability
    Spec Value
    Recyclability 95%
