3.7 m (12 ft) Snow Plow

Robust design for moving snow with maximum efficiency and power.



  • Cat® Snow Attachments at Work
  • An Attachment for Every Job - Cat® Work Tool Attachments

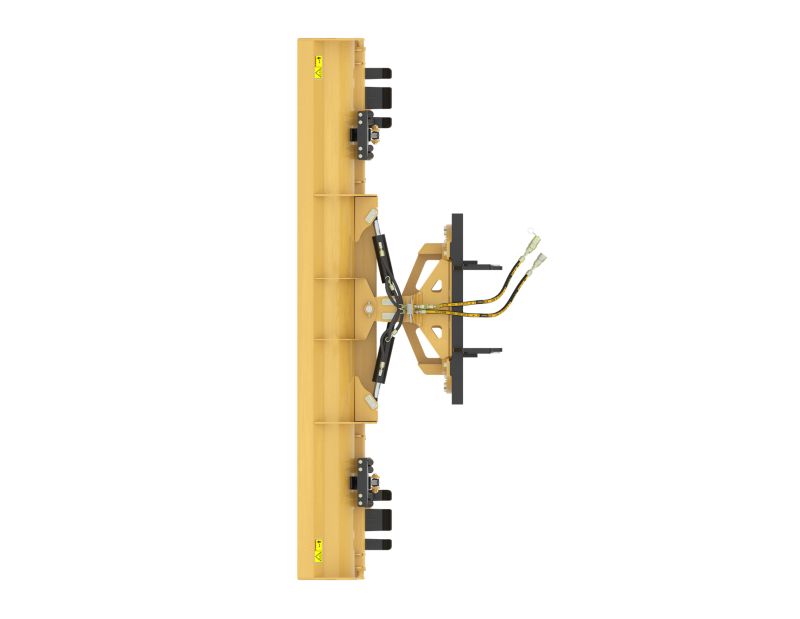

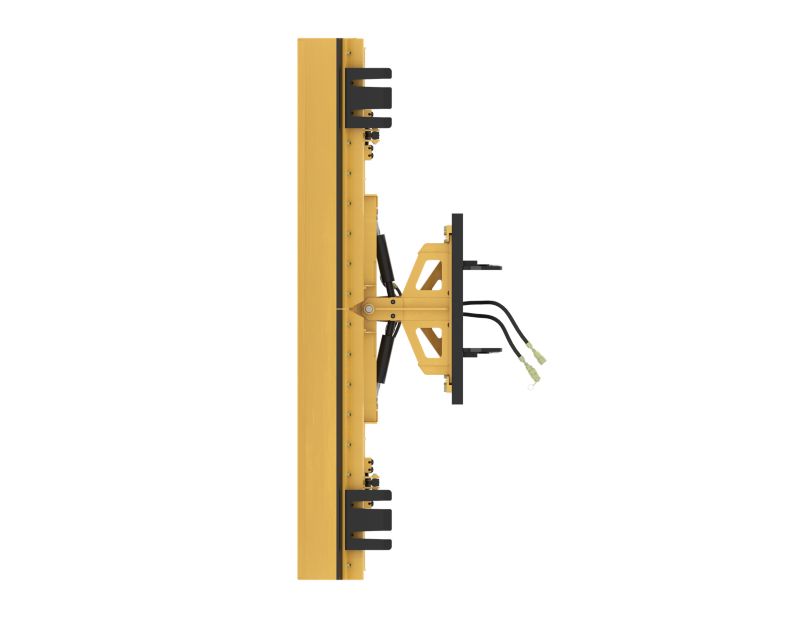

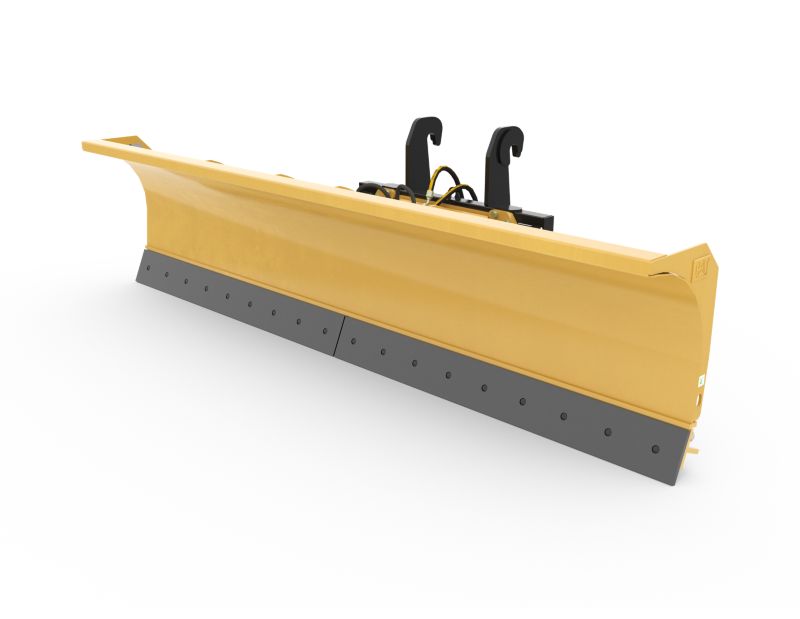

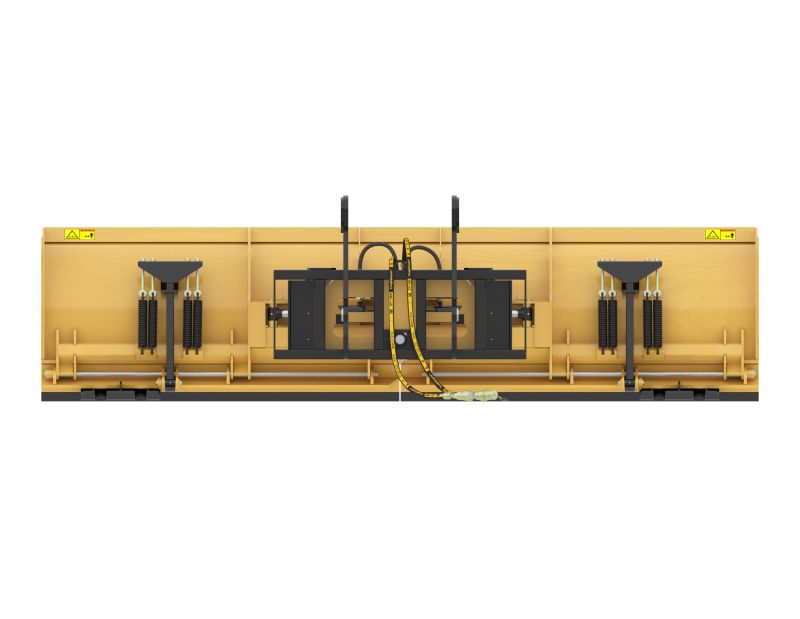

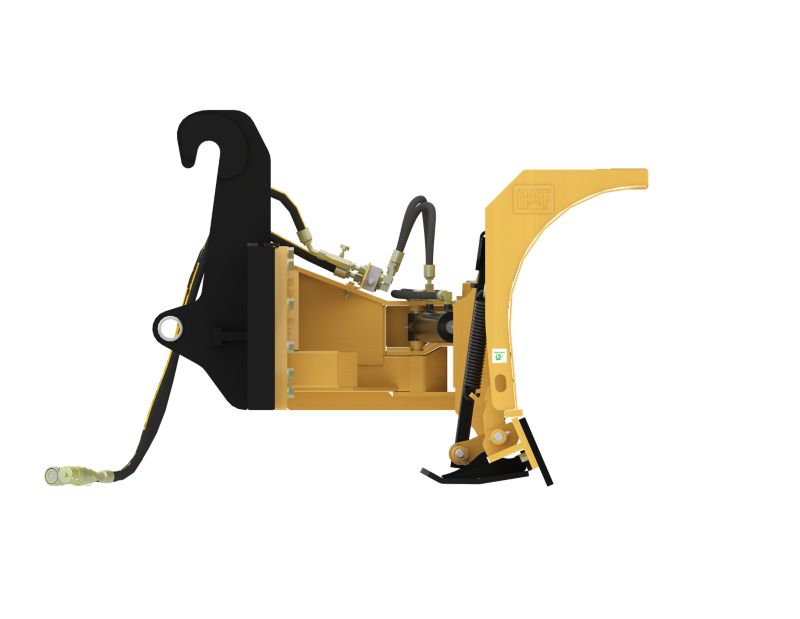

360° View


Model shown represents features on all Cat® Snow Plows except where indicated.



  • General
    Spec Value
    Width 144 in
    Angled Width 118 in
    Weight 2180.4 lb
    Overall Height 41.4 in
    Blade Height 35 in
    Length 54.5 in
    Hydraulic Angling - Left/Right of Center ±35 Degrees
    Float ±5 Degrees
    Interface Type IT Coupler
    Trip Edge Type Steel
    Trip Edge Height 7.6 in
    Trip Edge Quantity 2
