Cat

1.5 m3 (2.0 yd3) Pin On General Purpose Bucket - Performance Series With Bolt-On Teeth

General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Photos

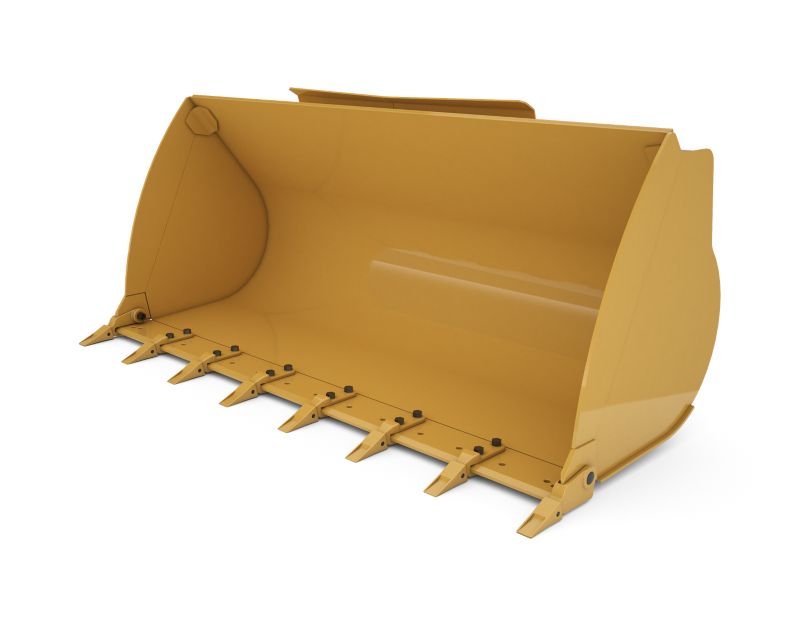

  • Studio Shot
    Studio Shot

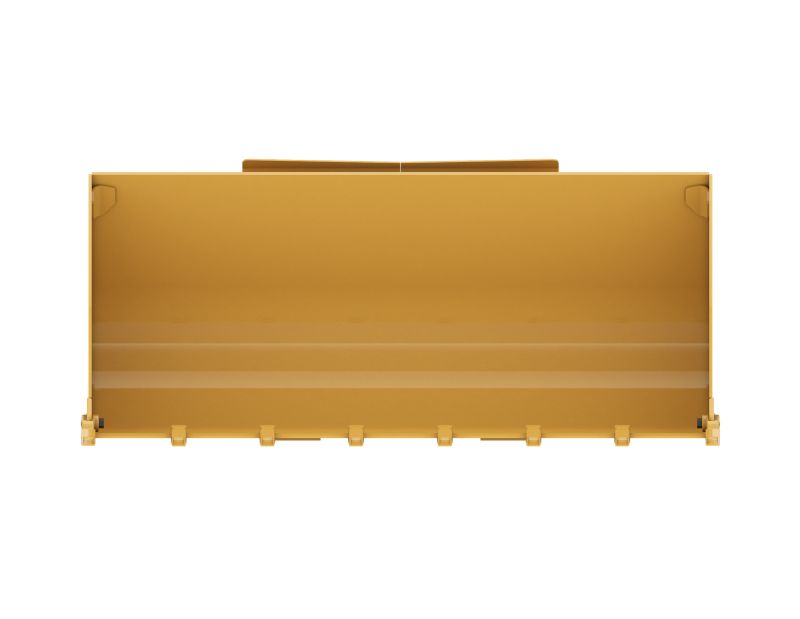

  • Front View
    Front View

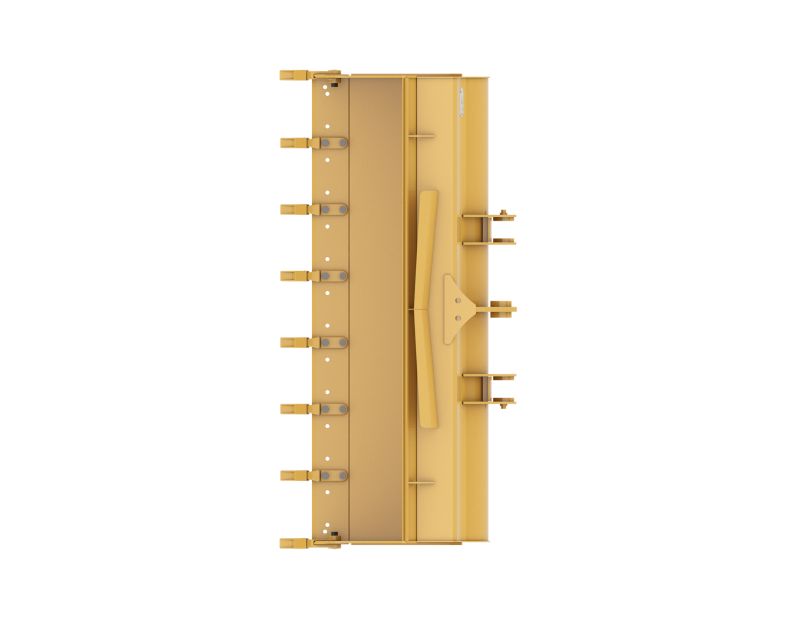

  • Top View
    Top View

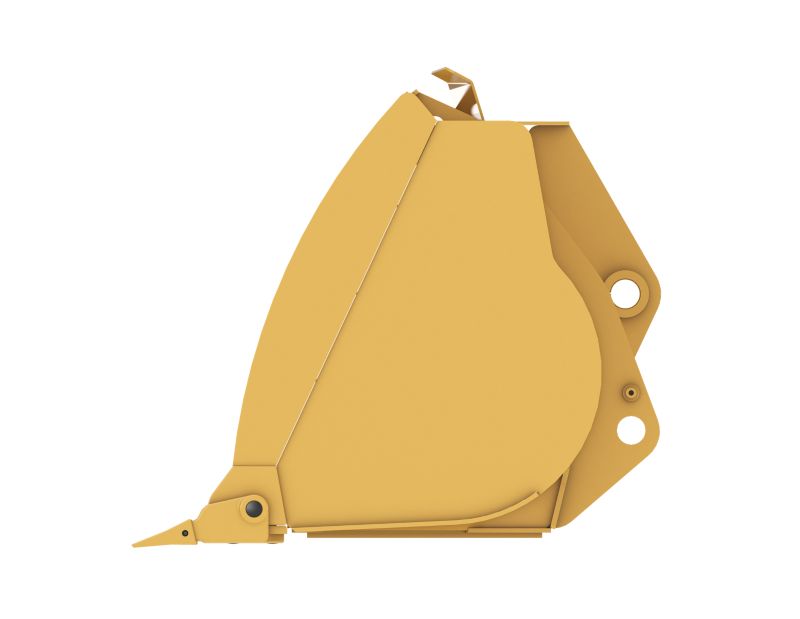

  • Left View
    Left View

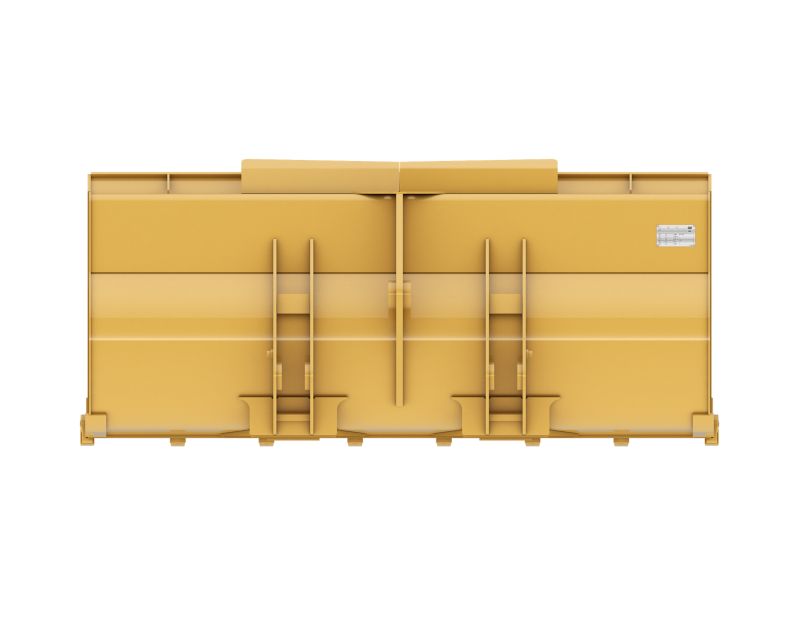

  • Rear View
    Rear View

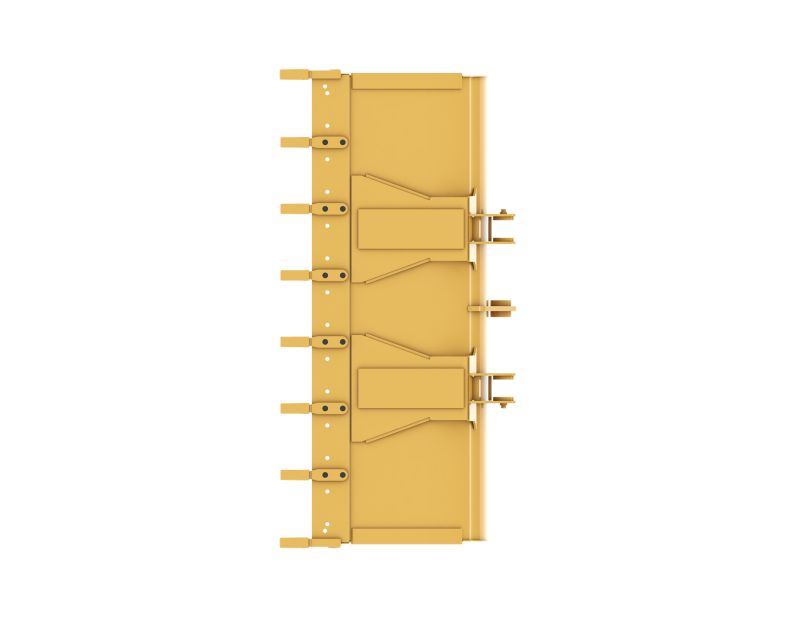

  • Bottom View
    Bottom View

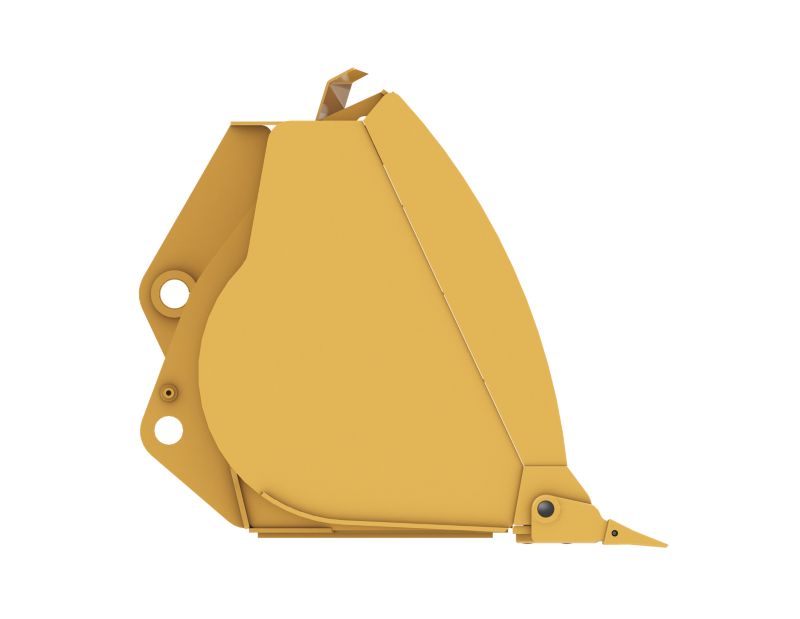

  • Right View
    Right View

Videos

  • An Attachment for Every Job - Cat® Work Tool Attachments

Features

Application

Application

Performance Series buckets improve productivity, increase material retention and reduce fuel burn with easier pile work in a wide variety of applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Application

Performance Series buckets improve productivity, increase material retention and reduce fuel burn with easier pile work in a wide variety of applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Profile Shape

Profile Shape

Performance Series profile for easy loading and maximum carry load.

Profile Shape

Performance Series profile for easy loading and maximum carry load.

Rounded Sidebars

Rounded Sidebars

Penetrating rounded sidebars help funnel material into the bucket, holding more material with less spillage.

Rounded Sidebars

Penetrating rounded sidebars help funnel material into the bucket, holding more material with less spillage.

Strike Plane

Strike Plane

Improved strike plane leads to better sight lines for faster load cycles.

Strike Plane

Improved strike plane leads to better sight lines for faster load cycles.

Open Throat Design

Open Throat Design

Open throat design improves heap size and fill factor.

Open Throat Design

Open throat design improves heap size and fill factor.

Specifications

  • General
    Spec Value
    Width 95.6 in
    Weight 1270.1 lb
    Height 43 in
    Length 47.4 in
    Capacity 2 yd³
    Base Edge Thickness 0.7 in
    Interface Type Pin On
