New Equipment

Caterpillar

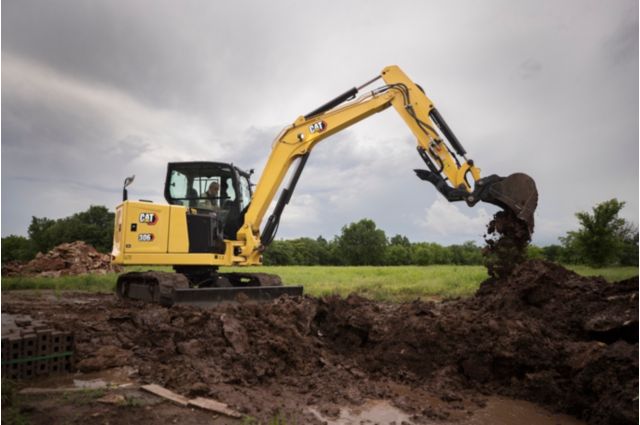

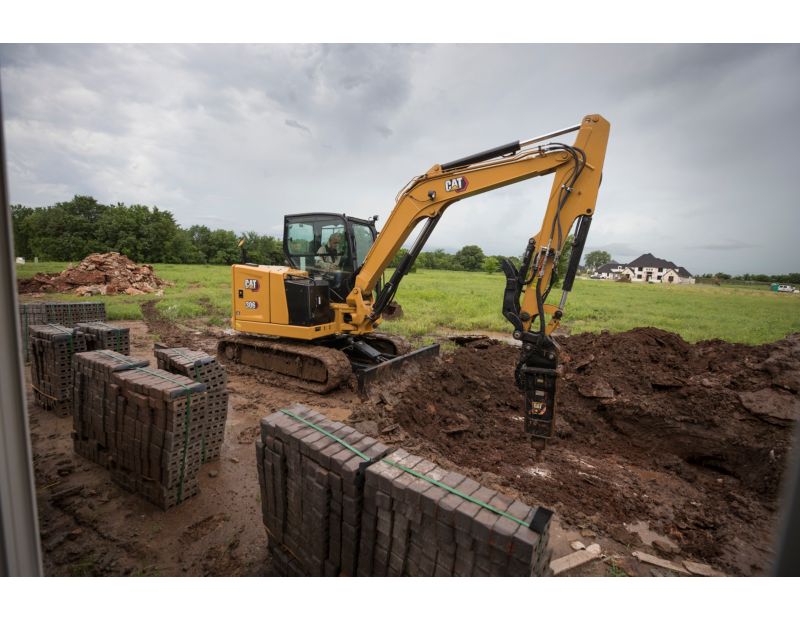

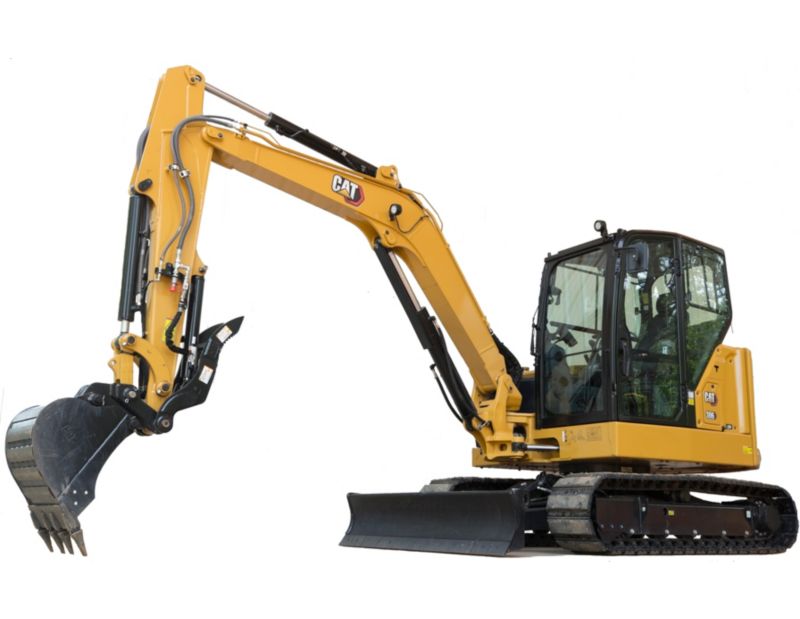

306 CR Mini Hydraulic Excavator

Net Power

55.9 HP

Operating Weight

15766 lb

Dig Depth

162 in

Overview

The Cat® 306 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Photos

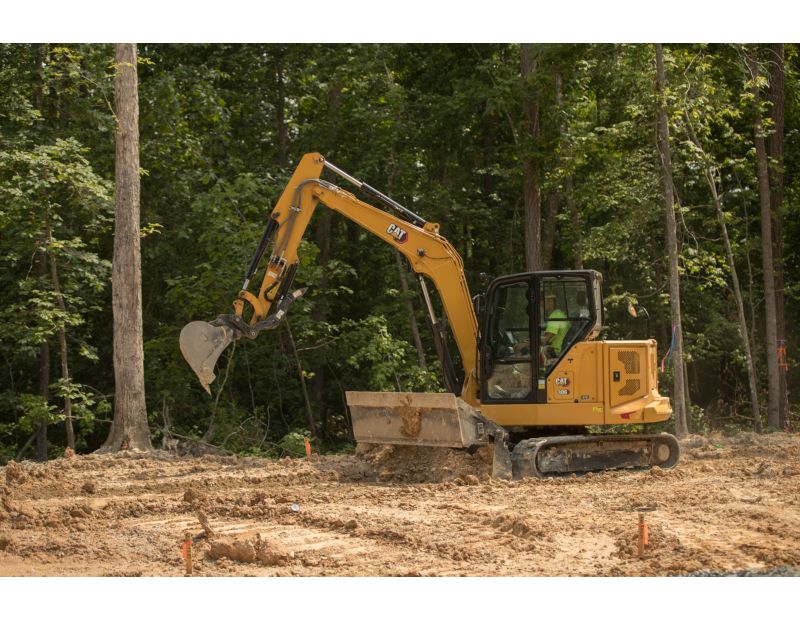

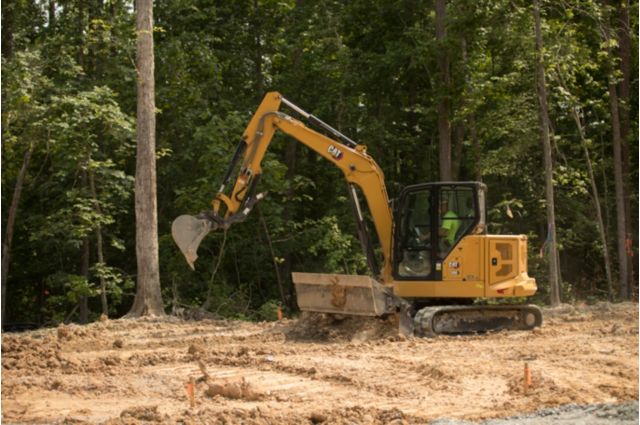

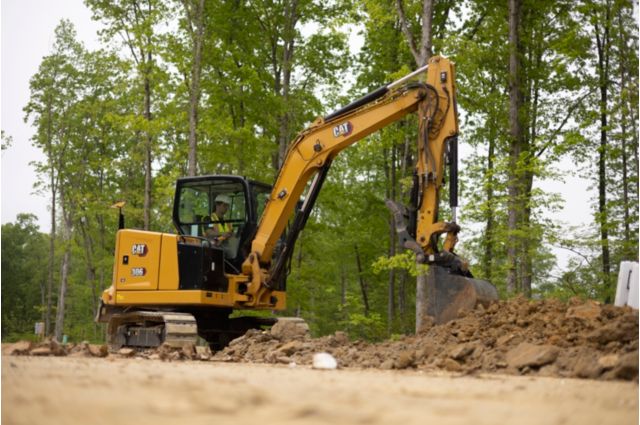

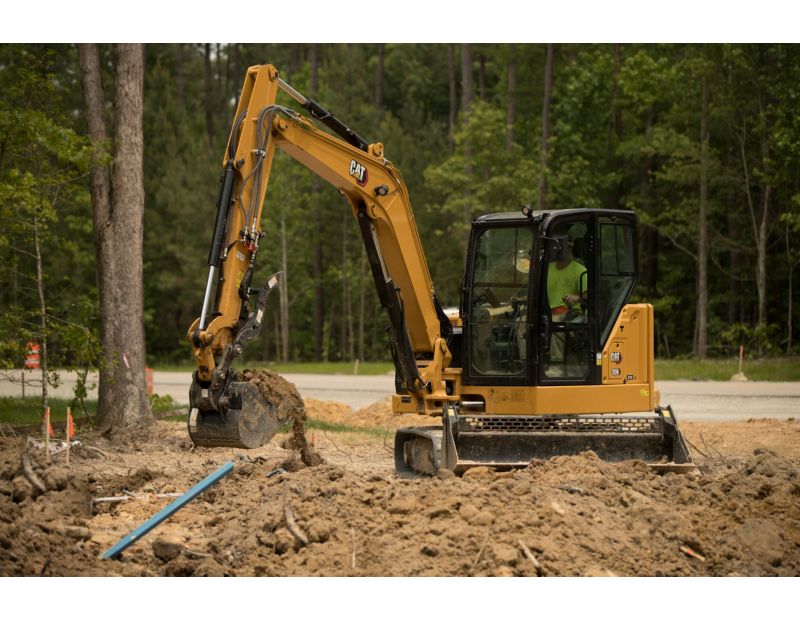

  • 306 CR Mini Hydraulic Excavator
    306 CR Mini Hydraulic Excavator
  • 306 CR Mini Hydraulic Excavator
    306 CR Mini Hydraulic Excavator
  • 306 CR Mini Hydraulic Excavator
    306 CR Mini Hydraulic Excavator
  • 306 CR Mini Hydraulic Excavator
    306 CR Mini Hydraulic Excavator

Showroom

Virtual Product Tour

Documents

Features

ALL DAY COMFORT

ALL DAY COMFORT

  • Your choice of a canopy (availability dependent on region) or a sealed and pressurized cab equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

ALL DAY COMFORT

  • Your choice of a canopy (availability dependent on region) or a sealed and pressurized cab equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.
EASY TO OPERATE

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.
STICK STEER TRAVEL MODE

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
BIG PERFORMANCE IN A MINI DESIGN

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently.

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently.
SAFETY ON THE JOB SITE

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. An optional back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we've built into the machine.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. An optional back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we've built into the machine.
SIMPLE SERVICE FOR LESS DOWNTIME

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.
LOWER OPERATING COSTS

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.
CHOICES

CHOICES

  • Configure the machine to meet your specific application needs with a straight blade, angle blade, or Extra Tool Carrier (XTC).

CHOICES

  • Configure the machine to meet your specific application needs with a straight blade, angle blade, or Extra Tool Carrier (XTC).

UNMATCHED DEALER SUPPORT

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.
SUSTAINABILITY

SUSTAINABILITY

  • The Cat® C2.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

SUSTAINABILITY

  • The Cat® C2.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Specifications

  • Engine
    Spec Value
    Net Power 55.9 HP
    Gross Power - ISO 14396 57.9 HP
    Displacement 148 in³
    Bore 3.4 in
    Stroke 4 in
    Engine Model Cat C2.4 Turbo
    Net Power @ 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269 55.9 HP
  • Weights
    Spec Value
    Operating Weight 15766 lb
    Minimum Operating Weight with Canopy* 14134 lb
    Maximum Operating Weight with Canopy** 15633 lb
    Note (2) **Maximum Weight is based on steel tracks with pads, extra counterweight, operator, full fuel tank, long stick, fixed blade and no bucket.
    Maximum Operating Weight with Cab** 15766 lb
    Minimum Operating Weight with Cab* 14266 lb
    Note (1) *Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, fixed blade and no bucket.
  • Weight Increase from Minimum Configuration
    Spec Value
    Counterweight 551 lb
    Long Stick 97 lb
    Steel Tracks with Pads 827 lb
    Angle Blade 225 lb
    XTC Carriage (no tool) 141 lb
  • Travel System
    Spec Value
    Ground Pressure - Minimum Weight 5.1 psi
    Ground Pressure - Maximum Weight 5.7 psi
    Gradeability - Maximum 30 degrees
    Maximum Traction Force - High Speed 6969 lbf
    Maximum Traction Force - Low Speed 12589 lbf
    Travel Speed - High 3.1 mile/h
    Travel Speed - Low 1.7 mile/h
  • Service Refill Capacities
    Spec Value
    Cooling System 2.6 gal (US)
    Hydraulic System 27.5 gal (US)
    Hydraulic Tank 14 gal (US)
    Engine Oil 2.1 gal (US)
    Fuel Tank 34.3 gal (US)
  • Hydraulic System
    Spec Value
    Operating Pressure - Travel 3553 psi
    Auxiliary Circuit - Primary - Flow 24 gal/min
    Digging Force - Bucket 11578 lbf
    Auxiliary Circuit - Primary - Pressure 3553 psi
    Type Load Sensing Hydraulics with Variable Displacement Piston Pump
    Auxiliary Circuit - Secondary - Flow 9 gal/min
    Operating Pressure - Equipment 3553 psi
    Auxiliary Circuit - Secondary - Pressure 3553 psi
    Digging Force - Stick - Standard 6632 lbf
    Operating Pressure - Swing 3263 psi
    Digging Force - Stick - Long 5957 lbf
    Pump Flow at 2,400 rpm 40 gal/min
  • Swing System
    Spec Value
    Boom Swing - Right 65 degrees
    Boom Swing - Left 60 degrees
    Machine Swing Speed 11 r/min
  • Blade
    Spec Value
    Straight Blade Width 78 in
    Angle Blade Width 78 in
    Straight Blade Height 15.4 in
    Angle Blade Height 15.7 in
  • Certification - Cab
    Spec Value
    Top Guard ISO 10262:1998 (Level II)
    Roll Over Protective Structure (ROPS) ISO 12117-2:2008
    Tip Over Protective Structure (TOPS) ISO 12117:1997
  • Sound
    Spec Value
    Operator Sound Pressure (ISO 6396:2008) 72 dB(A)
    Average Exterior Sound Pressure (ISO 6395:2008) 99 dB(A)
    Note European Union Directive “2000/14/EC”
  • Dimensions - Standard Stick
    Spec Value
    Track Belt/Shoe Width 16 in
    Maximum Reach 248 in
    Stick Length 62 in
    Vertical Wall 107 in
    Swing Bearing - Height 27 in
    Maximum Reach - Ground Level 241 in
    Maximum Blade Height 16 in
    Ground Clearance 12 in
    Boom In Reach 98 in
    Boom Swing - Right 36 in
    Transport Height 69 in
    Tail Swing with Counterweight 58 in
    Cab Height 100 in
    Width over Upper House 77 in
    Maximum Dump Clearance 170 in
    Tail Swing without Counterweight 53 in
    Boom Swing - Left 29 in
    O/A Undercarriage Length 102 in
    Maximum Dig Height 230 in
    Maximum Blade Depth 24 in
    O/A Track Width 78 in
    Dig Depth 146 in
    O/A Shipping Length 235 in
  • Dimensions - Long Stick
    Spec Value
    Dig Depth 162 in
    Maximum Blade Height 16 in
    O/A Track Width 78 in
    Track Belt/Shoe Width 16 in
    Tail Swing with Counterweight 58 in
    Vertical Wall 125 in
    Boom In Reach 117 in
    Maximum Blade Depth 24 in
    Maximum Dig Height 241 in
    Transport Height 95 in
    Stick Length 78 in
    Ground Clearance 12 in
    Swing Bearing - Height 27 in
    Width over Upper House 77 in
    O/A Undercarriage Length 102 in
    O/A Shipping Length 234 in
    Cab Height 100 in
    Maximum Reach 263 in
    Boom Swing - Left 29 in
    Tail Swing without Counterweight 53 in
    Boom Swing - Right 36 in
    Maximum Dump Clearance 182 in
    Maximum Reach - Ground Level 257 in
  • Air Conditioning System
    Spec Value
    Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1287). The system contains 0.9 kg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes.
  • Sustainability
    Spec Value
    Recyclability 96%

Standard Equipment

OPERATOR ENVIRONMENT – CAB AND CANOPY

  • Top Guard ISO 10262 1998 Level I
  • ROPS ISO 12117-2:2008
  • Stick Steer Mode
  • Travel Cruise Control
  • Control Pattern Changer
  • Adjustable Wrist Rests
  • Molded Footrests
  • Removable, Washable Floor Mat
  • Travel Pedals and Hand Levers
  • Cat Key with Passcode Option
  • Hydraulic Lockout Controls
  • High Back, Suspension Seat
  • Retractable Seat Belt (75 mm/3 in)
  • Coat Hook
  • Cup Holder
  • Literature Holder
  • Mounting Bosses for Top and Front Guards
  • Signaling/Warning Horn
  • Cab and (left side) Boom Work Lights
  • Utility Space for Mobile Phone
  • Next Generation Color LCD Monitor (IP66)
    – Fuel Level and Coolant Temperature Gauges
    – Maintenance and Machine Monitoring
    – Performance and Machine Adjustments
    – Numeric Security Code
    – Multiple Languages
    – Camera Ready (IP68 & IP69K)
    – Hour Meter with Wake Up Switch

OPERATOR ENVIRONMENT – CAB ONLY

  • Operator Sound Pressure 72 dB(A) ISO 6396:2008
  • HVAC with Automatic Temperature Control
  • Integrated Lower Front Window
  • Assisted Front Window Overhead Storage
  • Rear Window Emergency Exit
  • LED Interior Light
  • 12V Power Socket
  • Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only)
  • Skylight
  • Jog dial interface

UNDERCARRIAGE

  • Greased and Lubricated Track
  • Hydraulic Track Adjusters
  • Tie Down Eyes on Track Frame
  • Dozer Straight Blade
  • Dozer Float
  • Bolt-on, Reversible Wear Edge
  • Rubber Tracks

BOOM, STICK AND LINKAGES

  • One Piece Boom (3055 mm/120.3 in)
  • Standard Stick (1580 mm/62.2 in)

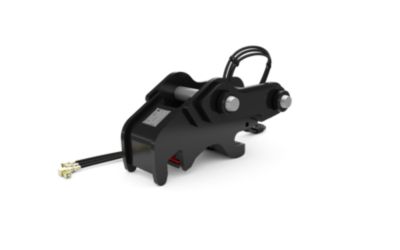

  • Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler for Cat Tools
  • Thumb Ready

ELECTRICAL

  • 12 Volt Electrical System
  • 90 Ampere Alternator
  • 650 CCA Maintenance Free Battery
  • Battery Disconnect
  • Circuit Breaker
  • Ignition Key Stop Switch
  • Signaling/Warning Horn
  • Product Link™ Basic (regulations apply)
  • Travel Alarm

OTHER

  • Locks on External Enclosure Doors
  • Lockable Fuel Cap
  • Beacon Socket
  • Rear Reflectors

Optional Equipment

OPERATOR ENVIRONMENT – CAB AND CANOPY

  • Rain Visor
  • Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option)
    – Touch Screen
    – Site Reference System
    – High Definition Camera Capable (IP68 & IP69K)
    – Numeric Security Code

OPERATOR ENVIRONMENT – CAB ONLY

  • Cab Heat Only
  • Air Suspension Heated Seat

UNDERCARRIAGE

  • Angle Blade
  • Extra Tool Carrier (XTC)
  • Steel Tracks (450 mm/17.7 in wide)
  • Steel Track with Rubber Pads

BOOM, STICK AND LINKAGES

  • Long Stick (190 mm/78 in)

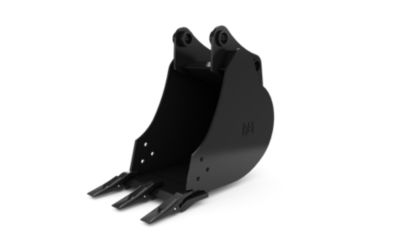

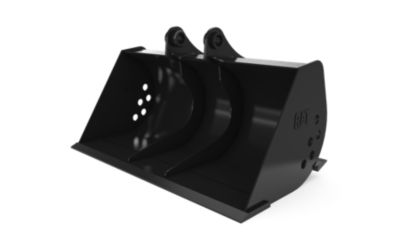

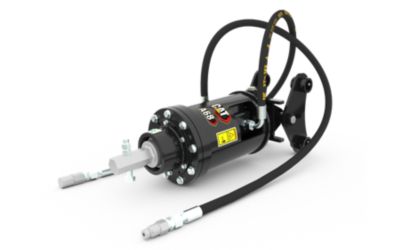

  • Attachments including Buckets, Augers and Hammers
  • 2nd Auxiliary Hydraulic Lines
  • Boom Lowering Check Valve
  • Stick Lowering Check Valve
  • Certified Lifting Eye

ELECTRICAL

  • Product Link Elite (regulations apply)
  • Camera
  • Rotating Beacon

GUARDING

  • Heavy Duty Front Guard ISO 10262 1998 Level II
  • Mesh Front Guard ISO 10262 1998 Level I
  • Overhead Cab Guard ISO 10262 1998 Level II
  • Polycarbonate Front Window EN356 P5A (Cab Only)
  • Track Guards

OTHER

  • Additional Counterweight
  • Water Jacket Heater
  • Refueling Pump

Related Products

Mobile Scrap & Demolition Shears

Studio Shot S308
