Cat

HMF110 Flail Mower

Mowers are ideal for efficient cutting and mulching of vegetation and overgrowth.

Photos

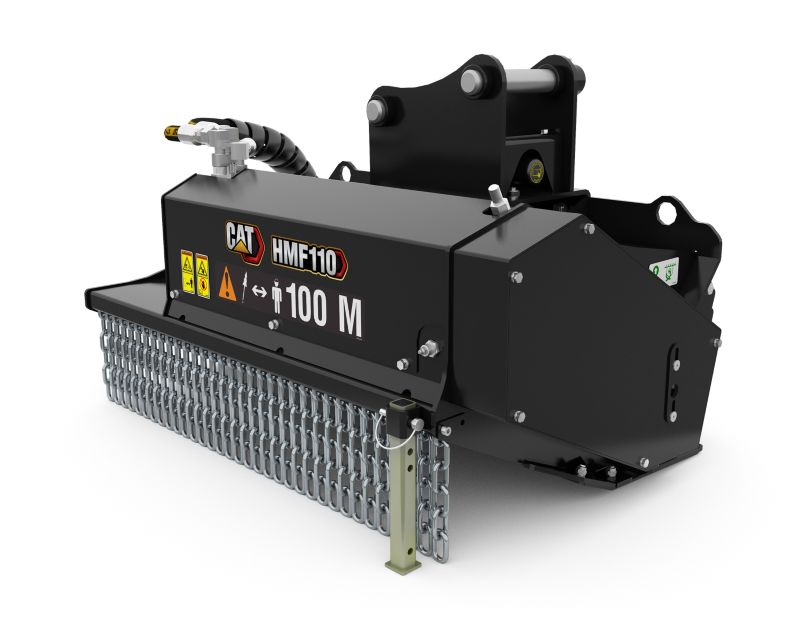

  • Studio Shot
    Studio Shot

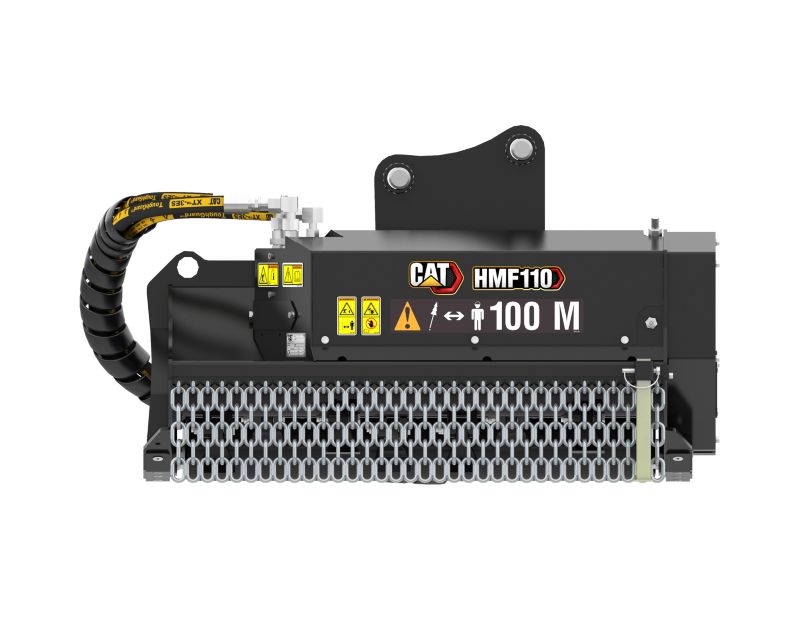

  • Front View
    Front View

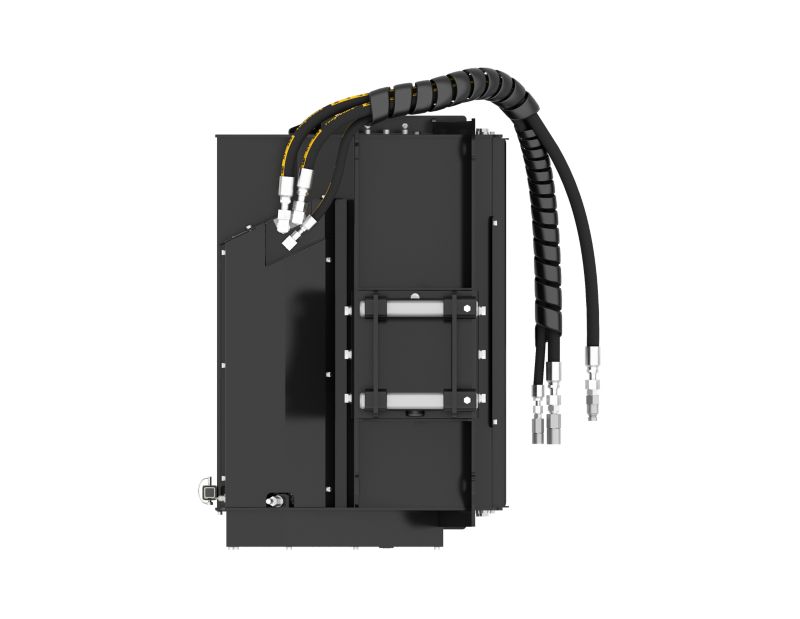

  • Top View
    Top View

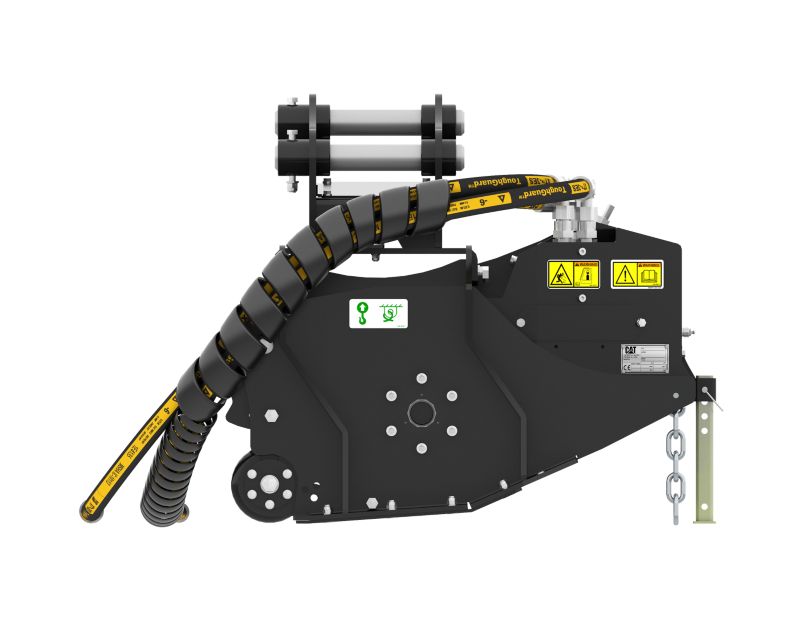

  • Left View
    Left View

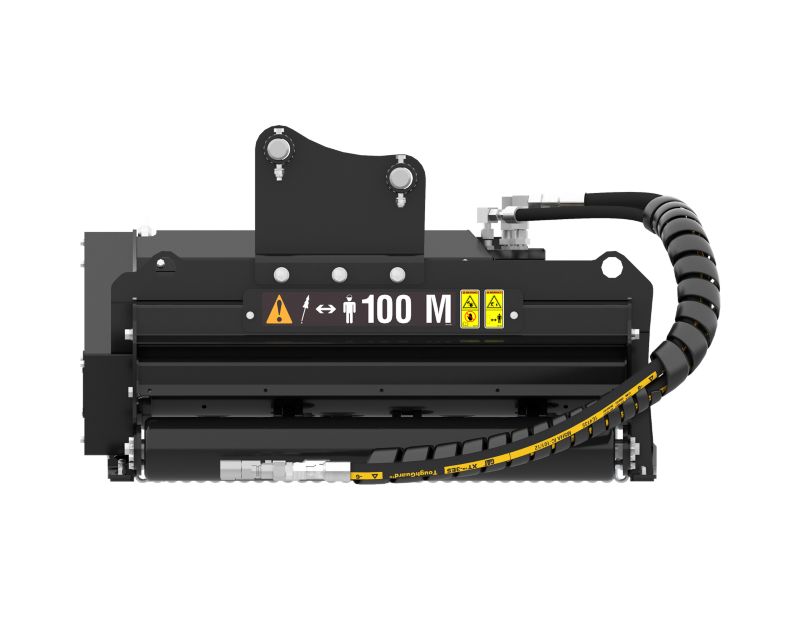

  • Rear View
    Rear View

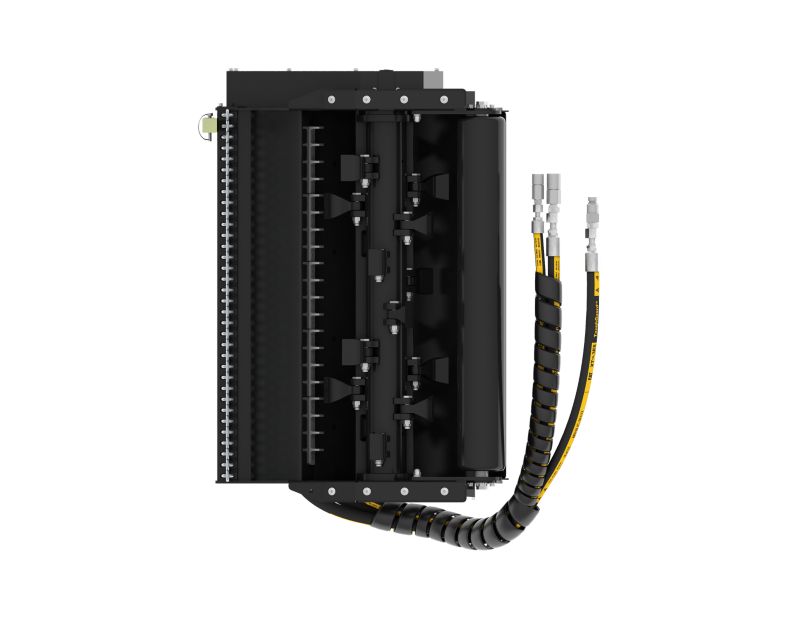

  • Bottom View
    Bottom View

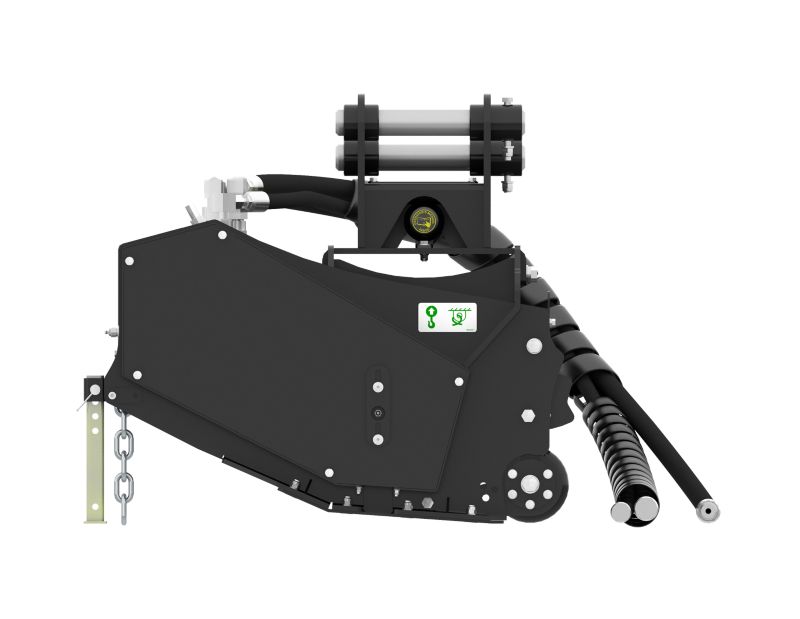

  • Right View
    Right View

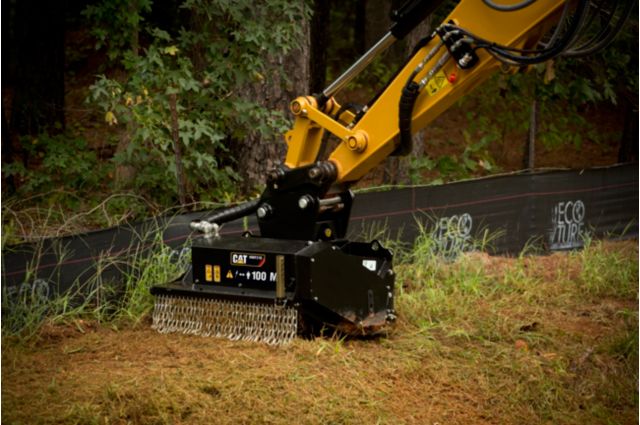

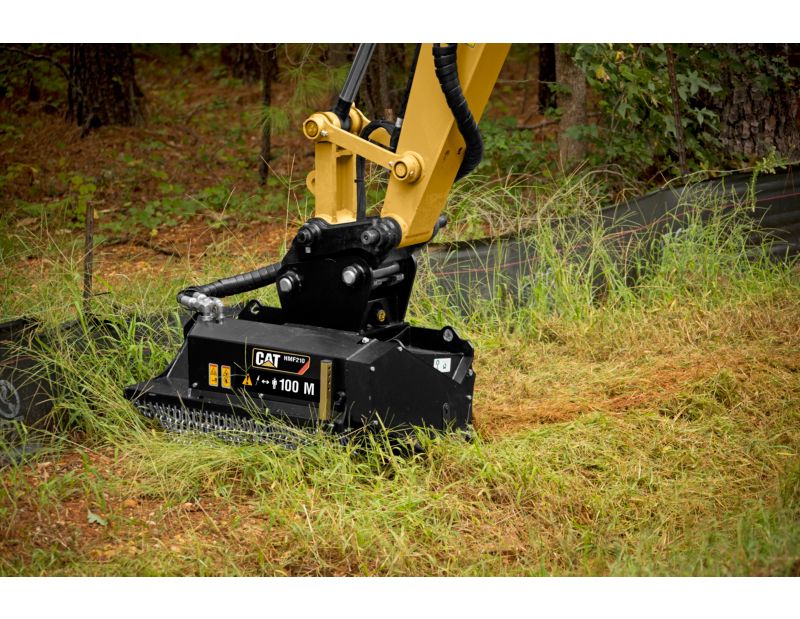

  • Cat® HMF210 Flail Mower at Work
    Cat® HMF210 Flail Mower at Work

Videos

  • Cat® Flail Mower at Work
  • Cat® Flail Mower Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Flail Mowers except where indicated.

Documents

Features

Application

Application

Flail Mowers are used for high performance cutting of vegetation, saplings and undergrowth from overgrown agricultural areas, retention ponds and forested terrain.

Application

Flail Mowers are used for high performance cutting of vegetation, saplings and undergrowth from overgrown agricultural areas, retention ponds and forested terrain.
Piston Motor

Piston Motor

Piston motor is used to improve operational efficiency of tool and flow is matched to ideal machine condition.

Piston Motor

Piston motor is used to improve operational efficiency of tool and flow is matched to ideal machine condition.

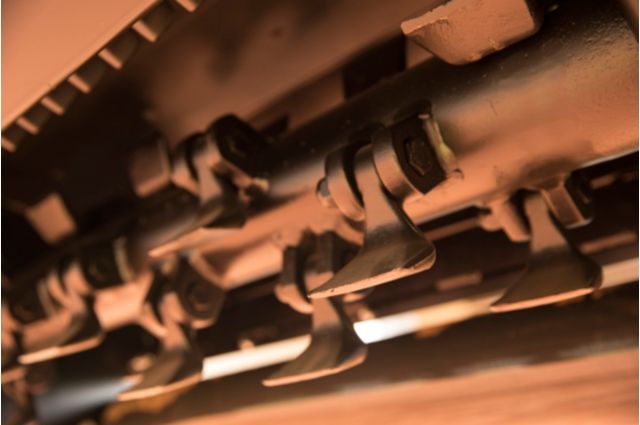

Balanced Drum

Balanced Drum

Mulching drum is weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.

Balanced Drum

Mulching drum is weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.

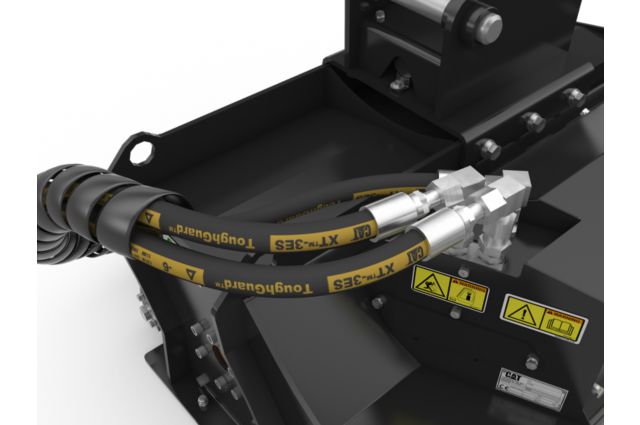

Cat® XTC Hydraulic Hoses

Cat® XTC Hydraulic Hoses

Quick disconnect hydraulic lines allow for easy tool swapping. Case drain line improves motor life and protects internal motor components.

Cat® XTC Hydraulic Hoses

Quick disconnect hydraulic lines allow for easy tool swapping. Case drain line improves motor life and protects internal motor components.

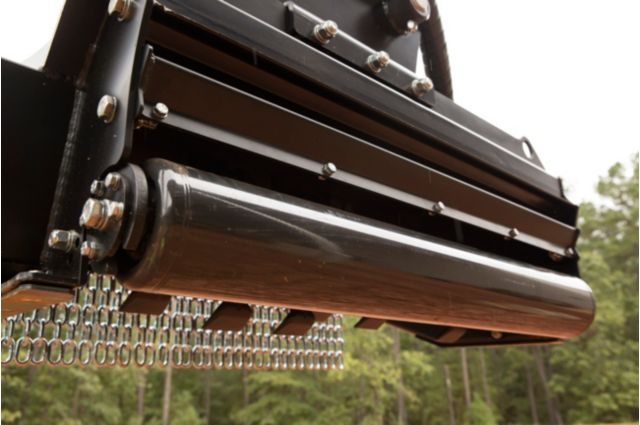

Integrated Rear Roller

Integrated Rear Roller

Integrated real roller keeps swinging teeth out of the dirt as it rolls flat with the ground, preventing excess wear and extending tooth life.

Integrated Rear Roller

Integrated real roller keeps swinging teeth out of the dirt as it rolls flat with the ground, preventing excess wear and extending tooth life.

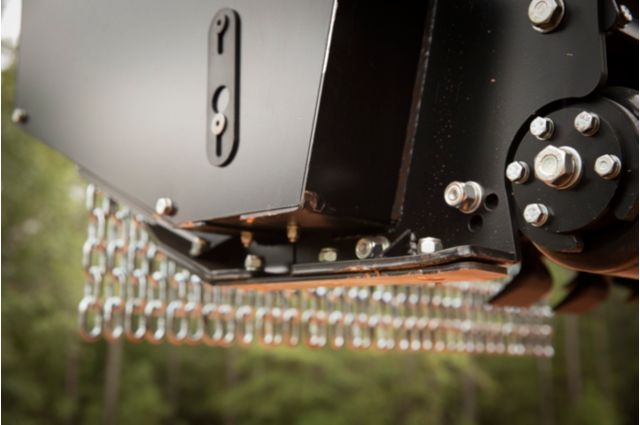

Bolt-On Replaceable Skid Shoes

Bolt-On Replaceable Skid Shoes

Bolt-On replaceable skid shoes are reinforced and built to last, yet easily replaceable as needed.

Bolt-On Replaceable Skid Shoes

Bolt-On replaceable skid shoes are reinforced and built to last, yet easily replaceable as needed.

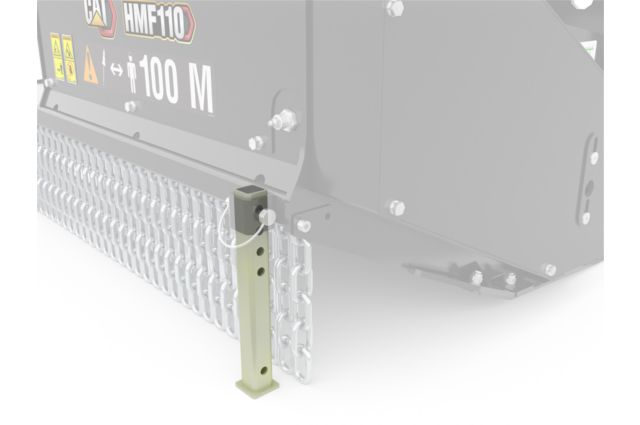

Integrated Stand

Integrated Stand

Integrated stand eases access for attachment and removal. Allows mower to sit flat for storage.

Integrated Stand

Integrated stand eases access for attachment and removal. Allows mower to sit flat for storage.
Front Chain Guard

Front Chain Guard

Front chain guard limits material thrown from tool and helps protect swinging teeth and drum.

Front Chain Guard

Front chain guard limits material thrown from tool and helps protect swinging teeth and drum.

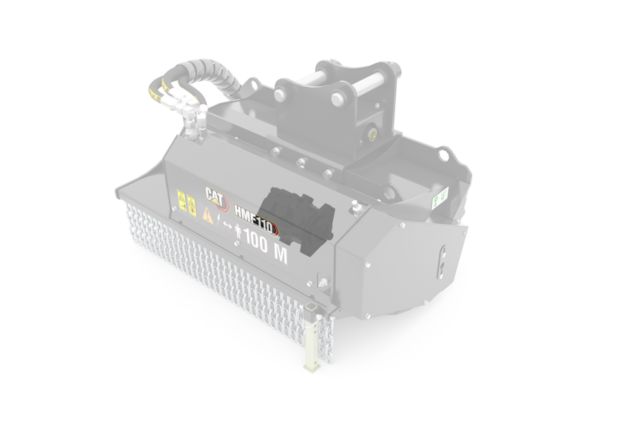

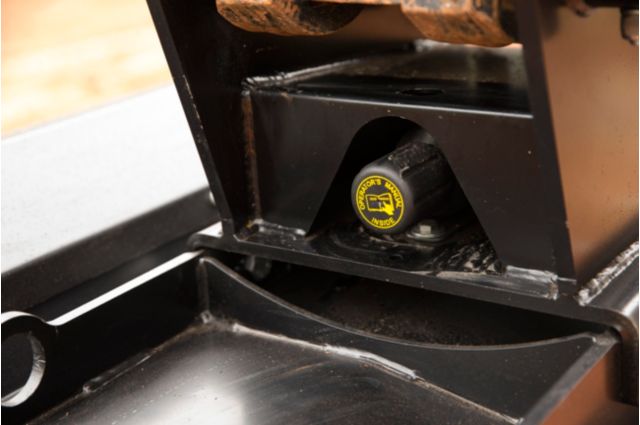

Tool Mounted Operation and Maintenance Manual Holder

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Specifications

  • General
    Spec Value
    Working Width 39.4 in
    Required Hydraulics Standard Flow
    Overall Width 46.6 in
    Optimal Hydraulic Flow 50-80 L/min (13-21 gpm)
    Maximum Cutting Diameter 50-75 mm (2-3 in)
    Swinging Teeth per Drum 16
    Length 33.1 in
    Overall Height 29.2 in
    Weight 831.1 lb
    Drive Method V-Belt Drive
    Motor Axial Piston
    Optimal Hydraulic Pressure 150-250 bar (2175-3626 psi)
    Drum Speed 2540-2620 RPM
