Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.
Cat

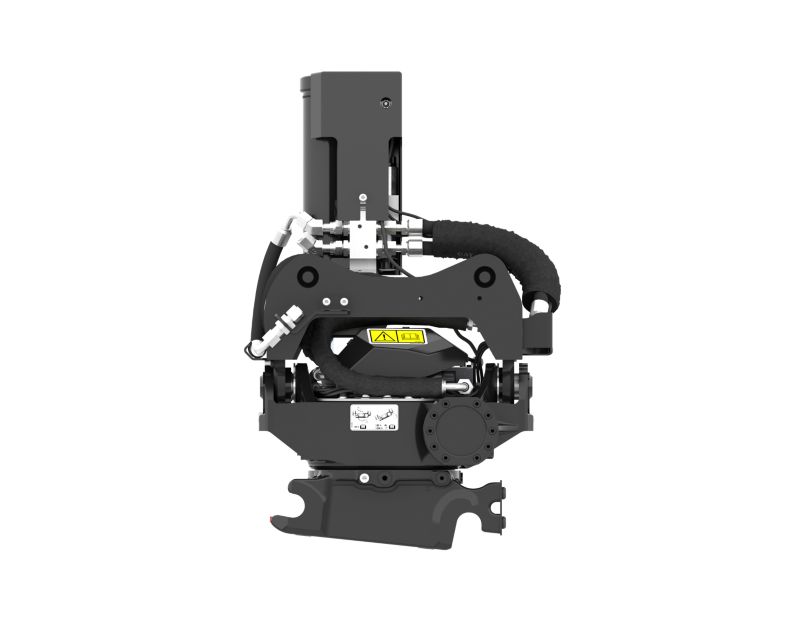

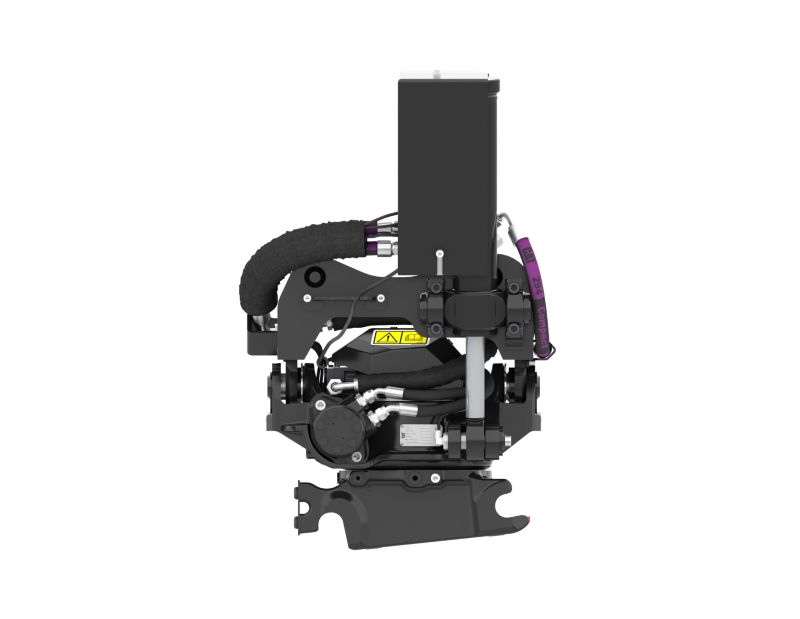

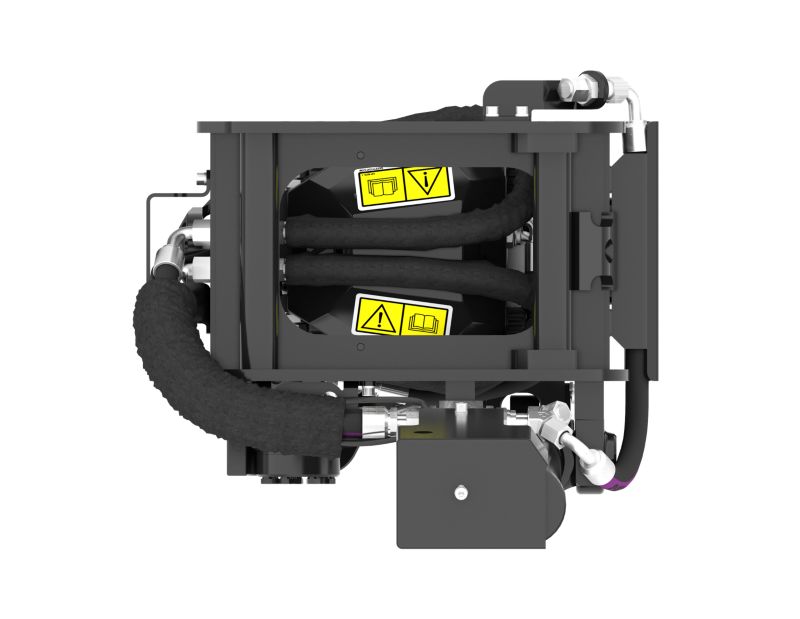

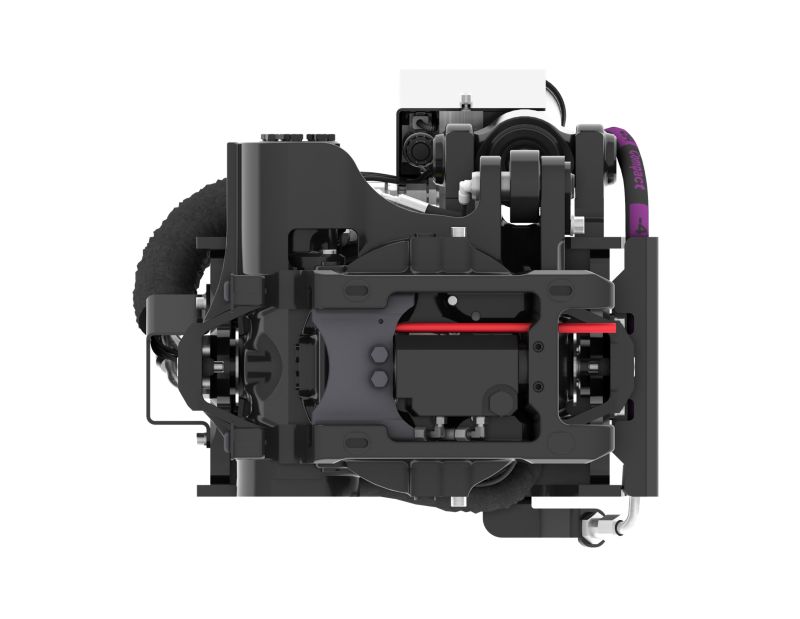

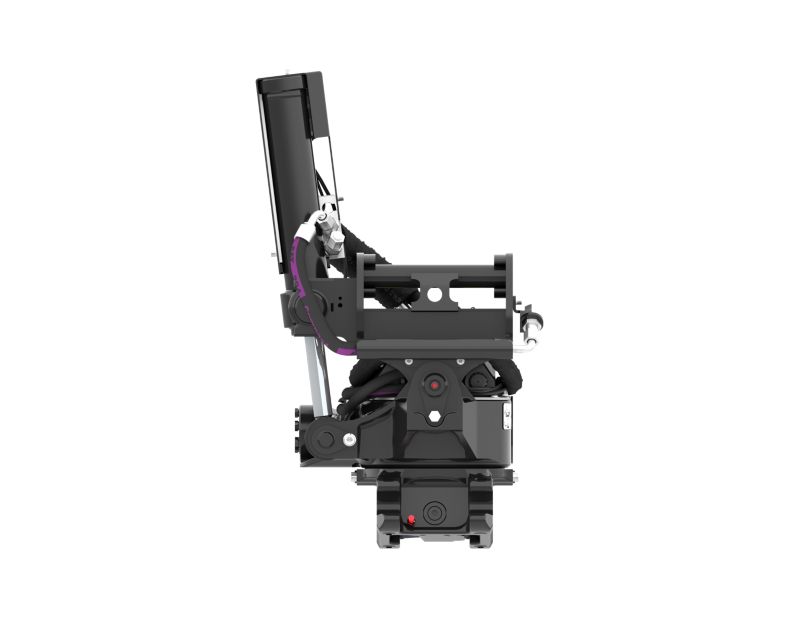

TRS6 Tiltrotator
Photos
Videos
360° View
Exterior

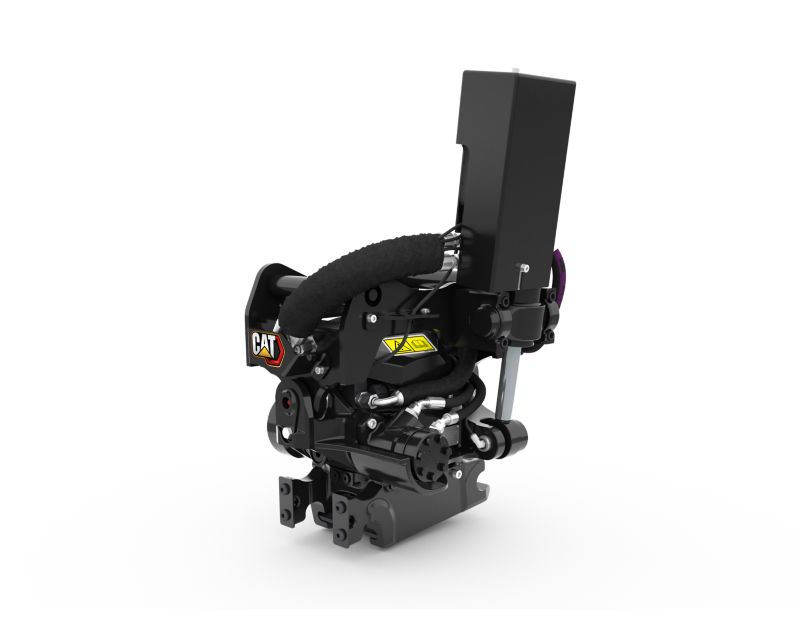

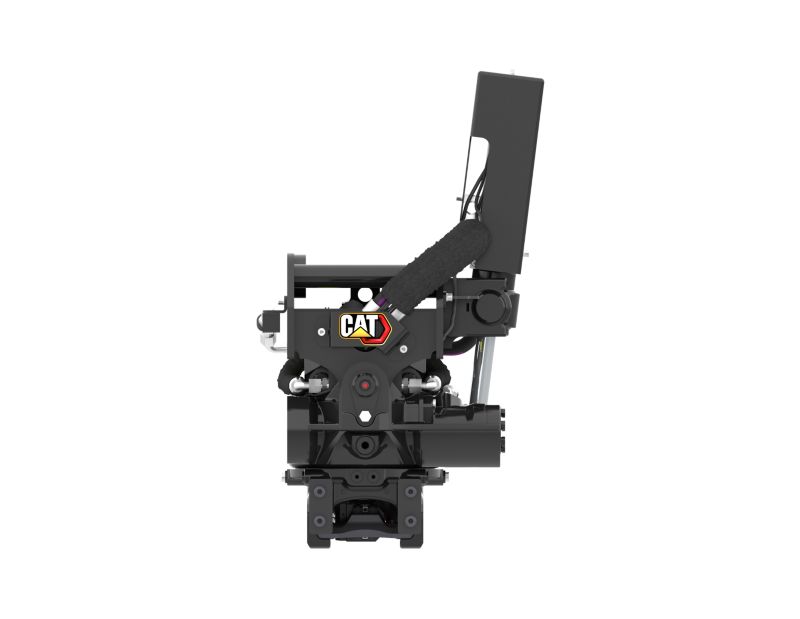

Model shown represents features on all Cat® Tiltrotators except where indicated.
Documents
Features
Specifications
-
General
Spec Value Machine Class 6 Ton Mini Excavators Weight 463 lb Interface Options: Top-Bottom S-40 / S-40 Overall Height 32.2 in Length 20.7 in Overall Width 19.3 in Rotation Speed 7 Seconds per 1 Full Rotation Tilt Angle Range +/- 40 degrees left/right Maximum Bucket Capacity 8.8 ft³ Maximum Bucket Width 47.2 in Optimal Hydraulic Flow 45-80 L/min (12-21 gpm) Maximum Operating Pressure 3625.9 psi Required Hydraulics 1st Auxiliary Tilting Torque 10627 lb/ft Turning Torque 2876.5 lb/ft
