New Equipment

Caterpillar

430 Backhoe Loader

Net Power - SAE J1349

107 HP

Dig Depth - Standard

15.1 ft

Operating Weight - Maximum

24251 lb

Overview

The Cat® 430 Backhoe Loader delivers exceptional performance, increased fuel efficiency, superior hydraulic system, versatility and an updated operator station.

Photos

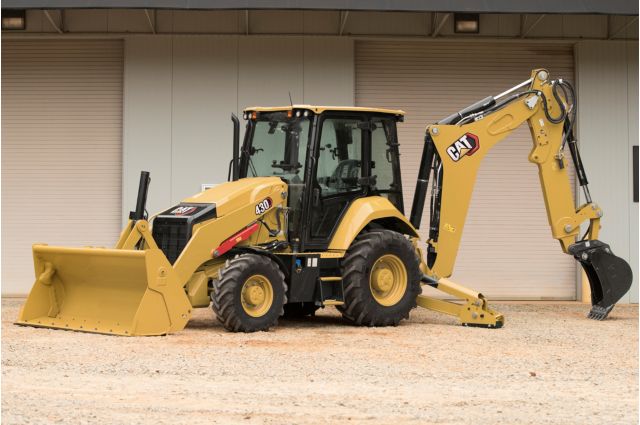

  • 430 Backhoe Loader

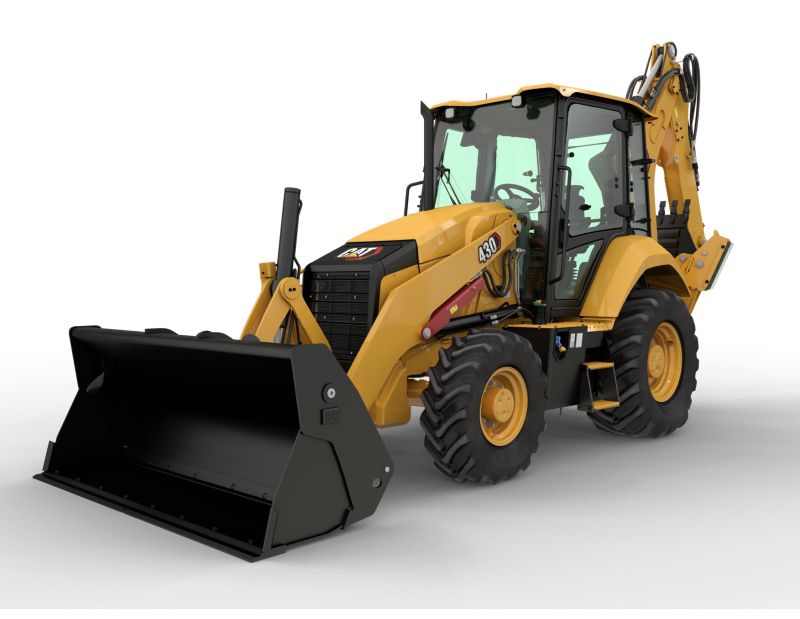

    430 Backhoe Loader

Videos

  • 0:02 / 4:46 Cat® 420 and 430 Backhoe Loader – Features and Benefits (North America)

Documents

Features

Ergonomic Operator Station

Ergonomic Operator Station

Ample legroom inside the cab makes rotating the seat simple. The air suspension seat provides comfort to the operator while roading. New backhoe control pods allow for unlimited adjustability.

Ergonomic Operator Station

Ample legroom inside the cab makes rotating the seat simple. The air suspension seat provides comfort to the operator while roading. New backhoe control pods allow for unlimited adjustability.

Load Sensing Hydraulics

Load Sensing Hydraulics

The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands.

Load Sensing Hydraulics

The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands.

Machine Performance

Machine Performance

The Cat C3.6 engine delivers solid performance and meets U.S. EPA Tier 4 Final/EU Stage V emission standards by utilizing Selective Catalytic Reduction technology with a Diesel Oxidation Catalyst. The system allows the operator to disconnect the machine, even while the diesel exhaust fluid is being purged from the system.

Machine Performance

The Cat C3.6 engine delivers solid performance and meets U.S. EPA Tier 4 Final/EU Stage V emission standards by utilizing Selective Catalytic Reduction technology with a Diesel Oxidation Catalyst. The system allows the operator to disconnect the machine, even while the diesel exhaust fluid is being purged from the system.

Machine Versatility

Machine Versatility

The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.

Machine Versatility

The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.

Cat Attachments

Cat Attachments

A large portfolio of Backhoe Loader Attachments, including but not limited to, Quick Couplers, Thumbs, assorted Buckets, and Brooms are available from the factory or for field installation. Cat Backhoe Loaders will be “Dirt Ready” upon delivery.

Cat Attachments

A large portfolio of Backhoe Loader Attachments, including but not limited to, Quick Couplers, Thumbs, assorted Buckets, and Brooms are available from the factory or for field installation. Cat Backhoe Loaders will be “Dirt Ready” upon delivery.

Powershift Transmission

Powershift Transmission

A Four Speed Powershift Transmission is standard to make shifting gears smooth and as simple as twisting the Powershuttle Lever.

Powershift Transmission

A Four Speed Powershift Transmission is standard to make shifting gears smooth and as simple as twisting the Powershuttle Lever.

Spring Applied Hydraulically Released (SAHR) Parking Brake

Spring Applied Hydraulically Released (SAHR) Parking Brake

The SAHR Parking Brake is activated at the push of a button and automatically engages when the machine is powered down.

Spring Applied Hydraulically Released (SAHR) Parking Brake

The SAHR Parking Brake is activated at the push of a button and automatically engages when the machine is powered down.

Sustainability

Sustainability

  • The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to:
    • 20% biodiesel FAME (fatty acid methyl ester)
    • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels
    Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.

  • The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.3 metric tonnes (2.5 tons).

  • Operator Sound Pressure Level (ISO 6396:2008) – 76 dB(A)*
  • Exterior Sound Power Level (ISO 6395:2008) – 101 dB(A)
  • * Measurements were conducted with properly installed and maintained cab doors and windows closed.

  • Caterpillar factory fills with ethylene glycol coolants. Cat Diesel Engine Antifreeze/Coolant (DEAC) and Cat Extended Life Coolant (ELC) can be recycled. Consult your Cat dealer for more information.
  • Cat Bio HYDO™ Advanced is an EU Ecolabel approved biodegradable hydraulic oil.
  • Additional fluids are likely to be present, please consult the Operations and Maintenance Manual or the Application and Installation guide for complete fluid recommendations and maintenance intervals.

  • The following features and technology may contribute to fuel savings and/or carbon reduction. Features may vary. Consult your Cat dealer for details.
    – Save fuel and reduce your greenhouse gas emissions with efficiency features such as operator control modes selectable through the display and with fuel management modes.
    – Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
    – Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.

Sustainability

  • The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to:
    • 20% biodiesel FAME (fatty acid methyl ester)
    • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels
    Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.

  • The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.3 metric tonnes (2.5 tons).

  • Operator Sound Pressure Level (ISO 6396:2008) – 76 dB(A)*
  • Exterior Sound Power Level (ISO 6395:2008) – 101 dB(A)
  • * Measurements were conducted with properly installed and maintained cab doors and windows closed.

  • Caterpillar factory fills with ethylene glycol coolants. Cat Diesel Engine Antifreeze/Coolant (DEAC) and Cat Extended Life Coolant (ELC) can be recycled. Consult your Cat dealer for more information.
  • Cat Bio HYDO™ Advanced is an EU Ecolabel approved biodegradable hydraulic oil.
  • Additional fluids are likely to be present, please consult the Operations and Maintenance Manual or the Application and Installation guide for complete fluid recommendations and maintenance intervals.

  • The following features and technology may contribute to fuel savings and/or carbon reduction. Features may vary. Consult your Cat dealer for details.
    – Save fuel and reduce your greenhouse gas emissions with efficiency features such as operator control modes selectable through the display and with fuel management modes.
    – Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
    – Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.

Specifications

  • Engine
    Spec Value
    Net Power - SAE J1349 107 HP
    Displacement 220 in³
    Net Torque Rise - 1,400 rpm - SAE J1349 358 ft-lb
    Power Rating Conditions - No De-Rating Required Up To 10000 ft
    Net Power Rating at 2,200 rpm - ISO 9249 107 HP
    Net Power Rating at 2,200 rpm - SAE J1349 107 HP
    Emissions Engine meets Tier 4 Final/Stage V emission standards.
    Net Torque Rise - 1,400 rpm - SAE J1349 40%
    Ratings at 2,200 rpm - Gross Power ISO 14396 115 HP
    Ratings at 2,200 rpm - Gross Power SAE J1995 118 HP
    Engine Model C3.6 86 kW (115 hp) Electronic Turbo Intercooled
    Dimensions - Stroke 4.72 in
    Net Peak Power Rating @ 2,200 rpm - SAE J1349 107 HP
    Dimensions - Bore 3.86 in
    Net Peak Power Rating @ 2,200 rpm - ISO 9249 107 HP
  • Weights
    Spec Value
    Operating Weight - Maximum 24251 lb
    Cab - ROPS/FOPS 320 lb
    Ride Control 33 lb
    Air Conditioning 99 lb
    Note (2) **Minimum weight configuration is the same as configuration above, however, excludes counterweight, hoe bucket, and operator.
    Operating Weight - Maximum - ROPS Capacity 24251 lb
    MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 1642 lb
    Operating Weight - Estimated* 18051 lb
    MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 2017 lb
    Note (1) *Machine configuration: standard stick hoe, OROPS canopy, AWD powershift shift transmission, 0.96 m3 (1.25 yd3) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 460 kg (1,014 lb) counterweight, 80 kg (176 lb) operator, full fuel tank.
    All-Wheel Drive STD
    Operating Weight (minimum)** 16590 lb
    Loader QC 540 lb
    Auto-Shift Transmission STD
    Counterweights, base - Maximum 1014 lb
    Extendible Stick (excludes ft. counterweight) 655 lb
    Counterweights, base - Stackable, one 529 lb
    Counterweights, base 256 lb
  • Backhoe
    Spec Value
    Dig Depth - Standard 15.1 ft
  • Transmission
    Spec Value
    Power-Shift Transmission with LTC - Optional - Forward - 5th LTC 18 mile/h
    Power Shift Transmission - Standard - Reverse - 3rd 17 mile/h
    Power-Shift Transmission with LTC - Optional - Reverse - 1st 3.7 mile/h
    Power-Shift Transmission with LTC - Optional - Forward - 6th 26 mile/h
    Power-Shift Transmission with LTC - Optional - Forward - 6th LTC* 25 mile/h
    Power Shift Transmission - Standard - Reverse - 1st 3.7 mile/h
    Power Shift Transmission - Standard - Forward - 4th 26 mile/h
    Power Shift Transmission - Standard - Reverse - 2nd 7.7 mile/h
    Power-Shift Transmission - Optional - Reverse - 3rd 17 mile/h
    Power-Shift Transmission with LTC - Optional - Forward - 2nd 5.9 mile/h
    Power Shift Transmission - Standard - Forward - 1st 3.7 mile/h
    Power Shift Transmission - Standard - Forward - 3rd 12 mile/h
    Power-Shift Transmission with LTC - Optional - Forward - 1st 3.7 mile/h
    Power Shift Transmission - Standard - Forward - 2nd 5.9 mile/h
    Power-Shift Transmission - Optional - Reverse - 2nd 7.7 mile/h
    Power-Shift Transmission - Optional - Forward - 4th 12 mile/h
    Power-Shift Transmission - Optional - Forward - 5th 17 mile/h
    Power-Shift Transmission with LTC - Optional - Forward - 3rd 8 mile/h
    Power-Shift Transmission with LTC - Optional - Forward - 5th 17 mile/h
    Power-Shift Transmission with LTC - Optional - Reverse - 2nd 7.7 mile/h
    Power-Shift Transmission - Optional - Reverse - 1st 3.7 mile/h
    Power-Shift Transmission - Optional - Forward - 2nd 5.9 mile/h
    Power-Shift Transmission - Optional - Forward -1st 3.7 mile/h
    Power-Shift Transmission with LTC - Optional - Reverse - 3rd 17 mile/h
    Power-Shift Transmission with LTC - Optional - Forward - 4th 12 mile/h
    Power-Shift Transmission - Optional - Forward - 6th 26 mile/h
    Power-Shift Transmission - Optional - Forward - 3rd 8 mile/h
    Note (1) *Travel speeds of backhoe loader at full throttle, when equipped with 500/70-24 rear tires.
    Note (2) **Limited by engine speed to 40 km/h (25 mph).
  • Axle Ratings
    Spec Value
    Front Axle, AWD - Static 51808 lb
    Rear Axle - Dynamic 22046 lb
    Front Axle, AWD - Dynamic 19841 lb
    Rear Axle - Static 58422 lb
  • Hydraulic System
    Spec Value
    Pump Type Variable-flow, Axial Piston
    System Pressure - Backhoe 3626 psi
    Pump Capacity at 2,200 rpm 49.4 gal/min
    Type Closed Center
    System Pressure - Loader 3626 psi
  • Steering
    Spec Value
    Bore 2.6 in
    Stroke 4.2 in
    Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket 35.25 ft
    Axle Oscillation 11°
    Power Steering Hydrostatic
    Turning Circle - (inner wheel not braked) - Outside Front Wheels 26.92 ft
    Rod Diameter 1.6 in
    Type Front Wheel Steering
    Cylinder One Double-Acting
  • Service Refill Capacities
    Spec Value
    Diesel Exhaust Fluid (DEF) 5 gal (US)
    Transmission - Power Shift - AWD 5 gal (US)
    Front Axle (AWD) 2.9 gal (US)
    Front Axle (AWD) - Planetaries 0.2 gal (US)
    Transmission - Power Shuttle - AWD 4.8 gal (US)
    Engine Oil - With Filter 2.4 gal (US)
    Rear Axle - Planetaries 0.4 gal (US)
    Cooling System with Air Conditioning 4.8 gal (US)
    Rear Axle 4.2 gal (US)
    Fuel Tank 42.3 gal (US)
    Hydraulic System 25.1 gal (US)
    Hydraulic Tank 11.1 gal (US)
  • Sustainability
    Spec Value
    Recyclability 92%

Standard Equipment

STANDARD EQUIPMENT

  • Adjustable auxiliary controls, backhoe loader
  • Air cleaner
  • Alarm, back-up
  • Audible system fault alarm
  • Automatic Engine Speed Control (AESC)
  • Battery, maintenance-free, 850 CCA
  • Battery disconnect switch
  • Boom transport lock
  • Brace, lift cylinder
  • Brake, parking, Spring Applied Hydraulically Released (SAHR)
  • Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
  • Bucket level indicator
  • Canopy, ROPS/FOPS
  • Cat cushion swing system
  • Coat restraint
  • Coolant/antifreeze, extended life
  • Dome light (cab only)
  • Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
  • Differential lock, loader joystick
  • Drink holders, two
  • Engine, Cat C3.6 ACERT (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)
  • Engine enclosure, sound suppression, removable side panels
  • Face seals, O-ring
  • Fan, suction and guard
  • Fast reversing shuttle, all gears
  • Fenders, rear
  • Filters, spin-on: fuel, engine oil, transmission oil, water separator
  • Filters, bowl and cartridge: hydraulic fluid
  • Flashing hazards/signal lights
  • Floor mat
  • Fuel tank, fully enclosed
  • Four wheel drive
  • Four wheel drive shaft guard
  • Fully hinged front grill for cooling package cleaning access
  • Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
  • Ground level fuel fill and DEF fill
  • Halogen lights, working (2 front, 2 rear)
  • High ambient cooling package
  • Hood lock, inside cab
  • Hydraulic hose, XT™
  • Hydraulic oil cooler
  • Hydraulic oil level sight gauge
  • Hydraulic valves, loader 2 function
  • Hydraulic valves, backhoe 4 function
  • Hydraulics, load sensing with variable displacement piston pump
  • Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
  • Instrument panel lights
  • Joystick controls: pilot operated, excavator-style with pattern changer
  • Key start/stop system
  • LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
  • Loader, self-leveling, return-to-dig and transmission disconnect switch
  • Loader, single tilt
  • Mirror, interior, rearview
  • One-touch low idle
  • Open circuit breather
  • Pattern changer, in cab
  • Power receptacle, 5 volt USB, 1 internal
  • Power receptacle, 12 volt, 2 internal, 1 external
  • Power steering, hydrostatic
  • Product Link™, satellite, network manager
  • Product Link, cellular, network manager
  • Seat belt, retractable, 51 mm (2 in)
  • Socket, two roof
  • Stabilizer shoes, street
  • Steering knob
  • Seat, air suspension, vinyl cover, with armrest
  • Stabilizers, EH Control, Auto-UP
  • Starting system, glow plugs
  • Steering column, tilting, telescopic
  • Storage compartment, lockable
  • Storage tray
  • Stop and tail lights
  • Swing transport lock
  • Tires
  • Toolbox, external, lockable
  • Torque converter
  • Throttle, hand and foot, electronic
  • Transmission, 4 speed, powershift
  • Transmission neutralizer switch
  • Transport tie-downs
  • Vandalism locks, four
  • Warning horn, electric

Optional Equipment

OPTIONAL EQUIPMENT

  • Auxiliary hydraulics, loader, adjustable flow
  • Auxiliary hydraulics, rear, adjustable flow
  • Battery, additional, 850 CCA
  • Cab, deluxe
  • Cold weather fuel (–30° C/–22° F)
  • Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
  • Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
  • Fenders, front with integral steps
  • Guard, boom protection plate
  • Guard, stabilizer, rock
  • Hydraulic valves, loader with auxiliary thumb control (3rd valve for MP or Quick Coupler)
  • Hydraulic valves, backhoe (5th and 6th function)
  • Hydraulic lines, combined function auxiliary
  • LED lights, working (2 front, 2 rear)
  • Quick Coupler, hydraulic, dual lock
  • Quick Coupler, manual, dual lock
  • Quick Coupler, manual, pin lock
  • Radio and CD player, Bluetooth®
  • Ride Control
  • Rotating beacon, magnetic mount
  • Seat, air suspension, fabric with armrest
  • Seat, air suspension, fabric with armrest, heated
  • Seat belt, retractable, 75 mm (3 in)
  • Security system, Bluetooth
  • Security system, operator display
  • Side mirrors, cab, external
  • Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
  • Stabilizer pads, reversible
  • Stick, extendible
  • Transmission, AutoShift with lock-up torque converter, 6 speed
  • Vandalism protection, gauge cover
  • Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.

Related Products

General Purpose Buckets

Studio Shot 1.14 m3 (1.5 yd3), IT Coupler
Studio Shot 1.15 m3 (1.5 yd3), Pin On
Studio Shot 1.0 m3 (1.3 yd3), Pin On
Studio Shot 1.1 m3 (1.4 yd3), Pin On
Studio Shot 1.0 m3 (1.31 yd3), IT Coupler
Studio Shot 1.0 m3 (1.3 yd3), Pin On, Bolt-On Teeth
Studio Shot 0.76 m3 (1.0 yd3), Pin On, Bolt-On Cutting Edge
Studio Shot 1.0 m3 (1.3 yd3), Pin On, Bolt-On Cutting Edge
Studio Shot 1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge
Studio Shot 1.15 m3 (1.5 yd3), Pin On, Bolt-On Teeth
Studio Shot 1.15 m3 (1.5 yd3), Pin On, Bolt-On Cutting Edge
Studio Shot 1.0 m3 (1.3 yd3), Pin On, Bolt-On Cutting Edge
Studio Shot 1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth
Studio Shot 0.76 m3 (1.0 yd3), Pin On
Studio Shot 1.0 m3 (1.3 yd3), Pin On
Studio Shot 1.34 m3 (1.75 yd3), Pin On

Multi-Purpose Buckets

Studio Shot 1.1 m3 (1.4 yd3), IT Coupler
Studio Shot 1.0 m3 (1.3 yd3), IT Coupler
Studio Shot 1.1 m3 (1.4 yd3), Pin On
Studio Shot 1.03 m3 (1.35 yd3), Pin On
Studio Shot 1.1 m3 (1.4 yd3), Pin On
Studio Shot 1.03 m3 (1.35 yd3), Pin On, Bolt-On Teeth
Studio Shot 1.03 m3 (1.35 yd3), Pin On, Bolt-On Cutting Edge
Studio Shot 1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge
Studio Shot 1.03 m3 (1.35 yd3), Pin On, Bolt-On Teeth
Studio Shot 1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge
Studio Shot 1.03 m3 (1.35 yd3), Pin On, Bolt-On Cutting Edge
Studio Shot 1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth
Studio Shot 1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth
Studio Shot 1.14 m3 (1.5 yd3), Pin On
Studio Shot 1.03 m3 (1.35 yd3), Pin On
Studio Shot 1.14 m3 (1.5 yd3), Pin On

Heavy Duty Buckets

Studio Shot 305 mm (12 in), Pin On
Studio Shot 406 mm (16 in), Pin On
Studio Shot 457 mm (18 in), Pin On
Studio Shot 610 mm (24 in), Pin On
Studio Shot 762 mm (30 in), Pin On
Studio Shot 914 mm (36 in), Pin On
Studio Shot 300 mm (12 in), Pin Lock
Studio Shot 406 mm (16 in), Pin Lock
Studio Shot 457 mm (18 in), Pin Lock
Studio Shot 610 mm (24 in), Pin Lock
Studio Shot 762 mm (30 in), Pin Lock
Studio Shot 914 mm (36 in), Pin Lock
