Load, carry, dump and perform general clean-up work.
Cat
1.14 m3 (1.5 yd3) IT Coupler General Purpose Bucket With Base Edge
Photos
-

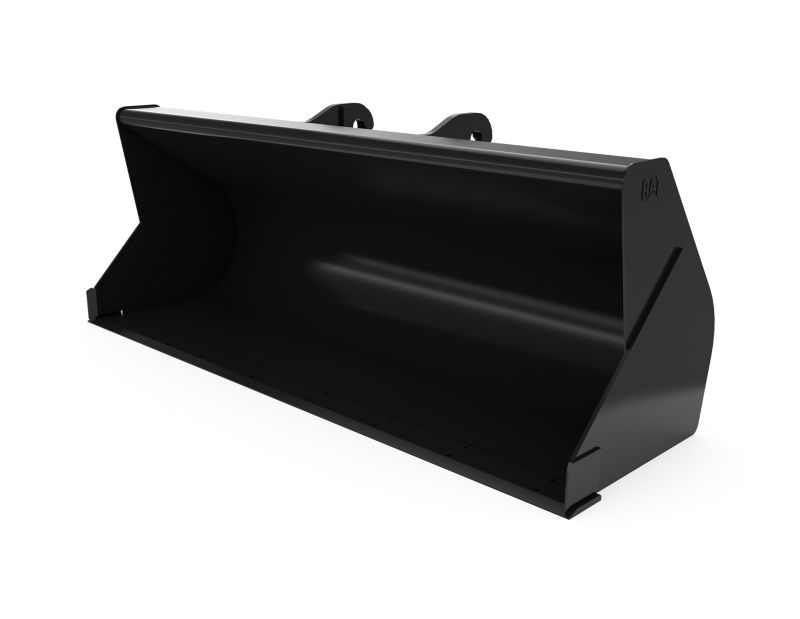

Studio Shot -

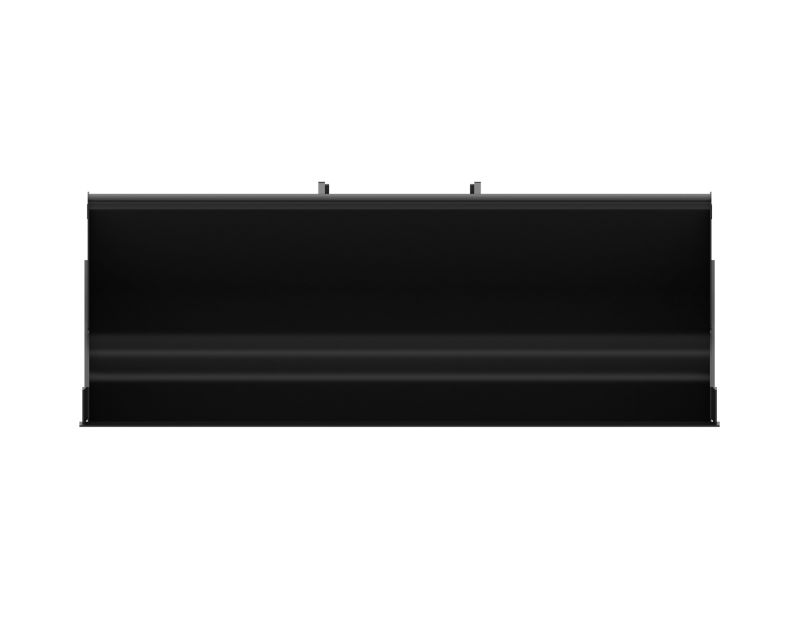

Front View -

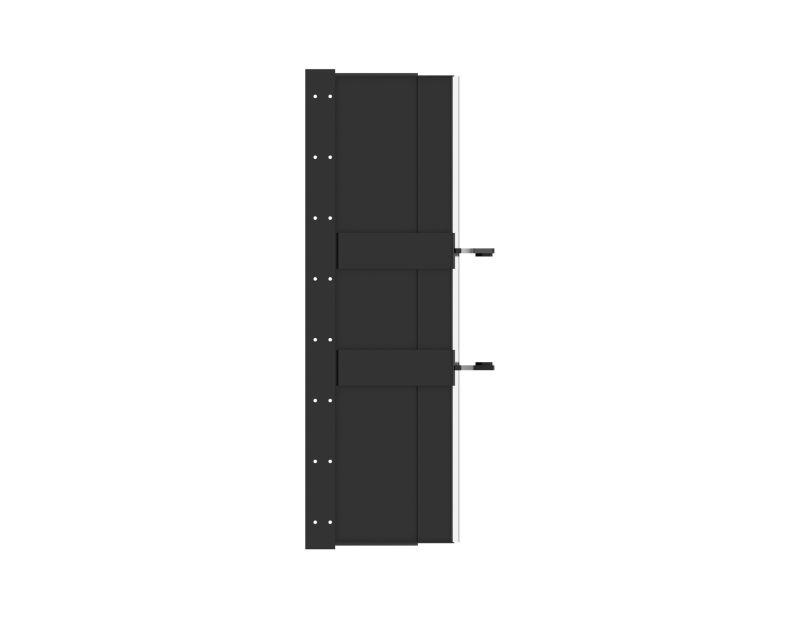

Top View -

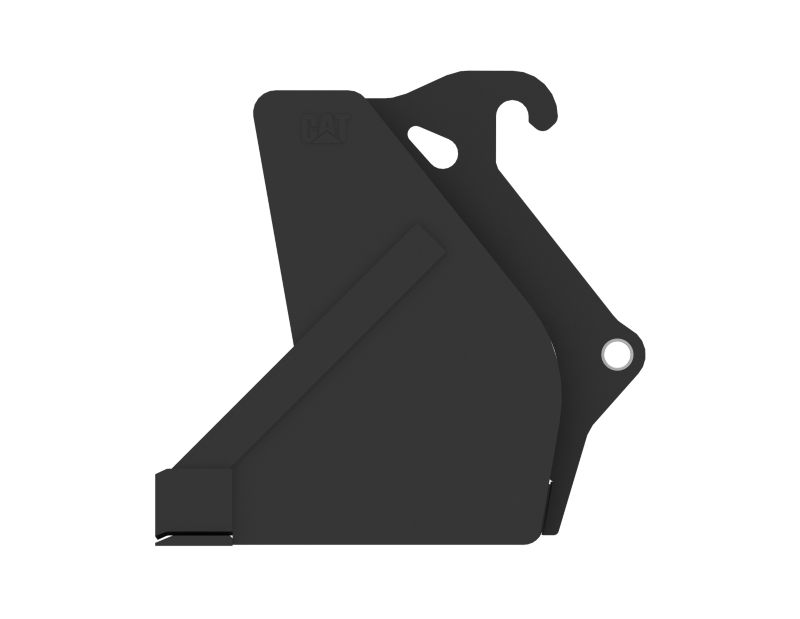

Left View -

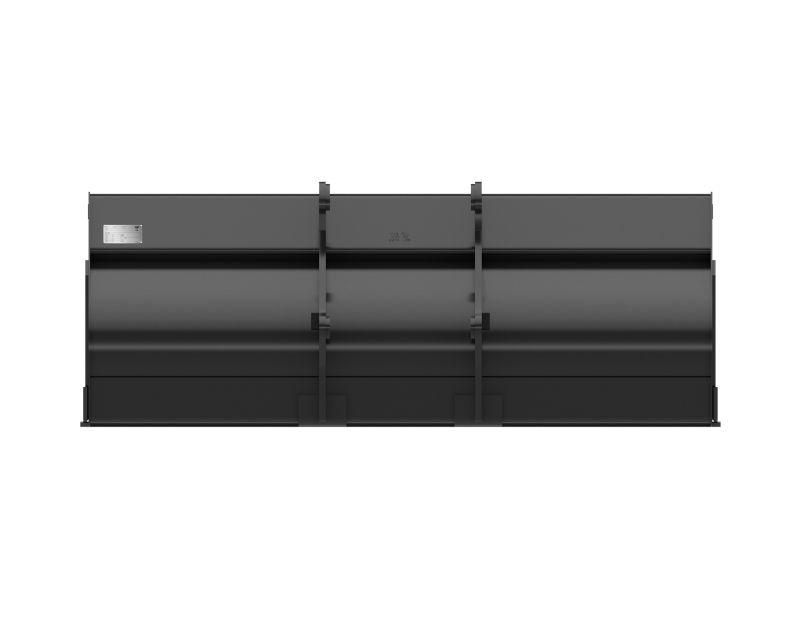

Rear View -
Bottom View -

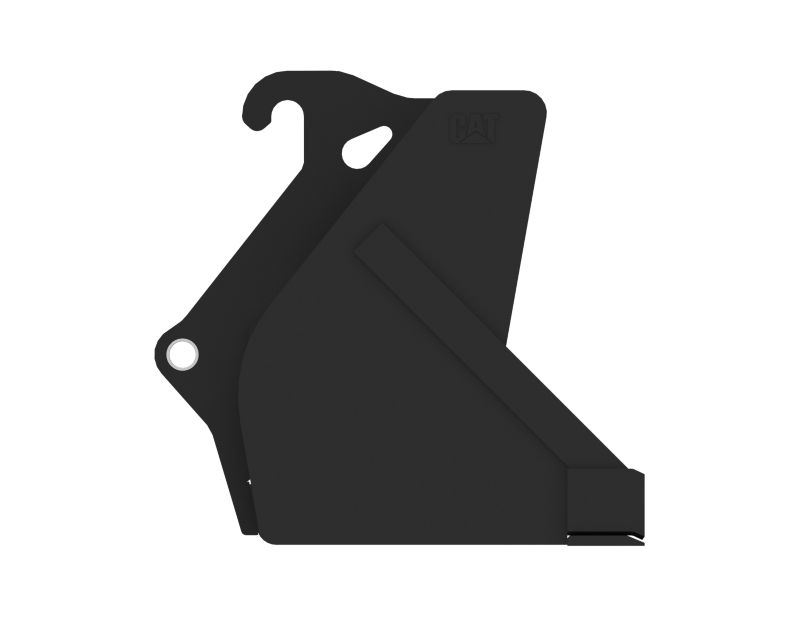

Right View
Videos
Features
Application
Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials.
Application
Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials.
Bucket Design
Formed back wrapper design enhances bucket loading and production in a wide variety of applications.
Bucket Design
Formed back wrapper design enhances bucket loading and production in a wide variety of applications.
Superior Bucket Fill
Optimum wrapper angle and lack of sharp corners promote superior bucket fill and reduce material packing for greater productivity.
Superior Bucket Fill
Optimum wrapper angle and lack of sharp corners promote superior bucket fill and reduce material packing for greater productivity.
Ground Engaging Tools
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
Ground Engaging Tools
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
Specifications
-
General
Spec Value Width 94.7 in Height 40.5 in Weight 2270.8 lb Length 37.4 in Capacity 1.5 yd³ Base Edge Thickness 0.8 in Interface Type IT Coupler
