New Attachments

Cat

1220 mm (48 in) Hydraulic Forks

Pallet forks are for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Photos

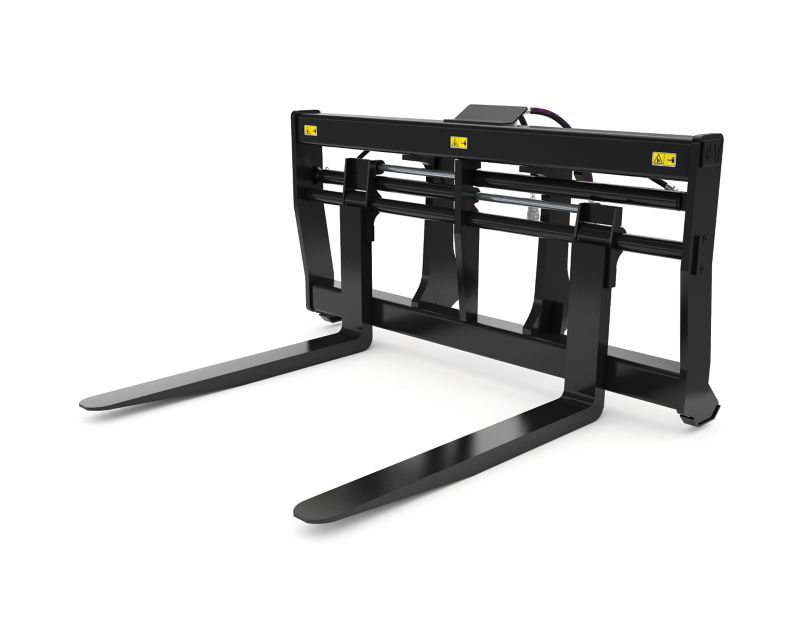

  • Studio Shot
    Studio Shot
  • Front View
    Front View

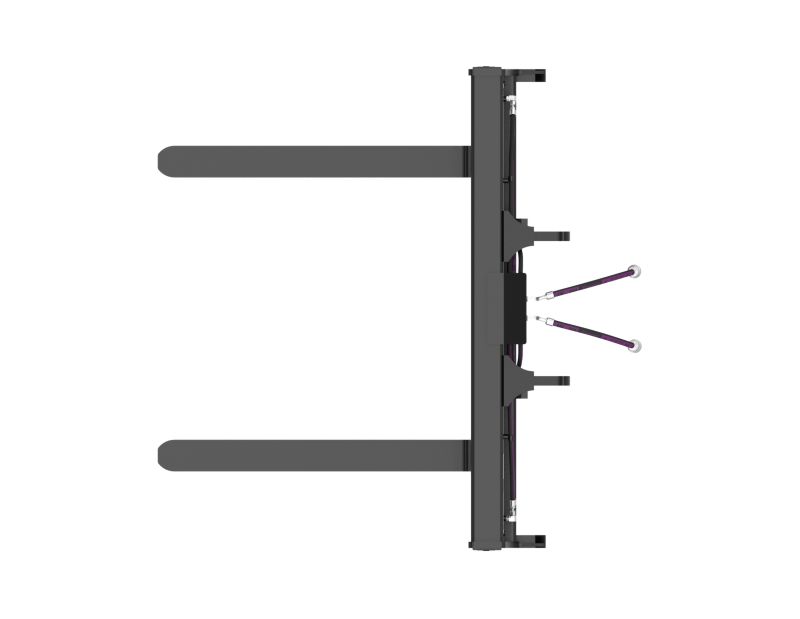

  • Top View
    Top View

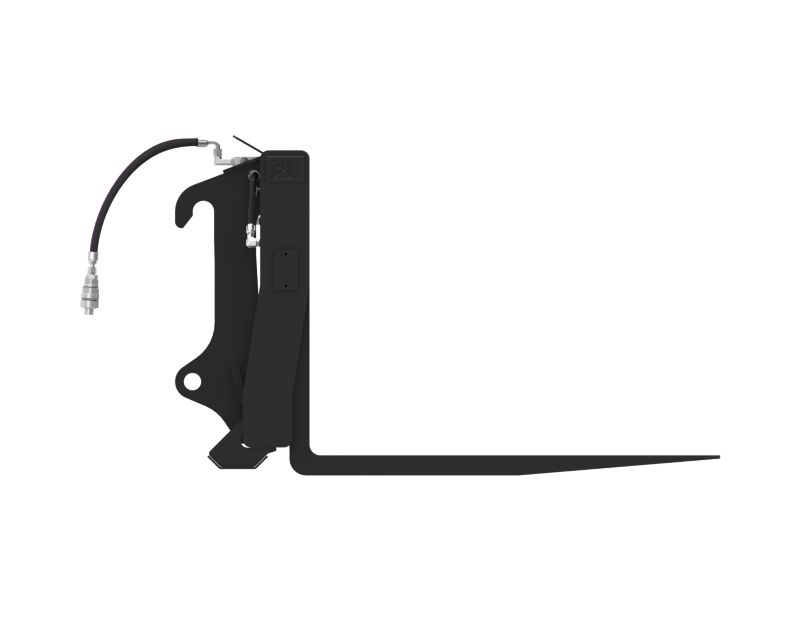

  • Left View
    Left View
  • Rear View
    Rear View

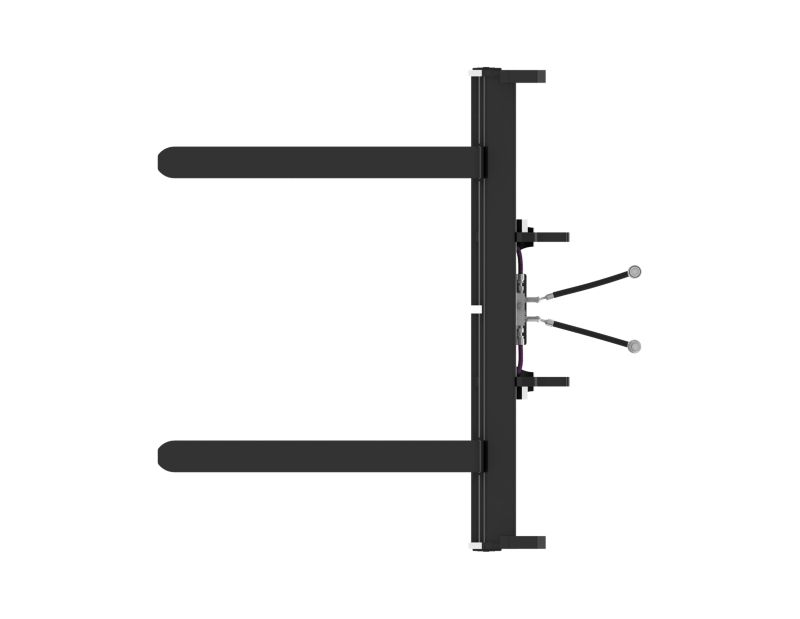

  • Bottom View
    Bottom View

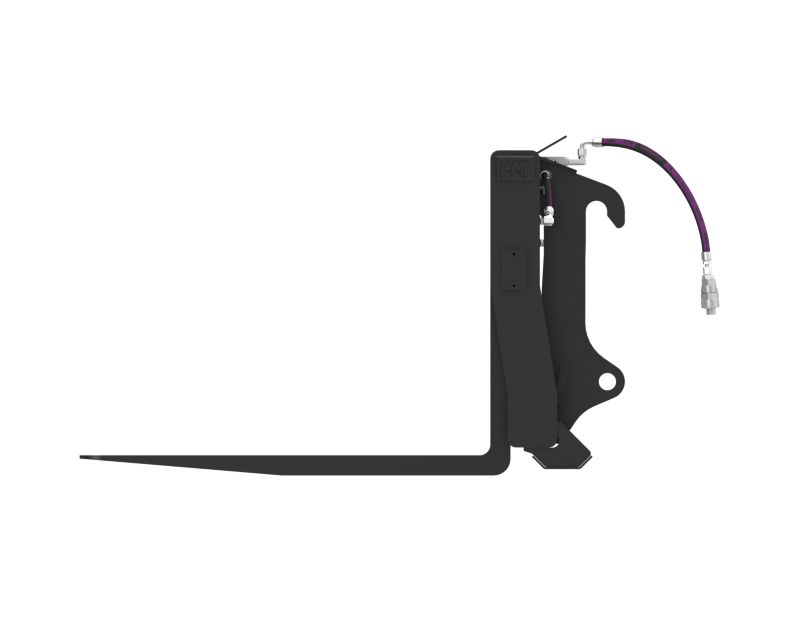

  • Right View
    Right View

Videos

  • Cat® Forks Attachment at Work
  • Cat® Forks for Compact Machines at Work

Features

Hydraulic Fork Tine Adjustment

Hydraulic Fork Tine Adjustment

Adjust fork tine placement without exiting the cab and accurately place the load without additional machine maneuvering.

Hydraulic Fork Tine Adjustment

Adjust fork tine placement without exiting the cab and accurately place the load without additional machine maneuvering.
Extended Life Hydraulics

Extended Life Hydraulics

A control valve with pressure relief is used to regulate hydraulic pressure, ensuring long life to the forks hydraulics.

Extended Life Hydraulics

A control valve with pressure relief is used to regulate hydraulic pressure, ensuring long life to the forks hydraulics.

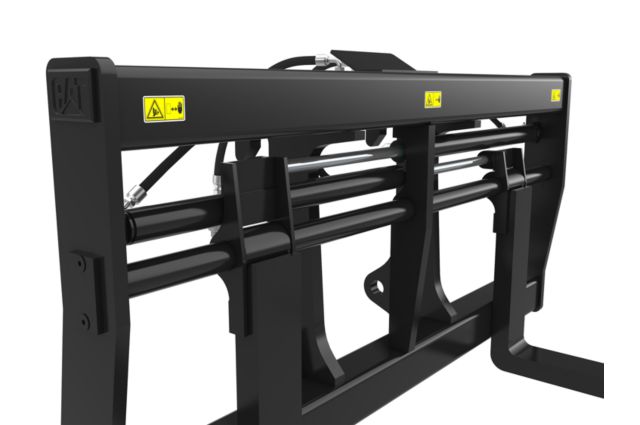

Protected Hydraulics

Protected Hydraulics

Valve and hydraulic hoses are are protected from damage with a special weld-on guard designed to prevent material from falling over the fork carriage.

Protected Hydraulics

Valve and hydraulic hoses are are protected from damage with a special weld-on guard designed to prevent material from falling over the fork carriage.

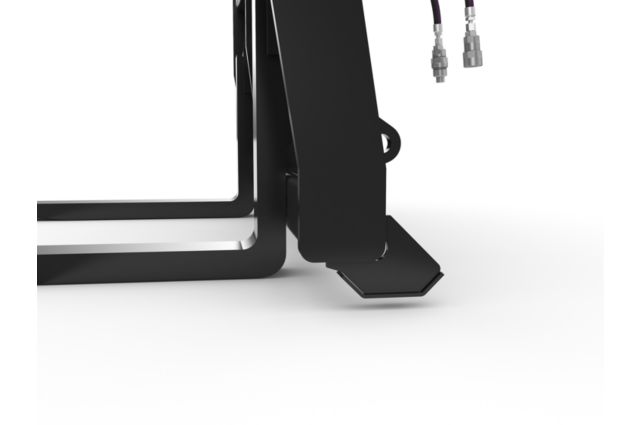

Improved Kickstand Design

Improved Kickstand Design

The new kickstand design ensures that the carriage and tines can stand alone and be safely stored.

Improved Kickstand Design

The new kickstand design ensures that the carriage and tines can stand alone and be safely stored.

Specifications

  • General
    Spec Value
    Height 39.8 in
    Width 74.8 in
    Weight 1192.7 lb
    Tine Length 48 in
    Tine Width 4.9 in
    Tine Height 24 in
    Tine Thickness 2.4 in
    Tine Weight 208.1 lb
    Operating Weight 1192.7 lb
    Overall Length 63.7 in
    Interface Type IT Coupler
