New Equipment

Caterpillar

XQP1100 Rental Generator Set

Rating Prime

1100 kVA

Frequency

50/60 Hz

Voltage

127 - 480 V

Overview

Packaging 1100 kVA in a 20’ ISO transportable container, the power density offering in the XQP1100 is increased and paralleling controls with an Electrically Operated (EO) breaker are featured as standard equipment. The XQP1100 is a fully self-contained unit capable of running eight hours without refueling.

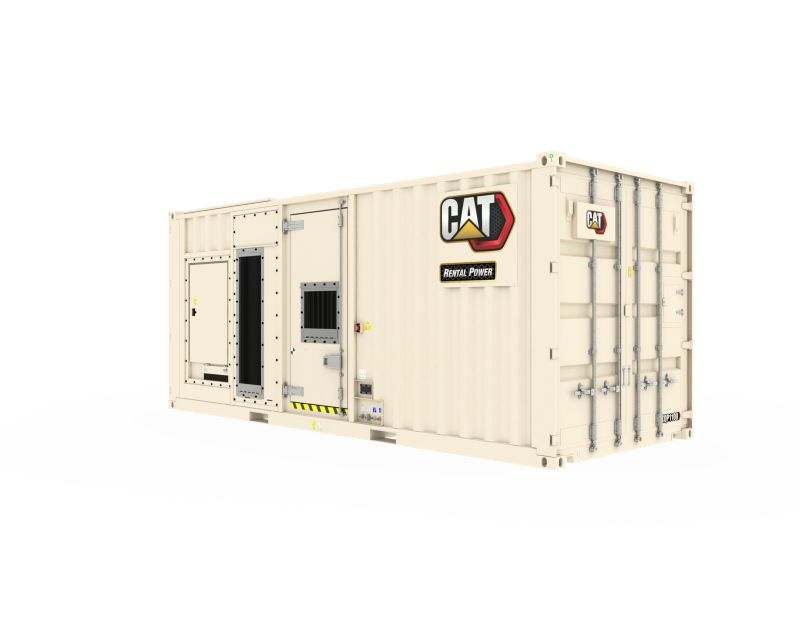

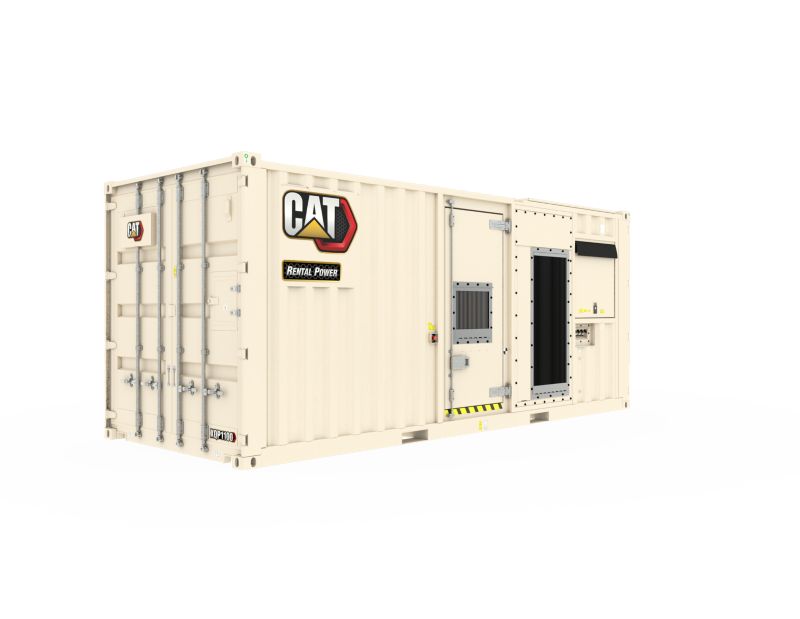

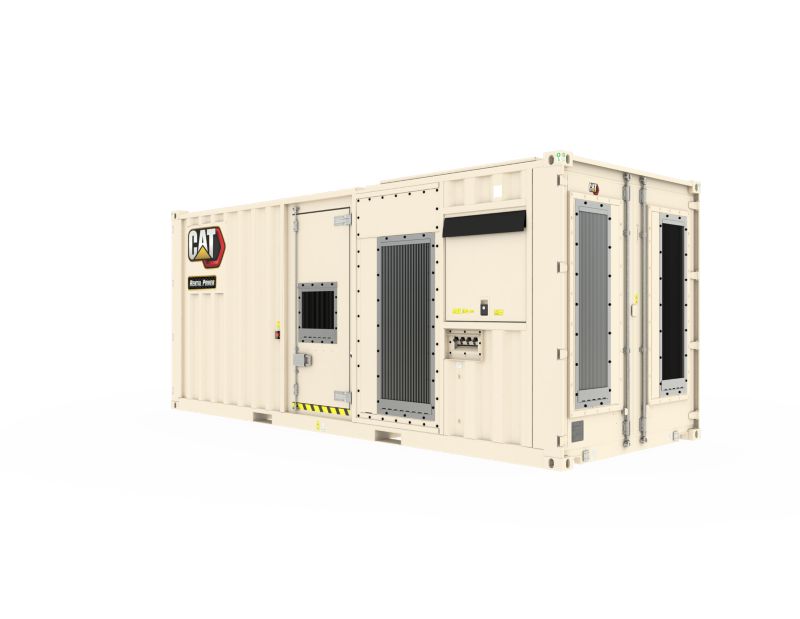

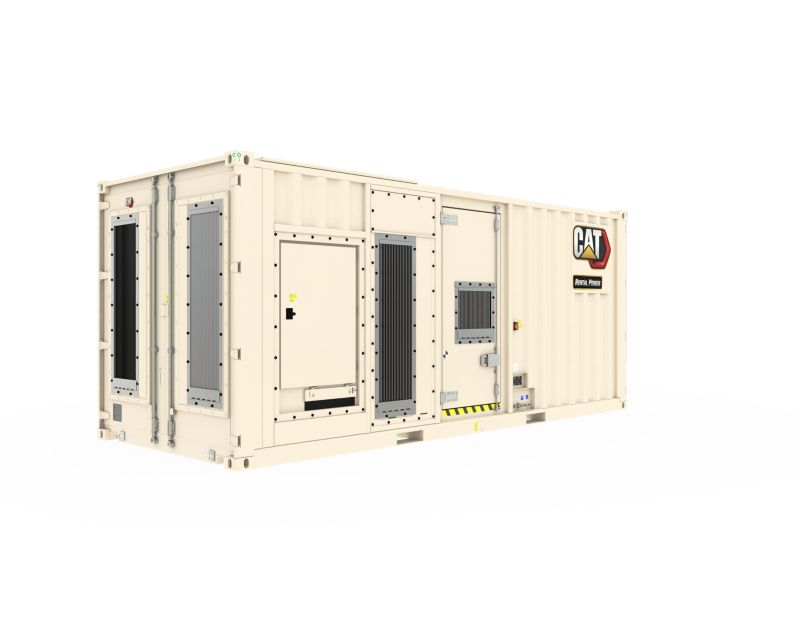

Photos

  • XQP1100
    XQP1100
  • XQP1100
    XQP1100
  • XQP1100
    XQP1100
  • XQP1100
    XQP1100

Videos

  • Cat Rental Power XQP Product Robust Design Features
  • Cat Rental Power XQP Product Electrical Features

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

XQP1100, Virtual Product Tour

Documents

Features

Rental ready

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy

Fuel/Emissions Strategy

Best Fuel Efficiency.

Fuel/Emissions Strategy

Best Fuel Efficiency.
Cat C32 Diesel Engine

Cat C32 Diesel Engine

Industry proven reliability.

Cat C32 Diesel Engine

Industry proven reliability.
Cat EMCP 4.4 Control Panel

Cat EMCP 4.4 Control Panel

Easy to use digital controls.

Cat EMCP 4.4 Control Panel

Easy to use digital controls.
Cat SR500 Generator

Cat SR500 Generator

Integrated voltage regular for fast response in demanding applications.

Cat SR500 Generator

Integrated voltage regular for fast response in demanding applications.
Robust Galvanised Enclosure

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.
Sound Isolated Operator Panel

Sound Isolated Operator Panel

Improved operator comfort.

Sound Isolated Operator Panel

Improved operator comfort.
Cat Connect

Cat Connect

Remote monitoring for fleet management and asset tracking.

Cat Connect

Remote monitoring for fleet management and asset tracking.
Factory Designed, Built and Tested

Factory Designed, Built and Tested

Single-source Supplier

Factory Designed, Built and Tested

Single-source Supplier
Worldwide Product Support

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
500 hr Oil Change Intervals

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.
Improved Transportability

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.
Additional Options Available

Additional Options Available

Synchronising controls. Extended Service interval kits.

Additional Options Available

Synchronising controls. Extended Service interval kits.

Specifications

  • Generator Set
    Spec Value
    Rating Prime 1100 kVA
    Frequency 50/60 Hz
    Voltage 127 - 480 V
  • Engine
    Spec Value
    Engine Cat C32
    Fuel Diesel
  • Dimensions
    Spec Value
    Width 96 in
    Height 102 in
    Length 240 in
    Weight - With Lube Oil and Coolant 32053 lb
  • Fuel consumption Best Fuel Efficiency
    Spec Value
    100% Load 50Hz 57.6 gal/hr
    100% Load 60Hz 67 gal/hr
    75% Load 50Hz 43.2 gal/hr
    75% Load 60Hz 50 gal/hr
    50% Load 50Hz 30.6 gal/hr
    50% Load 60Hz 133.6 l/hr
  • Noise rating (with enclosure) Best Fuel Efficiency
    Spec Value
    Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 84 dB(A)
    Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 85 dB(A)

Standard Equipment

CAT C32 Diesel Engine

  • Turbocharged

Generator

  • E3875L4 Frame

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory

Charging / Starting System

  • 24V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • Fuel tank with 6 way directional valve for external supply

Control Panel

  • Digital EMCP4.4 set mounted controller

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
