New Equipment

Cat

C13 Generator Set

Maximum Rating

400 ekW

Minimum Rating

320 ekW

Emissions/Fuel Strategy

Low Fuel Consumption

Overview

The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 320 to 400 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C13 generator sets are certified to Low Fuel Consumption Emissions / Fuel Strategy.

Photos

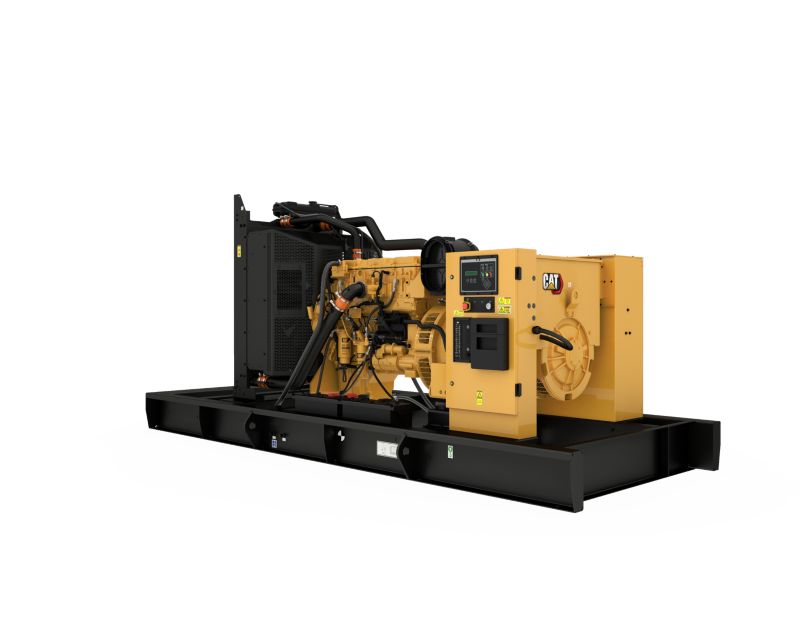

  • C13 Diesel Generator Front Right
    C13 Diesel Generator Front Right
  • C13 Diesel Generator Front Left
    C13 Diesel Generator Front Left
  • C13 Diesel Generator Rear Right
    C13 Diesel Generator Rear Right
  • C13 Diesel Generator Rear Left
    C13 Diesel Generator Rear Left
  • Enclosure
    Enclosure
  • Enclosure
    Enclosure

360° View

Exterior

Open set

Documents

Features

Cat Generator Set Package

Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements

Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine

Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator

A-Frame Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation

A-Frame Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation
GCCP1.3 Control Panel

GCCP1.3 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

GCCP1.3 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements
Cooling System

Cooling System

  • Designed to operate in standard ambient temperatures up to 55°C (131°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities

Cooling System

  • Designed to operate in standard ambient temperatures up to 55°C (131°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications

Certifications

UL2200 Listed; CSA 22.2; Certification of Compliance – IBC Seismic; Dual IBC & HCAI

Certifications

UL2200 Listed; CSA 22.2; Certification of Compliance – IBC Seismic; Dual IBC & HCAI
One Safe Source

One Safe Source

  • Components used in the generator set are selected based on seamless design integration to provide the optimum performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system

One Safe Source

  • Components used in the generator set are selected based on seamless design integration to provide the optimum performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Rating 400 ekW
    Minimum Rating 320 ekW
    Emissions/Fuel Strategy Low Fuel Consumption
    Voltage 380 to 415 Volts
    Frequency 60 Hz
    Speed 1800 rpm
    Duty Cycle Standby, Prime
  • Engine Specifications
    Spec Value
    Engine Model C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
    Bore 5.12 in
    Stroke 6.18 in
    Displacement 762.8 in³
    Compression Ratio 16.3:1
    Aspiration Air to Air Aftercooled
    Fuel System MEUI
    Governor Type Adem™A4
  • Generator Set Dimensions
    Spec Value
    Length - Maximum 186.7 in
    Width - Maximum 79.3 in
    Height - Maximum 84 in

Standard Equipment

Air Inlet System

  • Aftercooler core
  • Air cleaner; light duty with disposable paper filter
  • Turbocharger

Control Panel

  • GCCP 1.3

Cooling System

  • Caterpillar extended life coolant
  • Coolant drain line with valve
  • Fan drive, battery charging alternator drive
  • Radiator and cooling fan with guard

Exhaust System

  • Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use - shipped loose

Fuel System

  • Base, formed steel with single wall integral 8-hour fuel tank
  • Standard open set fuel tank/base supplied

Generator and Attachments

  • Segregated low voltage (AC/DC) wiring panel
  • Power center, IP22
  • Integrated voltage regulator (IVR)
  • Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
  • A Frame generator - IP21 Protection
  • Optional LC Frame generator - IP23 Protection

Governing System

  • Cat electronic governor (ADEM A4)

Packaged Generator Set

  • Service indicator
  • Radiator package mounted
  • Low coolant level sensor
  • Coolant drain line with valve
  • Coolant level sight gauge
  • Disposable air filter

Lube System

  • Lubricating oil
  • Oil drain valves
  • Oil cooler

Mounting System

  • Captive linear vibration isolators between base and engine-generator
  • Includes lifting provisions and termination points for coolant and lube oil drain lines

Starting / Charging System

  • 24V battery with rack and cables

General

  • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

European Certificates

  • EU Certificate of Conformance (CE)
  • Global Certification for CIS

Air Inlet System

  • Single element air cleaner
  • Dual element air cleaner

Circuit breakers

  • 4 Pole (IEC-100% rated) Circuit breaker
  • Circuit breaker (IEC) Auxiliary contacts
  • 4 Pole (IEC-100% rated) Circuit breaker - Motorised
  • Padlockable circuit breaker device
  • Power terminal strip
  • Shunt trip for IEC circuit breaker
  • 3 Pole (IEC-100% rated) Circuit breaker
  • 3 Pole (IEC-100% rated) Circuit breakers - Motorised

Control Panels

  • GCCP 1.4
  • Local alarm modules: Local annunciator
  • Volt free contacts
  • Control panel protective devices: Earth fault relay ; Earth leakage ground fault ; Overload shutdown via breaker ; Low fuel level alarm ; Low fuel level shutdown ; High fuel level alarm ; Fuel level sensor
  • Remote annunciator module

Cooling System

  • Stone guards
  • Radiator duct flange
  • Low coolant temperature alarm

Enclosures

  • Sound attenuated enclosures
  • High ambient sound attenuated enclosures

Exhaust System

  • 6 and 8 inch elbow kit
  • Flexible 8 inch exhaust fittings
  • 6 and 8 inch flange GP
  • Mufflers - End in/end out
  • 10, 25 and 35 dBA attenuation

Fuel System

  • Manual fuel transfer pump
  • Integral dual wall fuel tank base
  • Fuel transfer system controls

Generator and Attachments

  • Permanent magnet excitation (PMG) generator
  • LC frame generator
  • LC CIP generator
  • A Frame CIP generator
  • A Frame oversize generator
  • Ingress protection
  • Space heaters

Lube System

  • Manual sump pump

Mounting System

  • Narrow skid base

starting / Charging System

  • 5 Amp single Battery charger
  • Jacket water heater
  • Battery disconnect switch
