Caterpillar

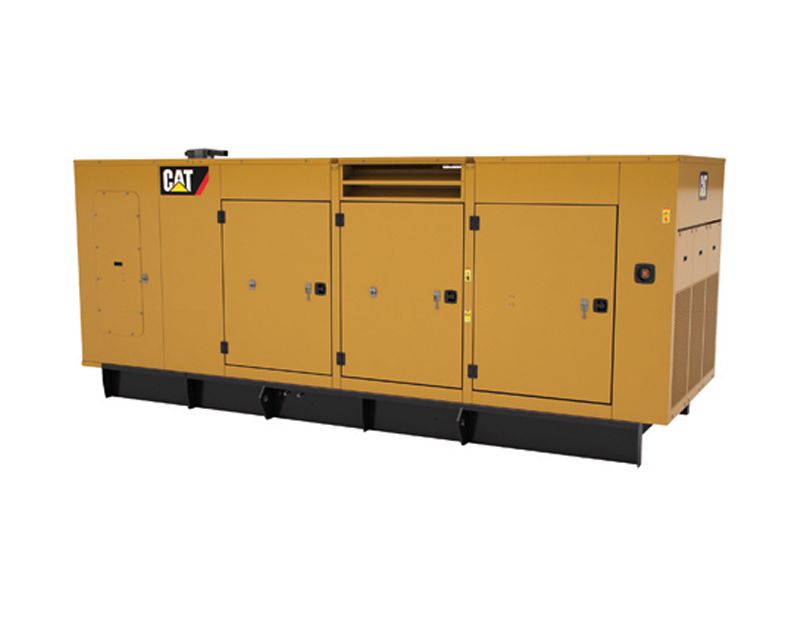

C13, C15, C18 WP Enclosure. 350-600 kW 60 Hz

Developed through continuing research and development by our specialist engineers, the enclosures are fully weatherproof and incorporate internally mounted exhaust silencers.

Photos

  • Enclosure
    Enclosure

Documents

Features

Excellent Access

Excellent Access

  • Large cable entry area for installation ease
  • Accommodates side mounted single or multiple breakers
  • Three doors on both sides
  • Vertically hinged allow 180° opening rotation and retention with door stays
  • Lube oil and coolant drains piped to the exterior of the enclosure base
  • Radiator fi ll cover

Excellent Access

  • Large cable entry area for installation ease
  • Accommodates side mounted single or multiple breakers
  • Three doors on both sides
  • Vertically hinged allow 180° opening rotation and retention with door stays
  • Lube oil and coolant drains piped to the exterior of the enclosure base
  • Radiator fi ll cover

Security And Safety

Security And Safety

  • Lockable access doors which give full access to control panel and breaker
  • Cooling fan and battery charging alternator fully guarded
  • Fuel fi ll, oil fi ll and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader bar lifting to ensure safety
  • Stub-up area is rodent proof

Security And Safety

  • Lockable access doors which give full access to control panel and breaker
  • Cooling fan and battery charging alternator fully guarded
  • Fuel fi ll, oil fi ll and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader bar lifting to ensure safety
  • Stub-up area is rodent proof

Transportability

Transportability

These enclosures are of extremely rugged construction to withstand outdoor exposure and rough handling common on many construction sites.

Transportability

These enclosures are of extremely rugged construction to withstand outdoor exposure and rough handling common on many construction sites.

Options

Options

  • Enclosure constructed with 14 gauge steel
  • Enclosure constructed with 12 gauge aluminum (5052 grade)
  • Caterpillar yellow or white paint
  • Control panel viewing window
  • UL Listed integral fuel tank with 670, 400, and 300 gallon capacities
  • UL Listed sub base fuel tank with 660, 1000, 1900, and 2200 gallon capacities
  • Seismic certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, IBC 2012, CBC 2007, CBC 2010
  • IBC Certification for 150 mph wind loading
  • AC/DC lighting package
  • 5 kW Canopy space heater to facilitate compliance with NFPA 110
  • Motorized louvers and gravity discharge damper
  • 125A Load Center
  • GFCI outletse
    • *Not available with aluminum enclosures.

Options

  • Enclosure constructed with 14 gauge steel
  • Enclosure constructed with 12 gauge aluminum (5052 grade)
  • Caterpillar yellow or white paint
  • Control panel viewing window
  • UL Listed integral fuel tank with 670, 400, and 300 gallon capacities
  • UL Listed sub base fuel tank with 660, 1000, 1900, and 2200 gallon capacities
  • Seismic certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, IBC 2012, CBC 2007, CBC 2010
  • IBC Certification for 150 mph wind loading
  • AC/DC lighting package
  • 5 kW Canopy space heater to facilitate compliance with NFPA 110
  • Motorized louvers and gravity discharge damper
  • 125A Load Center
  • GFCI outletse
    • *Not available with aluminum enclosures.

Specifications

  • Weights and Dimensions
    Spec Value
    Height 2320 - 3209 mm
    Length 4948 - 7271 mm
    Width 2014 - 2056 mm
    Weight 253 - 563 kg
