Ziegler CAT

Caterpillar

C9 Generator Set

Minimum Rating

180 ekW

Maximum Rating

300 ekW

Emissions/Fuel Strategy

EU Stage IIIA, Low Fuel

Overview

Producing reliable power from 180 to 300 ekW at 60 Hz, our C9 diesel generator sets designed to ISO 8528-5 transient response requirements. All C9 generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards with low fuel consumption.

Photos

360° View

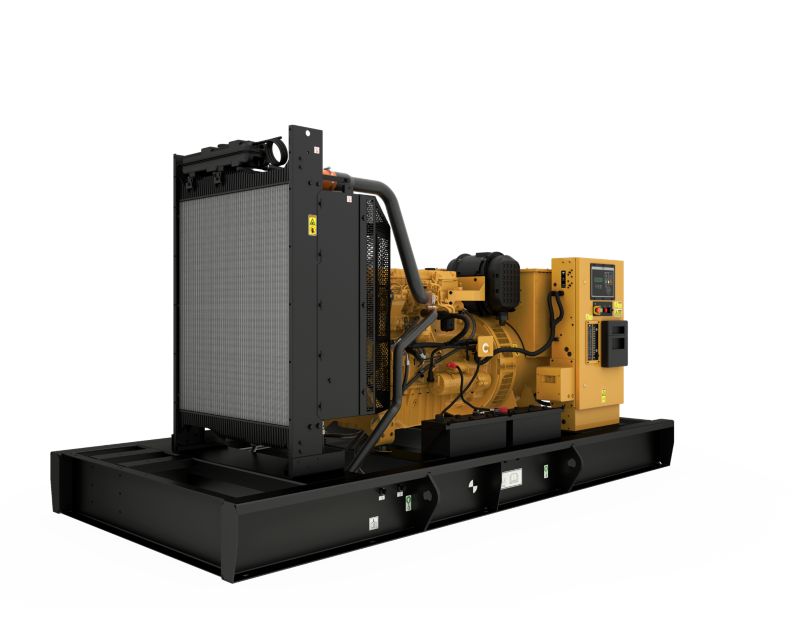

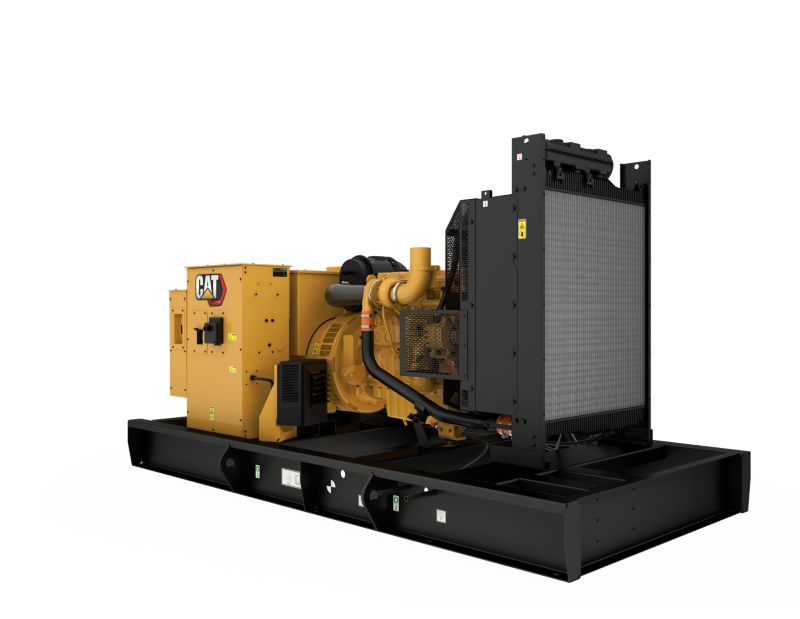

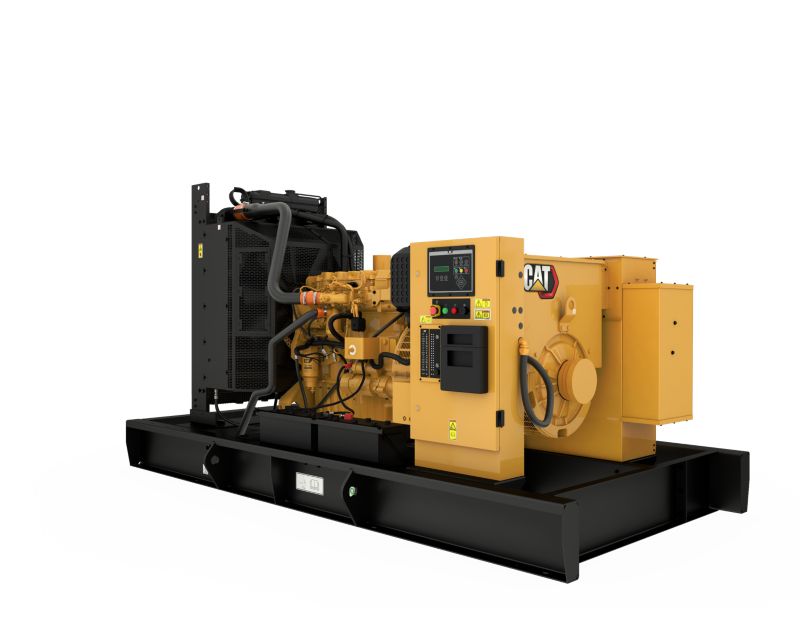

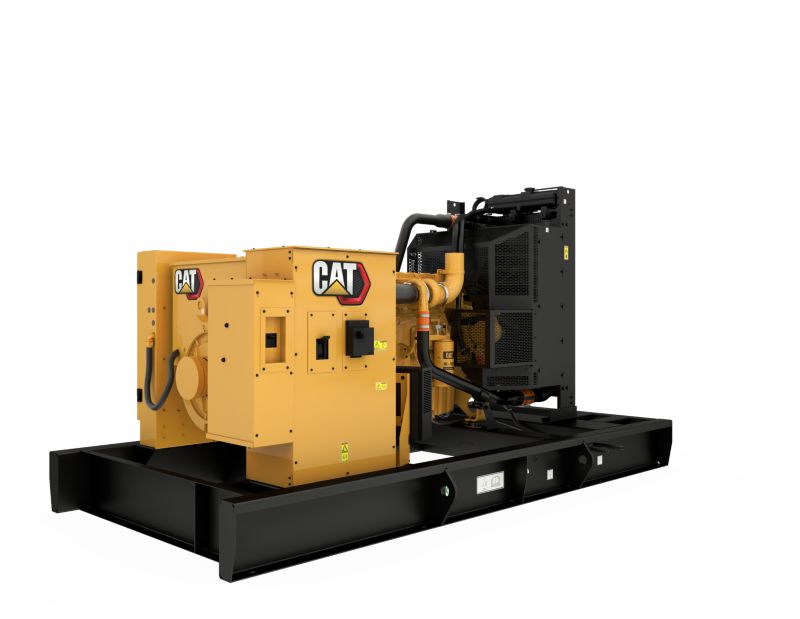

Exterior

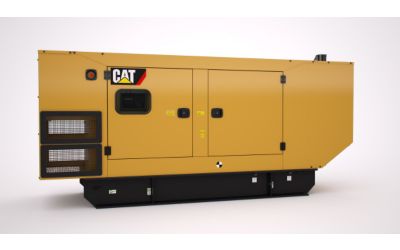

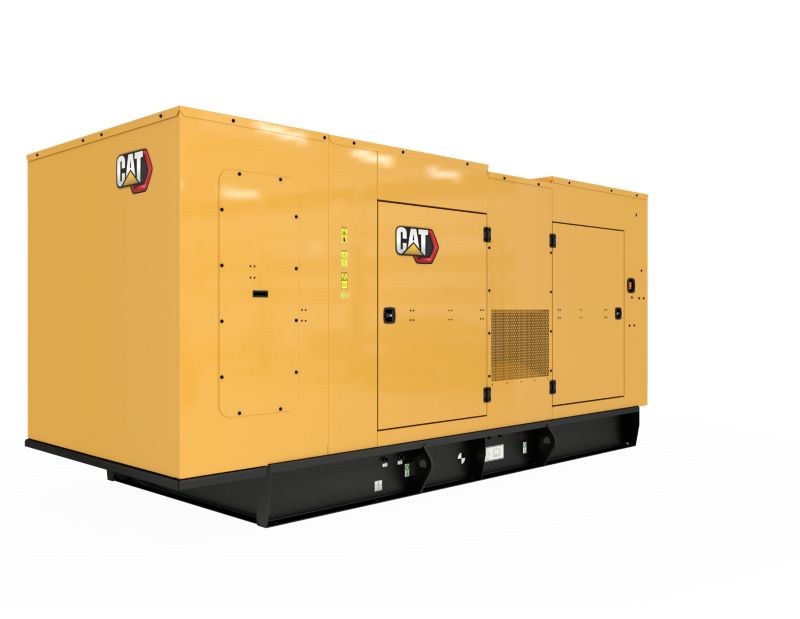

Enclosure

Features

Specifications

  • Generator Set Specifications
    Spec Value
    Minimum Rating 180 ekW
    Maximum Rating 300 ekW
    Emissions/Fuel Strategy EU Stage IIIA, Low Fuel
    Voltage 220 to 480 Volts
    Frequency 60 Hz
    Speed 1800 rpm
    Duty Cycle Standby, Prime
  • Engine Specifications
    Spec Value
    Engine Model C9 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
    Bore 4.41 in
    Stroke 5.87 in
    Displacement 537.01 in³
    Compression Ratio 16.1:1
    Aspiration Air to Air Aftercooled
    Fuel System Hydraulic electronic unit injection
    Governor Type Adem™A4
  • Generator Set Dimensions
    Spec Value
    Length - Maximum 157 in
    Width - Maximum 47.5 in
    Height - Maximum 73.5 in

Standard Equipment

Air Inlet System

  • Air cleaner, light duty with disposable paper filter
  • Turbocharger
  • Air cleaner, light duty with disposable paper filter

Control Panels

  • EMC 4.2
  • EMCP4.4 control panel

Cooling System

  • Radiator and cooling fan with guard
  • Fan drive, battery charging alternator drive
  • Coolant drain line with valve
  • Caterpillar extended life coolant
  • Radiator and cooling fan with guard

Exhaust System

  • Stainless steel exhaust flex, gaskets, rain cap & SAE exhaust flange for customer use; shipped loose
  • Flange for customer; shipped loose
  • Stainless steel exhaust flex, gaskets, rain cap and SAE exhaust

Fuel System

  • Standard open set fuel tank / base supplied
  • Base, formed steel with single wall integral 8-hour fuel tank
  • Standard open set fuel tank / base supplied
  • Base, formed steel with single wall integral 8-hour fuel tank

Generators and Generator Attachments

  • Mandatory option circuit breaker, IEC, 3 pole mounted in powercentre
  • Power centre, IP22
  • Voltage regulator (single phase sensing)
  • 12 leads
  • IP23 protection
  • Segregated low voltage (AC/DC) wiring panel
  • IP23 protection
  • 12 leads

Governing System

  • Cat electronic governor (ADEM A4)
  • Cat electronic governor (ADEM A4)

Lube System

  • Oil cooler
  • Lubricating oil
  • Oil drain valves

Mounting System

  • Captive linear vibration isolators between base and engine-generator
  • Includes lifting provisions and termination points for coolant and lube oil drain lines

Starting / Charging System

  • 24V battery with rack and cables

General

  • Engine and alternator re-paint, Caterpillar Yellow
  • Engine and alternator re-paint, Caterpillar Yellow

Optional Equipment

Certifications

  • European certificate for conformance
  • Global certificate fpr CIS

Air inlet system

  • Single element air cleaner

Circuit Breakers

  • 4 Pole (IEC-100% rated) circuit breaker upgrades: 400, 630, 800 and 100 amps

Control Panels

  • Oil temperature displays
  • Control panel protective devices: Earth fault relay ; Earth leakage ground fault ; overload shutdown via breaker ; Low fuel level shutdown ; Low fuel level alarm ; Fuel level sensor

Cooling System

  • Radiator duct flange
  • Low coolant temperature alarm

Enclosures

  • Sound attenuated enclosure
  • High ambient sound attenuated enclosure

Exhaust System

  • Mufflers - End in / End out; 10 dBA or 25 dBA attenuation
  • 5 and 6 inch elbow kits
  • 6 inch flange
  • 5 - 6 inch flange adaptor

Fuel System

  • Integral duel wall fuel tank base

Generators and Attachments

  • Permanent magnet generator
  • Oversize, AREP, CIP generators

Mounting System

  • Narrow skid base

Starting / Charging System

  • Battery disconnet switch
  • Jacket water heater
  • 5 Amp single battery charger
