Caterpillar

C9 275-330 kVA ACERT

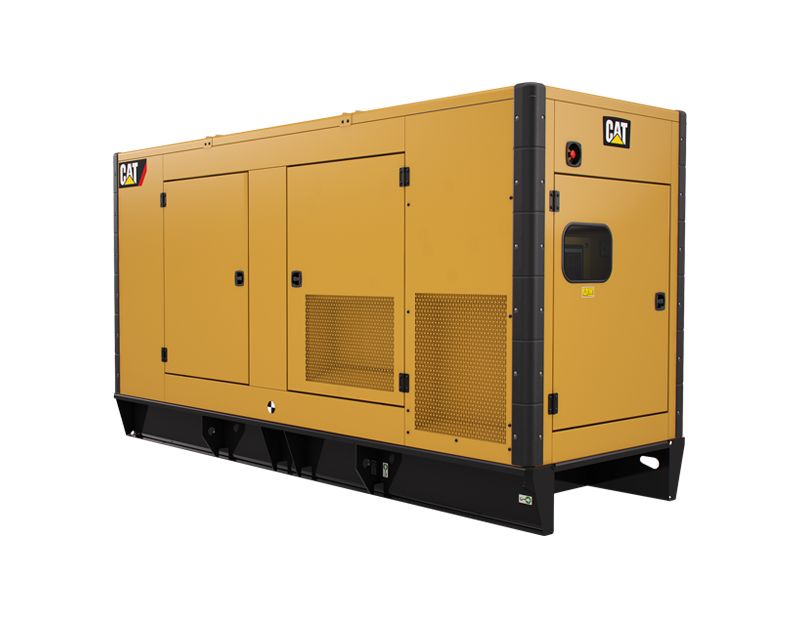

C18 High Ambient Acoustic Enclosure

Photos

  • Enclosure
    Enclosure
  • Enclosure
    Enclosure

Documents

Features

Robust/Highly Corrosion Resistant Construction

Robust/Highly Corrosion Resistant Construction

  • Factory installed on integral fuel tank base
  • Environmentally friendly, polyester powder
    • baked paint
  • 1.6 mm (0.063 in) galvanized steel
  • All around overhanging base to protect enclosure
  • High-grade engineering thermoplastic corner
    • posts for protection
  • Compression door latches giving solid door seal
  • Zinc plated or black coated stainless steel
    • fasteners
  • Internally mounted residential exhaust silencing system

Robust/Highly Corrosion Resistant Construction

  • Factory installed on integral fuel tank base
  • Environmentally friendly, polyester powder
    • baked paint
  • 1.6 mm (0.063 in) galvanized steel
  • All around overhanging base to protect enclosure
  • High-grade engineering thermoplastic corner
    • posts for protection
  • Compression door latches giving solid door seal
  • Zinc plated or black coated stainless steel
    • fasteners
  • Internally mounted residential exhaust silencing system

Excellent Access

Excellent Access

  • Large cable entry area for installation ease
  • Accommodates rear mounted breaker and
    • control panel
  • Double doors on both sides
  • Vertically hinged doors with solid bar door
    • stays to hold doors open at 135° rotation
  • Lube oil and coolant drains pipes to exterior
    • of enclosure and terminated drain valves
  • Radiator fill cover

Excellent Access

  • Large cable entry area for installation ease
  • Accommodates rear mounted breaker and
    • control panel
  • Double doors on both sides
  • Vertically hinged doors with solid bar door
    • stays to hold doors open at 135° rotation
  • Lube oil and coolant drains pipes to exterior
    • of enclosure and terminated drain valves
  • Radiator fill cover

Security And Safety

Security And Safety

  • Lockable access doors which give full access to control panel and breaker
  • Cooling fan and battery charging alternator fully guarded
  • Fuel fill, oil fill and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader-bar lifting to ensure safety
  • Control panel viewing window
  • Stub-up area is rodent proof

Security And Safety

  • Lockable access doors which give full access to control panel and breaker
  • Cooling fan and battery charging alternator fully guarded
  • Fuel fill, oil fill and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader-bar lifting to ensure safety
  • Control panel viewing window
  • Stub-up area is rodent proof

Options

Options

  • Cat® yellow or white paint
  • Integral dual wall fuel tank base for total fluid containment (fuel, oil and coolant)

Options

  • Cat® yellow or white paint
  • Integral dual wall fuel tank base for total fluid containment (fuel, oil and coolant)

Specifications

  • Weights and Dimensions
    Spec Value
    Height 2289 mm
    Weight 5952 kg
    Length 5320 mm
    Width 1920 mm
