The Cat® SE47 FM screed provides application versatility, easy set-up, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other mid-sized applications. Front-mounted extenders easily navigate curbs, light poles, turnouts, and other obstacles.
Cat

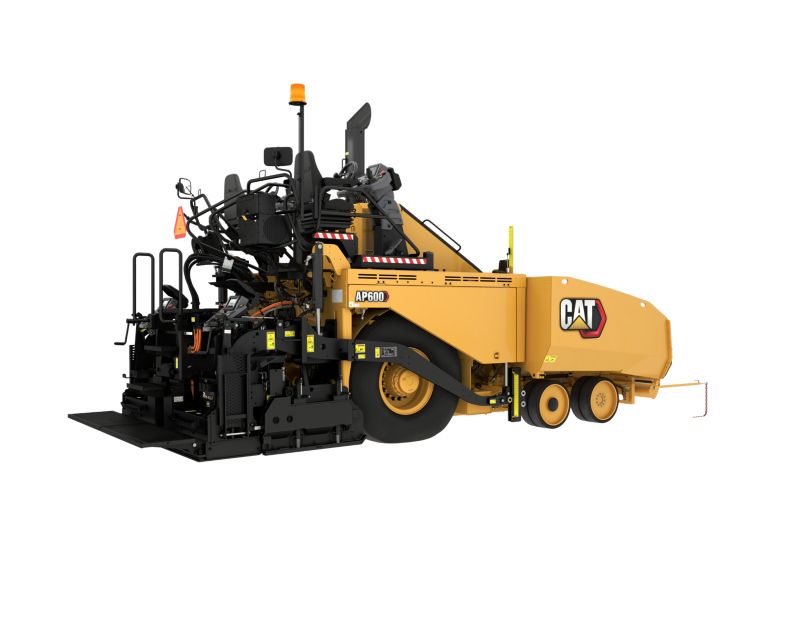

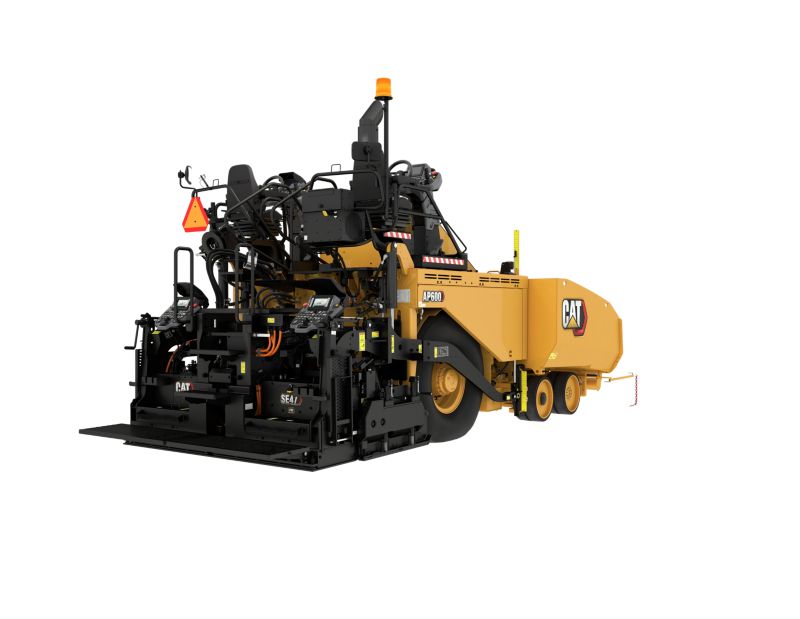

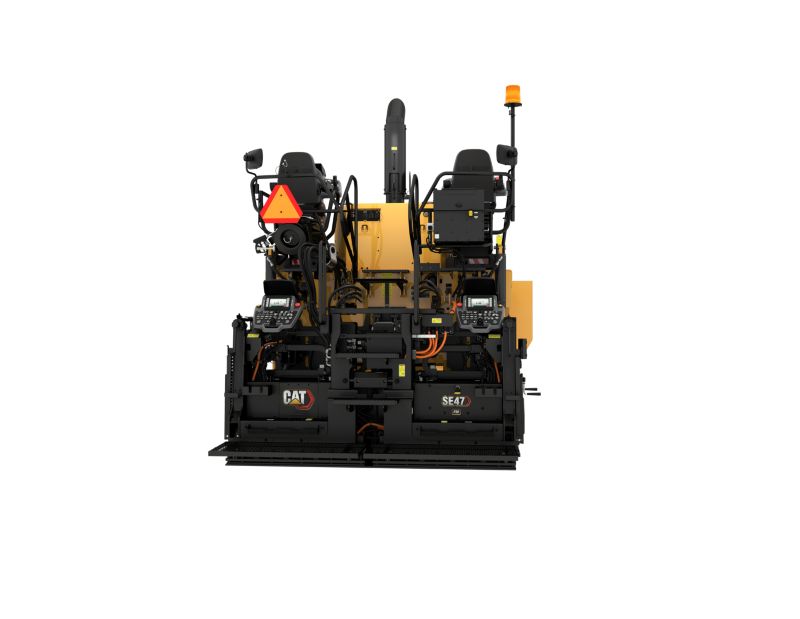

SE47 FM (411) Vibratory Screed
Overview
Photos
-

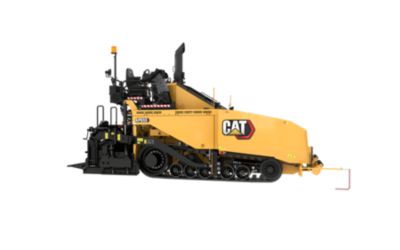

SE47 FM (411) Screed -

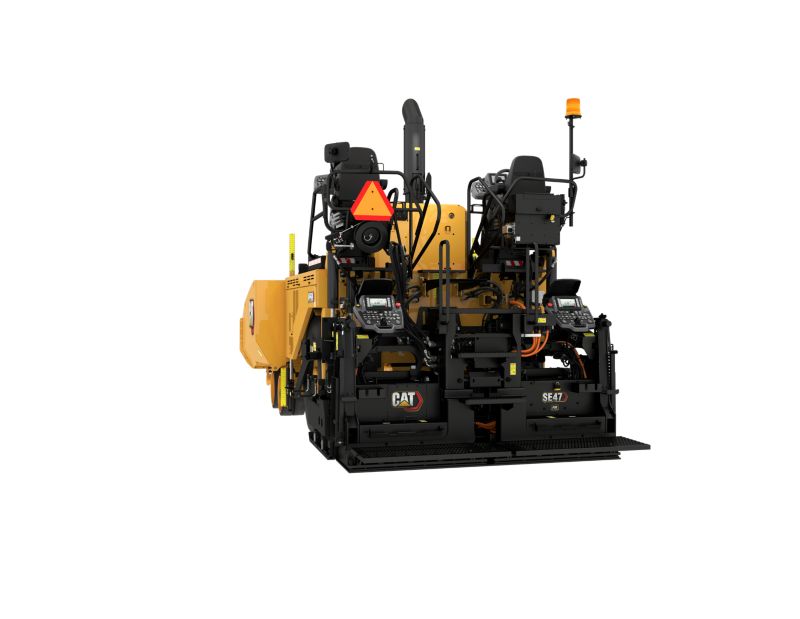

SE47 FM (411) Screed -
SE47 FM (411) Screed -
SE47 FM (411) Screed
Videos
360° View
Exterior
360� Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360� interior view. Double click on the image to zoom in on any area of the product.
Features
Application Versatility
- The standard paving range of 2.44 m - 4.7 m (8' - 15' 6") and maximum width of 6.25 m (20' 6") provides a balance between urban and highway paving applications.

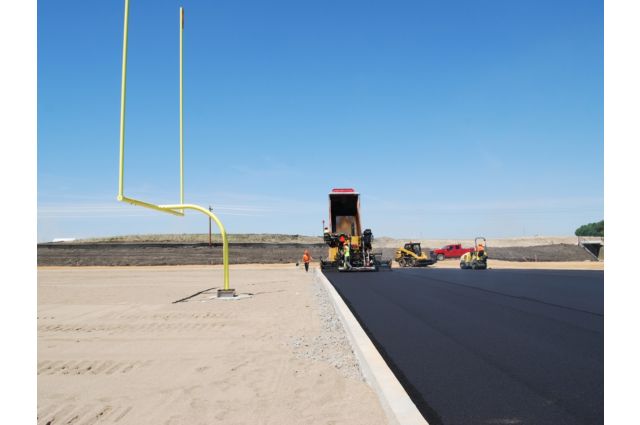

- Common applications include parking lots, urban and rural roads, subdivision streets, and highways

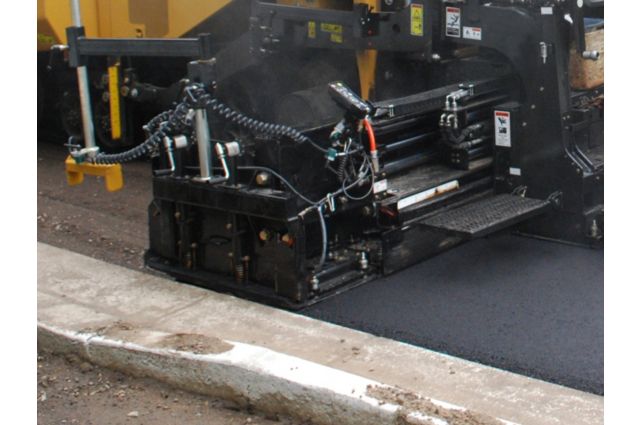

- Front-mounted extenders make maneuvering around abstacles easy by providing the ability to retract without first clearing material from the extender
- Power berm options provide the ability to create a 305 mm (12") or 457 mm (18") wide berms with a variable height up to 102 mm (4")
Application Versatility
- The standard paving range of 2.44 m - 4.7 m (8' - 15' 6") and maximum width of 6.25 m (20' 6") provides a balance between urban and highway paving applications.
- Common applications include parking lots, urban and rural roads, subdivision streets, and highways
- Front-mounted extenders make maneuvering around abstacles easy by providing the ability to retract without first clearing material from the extender
- Power berm options provide the ability to create a 305 mm (12") or 457 mm (18") wide berms with a variable height up to 102 mm (4")
Quick Adjustment

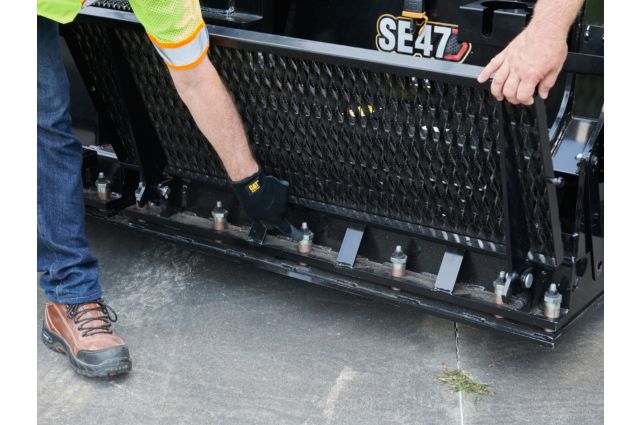

- Trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to improve paving quaility and extend screed plate life
- Extender angle of attack is easily accessible from the top of the extender frame
- Inner and outer strike-off adjustments are connected to provide single point modification that ensures equal adjustment across the width of the screed
- Slope stops help maintain performance
Quick Adjustment
- Trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to improve paving quaility and extend screed plate life
- Extender angle of attack is easily accessible from the top of the extender frame
- Inner and outer strike-off adjustments are connected to provide single point modification that ensures equal adjustment across the width of the screed
- Slope stops help maintain performance
Smooth Material Flow
- Screed plate widths of 610 mm (24") on the main and 210 mm (9") on the extenders provide smooth flow
- Heated end gate option improves material flow for enhanced longitudinal joints
- The in-line extension cylinders and rigid frame design reduces deflection in the extenders for better mat quality
Smooth Material Flow
- Screed plate widths of 610 mm (24") on the main and 210 mm (9") on the extenders provide smooth flow
- Heated end gate option improves material flow for enhanced longitudinal joints
- The in-line extension cylinders and rigid frame design reduces deflection in the extenders for better mat quality
Quick Heat, Even Distribution
- Screed plate heating in as little as 25 minutes to 130º C (266º F)
- Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure
- U-shaped heating elements combined with zone monitoring helps ensure even heat distribution and smooth asphalt textures
Quick Heat, Even Distribution
- Screed plate heating in as little as 25 minutes to 130º C (266º F)
- Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure
- U-shaped heating elements combined with zone monitoring helps ensure even heat distribution and smooth asphalt textures
Simple Operation

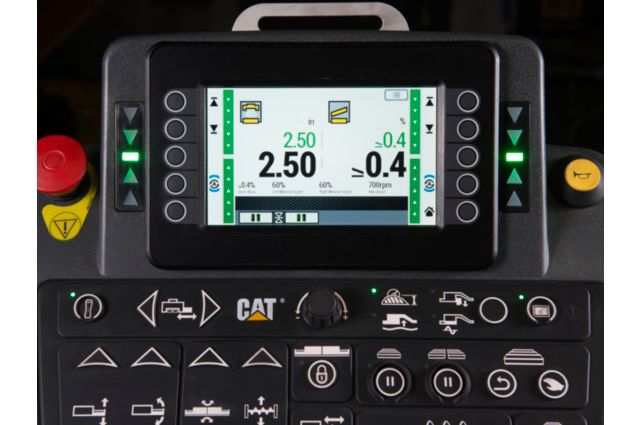

- Operating displays can be tailored to specific language requirements with multiple options available
- Exclusive 2-speed, proportional extender control provides smooth adjustment when transitioning paving widths
- Screed operating consoles are equipped with ratio adjustment for the augers and conveyors, providing the ability to modify material flow
- Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures
Simple Operation
- Operating displays can be tailored to specific language requirements with multiple options available
- Exclusive 2-speed, proportional extender control provides smooth adjustment when transitioning paving widths
- Screed operating consoles are equipped with ratio adjustment for the augers and conveyors, providing the ability to modify material flow
- Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures
Pendent Control (Option)
- Independent feeder system control includes manual and pause functions for each auger and conveyor
- Emergency engine stop feature
- Simple tow-point and berm attachment adjustments can be easily made with good visibility from the remote position
Pendent Control (Option)
- Independent feeder system control includes manual and pause functions for each auger and conveyor
- Emergency engine stop feature
- Simple tow-point and berm attachment adjustments can be easily made with good visibility from the remote position

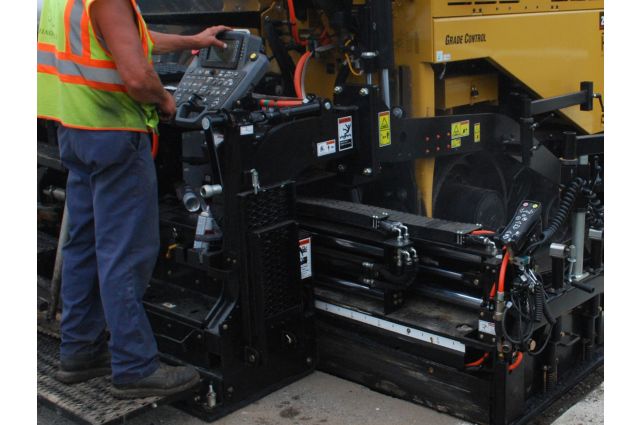

Cat® Grade Control (Option)
- Factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
- User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
- Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sensor, and cross-coupling feature that maintains elevation with height adjustment
Cat® Grade Control (Option)
- Factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
- User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
- Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sensor, and cross-coupling feature that maintains elevation with height adjustment
Service and Repair Kits
- Paver and screed service and repair kits include the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Service and Repair Kits
- Paver and screed service and repair kits include the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Specifications
-
Weights
Spec Value Standard Weight 6200 lb -
Operating Specifications
Spec Value Standard Paving Range 2.44 - 4.7 m (8' - 15' 6") Maximum Paving Width 20.5 ft Maximum Paving Depth 10 in Heating Time - Maximum Width 25 minutes Heating Time - Standard Width 15 minutes Crown Range -5% to +10% Vibratory Speed Range 0 to 3000 vpm Extender Height Range -41 mm to +6.5 mm Extender Slope Range 0% to +9% -
Dimensions
Spec Value Minimum Width - Endgates Attached 118 in Transport Length - Tractor and Screed 20.9 ft Screed Plates Width, Front to Back, Main Screed 24 in Screed Plates Width, Front to Back, Extenders 9 in Length - Front to Back, Endgates Attached 86 in Length - Front to Back, Endgates Removed 59 in
Standard Equipment
Material Delivery
- Thickness screws _ clockwise or counterclockwise
- End gate_manual
Operating Environment
- Level holder
- Lockable storage
- Shovel holder
Power Controls
- Crown
- Slope
- Extender height
Service and Repair
- Service repair kits
Safety
- Horn
Optional Equipment
Operating Environment
- Pendent control
- Visor _ LCD display
Technology
- Cat Grade Control
Safety
- Lights_roading
Material Delivery
- Berm attachments
- Cutoff shoe
- Drop arm stabilizer
- End gate_heated
- End gate shoe_safety edge
- ExtensionsExtension _ 100 mm (4") high angle of attack
- Extension _ 305 mm (12")
- Extension _ 457 mm (18")
- Extension _ 610 mm (24")
- Screed plate _ dove tail
- Tapered notch extension with 457 mm (18")
- Vibratory sled _ utilized with tapered notch
