The AP655 asphalt paver is a rubber track paver that delivers a high-return on investment. This high-production paver offers a fast heating screed system, durable components, and easy to use technology, while consuming less fuel. A variety of screed choices provide versatility and high-quality results on interstates, highways, airports, and parking lots.
Cat
AP655 Mobil-Trac Paver
Overview
Photos
-

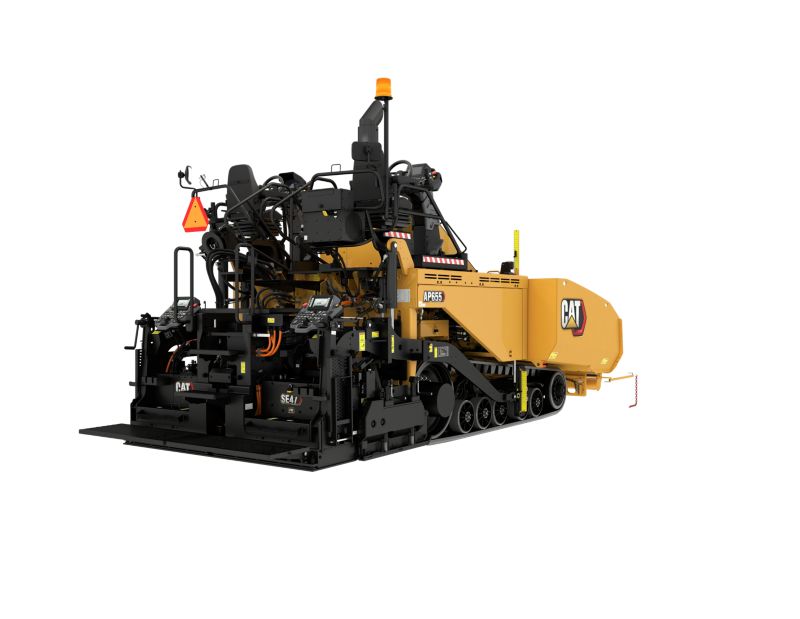

AP655 Paver -

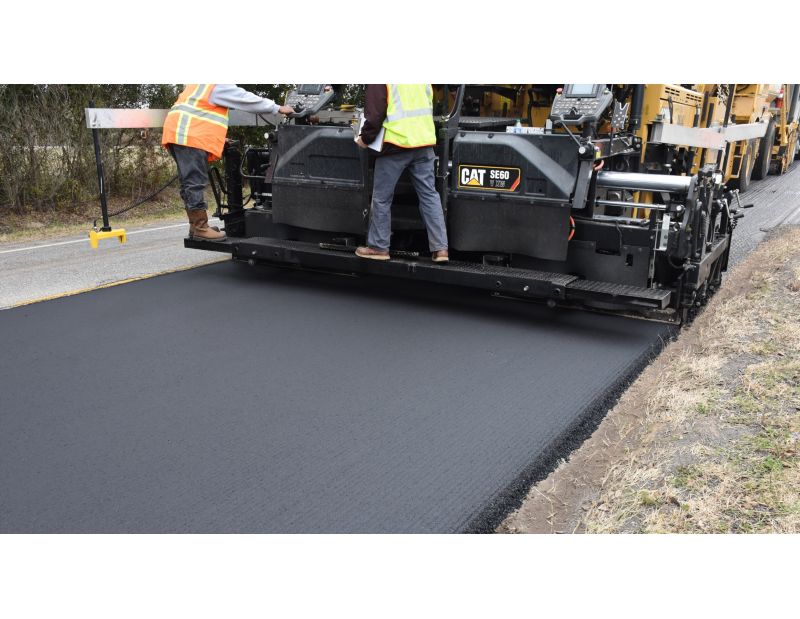

AP655 Paver -

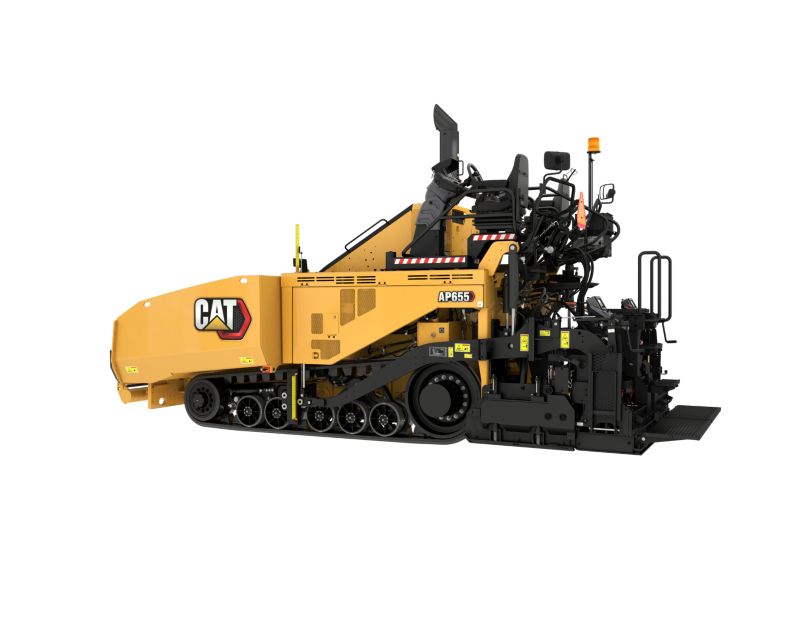

AP655 Paver -

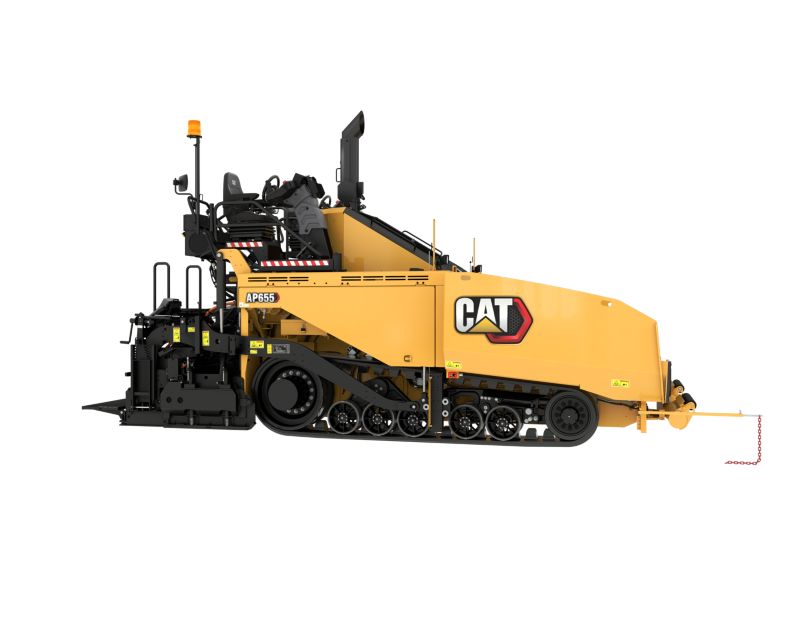

AP655 Paver -
AP655 Paver
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Features
High Return on Investment
- Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer
- Fast heating screed leads to more daily production, heating time in as little as 15 minutes
- Mobil-trac™ undercarriage design delivers excellent traction, good flotation, and fast travel that helps lead to increased production
- Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability
High Return on Investment
- Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer
- Fast heating screed leads to more daily production, heating time in as little as 15 minutes
- Mobil-trac™ undercarriage design delivers excellent traction, good flotation, and fast travel that helps lead to increased production
- Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability
Technology That Works For You
- Pave Start Assistant saves set-up profiles for repeatable use on future job sites including: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features
- A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display
- Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement
- Cat Grade Control option is integrated into the tractor and screed displays for optimized operator efficiency
- Thermal mapping option utilizes an infra-red camera mounted on a fixed-position mast that captures the entire width of the asphalt surface behind the screed. An LCD display mounted near the screed console provides real-time visibility to the surface being paved
Technology That Works For You
- Pave Start Assistant saves set-up profiles for repeatable use on future job sites including: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features
- A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display
- Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement
- Cat Grade Control option is integrated into the tractor and screed displays for optimized operator efficiency
- Thermal mapping option utilizes an infra-red camera mounted on a fixed-position mast that captures the entire width of the asphalt surface behind the screed. An LCD display mounted near the screed console provides real-time visibility to the surface being paved
Quality Results, Higher Earnings
- Versatile screed designs deliver excellent ride, density, and mat texture while providing superior adjustment; available with front-mount extenders, rear-mount extenders, or tamper-bar systems
- Tow-point design utilizes exclusive linkage for optimal screed flotation
- Exclusive 2-speed proportional control on the screed extenders
- Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
Quality Results, Higher Earnings
- Versatile screed designs deliver excellent ride, density, and mat texture while providing superior adjustment; available with front-mount extenders, rear-mount extenders, or tamper-bar systems
- Tow-point design utilizes exclusive linkage for optimal screed flotation
- Exclusive 2-speed proportional control on the screed extenders
- Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
Low Owning and Operating Costs
- Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication
- 4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption
- Million cycle switches provide reliability
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
- Heating elements slide-out for easy replacement
- Machined screed frames simplify screed plate replacement
- Enhanced hopper flashing with increased memory and temperature resiliency offers better performance during truck exchanges
Low Owning and Operating Costs
- Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication
- 4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption
- Million cycle switches provide reliability
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
- Heating elements slide-out for easy replacement
- Machined screed frames simplify screed plate replacement
- Enhanced hopper flashing with increased memory and temperature resiliency offers better performance during truck exchanges
More Comfort
- Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility
- Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort
- Eco-mode provides low sound levels that supports clear communication with the crew
- High visibility 76 mm (3") seat belt helps with crew safety compliance
- USB port simplifies software updates
- Cup holders offer convenience
More Comfort
- Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility
- Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort
- Eco-mode provides low sound levels that supports clear communication with the crew
- High visibility 76 mm (3") seat belt helps with crew safety compliance
- USB port simplifies software updates
- Cup holders offer convenience
Easy Viewing Displays
- Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions
- Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, tamper and vibratory speeds, Cat Grade Control (option), and stored operator preferences
- Operating displays can be tailored to specific language requirements with multiple options available
Easy Viewing Displays
- Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions
- Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, tamper and vibratory speeds, Cat Grade Control (option), and stored operator preferences
- Operating displays can be tailored to specific language requirements with multiple options available
Product Link™ Elite
- Make timely, fact-based decisions to maximize efficiency, improveproductivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time
- Diagnostic codes are made available through online web applications
Product Link™ Elite
- Make timely, fact-based decisions to maximize efficiency, improveproductivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time
- Diagnostic codes are made available through online web applications
Service and Repair Kits
- Paver and screed service and repair kits include the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Service and Repair Kits
- Paver and screed service and repair kits include the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Specifications
-
Dimensions
Spec Value Paving Range with SE47 FM 2.44 - 6.25 m (8' - 20' 6") Paving Range with SE50 V 2.55 - 6.5 m (8' 4" - 21' 4") Paving Range with SE60 V 3.0 m - 7.65 m (9' 10" - 25') Paving Range with SE60 FM 3.0 m - 7.8 m (10' - 25' 6") Operating Length 21.75 ft Operating Width 10.8 ft Overall Height 12.3 ft Transport Length 20.9 ft Transport Width 9.8 ft Transport Height 9.7 ft -
Engine
Spec Value Engine Power (1) 173 hp Engine Model (1) Cat C4.4 -
Operating Specifications
Spec Value Maximum Travel Speed 9 mile/h Maximum Paving Speed 210 ft/min Inside Turn Radius 1.5 ft Maximum Throughput Capacity 1433 ton(US)/h -
Weights
Spec Value Operating weight with SE47 FM 40560 lb Operating weight with SE50 V 41597 lb Operating weight with SE60 FM 42150 lb Operating weight with SE60 V 41890 lb Shipping Weight - Paver Only 33730 lb -
Service Refill Capacities
Spec Value Fuel Tank Capacity 73 gal (US) DEF Tank 5 gal (US) Cooling System 8 gal (US) Hydraulic Oil Tank 58 gal (US) Washdown Tank 7.9 gal (US)
Standard Equipment
Operating Environment
- Dual operating stations
- Steering guide
- Ventilation System
Technology
- Product Link™ Elite 641_cellular
Powertrain
- Automatic engine speed control
- Cat C4.4 Engine
- Variable speed cooling fan
- Eco-mode
- Extended life hydraulic oil
Electrical system
- 70 kW generator
- Cat Electronic Technician
- Machine security system
- Remote jump start receptacle
- Automotive type fuse system
- 12-volt power receptacle
- 100 amp alternator
- 1000 CCA batteries
Material Delivery
- Contact-type material feed sensors
- Adjustable push-roller
Service and Maintenance
- Extended-life coolant
- Remote access drains
- Scheduled Oil sampling ports
- Sight gauges
- Engine coolant heater
Safety
- Back-up alarm
- Horn
- Working lights
- Mirror package
- Vandal covers
Optional Equipment
Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Product Link™ Elite 631_satellite
- Thermal mapping
Operating Environment
- Air-ride seat
- Hard top canopy
- Deceleration pedal
- Friction steering
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Screen visor
- Windshield
Powertrain
- Ballast_front weights
- Mobil-trac belt - smooth
- Mobil-trac belt - tread bar
Electrical System
- Auxiliary power panel_6.6 kW
Material Delivery
- Auger extension
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Sonic feed sensors
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Service repair kits
- Uptime kits
Screed Choices
- SE47 FM Screed
- SE50 V Screed
- SE60 V Screed
- SE60 FM Screed
Grade References
- Rigid Ski, 9.15 m (30') and 12.2 m (40')
- Sonic Averaging Beam
