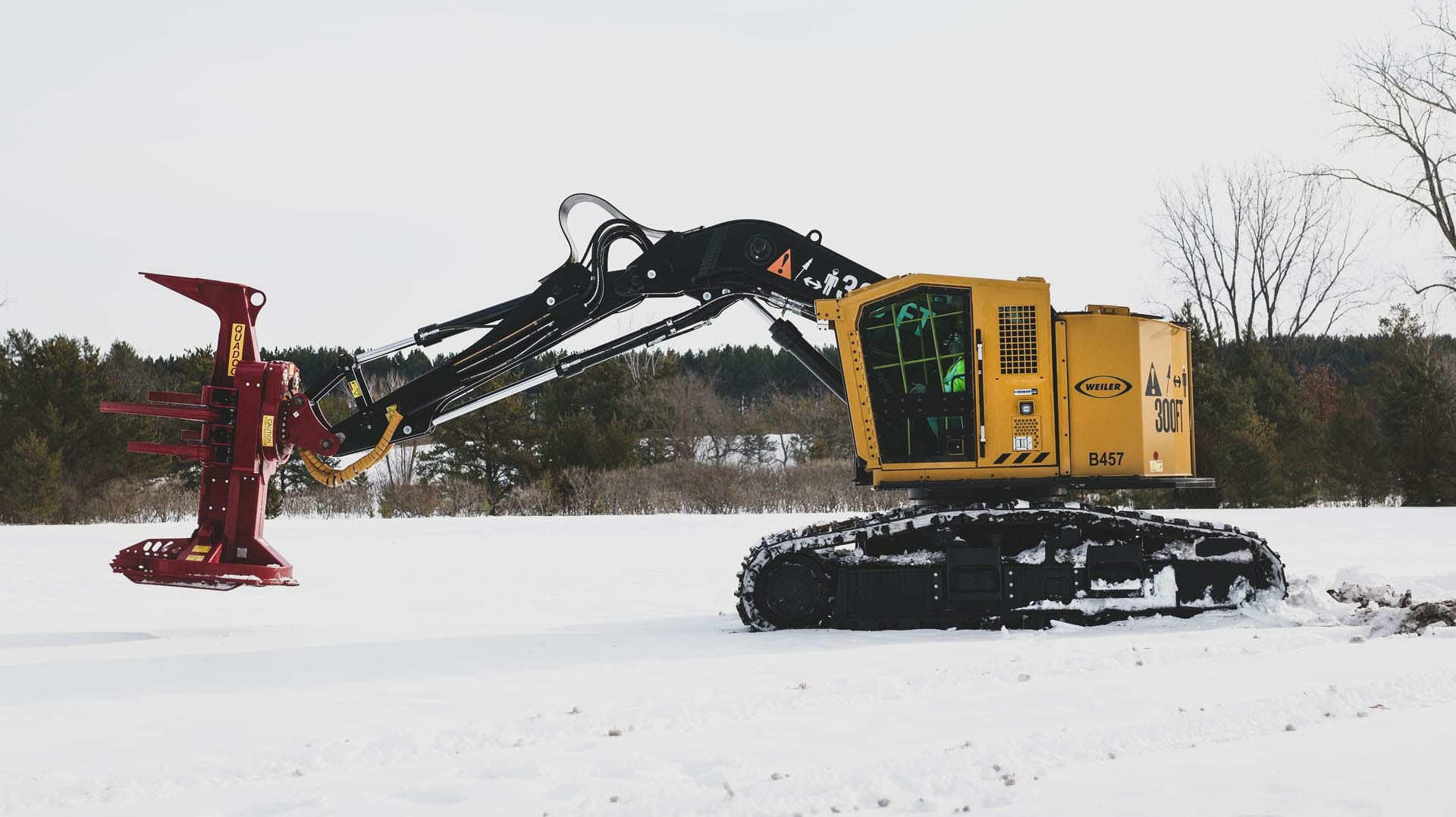

Track Feller Bunchers
Weiler track feller bunchers provide industry-leading lift capacity throughout full reach, a key benefit in large timber. A robust undercarriage utilizes proven components, customized for demanding forestry conditions while maintaining high ground clearance. Both reduced tail swing and full tail swing machines are available as tilting or non-tilting to meet a variety of application requirements.
Specifications
Units for specifications

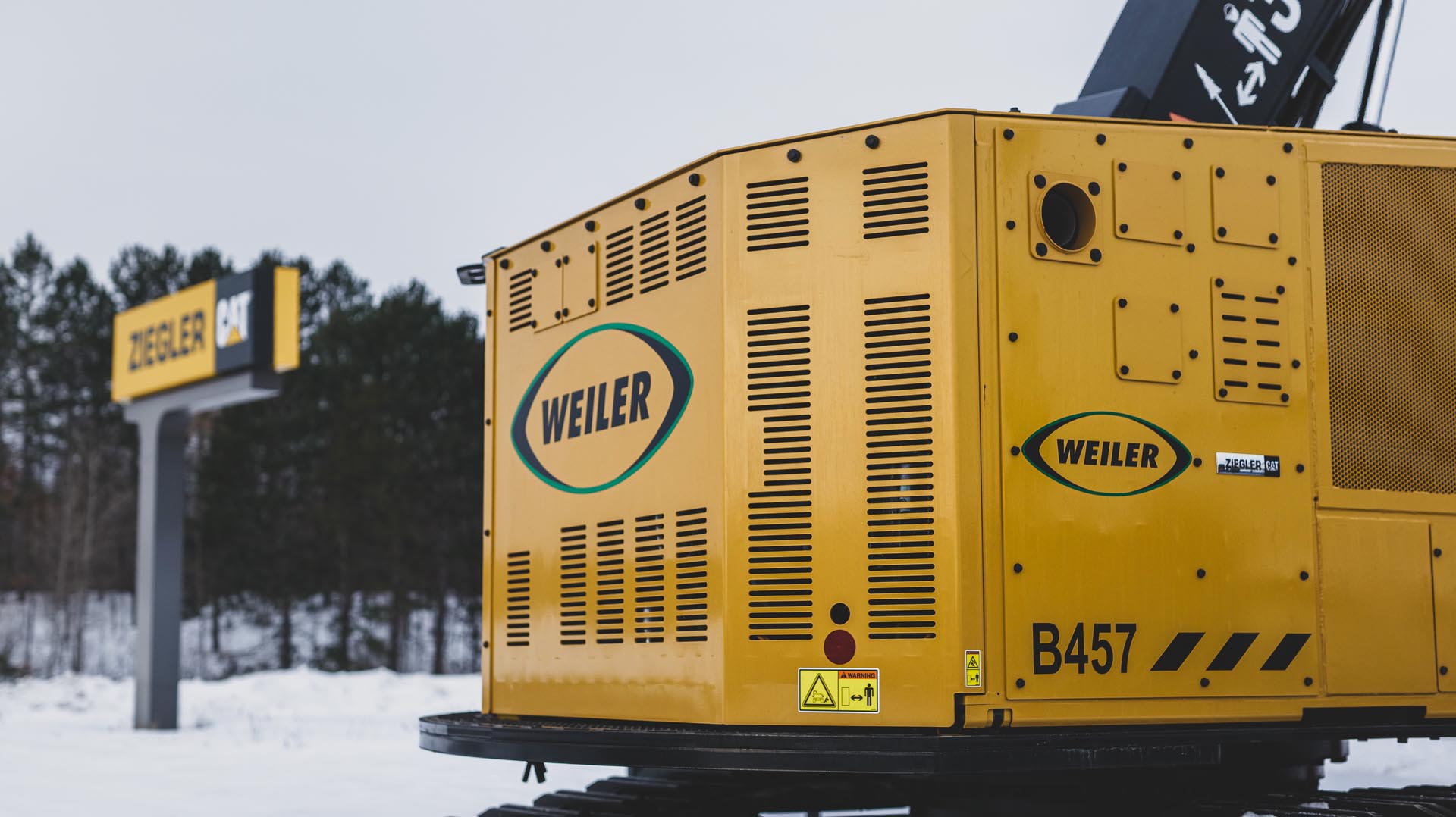

B457
| Engine Model | Cat 9.3 Tier 4 Final |
|---|---|
| Gross Power | 298 hp |
| Engine Displacement | 568 in3 |
| Fuel Capacity | 216 gal |
| DEF Capacity | 5.0 gal |
| Wheelbase | 110.0” |
| Weight W/ out Head | 66,270 lbs |
| Maximum Flow | 322 Gpm |
| Max Reach (w/ 201 saw) | 27’ 4” |
| Lift at Max Reach (No Head) | 13,918 lbs |
| Tractive Effort | 68,848 lbf |
| Undercarriage Size | 336 HD HEX |
| Undercarriage Pitch | 8.5” |
| Ground Clearance | 33” |
| Track Gauge | 102” |
| Track Length | 192” |
| Engine Oil Capacity | 10.6 gal |
| Hydraulic System Capacity | 79.8 gal |
| Transport Width | 10’ 11” |
| Height | 11’ 3” |
| Length (Boom ext., w/ 201 saw) | 34’ 6” |
| Length (boom tuck., no head) | 27’ 6” |
B458
| Engine Model | Cat 9.3 Tier 4 Final |
|---|---|
| Gross Power | 298 hp |
| Engine Displacement | 568 in3 |
| Fuel Capacity | 216 gal |
| DEF Capacity | 5.0 gal |
| Weight W/ out Head | 79,221 lbs |
| Maximum Flow | 322 Gpm |
| Max Reach (w/ 201 saw) | 26’ 10”” |
| Lift at Max Reach (No Head) | 13,918 lbs |
| Tractive Effort | 81,229 lbf |
| Undercarriage Size | 336 HD HEX |
| Undercarriage Pitch | 8.5” |
| Ground Clearance | 35” |
| Track Gauge | 114” |
| Track Length | 191” |
| Engine Oil Capacity | 10.6 gal |
| Hydraulic System Capacity | 79.8 gal |
| Transport Width | 11’ 11” |
| Height | 12’ 11” |
| Length (Boom ext., w/ 201 saw) | 34’ 1” |
| Length (boom tuck., no head) | 25’ 7” |
