The Cat® MH3040 material handler builds upon the legacy of the M325D L MH to provide the power and reliability you need for your toughest material handling applications. A new cab along with up to 25% reduced fuel costs and up to 20% reduced maintenance costs combine with proven components to bring you the next generation of Cat Material Handlers.
Cat

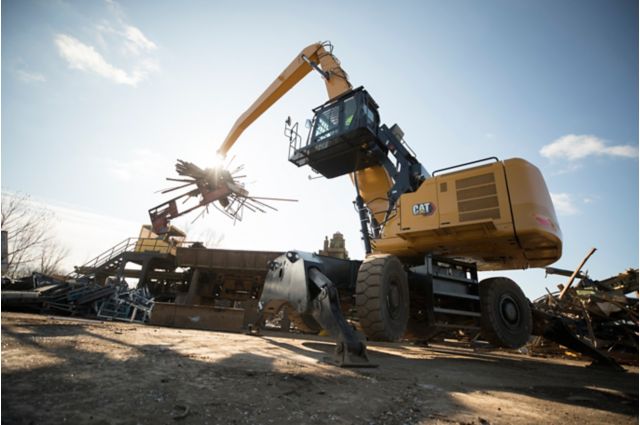

MH3040 Material Handler
Overview
Photos
-
MH3040 Material Handler -
MH3040 Forestry -
MH3040 Wheel Material Handler Customer Benefits
Videos
360° View
Exterior
Interior
360° Interior View
Features
LATEST FEATURES
- New optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without you taking your hands off the joysticks.
LATEST FEATURES
- New optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without you taking your hands off the joysticks.
RELIABILITY AND DURABILITY YOU CAN COUNT ON
- Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to ensure quality and reliability.
- The upper frame uses specially designed mountings to support the heavy-duty cab, and the lower frame is reinforced to enhance component durability.
- Work up to 3000 m (9,840 ft) above sea level without de-rating.
- Don't let the temperature stop you from working. The MH3040 has a standard high-ambient temperature capability of 43°C (109°F) and cold start capability of -20°C (-4°F). Consult your Caterpillar dealer for additional information on special Configurations of your machine.
- Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
RELIABILITY AND DURABILITY YOU CAN COUNT ON
- Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to ensure quality and reliability.
- The upper frame uses specially designed mountings to support the heavy-duty cab, and the lower frame is reinforced to enhance component durability.
- Work up to 3000 m (9,840 ft) above sea level without de-rating.
- Don't let the temperature stop you from working. The MH3040 has a standard high-ambient temperature capability of 43°C (109°F) and cold start capability of -20°C (-4°F). Consult your Caterpillar dealer for additional information on special Configurations of your machine.
- Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
HIGH PERFORMANCE WITH LOWER FUEL CONSUMPTION
- Use up to 25 percent less fuel than the M325D L MH in similar applications.
- The C7.1 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final and EU Stage V emission standards with an aftertreatment system that requires no maintenance or downtime.
- The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need.
- Valve priority puts hydraulic pressure and flow where you need it.
- Boost lifting capabilities and improve the controllability of heavy loads with heavy lift mode.
- Match your machine to the job with selectable power modes. Let Smart mode automatically match engine and hydraulic power to working conditions. Power mode constantly provides maximum productivity.
- Standard Product Link collects data automatically and accurately from your assets - any type and any brand. Information such as location, hours, fuel usage, productivity, idle time, maintenance alerts, diagnostic codes, and machine health can be viewed online through web and mobile applications.
HIGH PERFORMANCE WITH LOWER FUEL CONSUMPTION
- Use up to 25 percent less fuel than the M325D L MH in similar applications.
- The C7.1 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final and EU Stage V emission standards with an aftertreatment system that requires no maintenance or downtime.
- The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need.
- Valve priority puts hydraulic pressure and flow where you need it.
- Boost lifting capabilities and improve the controllability of heavy loads with heavy lift mode.
- Match your machine to the job with selectable power modes. Let Smart mode automatically match engine and hydraulic power to working conditions. Power mode constantly provides maximum productivity.
- Standard Product Link collects data automatically and accurately from your assets - any type and any brand. Information such as location, hours, fuel usage, productivity, idle time, maintenance alerts, diagnostic codes, and machine health can be viewed online through web and mobile applications.
SUPERIOR SERVICEABILITY
- Expect up to 20 percent lower maintenance costs than the M325D L MH.
- Track your machine’s filter life and maintenance intervals via the in-cab monitor.
- No required maintenance on the Cat Clean Emissions Module.
- Change all fuel filters at a synchronized 1,000 hours.
- Expect the new air intake filter with precleaner to last up to 1,000 hours.
- The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval - 50 percent longer than previous filter designs.
- High-efficiency, electrically driven cooling fans run only when needed; you can program intervals, so they automatically reverse to keep cores clean without interrupting your work.
- Fine mesh protects the cooling hood from dust and debris.
- S·O·SSM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.
SUPERIOR SERVICEABILITY
- Expect up to 20 percent lower maintenance costs than the M325D L MH.
- Track your machine’s filter life and maintenance intervals via the in-cab monitor.
- No required maintenance on the Cat Clean Emissions Module.
- Change all fuel filters at a synchronized 1,000 hours.
- Expect the new air intake filter with precleaner to last up to 1,000 hours.
- The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval - 50 percent longer than previous filter designs.
- High-efficiency, electrically driven cooling fans run only when needed; you can program intervals, so they automatically reverse to keep cores clean without interrupting your work.
- Fine mesh protects the cooling hood from dust and debris.
- S·O·SSM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.
WORK IN COMFORT IN THE ALL-NEW CAB
- The wide seat adjusts for operators of all sizes.
- Get in and out of the cab easier using the tip-up left console.
- Control the machine comfortably with easy-to-reach controls all located in front of you.
- Standard automatic climate control keeps you at the right temperature all shift long.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
- Use the standard radio's USB ports and Bluetooth® technology to connect to personal devices.
WORK IN COMFORT IN THE ALL-NEW CAB
- The wide seat adjusts for operators of all sizes.
- Get in and out of the cab easier using the tip-up left console.
- Control the machine comfortably with easy-to-reach controls all located in front of you.
- Standard automatic climate control keeps you at the right temperature all shift long.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
- Use the standard radio's USB ports and Bluetooth® technology to connect to personal devices.
VERSATILITY KEEPS YOU PRODUCTIVE AND PROFITABLE
- Equip your MH3040 with an optional 20kW generator for magnet operation.
- Match your machine to the application. Multiple configurations allow you to customize your machine for millyard, scrap, and log loading applications.
- Expand your work capabilities with attachments for a variety of applications.
VERSATILITY KEEPS YOU PRODUCTIVE AND PROFITABLE
- Equip your MH3040 with an optional 20kW generator for magnet operation.
- Match your machine to the application. Multiple configurations allow you to customize your machine for millyard, scrap, and log loading applications.
- Expand your work capabilities with attachments for a variety of applications.
SAFETY
- Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.
- Enjoy all-around great visibility with the help of smaller cab pillars, larger windows, and a flat engine hood design. Rearview and right-hand side-view cameras are standard.
- Joystick steering eliminates the steering column, improving front visibility and increasing cab entrance width.
- New service platform design provides easy, safe, and quick access to the upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.
- The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
- Optional Falling Object Guard System (FOGS) provides protection from falling and flying debris.
- Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose power.
SAFETY
- Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.
- Enjoy all-around great visibility with the help of smaller cab pillars, larger windows, and a flat engine hood design. Rearview and right-hand side-view cameras are standard.
- Joystick steering eliminates the steering column, improving front visibility and increasing cab entrance width.
- New service platform design provides easy, safe, and quick access to the upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.
- The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
- Optional Falling Object Guard System (FOGS) provides protection from falling and flying debris.
- Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose power.
SUSTAINABILITY
- The Cat® C7.1 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- The MH3040 emits up to 34% less CO2 than the previous M325D L MH*.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
- Cat Scheduled Oil Sampling (S·O·S) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
**Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
SUSTAINABILITY
- The Cat® C7.1 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- The MH3040 emits up to 34% less CO2 than the previous M325D L MH*.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
- Cat Scheduled Oil Sampling (S·O·S) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
**Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
Specifications
-
Engine
Spec Value Engine Model Cat C7.1 Bore 4 in Stroke 5 in Displacement 428 in³ -
Transmission
Spec Value Maximum Travel Speed 11.2 mile/h Drawbar Pull 34621 ft·lbf Maximum Gradeability 43.80% -
Hydraulic System
Spec Value Maximum Pressure - Implements 5076 psi Maximum Pressure - Swing 4061 psi Maximum Pressure - Travel 5076 psi -
Swing Mechanism
Spec Value Swing Speed 11.5 r/min Maximum Swing Torque 60628 ft-lb -
Weights
Spec Value Operating Weight 84940 lb Note Operating weight includes full fuel tank, operator, grapple 2000 kg (4,410 lb), and single tires. Weight varies depending on configuration. -
Service Refill Capacities
Spec Value Fuel Tank Capacity 125.2 gal (US) Cooling System 6.6 gal (US) Engine Oil 6.6 gal (US) Swing Drive 2.6 gal (US) Rear Axle - Housing (Differential) 5 gal (US) Front Steering Axle - Differential 6.3 gal (US) Final Drive 1.6 gal (US) Powershift Transmission 0.8 gal (US) Hydraulic System - Including Tank 86.9 gal (US) Hydraulic Tank 38.8 gal (US) Diesel Exhaust Fluid (DEF) Tank 10.8 gal (US) -
Dimensions
Spec Value Boom MH 9.3 m (30'6") Stick 7.1 m (23'3") Shipping Length 42 ft Machine Length 20.7 ft Tail Swing Radius 10.3 ft Counterweight Clearance 5.7 ft Cab Height- Lowered 12 ft Cab Height- Lowered with FOGS 12.4 ft Cab Height-Raised 20.5 ft Cab Height- Raised with FOGS 21 ft Wheel Base 10.5 ft Shipping Width 9.8 ft Ground Clearance 0.9 ft Undercarriage Length 21.1 ft -
Working Ranges
Spec Value Maximum Reach 50.8 ft Boom MH 9.3 m (30'6") Stick 7.1 m (23'3") Maximum Height 57.4 ft Maximum Dump Height 17.8 ft Maximum Depth 17.2 ft Boom Pin Height 40 ft -
Sustainability
Spec Value Recyclability 95%
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- Advanced sound suppressed TOPS cab (ISO 12117-2 compliant) with rubber mount
- High-resolution 254 mm (10") LCD touch screen monitor
- Automatic bi-level air conditioner
- Jog dial and shortcut keys for monitor control
- Keyless push-to-start engine control
- Tilt-up left-side console
- Air suspension premium seat with headrest, heater, and ventilator
- Fixed one-piece tempered windshield (P5A glass)
- Dome and lower LED interior lights
CAT TECHNOLOGY
- Cat Product Link
- Remote Services capability
ELECTRICAL SYSTEM
- Maintenance-free battery
- LED chassis light, left-hand/right-hand boom lights, cab lights - 1800 lumens
- Centralized electrical disconnect switch
- Programmable time delay LED working lights after engine shutdown
ENGINE
- C7.1 diesel engine
- Three selectable modes: Power, Smart, Eco
- 4500 m (14,760 ft) altitude capability with engine power derate above 3000 m (9,840 ft)
- 43°C (109°F) high-ambient cooling capacity with derate
- Cold start capability-20°C (-4°F)
- Reversible electric cooling fans
- Cold start, ether start
HYDRAULIC SYSTEM
- Electric main control valve
- Boom and stick regeneration circuits
- Automatic hydraulic oil warm up
- Boom and stick lowering control check valves
- Tandem type electronic main pump
- Element type main hydraulic filter
- Heavy lift mode
- Fine swing control function
SAFETY AND SECURITY
- One key security system
- Door and cap lock
- Travel/swing lock
- Signaling/warning horn
- Travel alarm
- Secondary engine shutoff switch
- Openable rear window as emergency exit
- Bolt-on FOGS
- Rearview camera
- Right-side-view camera
- Right-side front-view mirror
UNDERCARRIAGE AND STRUCTURES
- 7700 kg (16,975 lb) counterweight
- All wheel drive
- Automatic brake/axle lock
- Creeper speed
- Electronic swing and travel lock
- Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force
- Lockable, oscillating front axle with remote greasing point
- Two speed hydrostatic transmission
- Tie down points on base frame (ISO 15818 compliant)
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 9.3 m (30'6") Material Handler boom
- Log Loader Boom
- 7.1 m (23'3") Industrial stick
- 5.7 m (18'7") Industrial stick
- Log Loader Over-Under front
- 9.9m (32' 6") Barge Boom
CAB
- Two-piece, high impact resistant laminated windshield (P8B)
- Auxiliary relay
ELECTRICAL SYSTEM
- Generator, 20 kW with wiring to stick nose
- Rotating beacon
ENGINE
- Cold start, block heater
HYDRAULIC SYSTEM
- Boom and stick lowering control check valves
- Smart Boom
UNDERCARRIAGE AND STRUCTURES
- 16.00-25 single solid rubber tires
- 23.5-R25 XHA2 (Michelin) tires
