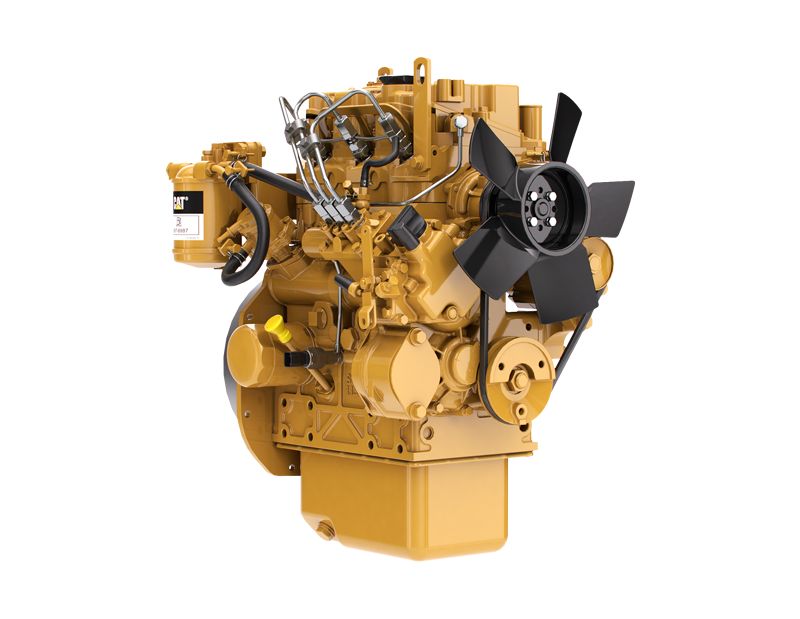

Cat?� C1.1 Diesel Engine

Cat?� C1.1 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs.

Photos

  • C1.1 Tier 4 Diesel Engines - Highly Regulated
    C1.1 Tier 4 Diesel Engines - Highly Regulated

Documents

Features

Reliable power

Reliable power

Manufactured in some of the world's most modern and highly-automated production facilities, the Cat® C1.1 is proven to deliver durable power and offers a wide range of customization options that refuse to compromise quality and durablity.

Reliable power

Manufactured in some of the world's most modern and highly-automated production facilities, the Cat® C1.1 is proven to deliver durable power and offers a wide range of customization options that refuse to compromise quality and durablity.

Compact size

Compact size

With a 18.4 kW (24 hp) power rating, the C1.1 and the C1.1 turbo allows OEMs to consider different installation, operating and commercial requirements. These models are particularly adapted to machines where power from a small
package is crucial. And for jobs that require that extra bit of power, there's a turbocharged option that delivers in almost any condition, at any altitude.

Compact size

With a 18.4 kW (24 hp) power rating, the C1.1 and the C1.1 turbo allows OEMs to consider different installation, operating and commercial requirements. These models are particularly adapted to machines where power from a small
package is crucial. And for jobs that require that extra bit of power, there's a turbocharged option that delivers in almost any condition, at any altitude.

Quiet work

Quiet work

The stiff block and indirect injection system in the C1.1 were built for quiet so worksites are safer, operators are less
fatigued and noise levels in regulated areas aren't exceeded.

Quiet work

The stiff block and indirect injection system in the C1.1 were built for quiet so worksites are safer, operators are less
fatigued and noise levels in regulated areas aren't exceeded.

Specifications

  • Power Rating
    Spec Value
    Maximum Power 24 hp
    Maximum Torque 63 lb-ft @ 1600 rpm
    Rated Speed 2800 rpm
    Minimum Power 19.3 hp
  • Emission Standards
    Spec Value
    Emissions U.S. EPA Tier 4 Final, EU Stage V
  • General
    Spec Value
    Engine Configuration In-Line 3
    Bore 3 in
    Stroke 3.2 in
    Displacement 69 in³
    Compression Ratio 23.0:1
    Aspiration Naturally Aspirated (NA)/Turbocharged (T)
    Combustion System Indirect Injection
    Rotation from Flywheel End Counterclockwise
    Aftertreatment -
  • Engine Dimensions - Approximate
    Spec Value
    Length 19.3 in
    Width 15.8 in
    Height 22.7 in
    Weight - Net Dry - Basic Operating Engine Without Optional Attachments 211 lb

Standard Equipment

Air Inlet System

  • Inlet manifold with choice of inlets.

Control System

  • Alternator 12 volt 65 amp
  • Starter motor 12 volt
  • Glow plug starting aid

Cooling System

  • Belt-driven coolant pump
  • Coolant temperature switch

Flywheel and Flywheel Housing

  • SAE No. 6 1/2 flywheel
  • Choice of SAE No. 5 or standard backplate flywheel housing
  • U.S. EPA Tier 4 Final: Standard backplate flywheel housing and flatface flywheel

Fuel System

  • Fuel injection pump
  • Spin-on fuel filter

Lube System

  • Low profile oil pan
  • Spin-on lube oil filter
  • Lube oil pressure switch

Power Take Off (PTO)

  • Provision for Power Take Off (PTO)

General

  • Cast iron, engine block
  • Cast iron exhaust manifold--side outlet
  • Cold start capability to -20° C (-4° F)
  • Paint: Caterpillar yellow, with optional colors available at request
