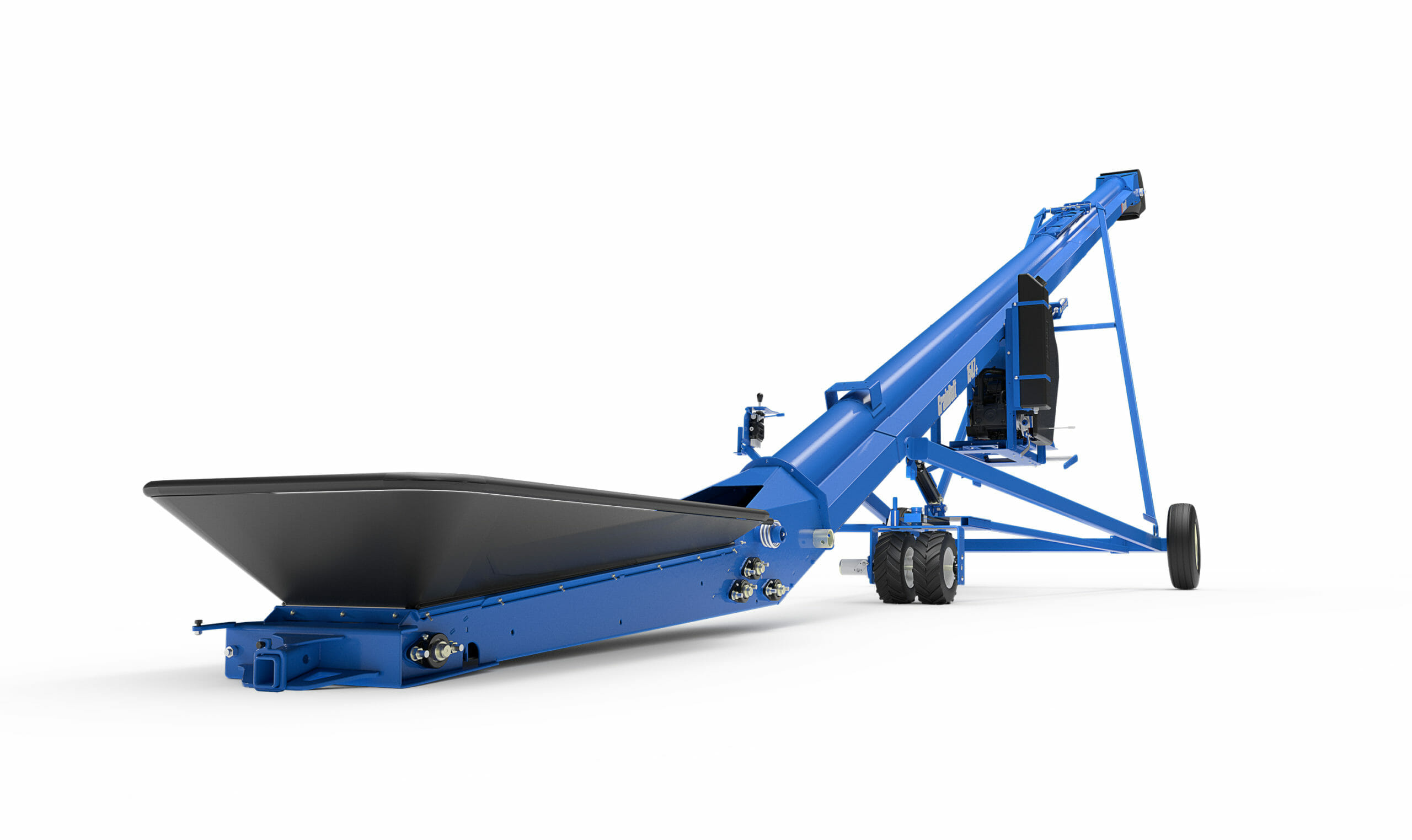

Field GrainBelts

Fast and Efficient Conveyors

Move large amounts of grain quickly, efficiently, and gently with Brandt’s versatile Field GrainBelts belt conveyors. Whether you want to move grain from a truck to an air cart or from a storage system to a transport truck, a Field GrainBelt can handle the job with ease while protecting your seed investment and maintaining grain quality.

Durable and easy to transport, these conveyors come in a variety of configurations to meet your grain handling needs. The Brandt 15 Series Field GrainBelt and its 15” belt width offers a variety of top-drive and S-drive models with a capacity range of 5,000 – 9,000 bushels per hour. The 20 Series and its 20” belt width offers a capacity of up to 14,000 bushels per hour.

The 15 Series and 20 Series Field GrainBelts extend up to 16 inches and collapse to 8 inches (15 Series) and 9.5 inches (20 Series). These unique low-profile hoppers easily fit under center dump grain trucks, hopper bottom bins, and center bin unload systems.

Brandt’s EZTRAK tensioning and tracking system keeps your belt aligned and properly tensioned at all times. A patented steel envelope keeps the belt aligned while the heavy-duty springs maintain consistent belt tension. The visual tension indicator makes it easy to see when adjustment is needed.

Photos

Specifications

  • 1535TDLP
    Spec Value
    Capacity 5,000 bu/hr
    Recommended horsepower gas/diesel N/A
    Recommended horsepower electric 5* - 7.5
    Hydraulic requirements 12 gpm @ 1,800 psi*
    Belt width 15"
    Conveyor length 37'
    Height raised 17'5"
    Reach raised 13.4' Elec/15' Hyd
    Reach lowered 15' Elec/ 17'3" Hyd
    Drive system Top-Drive
    Hopper style Low Profile
    Notes *Using the low horsepower electric motor option will reduce capacity to 4,500 bu/hr | Hydraulic Top Drive capacity is rated at 3,200 bu/hr and will vary depending on tractor hydraulic capabilities
  • 1545TDLP
    Spec Value
    Capacity 5,000 bu/hr
    Recommended horsepower gas/diesel N/A
    Recommended horsepower electric 7.5* - 10
    Hydraulic requirements 12 gpm @ 1,800 psi*
    Belt width 15"
    Conveyor length 47'
    Height raised 23'
    Reach raised 16'9" Elec/18'11" Hyd
    Reach lowered 20'3" Elec/23'1" Hyd
    Drive system Top-Drive
    Hopper style Low Profile
    Notes *Using the low horsepower electric motor option will reduce capacity to 4,500 bu/hr | Hydraulic Top Drive capacity is rated at 3,200 bu/hr and will vary depending on tractor hydraulic capabilities
  • 1545LP
    Spec Value
    Capacity 6,500 bu/hr
    Recommended horsepower gas/diesel 25*
    Recommended horsepower electric 15*, 20
    Hydraulic requirements N/A
    Belt width 15"
    Conveyor length 45'
    Height raised 21'1"
    Reach raised 18'2" (20'8" with EZMOVE)
    Reach lowered 19'3" (21'6" with EZMOVE)
    Drive system S-Drive
    Hopper style Low Profile
    Notes *SAE J1940 Gross Engine Horsepower | Lower HP engine yields approximately 20% less capacity
  • 1537LP+
    Spec Value
    Capacity 9,000 bu/hr
    Recommended horsepower gas/diesel* 25*, 35
    Recommended horsepower electric 15
    Hydraulic requirements N/A
    Belt width 15"
    Conveyor length 37'
    Height raised 17'7" (17'10" with EZMOVE)
    Reach raised 16' (15'4" with EZMOVE)
    Reach lowered 17'9" (16'7" with EZMOVE)
    Drive system S-Drive
    Hopper style Low Profile
    Notes *SAE J1940 Gross Engine Horsepower | Using the 25hp engine will result in a 7,500 bu/hr capacity
  • 1547LP+
    Spec Value
    Capacity 9,000 bu/hr
    Recommended horsepower gas/diesel* 25*, 35
    Recommended horsepower electric 20
    Hydraulic requirements N/A
    Belt width 15"
    Conveyor length 47'
    Height raised 22'9" (22'8" with EZMOVE)
    Reach raised 20'10" (20'4" with EZMOVE)
    Reach lowered 23'2" (22'4" with EZMOVE)
    Drive system S-Drive
    Hopper style Low Profile
    Notes *SAE J1940 Gross Engine Horsepower | Using the 25hp engine will result in a 7,500 bu/hr capacity
  • 1552LP+
    Spec Value
    Capacity 7,500 - 9,000 bu/hr
    Recommended horsepower gas/diesel* 35
    Recommended horsepower electric 25
    Hydraulic requirements N/A
    Belt width 15"
    Conveyor length 52'
    Height raised 24'8"
    Reach raised 23'6"
    Reach lowered 36'
    Drive system S-Drive
    Hopper style Low Profile
    Notes *SAE J1940 Gross Engine Horsepower
  • 2045LP
    Spec Value
    Capacity 14,000* bu/hr
    Recommended horsepower gas/diesel* 35
    Recommended horsepower electric 20
    Hydraulic requirements N/A
    Belt width 20"
    Conveyor length 47'11"
    Height raised 21'3"
    Reach raised 17'3"
    Reach lowered 19'7"
    Drive system S-Drive
    Hopper style Low Profile
    Notes *Capacity is achieved with 35 hp diesel engine (gas engine yields 12,000 bu/hr) | SAE J1940 Gross Engine Horsepower
  • 2055LP
    Spec Value
    Capacity 14,000* bu/hr
    Recommended horsepower gas/diesel* 35
    Recommended horsepower electric 20
    Hydraulic requirements N/A
    Belt width 20"
    Conveyor length 55'
    Height raised 25'5"
    Reach raised 22'10"
    Reach lowered 24'6"
    Drive system S-Drive
    Hopper style Low Profile
    Notes *Capacity is achieved with 35 hp diesel engine (gas engine yields 12,000 bu/hr) | SAE J1940 Gross Engine Horsepower
