New Equipment

Caterpillar

307.5 Mini Hydraulic Excavator

Net Power

54.8 HP

Operating Weight

17905 lb

Dig Depth

182.8 in

Overview

The Cat® 307.5 Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Photos

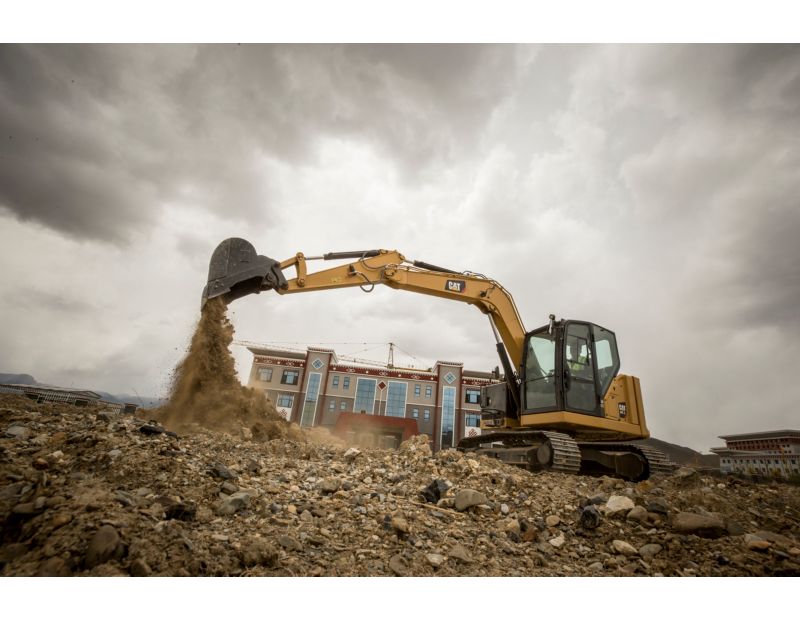

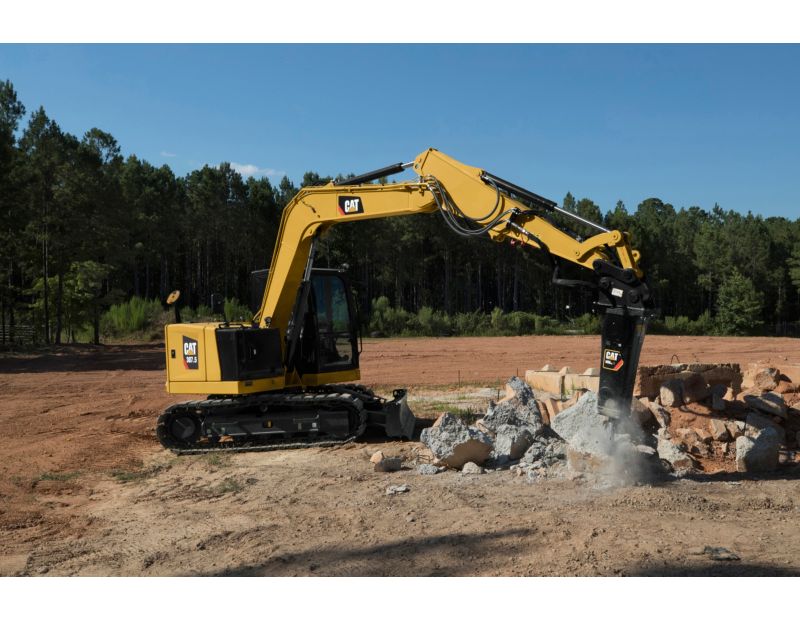

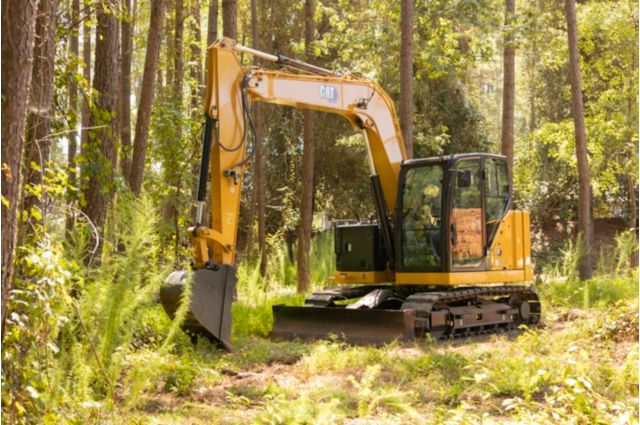

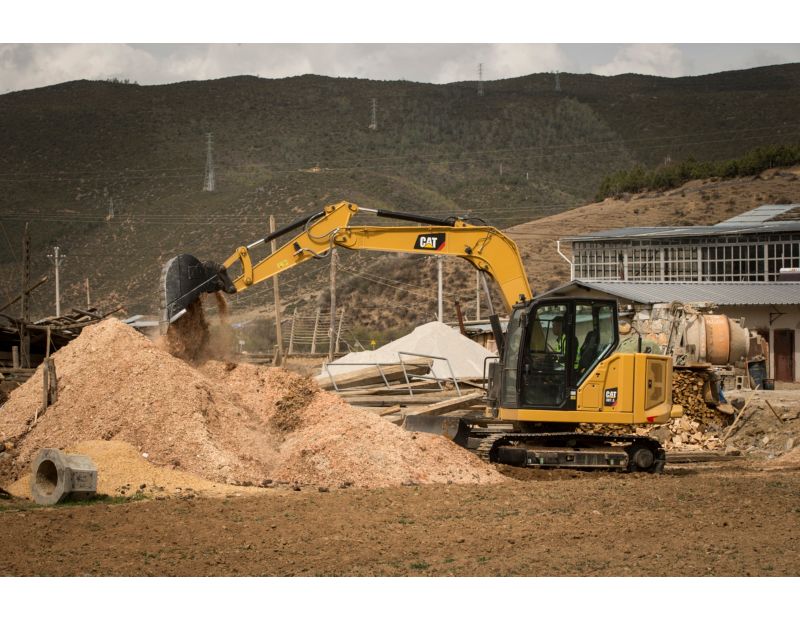

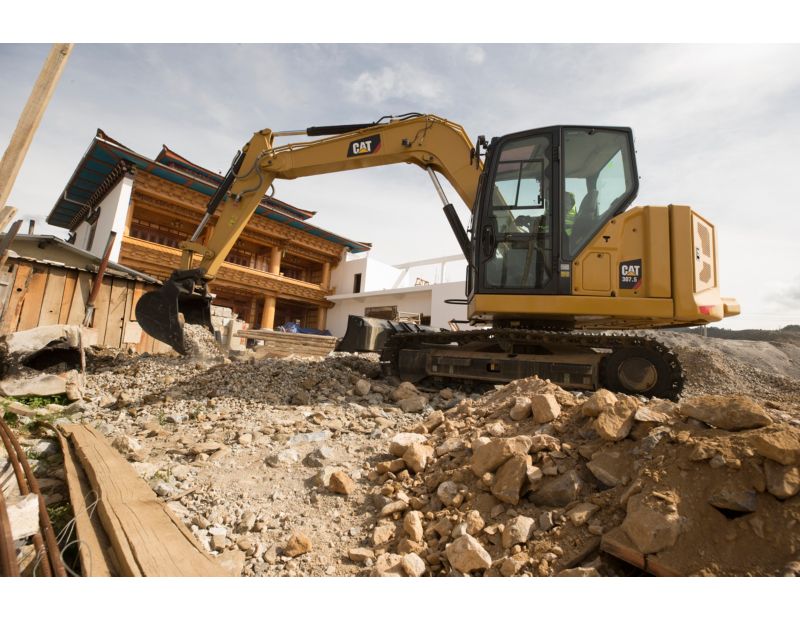

  • 307.5 Mini Hydraulic Excavator
    307.5 Mini Hydraulic Excavator
  • 307.5 Mini Hydraulic Excavator
    307.5 Mini Hydraulic Excavator
  • 307.5 Mini Hydraulic Excavator
    307.5 Mini Hydraulic Excavator
  • 307.5 Mini Hydraulic Excavator
    307.5 Mini Hydraulic Excavator
  • 307.5 Mini Hydraulic Excavator
    307.5 Mini Hydraulic Excavator

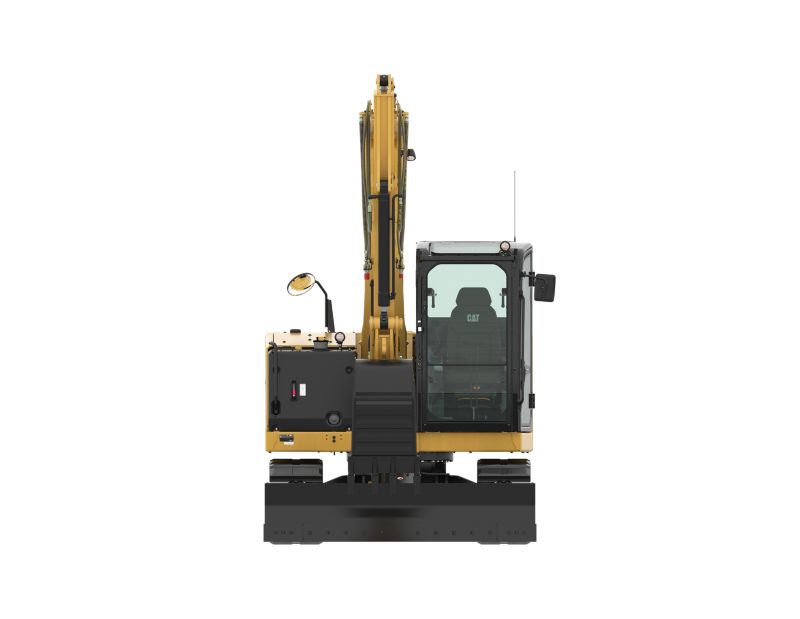

  • Front View
    Front View

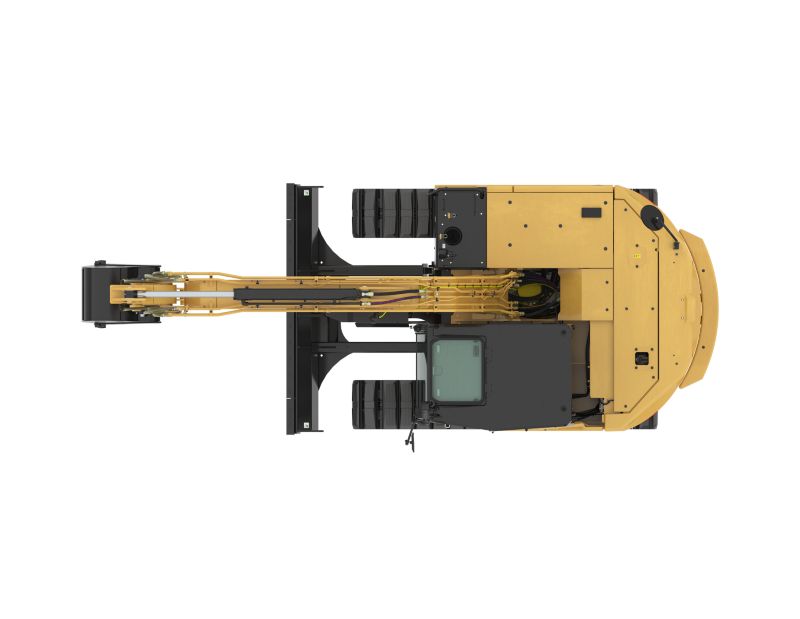

  • Top View
    Top View

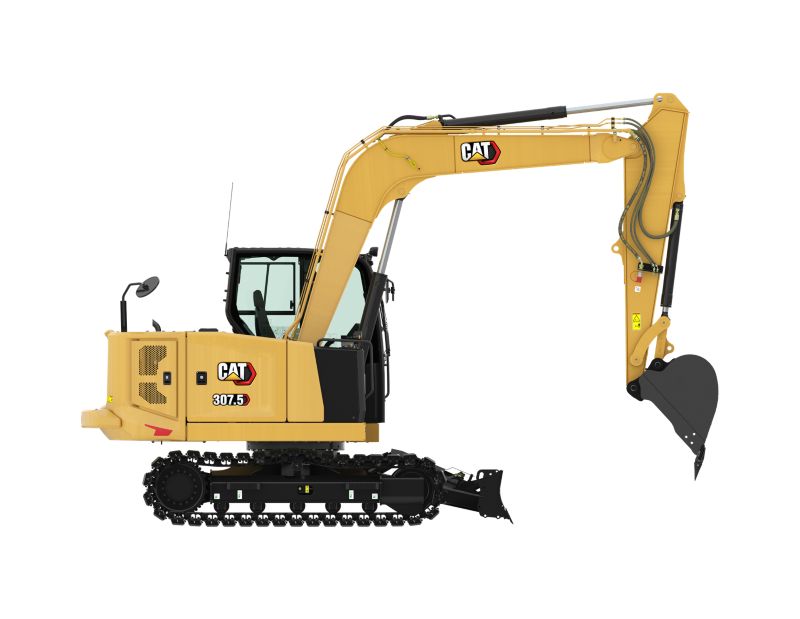

  • Left View
    Left View
  • Rear View
    Rear View

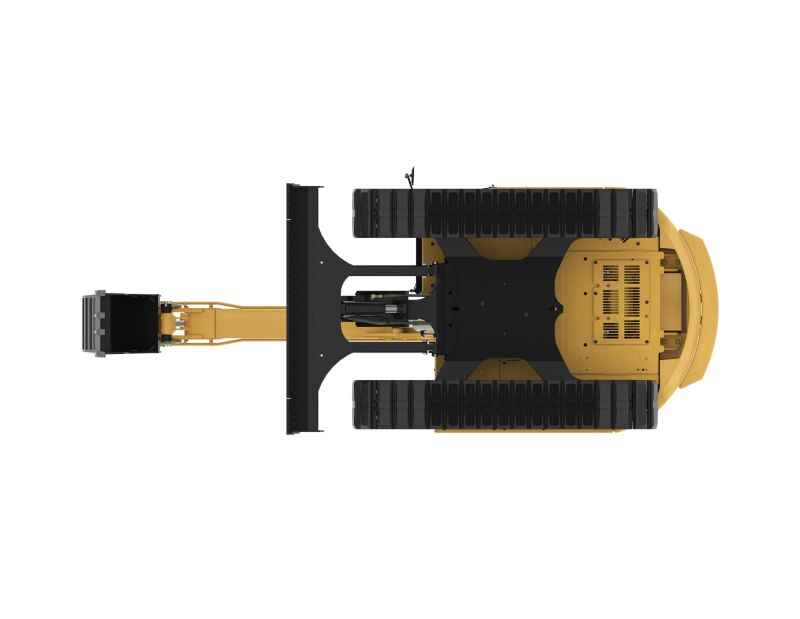

  • Bottom View
    Bottom View
  • Right View
    Right View
  • 307.5 Mini Hydraulic Excavator
    307.5 Mini Hydraulic Excavator

Videos

  • See the new Cat 7-10 Ton Mini Excavators in action.
  • Learn about the features and benefits of the new Cat 7-10 Ton Mini Excavators.
  • Easy to read monitor lets you adjust machine settings to your operating preference.
  • Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button.
  • Learn about the recommended Daily Maintenance and Inspection for the Cat 7 to 10 Ton Mini Excavators in this quick video.
  • Learn about the Safety Features on the Cat 7 to 10 Ton Mini Excavators in this quick video.

360° View

Exterior

Model shown represents features on all Cat® Mini Excavators except where indicated.

Interior

Model shown represents features on all Cat® Mini Excavators except where indicated.

Showroom

Virtual Product Tour

Documents

Features

ALL DAY COMFORT

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.
EASY TO OPERATE

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.
STICK STEER TRAVEL MODE

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
BIG PERFORMANCE IN A MINI DESIGN

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and blade float allows for easy grading.

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and blade float allows for easy grading.
SAFETY ON THE JOB SITE

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.
SIMPLE SERVICE FOR LESS DOWNTIME

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.
SUSTAINABILITY

SUSTAINABILITY

  • The Cat® C2.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

SUSTAINABILITY

  • The Cat® C2.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Specifications

  • Engine
    Spec Value
    Net Power 54.8 HP
    Displacement 148 in³
    Gross Power - SAE J1995 57.9 HP
    Bore 3.4 in
    Stroke 4 in
    Rated Net Power - 2,400 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269 54.8 HP
    Engine Model Cat C2.4 Turbo
  • Weights
    Spec Value
    Operating Weight 17905 lb
    Note (2) **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
    Maximum Operating Weight with Cab** 17905 lb
    Minimum Operating Weight with Cab* 16549 lb
    Note (1) *Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
  • Dimensions - Long Stick
    Spec Value
    Dig Depth 182.8 in
    Cab Height 100 in
    Maximum Blade Height 14.6 in
    Track Belt/Shoe Width 17.7 in
    Maximum Dump Clearance 225.1 in
    O/A Undercarriage Length 108.7 in
    O/A Track Width 86.6 in
    Vertical Wall 161.9 in
    Width over Upper House 88.6 in
    Boom In Reach 88.6 in
    Stick Length 86.9 in
    Tail Swing with Counterweight 76 in
    Maximum Reach 267.9 in
    Ground Clearance 14.6 in
    Swing Bearing - Height 29.7 in
    Tail Swing without Counterweight 70.9 in
    Maximum Dig Height 305.7 in
    Maximum Blade Depth 16 in
    Maximum Reach - Ground Level 262.6 in
    Height - Boom Transport - No Tools 100.4 in
    Overall Shipping Length - without Counterweight 240.9 in
    Overall Shipping Length - with Counterweight 246.1 in
    Note (1) Boom Height when stick is pinned in transport position with no attachments.
    Height - Boom Working - With Tools 124 in
    Note (2) Boom Height when stick is pinned in working position with attachments.
  • Weight Increase from Minimum Configuration
    Spec Value
    Long Stick 181 lb
    Counterweight 552 lb
    Steel Tracks with Pads 628 lb
  • Travel System
    Spec Value
    Maximum Traction Force - Low Speed 14035 lb
    Maximum Traction Force - High Speed 5856 lb
    Travel Speed - High 3.1 mile/h
    Ground Pressure - Maximum Weight 5.5 psi
    Travel Speed - Low 1.9 mile/h
    Gradeability - Maximum 30 degrees
    Ground Pressure - Minimum Weight 5.1 psi
  • Service Refill Capacities
    Spec Value
    Cooling System 2.6 gal (US)
    Hydraulic System 29 gal (US)
    Hydraulic Tank 14 gal (US)
    Fuel Tank 38 gal (US)
    Engine Oil 2.5 gal (US)
  • Hydraulic System
    Spec Value
    Type Load Sensing Hydraulics with Variable Displacement Piston Pump
    Operating Pressure - Swing 3626 psi
    Note Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
    Pump Flow at 2,400 rpm 44 gal/min
    Digging Force - Stick - Standard 8504 lb
    Operating Pressure - Travel 4134 psi
    Operating Pressure - Equipment 4134 psi
    Digging Force - Stick - Long 7579 lb
    Digging Force - Bucket 12272 lb
    Maximum Auxiliary Circuit - Secondary - Flow at Pump 9 gal/min
    Maximum Auxiliary Circuit - Secondary - Pressure at Pump 4134 psi
    Maximum Auxiliary Circuit - Primary - Flow at Pump 35 gal/min
    Maximum Auxiliary Circuit - Primary - Pressure at Pump 4134 psi
  • Swing System
    Spec Value
    Machine Swing Speed 10 r/min
  • Blade
    Spec Value
    Height 17 in
    Width 90 in
  • Certification - Cab
    Spec Value
    Roll Over Protective Structure (ROPS) ISO 12117-2:2008
    Top Guard ISO 10262:1998 (Level I)
    Tip Over Protective Structure (TOPS) ISO 12117:1997
  • Sound
    Spec Value
    Operator Sound Pressure (ISO 6396:2008) 72 dB(A)
    Average Exterior Sound Pressure (ISO 6395:2008) 98 dB(A)
    Note European Union Directive “2000/14/EC”
  • Air Conditioning System
    Spec Value
    Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains .90 kg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes.
  • Dimensions - Standard Stick
    Spec Value
    Tail Swing with Counterweight 76 in
    Vertical Wall 141.6 in
    Tail Swing without Counterweight 70.9 in
    Stick Length 65.6 in
    Boom In Reach 66.2 in
    Track Belt/Shoe Width 17.7 in
    Ground Clearance 14.6 in
    O/A Track Width 86.6 in
    Maximum Reach - Ground Level 242.1 in
    O/A Undercarriage Length 108.7 in
    Width over Upper House 88.6 in
    Maximum Reach 247.9 in
    Swing Bearing - Height 29.7 in
    Maximum Blade Height 14.6 in
    Maximum Blade Depth 16 in
    Dig Depth 161.4 in
    Maximum Dump Clearance 208.6 in
    Cab Height 100 in
    Maximum Dig Height 289.3 in
    Height - Boom Working - With Tools 107.5 in
    Overall Shipping Length - with Counterweight 245.3 in
    Note (2) Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
    Overall Shipping Length - without Counterweight 240.2 in
    Height - Boom Transport - No Tools 101.2 in
    Note (1) Boom Height when stick is pinned in transport position with no attachments.
  • Sustainability
    Spec Value
    Recyclability 96%

Standard Equipment

ENGINE

  • Cat C2.4 Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)
  • Automatic Engine Idle
  • Automatic Engine Shutdown
  • Automatic Swing Brake
  • Automatic Two Speed Travel
  • Fuel Water Separator with Indicator
  • Radial Seal – Double Element Air Filter
  • Extended Life Coolant, –37° C ( –37° F)

HYDRAULICS

  • Smart Tech Electronic Pump
  • Variable Displacement Piston Pump
  • Load Sensing/Flow Sharing Hydraulics
  • Power On Demand
  • Hydraulic Temperature Monitoring
  • Certified Accumulator
  • HYDO Advanced Hydraulic Oil

OPERATOR ENVIRONMENT

  • Top Guard ISO 10262 1998 Level I
  • ROPS ISO 12117-2:2008
  • Stick Steer Mode
  • Travel Cruise Control
  • Control Pattern Changer
  • Adjustable Wrist Rests
  • Molded Footrests
  • Removable, Washable Floor Mat
  • Travel Pedals and Hand Levers
  • Cat Key with Passcode Option
  • HVAC with Automatic Temperature Control
  • Hydraulic Lockout Controls
  • Integrated Lower Front Window
  • Assisted Front Window Overhead Storage
  • Rear Window Emergency Exit
  • Fabric, High Back, Suspension Seat
  • Retractable Seat Belt (75 mm/3 in)
  • Coat Hook
  • Cup Holder
  • LED Interior Light
  • Literature Holder
  • Mounting Bosses for Top and Front Guards
  • 12V Power Socket
  • Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only)
  • Skylight
  • Signaling/Warning Horn
  • Cab and (left side) Boom Work Lights
  • Utility Space for Mobile Phone
  • Next Generation Color LCD Monitor (IP66)
    – Jog Dial Interface (cab machines only)
    – Fuel Level and Coolant Temperature Gauges
    – Maintenance and Machine Monitoring
    – Performance and Machine Adjustments
    – Numeric Security Code
    – Multiple Languages
    – Camera Ready (IP68 & IP69K)
    – Hour Meter with Wake Up Switch

UNDERCARRIAGE

  • Greased and Lubricated Track
  • Tie Down Eyes on Track Frame
  • Dozer Straight Blade
  • Dozer Float
  • Bolt-on, Reversible Wear Edge

BOOM, STICK AND LINKAGES

  • One Piece Boom (3700 mm/145.7 in)
  • Standard Stick (1665 mm/65.6 in)
  • Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler for Cat Tools
  • Thumb Ready (not available in all regions)
  • Certified Lifting Eye (optional in some regions)

ELECTRICAL

  • 12 Volt Electrical System
  • 90 Ampere Alternator
  • 900 CCA Maintenance Free Battery
  • Battery Disconnect
  • Ignition Key Stop Switch
  • Product Link™ Basic (regulations apply)
  • Travel Alarm

OTHER

  • Locks on External Enclosure Doors
  • Lockable Fuel Cap
  • Beacon Socket
  • Rear Reflectors

Optional Equipment

OPERATOR ENVIRONMENT

  • Air Suspension Heated Seat
  • Rain Visor
  • Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option)
    – Jog Dial Control Interface
    – Touch Screen
    – Site Reference System
    – High Definition Camera Capable (IP68 & IP69K)
    – Numeric Security Code

UNDERCARRIAGE

  • Steel Tracks (450 mm/17.7 in wide)
  • Wide Steel Tracks (600 mm/23.6 in)
  • Steel Track with Rubber Pads
  • Track Guides

BOOM, STICK AND LINKAGES

  • Long Stick (2200 mm/86.6 in)
  • Attachments including Buckets, Augers and Hammers
  • 2nd Auxiliary Hydraulic Lines
  • Boom Lowering Check Valve
  • Stick Lowering Check Valve
  • Bucket Linkage with Lift Eye

ELECTRICAL

  • Product Link Elite (regulations apply)
  • Rearview Camera
  • Rotating Beacon

GUARDING

  • Heavy Duty Front Guard ISO 10262 1998 Level II
  • Mesh Front Guard ISO 10262 1998 Level I
  • Overhead Cab Guard ISO 10262 1998 Level II
  • Polycarbonate Front Window EN356 P5A (Cab Only)
  • Track Guards

OTHER

  • Water Jacket Heater
  • Refueling Pump

Related Products

Mobile Scrap & Demolition Shears

Studio Shot S308
