Cat Customizable Switchgear and Controls

Custom Switchgear and controls are design to provide a power generation, automation and distribution system specific to electrical needs.

Photos

  • Cat XLM Switchgear

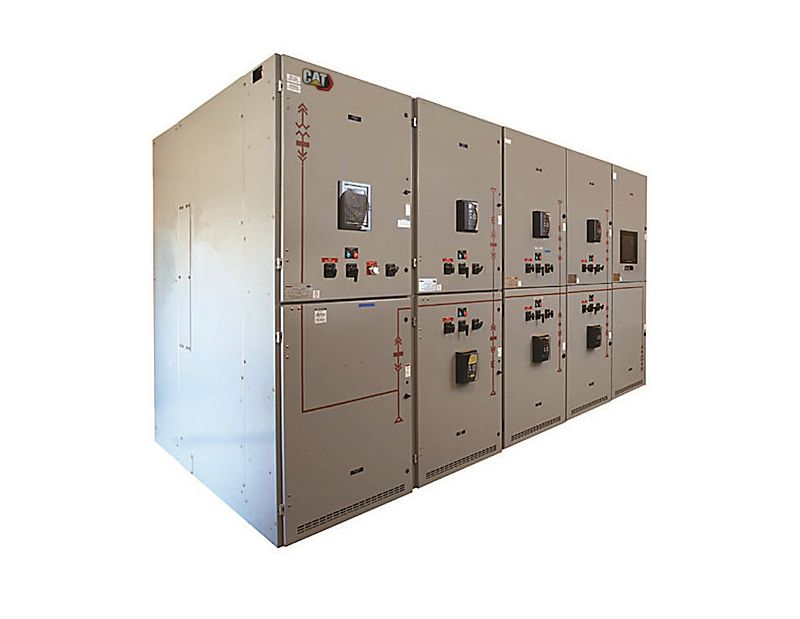

    Cat XLM Switchgear

Documents

Features

XLM Switchgear

XLM Switchgear

  • High Speed Supervisory Network
  • Automatic Start/Stop
  • Automatic “Dead Bus” Coordination
  • Automatic Power Factor Control when in Parallel with Utility Power
  • Programmable Load Shed / Load Add Functions
  • Networked Engine Communications
  • Generator & Utility Protection
  • Engine Tuning
  • Mode Selection
  • Selectable Auto/ Manual Control
  • Password Protection for Protective Settings and Setup
  • Load/No Load Test
  • Touch Screen (HMI) Display
  • NFPA 99/110 Compliant Alarm
  • Annunciation with Audible Horn
  • Engine Control mimic Screen with gauges for RPM, DC Battery Voltage, Oil Pressure, Engine Coolant temperature, Engine Hours, Number of starts

XLM Switchgear

  • High Speed Supervisory Network
  • Automatic Start/Stop
  • Automatic “Dead Bus” Coordination
  • Automatic Power Factor Control when in Parallel with Utility Power
  • Programmable Load Shed / Load Add Functions
  • Networked Engine Communications
  • Generator & Utility Protection
  • Engine Tuning
  • Mode Selection
  • Selectable Auto/ Manual Control
  • Password Protection for Protective Settings and Setup
  • Load/No Load Test
  • Touch Screen (HMI) Display
  • NFPA 99/110 Compliant Alarm
  • Annunciation with Audible Horn
  • Engine Control mimic Screen with gauges for RPM, DC Battery Voltage, Oil Pressure, Engine Coolant temperature, Engine Hours, Number of starts

Specifications

  • Technical Summary
    Spec Value
    Configuration Application-specific switchgear with control logic designed to meet any customer's sequence of operations. Examples are 3+ Utilities, CHP applications, complex load shed schemes, etc
    Modes of Operation All modes of paralleling generator sets to each other and to other sources (utility, alternative fuels, wind, etc) can be supported. Caterpillar generation and control experts can design and program the most complex power schemes to meet your critical power needs
    Application LV and MV ( 208V - 38 kV) 50 / 60 Hz
  • Generator Protective Devices
    Spec Value
    ANSI Protective Devices Per customer specification
  • Utility Protective Devices
    Spec Value
    ANSI Protective Devices Per customer specification
  • Environmental Parameters
    Spec Value
    Certifications Per customer specification
    Control Panel Enclosure Per customer specification
    Operating Temperature Per customer specification
    Storage Temperature Per customer specification
    Low Voltage Standards Per customer specification
    Medium Voltage Standards Per customer specification

Standard Equipment

Generator Demand Priority Control

  • Per customer specifications

Optional Equipment

Data Table Interface

  • Per customer specifications

Supplemental Hardware Synchronization check relay (ANSI 25 Device)

  • Per customer specifications

Remote Power Monitoring System

  • Per customer specifications
